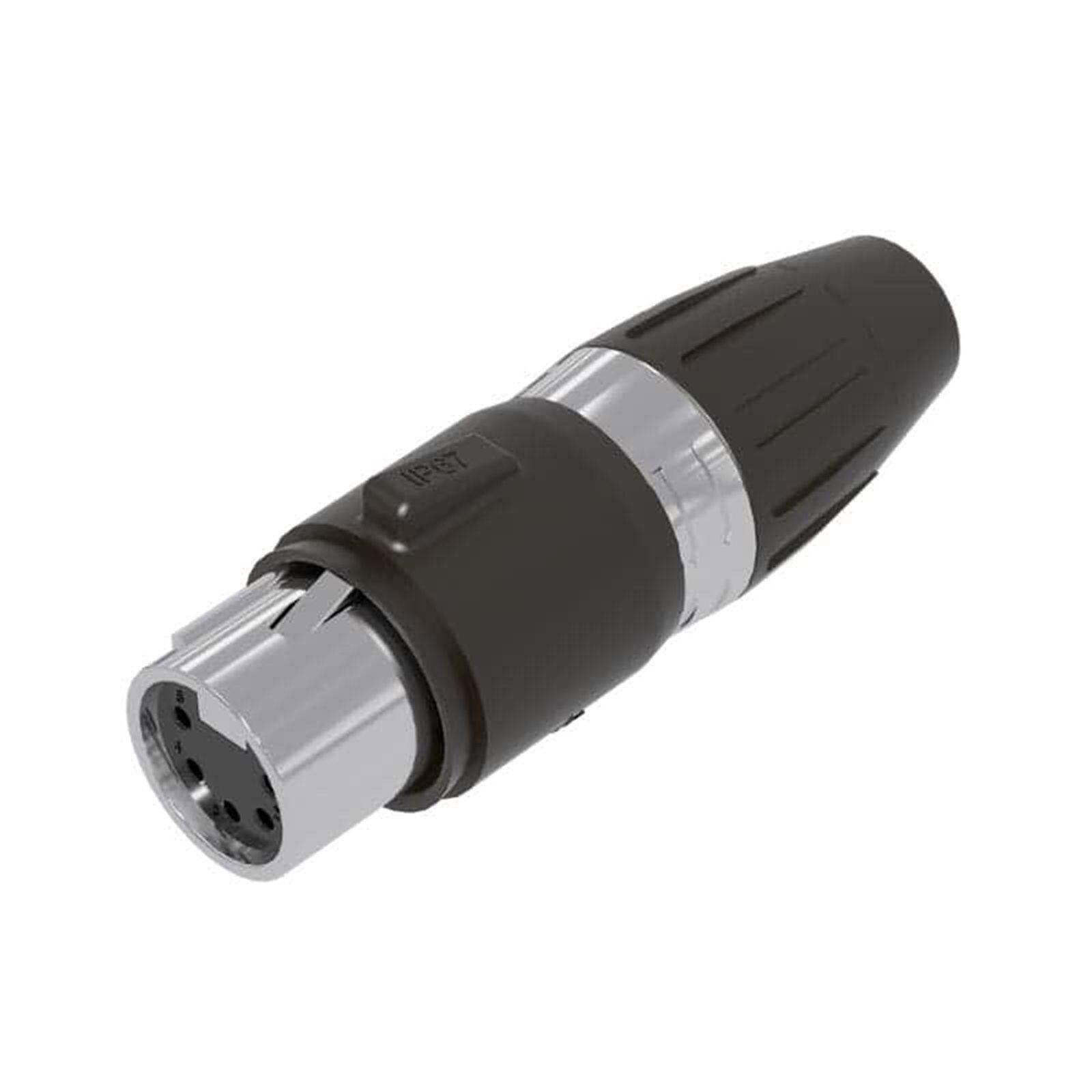

Seetronic 5-Pin Female XLR IP67 SCWF5-67

SKU: CONN1418
Seetronic

The Seetronic SCWF5‑67 is a rugged 5-pin XLR female cable connector engineered for high-performance signal transmission in outdoor industrial and stage environments. Featuring a chrome-plated zinc die-cast housing gold-plated copper alloy contacts and a polyurethane boot with strain relief it offers full IP67 protection low contact resistance and exceptional reliability under harsh conditions. Ideal for DMX lighting control and weatherproof audio systems.

• IP67-rated: fully protected against dust and water ingress
• Zinc die-cast housing with internal threads for durability and secure fit
• Gold-plated copper alloy contacts with ≤ 3 mΩ contact resistance
• Low capacitance ≤ 7 pF for noise-free signal transmission
• Polyurethane boot and POM strain relief protect against cable strain and flexing
• Latch-lock mechanism for secure mating under tension
• Cable diameter compatibility: 5–8 mm; supports conductors up to 1 mm² (18 AWG)
• Durability exceeds 1000 mating cycles; operating temp: –30 °C to +80 °C

• Connector Type: 5‑pin XLR female cable-mounted
• Rated Current: 7.5 A per contact
• Rated Voltage: < 50 V
• Contact Resistance: ≤ 3 mΩ
• Capacitance: ≤ 7 pF
• Dielectric Strength: 1500 V DC
• Insulation Resistance: > 10 GΩ
• Insertion/Withdrawal Force: ≤ 20 N
• Mechanical Life: > 1000 mating cycles
• Materials: Housing – zinc die-cast (chrome-plated) Boot – polyurethane Insert – PA Strain Relief – POM Contacts – gold-plated Cu alloy
• Cable Compatibility: 5–8 mm outer diameter up to 1 mm² (18 AWG) conductors
• Flame Rating: UL 94 HB
• Operating Temperature: –30 °C to +80 °C
• Protection: IP67 rated when mated
• Standards: IEC 61076‑2‑103; Solderability per IEC 68‑2‑20

---
