Seetronic 3-Pin Male XLR IP67 SCWM3-67

SKU: CONN1411
Seetronic

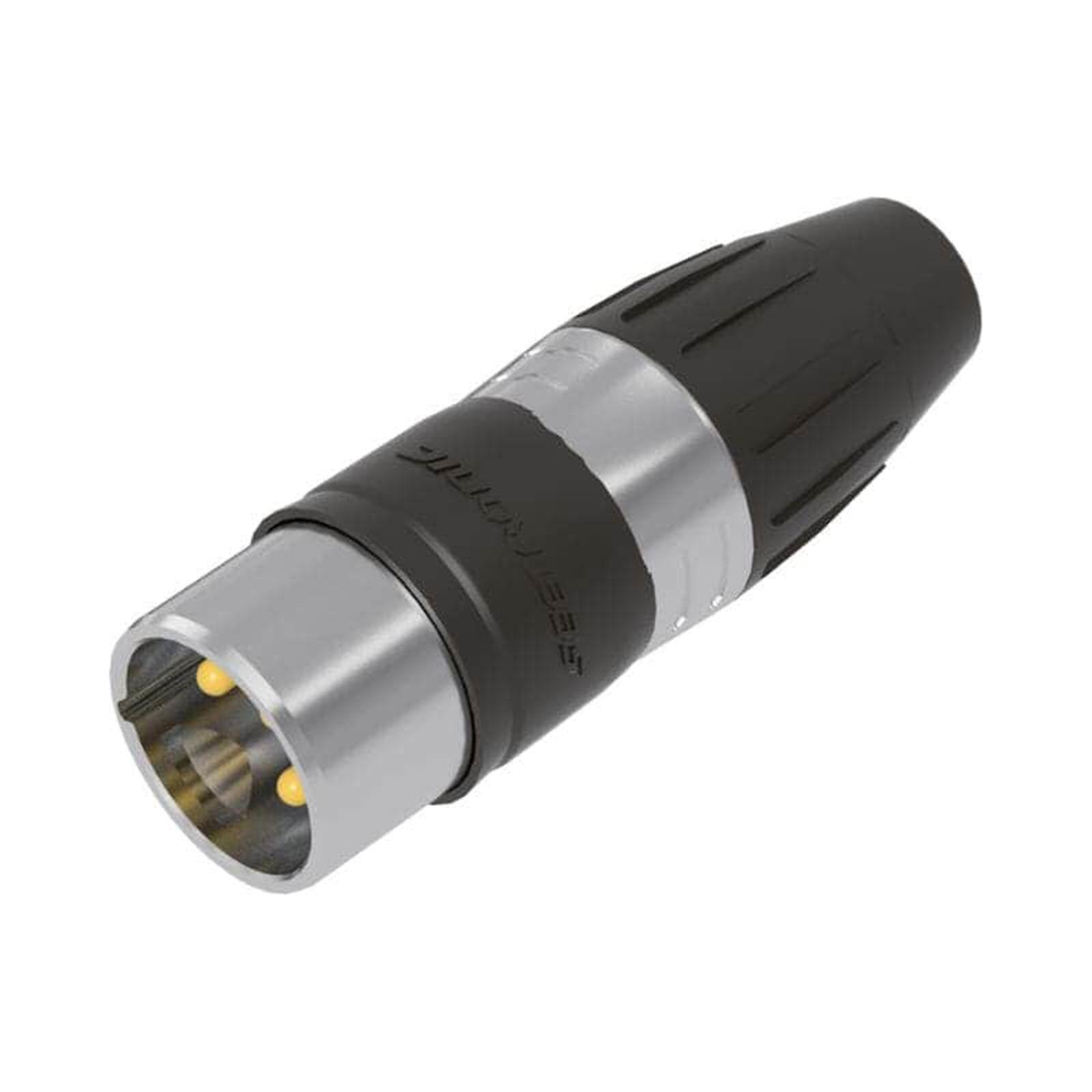

The Seetronic SCWM3‑67 is a rugged IP67-rated 3‑pin XLR male cable connector with a zinc die-cast housing latch-lock mechanism and polyurethane boot for enhanced strain relief and waterproof performance. Featuring gold-plated contacts it supports up to 16 A and is perfect for demanding outdoor audio stage broadcast and industrial applications.

• Rated IP67 for total dust and immersion protection
• Zinc die‑cast housing with internal threads for strong mechanical durability
• Gold-plated Cu-alloy contacts ensure low resistance (≤ 3 mΩ)
• Polyurethane strain‑relief boot reduces cable bending stress
• Latch-lock mechanism secures against accidental unplugging
• Supports up to 16 A contact current per IEC 61076‑2‑103
• Operates in environments from –30 °C to +80 °C

• Connection: 3‑pin XLR male cable connector
• Contact Resistance: ≤ 3 mΩ
• Insertion/Withdrawal Force: ≤ 20 N
• Service Life: > 1000 mating cycles
• Cable OD Supported: 5–8 mm; conductor size up to 2.5 mm² (14 AWG)
• Housing: Zinc alloy; Boot: Polyurethane; Insert: PA; Strain Relief: POM
• Standards: IEC 61076‑2‑103; Solderability: IEC 68‑2‑20
• Protection: IP67; Temperature Range: –30 °C to +80 °C
• Rated Current: 16 A; Rated Voltage: < 50 V

---
