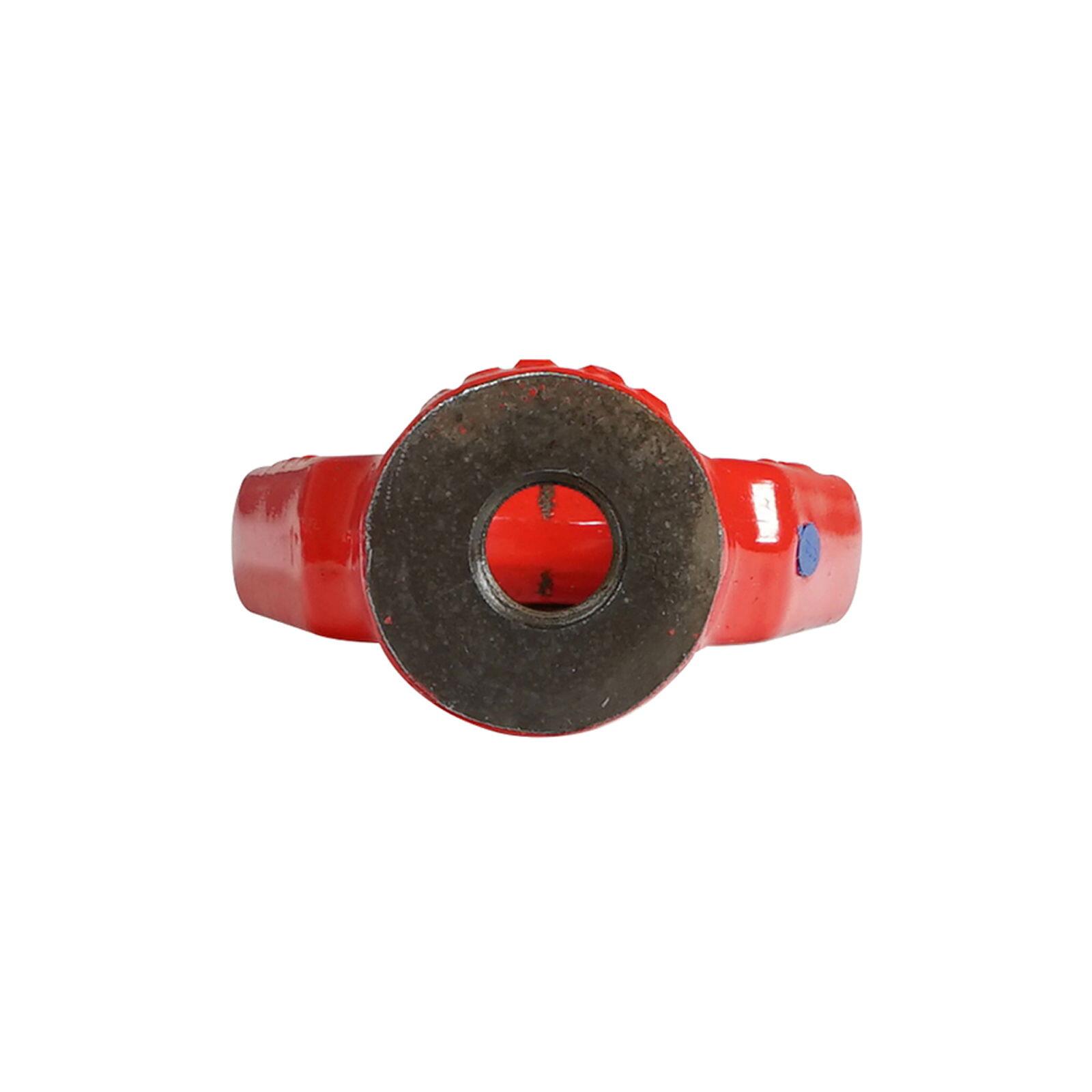

RUD M12 High Tensile Red Eyenut (55271)

SKU: RIGG038
RUD

High tensile eyenuts suitable for rigging applications in the event industry. The Octagonal shape denotes class 8 specification.

Higher WLL compared with DIN 582 eye nuts Identification: Distinct indication of WLL for the most unfavourable case (lateral load - not allowed with DIN 582) In order to guarantee the WLL the thread connection must be a minimum of 8.8 grade Operation temperature range WITHOUT reduction of WLL from -40° to 200°C Note: Eyenut must be bolt tightened during assembly to avoid twisting movements during transport or use.

Flange size: 30mm Hole diameter: 30mm Height: 54mm Thickness: 12mm WLL: 1.6t Weight: 0.17kg
