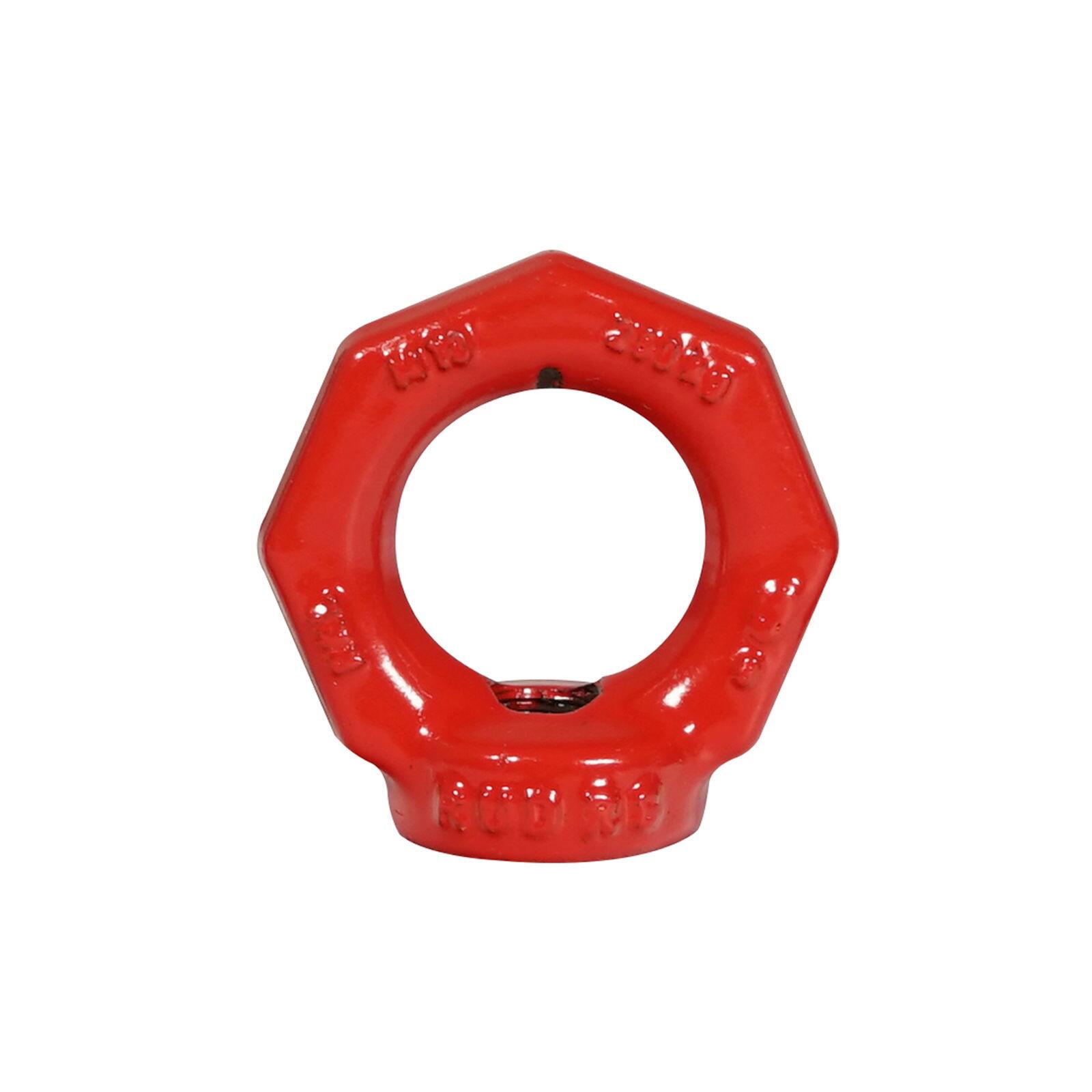

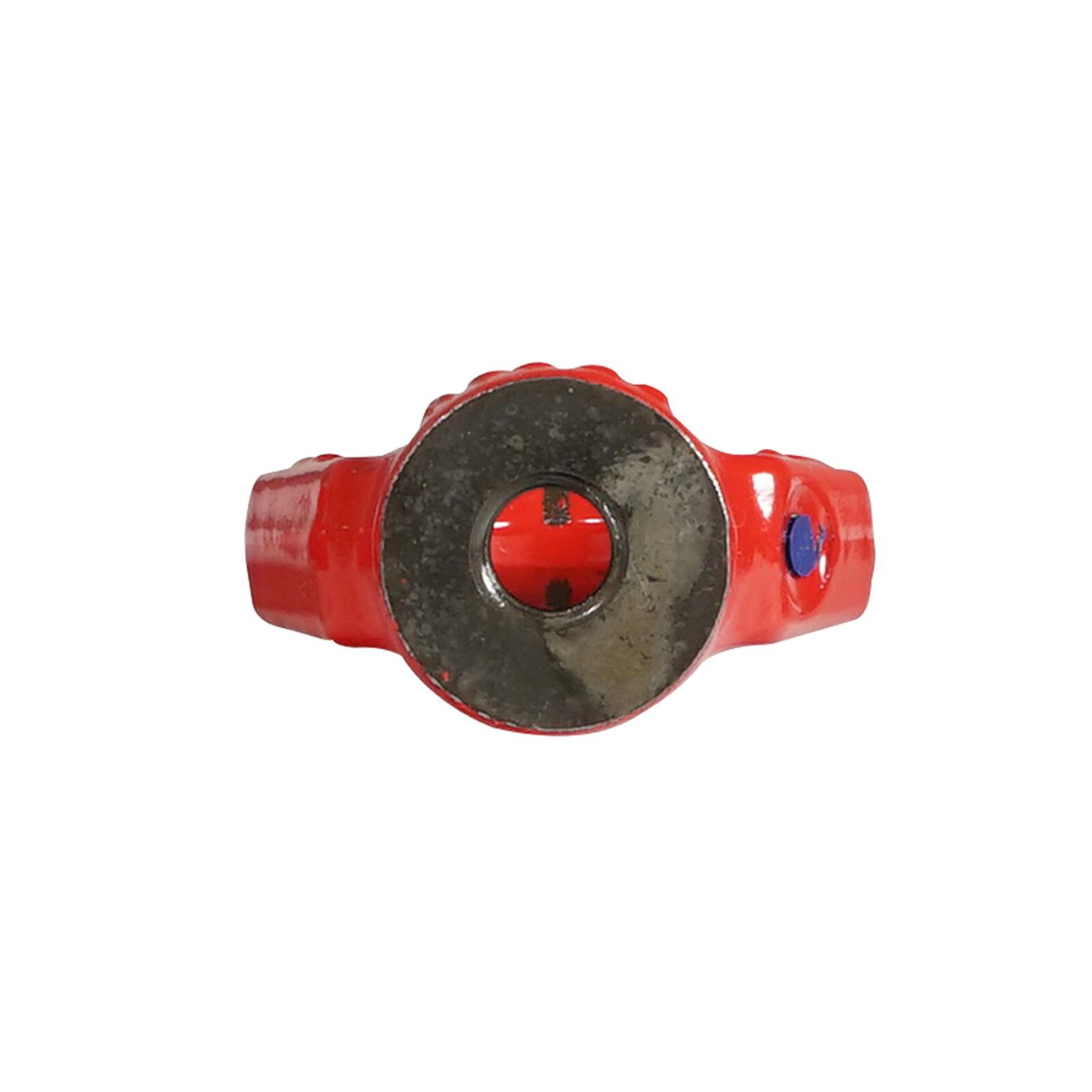

RUD M10 High Tensile Red Eyenut (55258)

SKU: RIGG037
RUD

High tensile eyenuts suitable for rigging applications in the event industry. The Octagonal shape denotes class 8 specification.
Higher WLL compared with DIN 582 eye nuts Identification: Distinct indication of WLL for the most unfavourable case (lateral load - not allowed with DIN 582) In order to guarantee the WLL the thread connection must be a minimum of 8.8 grade Operation temperature range WITHOUT reduction of WLL from -40° to 200°C Note: Eyenut must be bolt tightened during assembly to avoid twisting movements during transport or use.
Flange size: 25mm Hole diameter: 25mm Height: 45mm Thickness: 10mm WLL: 1t Weight: 0.17kg

---
