RCF TT808-AS, 2 x 8" Active High-Power Subwoofer 1000w Black

SKU: RCF TT808AS
RCF

TT 808-AS 2x8" High Output Active Subwoofer 1000W

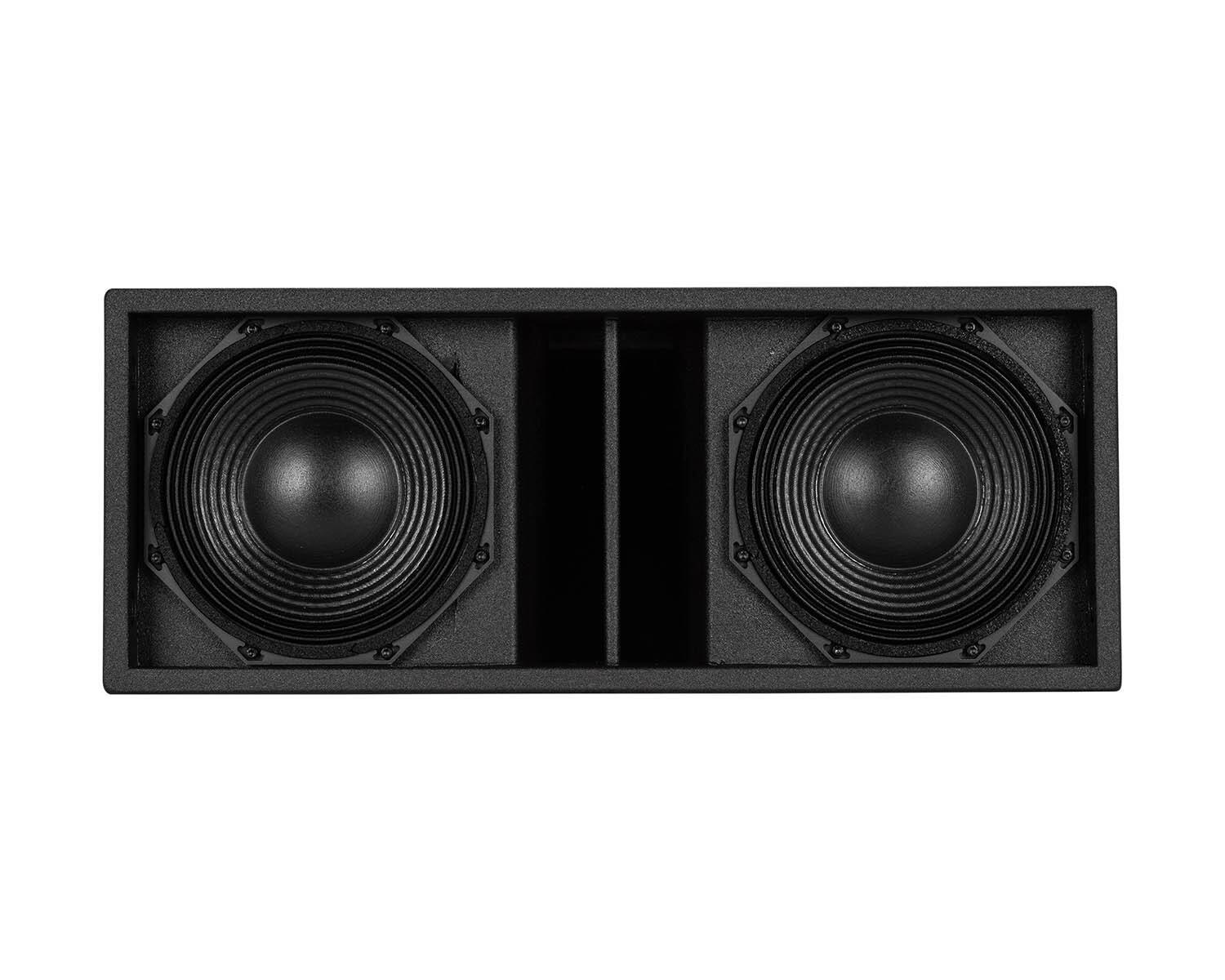

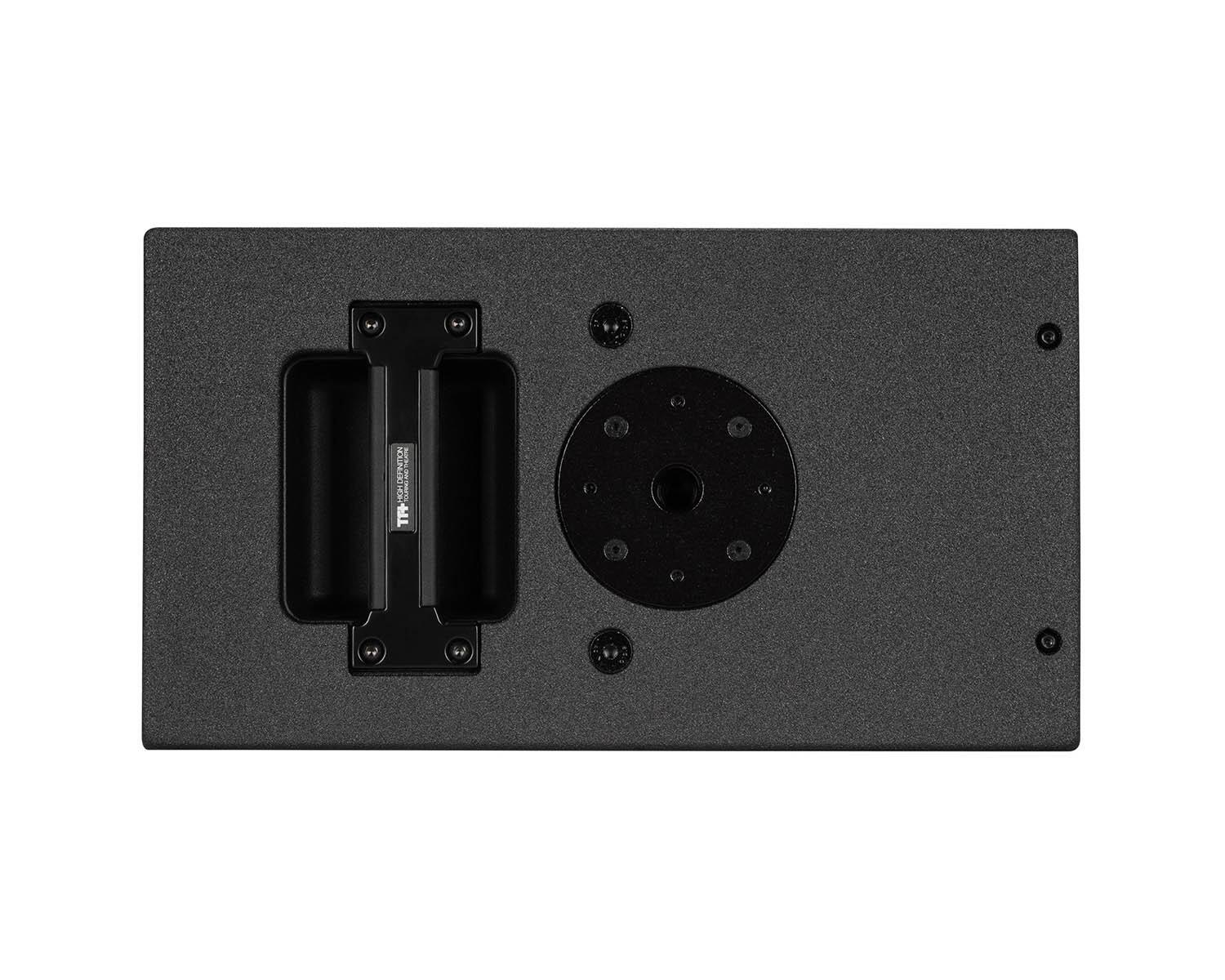

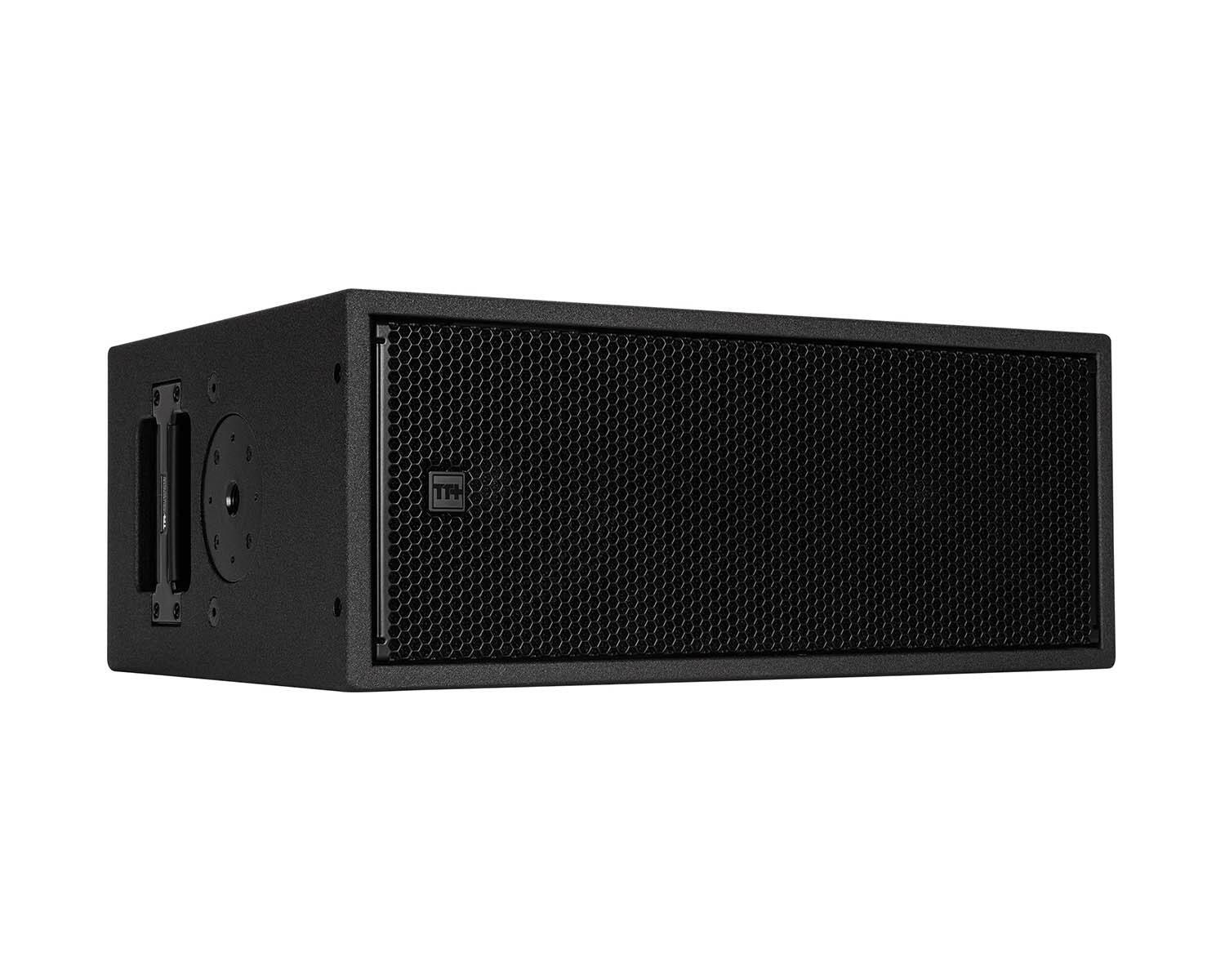

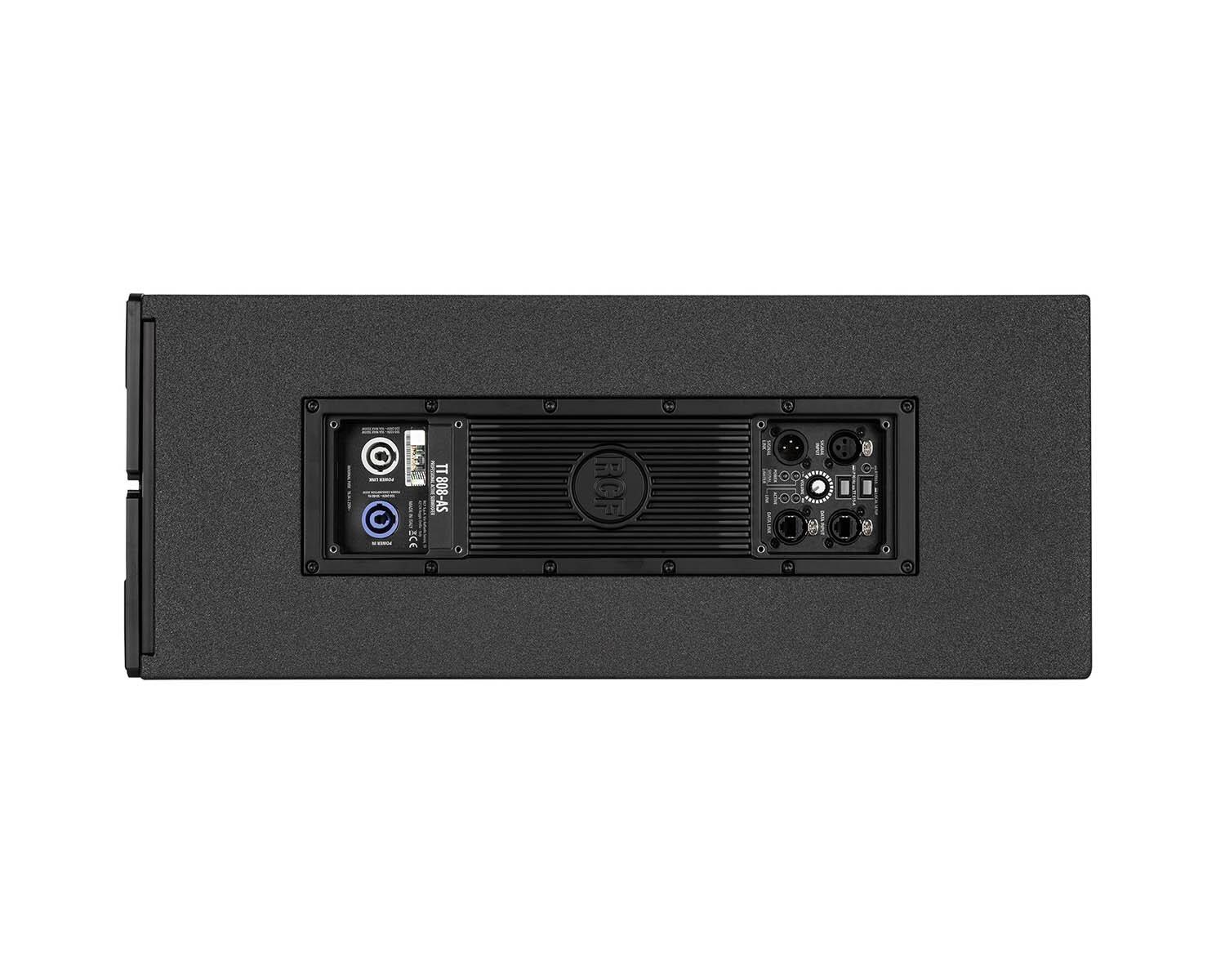

TT 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. TT 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for TT 515-A speaker.

To fit TT 515-A onto TT 808-AS Sub attach the PM-KIT TT 515 stand adapter to the underside of the TT 515, then mount on a pole (distance rod) with a 20mm threaded bottom such as the PM KIT-M20.

Product Features

• 129 dB max SPL
• 40 Hz to 400 Hz frequency range
• 1000 W RMS Class-D Amplifier
• 2 x 8'' neodymium woofers, 2.5'' v.c
• RDNet on board
• Bass Motion Control excursion management
• Flexible Rigging
• Rotatable TT+ Logo

Product Specifications

Acoustical specifications

• Frequency Response: 40 Hz ÷ 400 Hz
• Max SPL @ 1m: 129 dB
• Transducers
• Woofer: 2 x 8'' neo, 2.5'' v.c

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Protections: Excurs.
• Limiter: Fast Limiter
• Controls: Gain, Equalization, ByPass on boar
• RDNet: Yes

Power section

• Total Power: 2000 W Peak, 1000 W RMS
• Low frequencies: 2000 W Peak, 1000 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 2X M20 TOP AND SIDE
• 8X M10 2X SIDE
• Handles: 1 X SIDE
• Grille: Steel
• Colour: Black

Size

• Height: 243.5 mm / 9.59 inches
• Width: 603.5 mm / 23.76 inches
• Depth: 430 mm / 16.93 inches
• Weight: 20 kg / 44.09 lbs

Shipping information

• Package Height: 290 mm / 11.42 inches
• Package Width: 480 mm / 18.9 inches
• Package Depth: 650 mm / 25.59 inches
• Package Weight: 21 kg / 46.3 lbs
