RCF HD12A MK5 12 Active 2-Way Speaker 700W

SKU: RCF HD12A

Discontinued by the Manufacturer

RCF

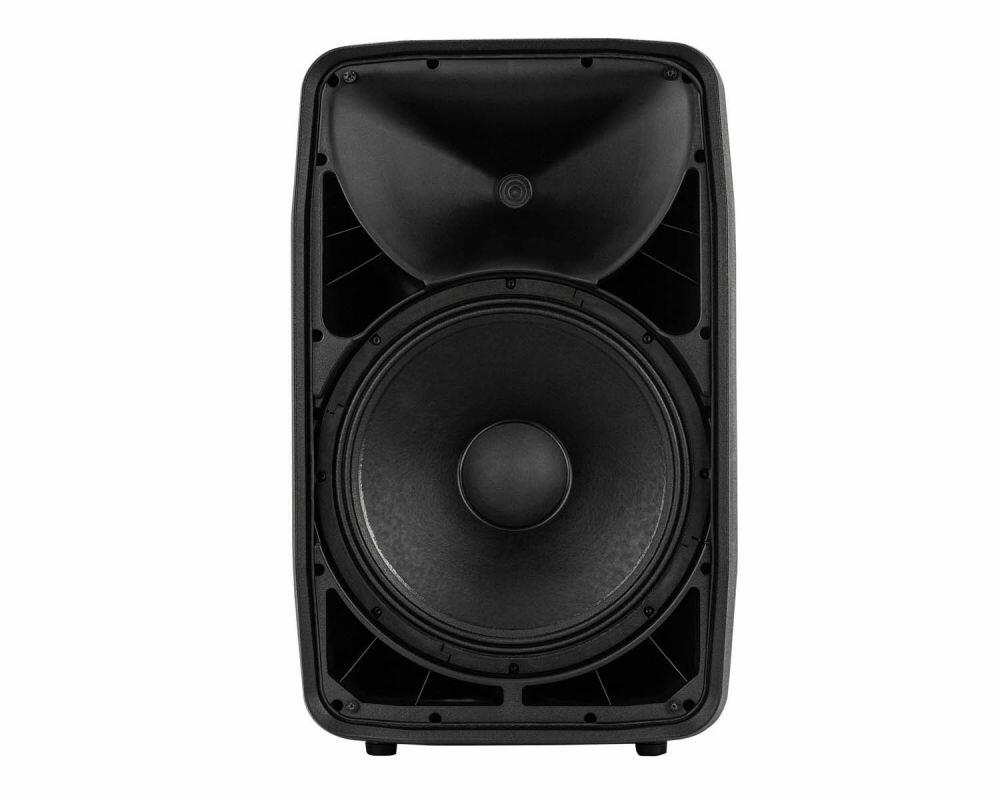

HD 12-A mk5 active speaker boosts performance with a high-power professional 12 woofer and a 1.4 HF driver, a 1400W 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels. The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.

Product Features

• 130 dB Max SPL
• 1400 Watts 2-way amplifier
• DSP Processing with FiRPHASE and Bass Motion Control
• 1.4,HF driver
• 12,woofer, high power, 2.5,voice coil
• 90, x 60,, wide dispersion constant directivity horn
• Silent Fan-less Class-D Amplifier
• Mylar/Ferrite driver - Kapton former coil

Product Specifications

Acoustical specifications

• Frequency Response: 45 Hz ,? 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 90,
• Vertical coverage angle: 60,

Transducers

• Compression Driver: 1 x 1.0'', 1.4'' v.c
• Woofer: 12'', 2.5'' v.c

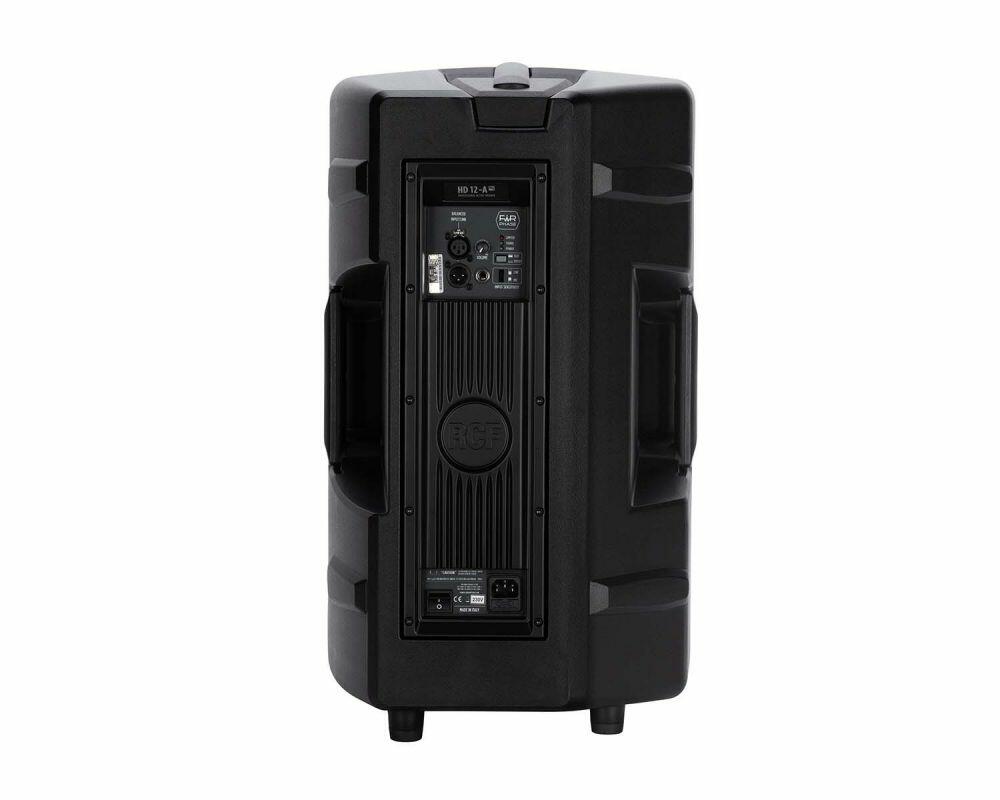

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

Processor section

• Crossover Frequencies: 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Power section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: PP Composite
• Hardware: 1 x M10 top, 1 x M10 bottom
• Handles: 1 Top, 2 Side
• Pole mount/Cap: Yes
• Grille: Steel
• Colour: Black

Size

• Height: 647 mm / 25.47 inches
• Width: 380 mm / 14.96 inches
• Depth: 380 mm / 14.96 inches
• Weight: 18.3 kg / 40.34 lbs

Shipping information

• Package Height: 760 mm / 29.92 inches
• Package Width: 500 mm / 19.69 inches
• Package Depth: 500 mm / 19.69 inches
• Package Weight: 21.4 kg / 47.18 lbs
