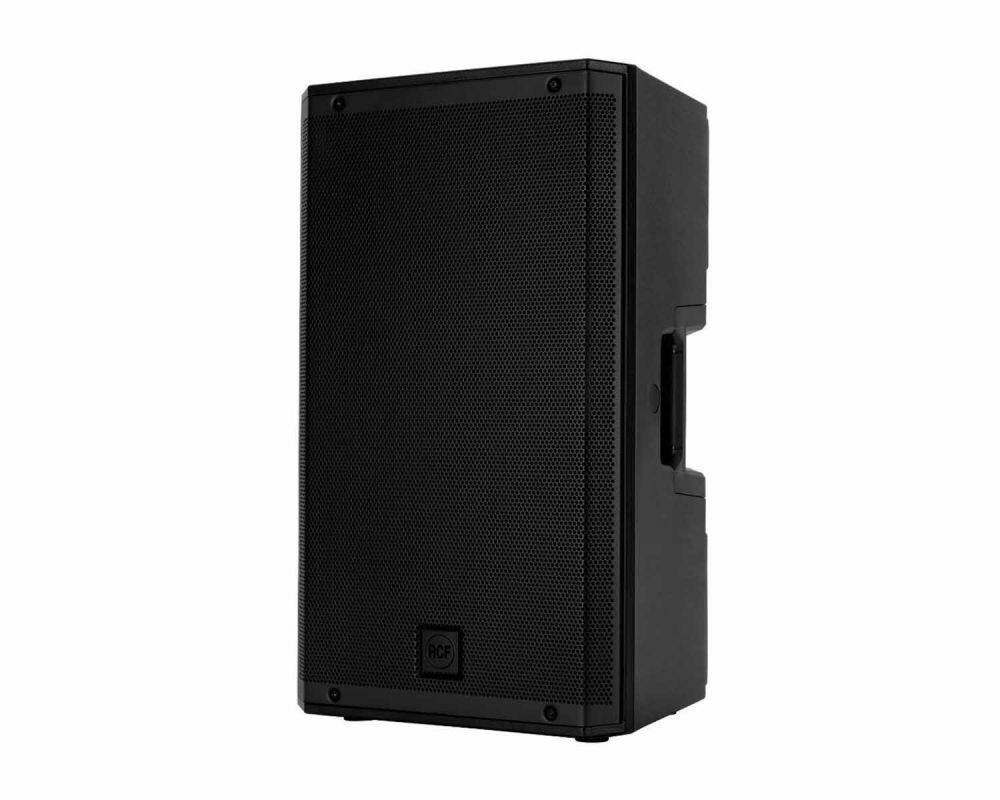

RCF COMPACT A15, 15" Passive 2 way Loudspeaker with 1.75 HF Unit 450W

SKU: rcf COMP-A15
RCF

COMPACT A 15 15 Passive 2-Way Speaker with 1.75 HF Unit 450W

COMPACT A 15 is a multipurpose two-way full-range professional speaker system, suitable for a wide range of applications, such as live sound reinforcement and stage monitoring as well as distributed sound systems for clubs or music venues. The combination of a 1.75 compression driver, 15 woofer, and the constant directivity True Resistive Waveguide produces coherent 100, x 60, coverage for the listening area with high SPL, distortion-free sound. The sleek and lightweight cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points and available accessories.

Product Features

• 450 W power handling
• Up to 130 dB Sound Pressure Level
• 50-20000 Hz linear frequency response
• 1.75 Compression Driver
• 15 High Power Woofer
• Robust composite material cabinet
• Steel full front grille
• Optional mounting accessories
• 2 x SPEAKON connectors

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 50 Hz ,? 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 100,
• Vertical coverage angle: 60,
• System Sensitivity: 98 dB

Power section

• Amplification: Full Range
• Nominal Impedance: 8 ohm
• Power Handling: 450 W
• Peak Power Handling: 1800 W PEAK
• Recommended Amplifier: 900 W
• Protections: Dynamic Active Mosfet
• Crossover Frequencies: 1200 Hz

Transducers

• Compression Driver: 1.0'', 1.75'' v.c
• Woofer: 15'', 3.0'' v.c

Input/Output section

• Input connectors: Speakon
• Output connectors: Speakon

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: PP Composite
• Hardware: 1 x M10 top, 1 x M10 each side
• Handles: 1 top, 1 each side
• Pole mount/Cap: Yes
• Grille: Steel
• Colour: Black

Size

• Height: 716.6 mm / 28.21 inches
• Width: 414.9 mm / 16.33 inches
• Depth: 410 mm / 16.14 inches
• Weight: 23.5 kg / 51.81 lbs

Shipping information

• Package Height: 760 mm / 29.92 inches
• Package Width: 475 mm / 18.7 inches
• Package Depth: 470 mm / 18.5 inches
• Package Weight: 25.5 kg / 56.22 lbs

Product Optional Accessories, not included

• AC PRO-PM Pole Mount with Ring Lock - 13360110
• AC PMX Speaker Pole Mount - 13360232
• PM-KIT M20 M20 Pole Mount - 13360067
• AC PRO-FS Professional Loudspeaker Floor Stand - 13360109
• AC PMA Speaker Pole Mount - 13360034
• CVR ART 915 Protection Cover - 13360478
• H-BR ART 915 Horizontal Mount Bracket - 13360479
• V-BR ART 915 Vertical Mount Bracket - 13360480
• FL-BR ART 915 Flying Mount Bracket - 13360481
