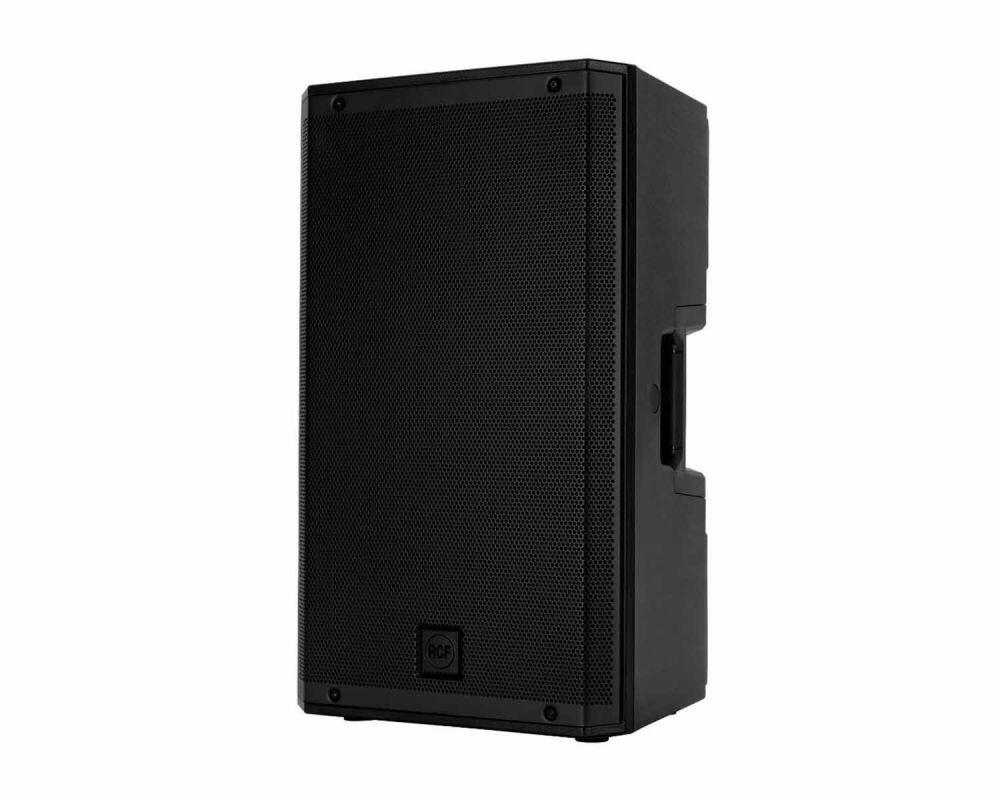

RCF COMPACT A10, 10 Passive 2-Way Speaker with 1.75 HF Unit 350w

SKU: rcf COMP-A10
RCF

COMPACT A 10 10 Passive 2-Way Speaker with 1.75 HF Unit 350W

COMPACT A 10 is a multipurpose two-way full-range professional speaker system, suitable for a wide range of applications, such as live sound reinforcement and stage monitoring as well as distributed sound systems for clubs or music venues. The combination of a 1.75 compression driver, 10 woofer, and the constant directivity True Resistive Waveguide produces coherent 100, x 60, coverage for the listening area with up to high SPL, distortion-free sound. The sleek and lightweight cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points and available accessories

Product Features

• 350 W power handling
• Up to 128 dB Sound Pressure Level
• 60-20000 Hz linear frequency response
• 1.75 Compression Driver
• 10 High Power Woofer
• Robust composite material cabinet
• Steel full front grille
• Optional mounting accessories
• 2 x SPEAKON connectors

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 60 Hz ,? 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 100,
• Vertical coverage angle: 60,
• System Sensitivity: 97 dB

Power section

• Amplification: Full Range
• Nominal Impedance: 8 ohm
• Power Handling: 350 W
• Peak Power Handling: 1400 W PEAK
• Recommended Amplifier: 700 W
• Protections: Dynamic Active Mosfet
• Crossover Frequencies: 1400 Hz

Transducers

• Compression Driver: 1.0'', 1.75'' v.c
• Woofer: 10'', 2.5'' v.c

Input/Output section

• Input connectors: Speakon
• Output connectors: Speakon

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: PP Composite
• Hardware: 1 x M10 top and bottom
• Handles: 1 top
• Pole mount/Cap: Yes
• Grille: Steel
• Colour: Black

Size

• Height: 572.1 mm / 22.52 inches
• Width: 329.9 mm / 12.99 inches
• Depth: 310 mm / 12.2 inches
• Weight: 16.2 kg / 35.71 lbs

Shipping information

• Package Height: 616 mm / 24.25 inches
• Package Width: 370 mm / 14.57 inches
• Package Depth: 390 mm / 15.35 inches
• Package Weight: 18.2 kg / 40.12 lbs

Product Optional Accessories, not included

• AC PRO-PM Pole Mount with Ring Lock - 13360110
• AC PMX Speaker Pole Mount - 13360232
• PM-KIT M20 M20 Pole Mount - 13360067
• AC PRO-FS Professional Loudspeaker Floor Stand - 13360109
• AC PMA Speaker Pole Mount - 13360034
• CVR ART 910 Protection Cover - 13360473
• H-BR ART 910 Horizontal Mount Bracket - 13360471
• FL-BR ART 910 Flying Mount Bracket - 13360472
