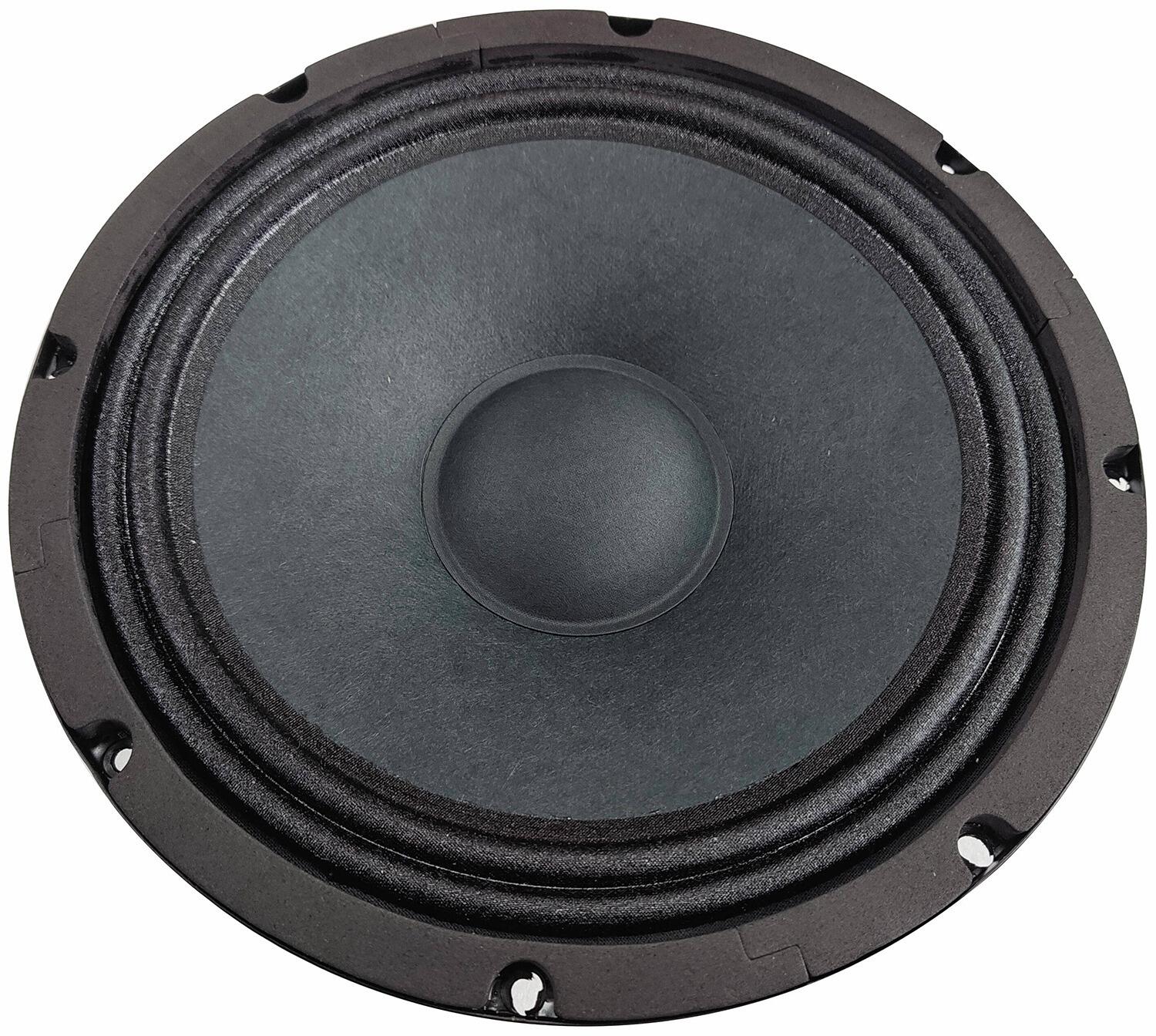

QTX QXW8 8 Woofer with Aramid Fibre cone
SKU:
902.426UK
QTX
A range of high-powered woofers with reinforced aramid fibre cones. Incorporating rubber surrounds, vented magnets and heat resistant 4 layer voice coils, these speakers can easily handle power peaks, yet produce a smooth sound that will please any Hi-Fi enthusiast.
Aramid fibre cone
Rubber surround
Vented magnet
4 layer voice coil
Black metal chassis
Spade terminals
Impedance 8 ohms
Voice coil 4 layer
Power max. 500W
Power rms 250W
Overall depth 95mm
Magnet diameter 140mm
Mounting centres 194mm
Diameter 200mm (8)
Frequency response 27Hz - 6kHz
Magnet weight 1.1kg (40oz)
SPL @ 1W/1m 85.5dB
Weight 2.76kg
£34.00
£40.00
