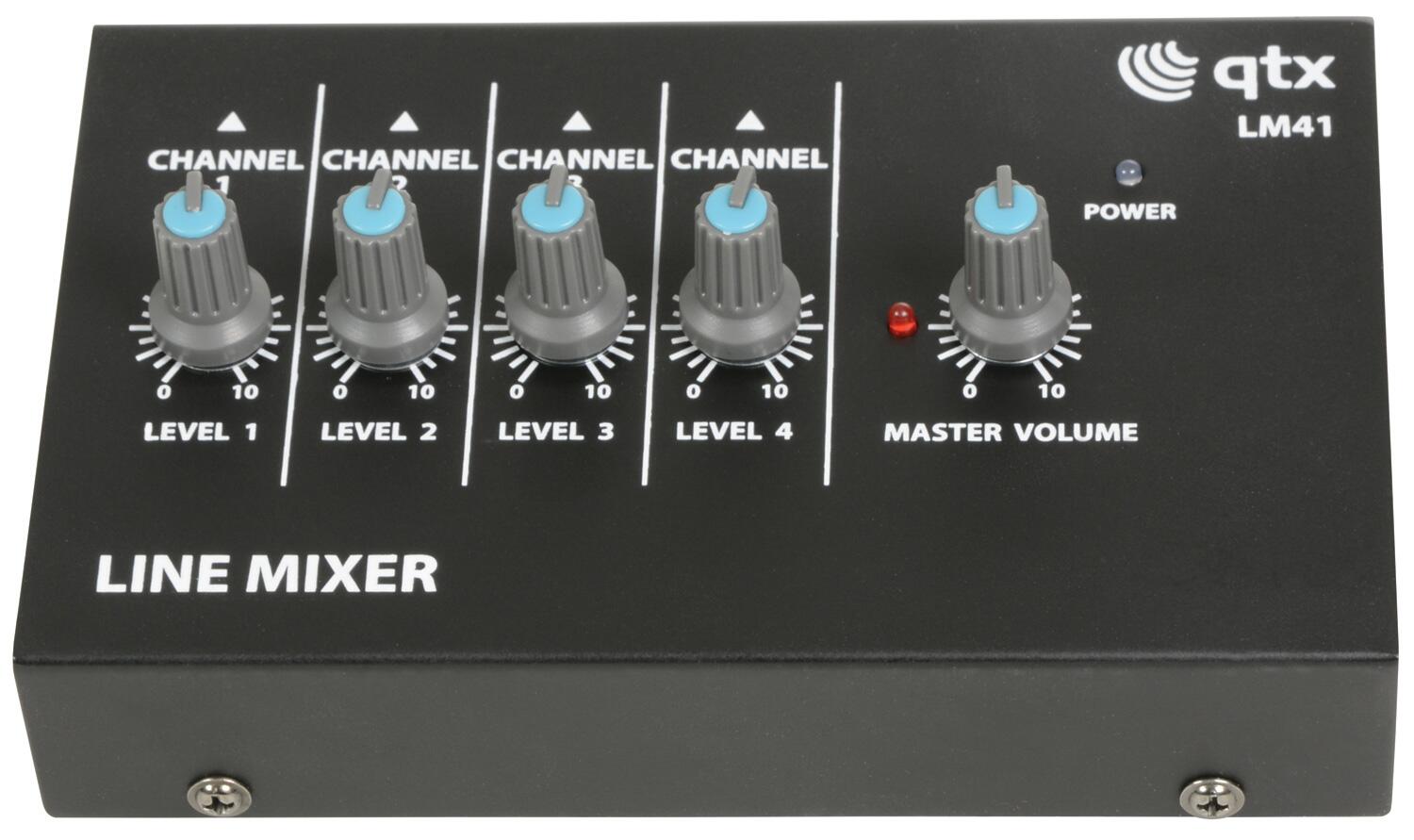

QTX LM41 4 Mono Channel Line Level & Instrument Mixer

SKU: 170.204UK

Product Discontinued - Please contact us for alternatives

QTX

Compact mixers with high impedance jack inputs suitable for auxiliary line level or instruments, mixing to a master jack output. Available as either 4 mono or 4 stereo version with separate volume controls for each input and master output. Powered by 1 x 9V battery or optional 12Vdc adaptor

Available in mono or stereo versions

Requires 9V (PP3) battery or 12Vdc power adaptor

Battery 9V battery (PP3 - not supplied)

Power adaptor 12Vdc, 200mA (optional)

Output level +4dB (+8dB max.)

Input impedance 20k Ohms

Output impedance 600 Ohms

Dimensions 150 x 108 x 64mm

Inputs 4 x 6.3mm jack

Outputs 1 x 6.3mm jack

Weight 533g (no battery)
