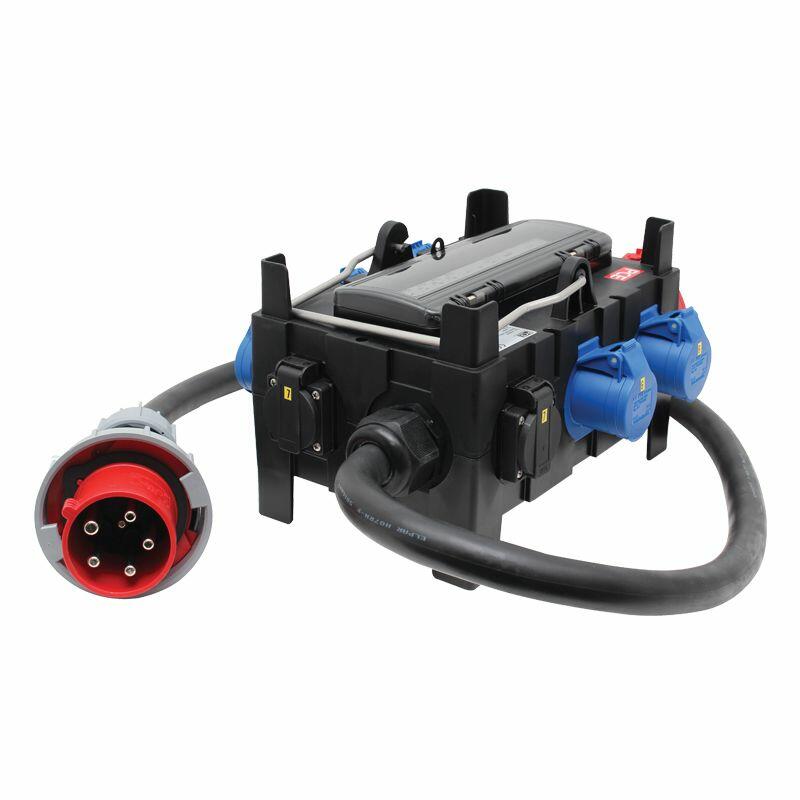

PCE ISCHL Distribution Box 63A 415V In, 1x 32/3 + 3x 32A + 3x 16A + 1x 13A Out

SKU: CONN082

Product Discontinued - Please contact us for alternatives

PCE

These PCE ISCHL 63A distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental they are IP44 splash proof rated.

• Handy, robust and lightweight distribution box made of shock-resistant polyamide
• Up to 13 modules under clear MCB window
• IP44 rated
• Stackable design for space saving
• Made in the EU

• Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 via 1.2m trailing cable (plug fitted)
• Outputs: 1 x 32A 415V~50/60Hz 5-Pin 3P+N+E, 3 x 32A 220-250V~50/60Hz 2P+E sockets, 3 x 16A 220-250V~50/60Hz 2P+E sockets, 1 x 13A 220-250V~50/60Hz 2P+E socket each protected by a C type MCB
• Overall protection via 30mA 4-Pole RCD
• Dimensions (H x W x D): 200 x 400 x 320mm
• Weight: 8.1kg
