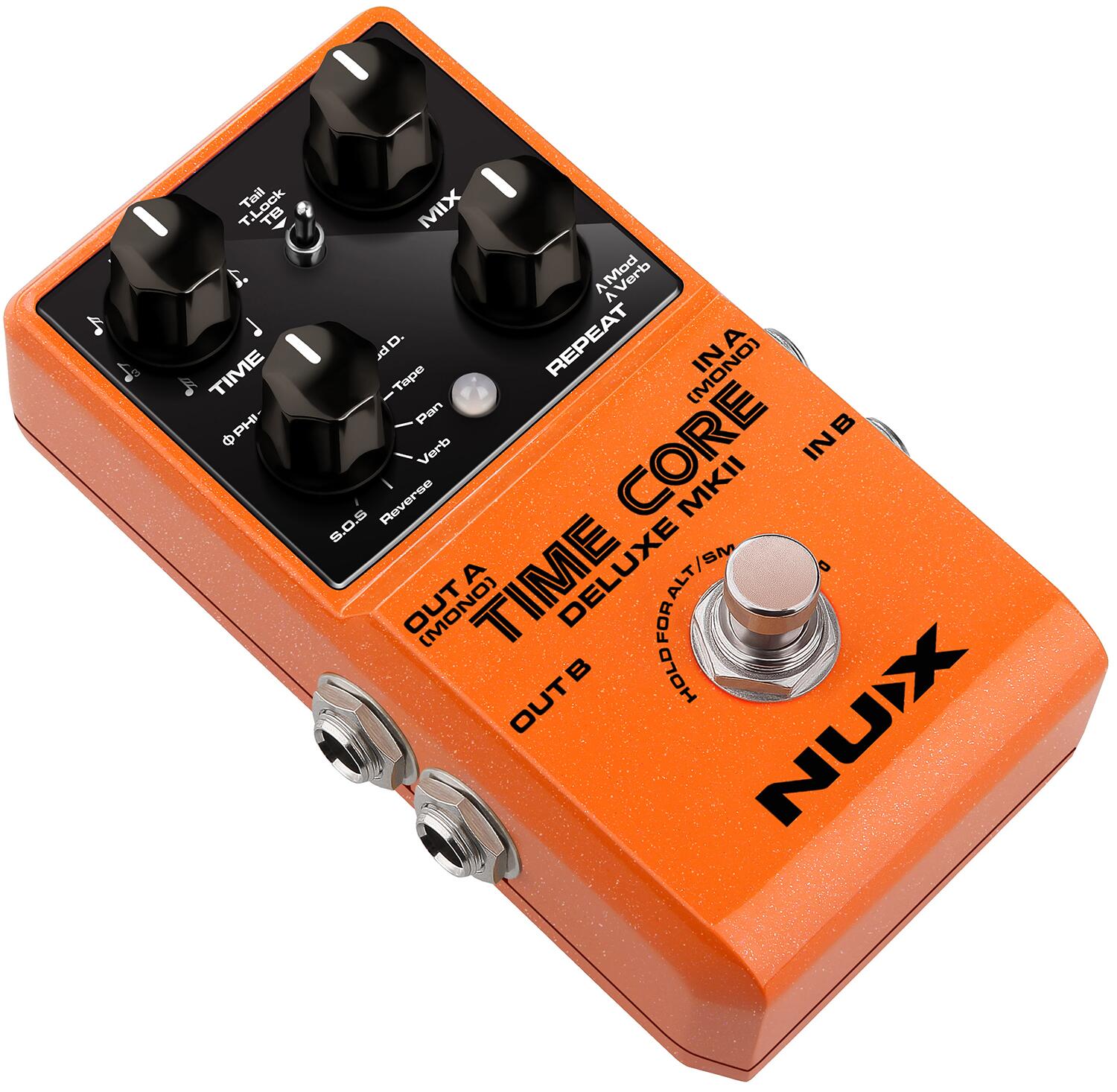

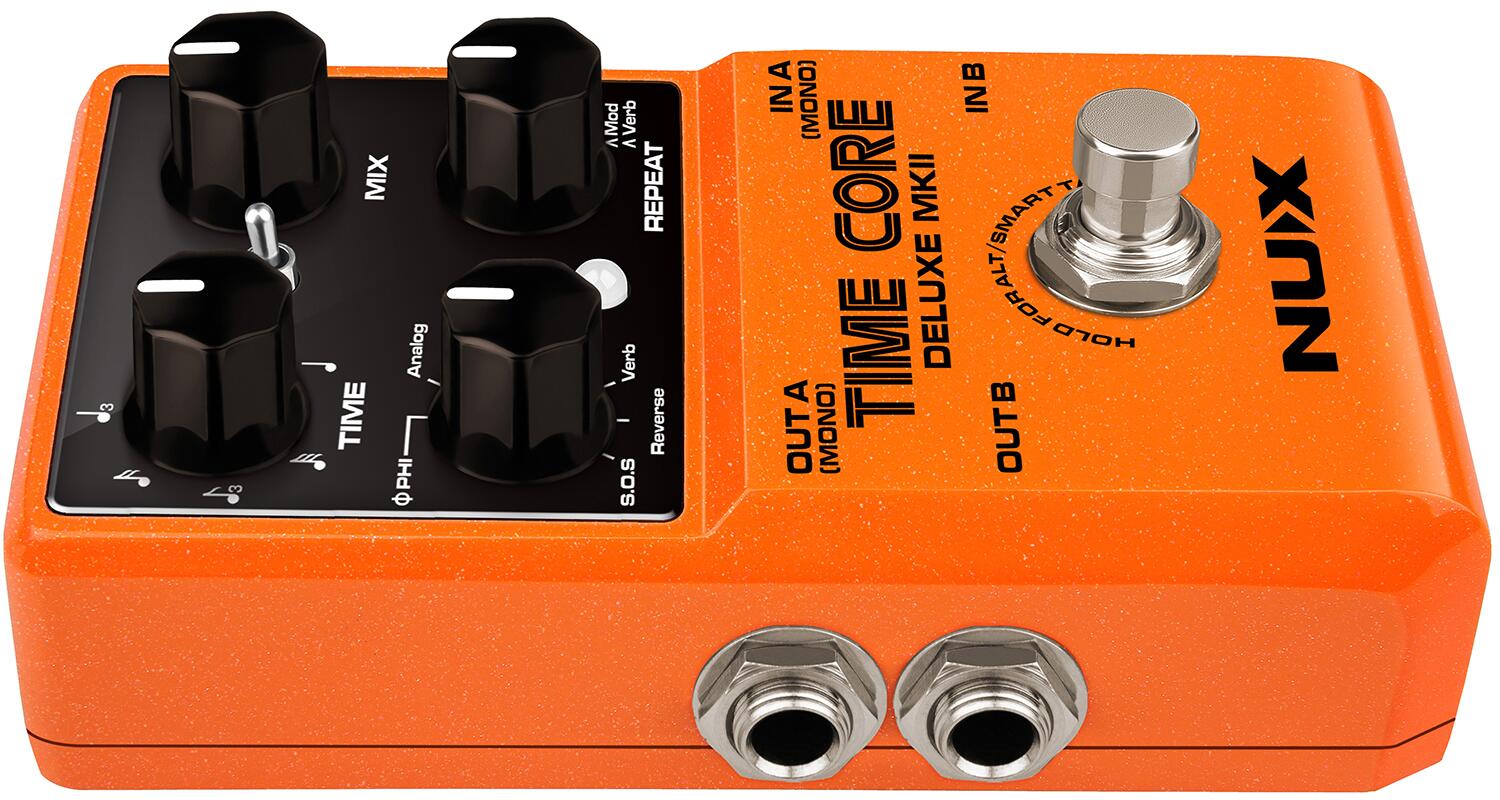

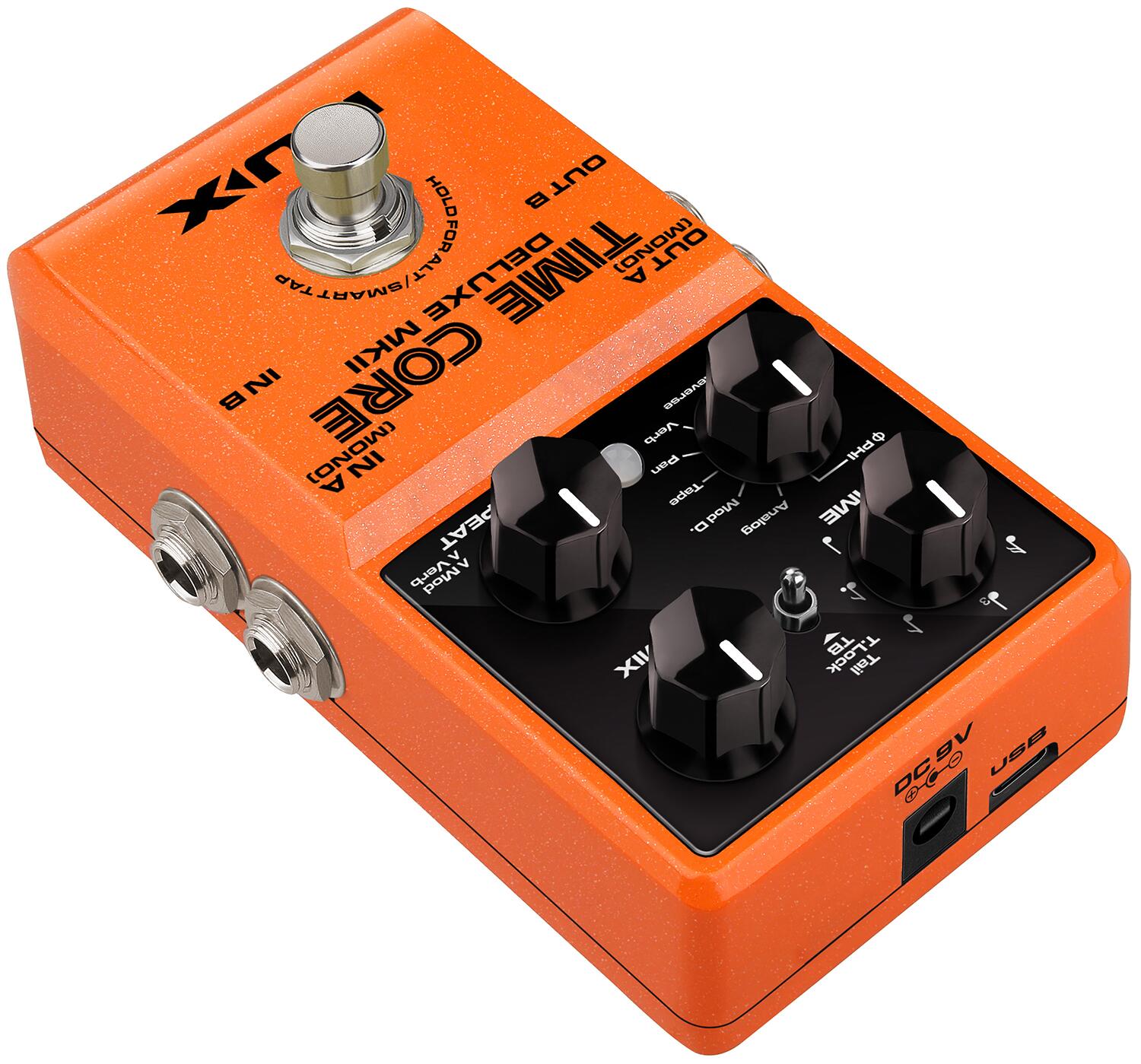

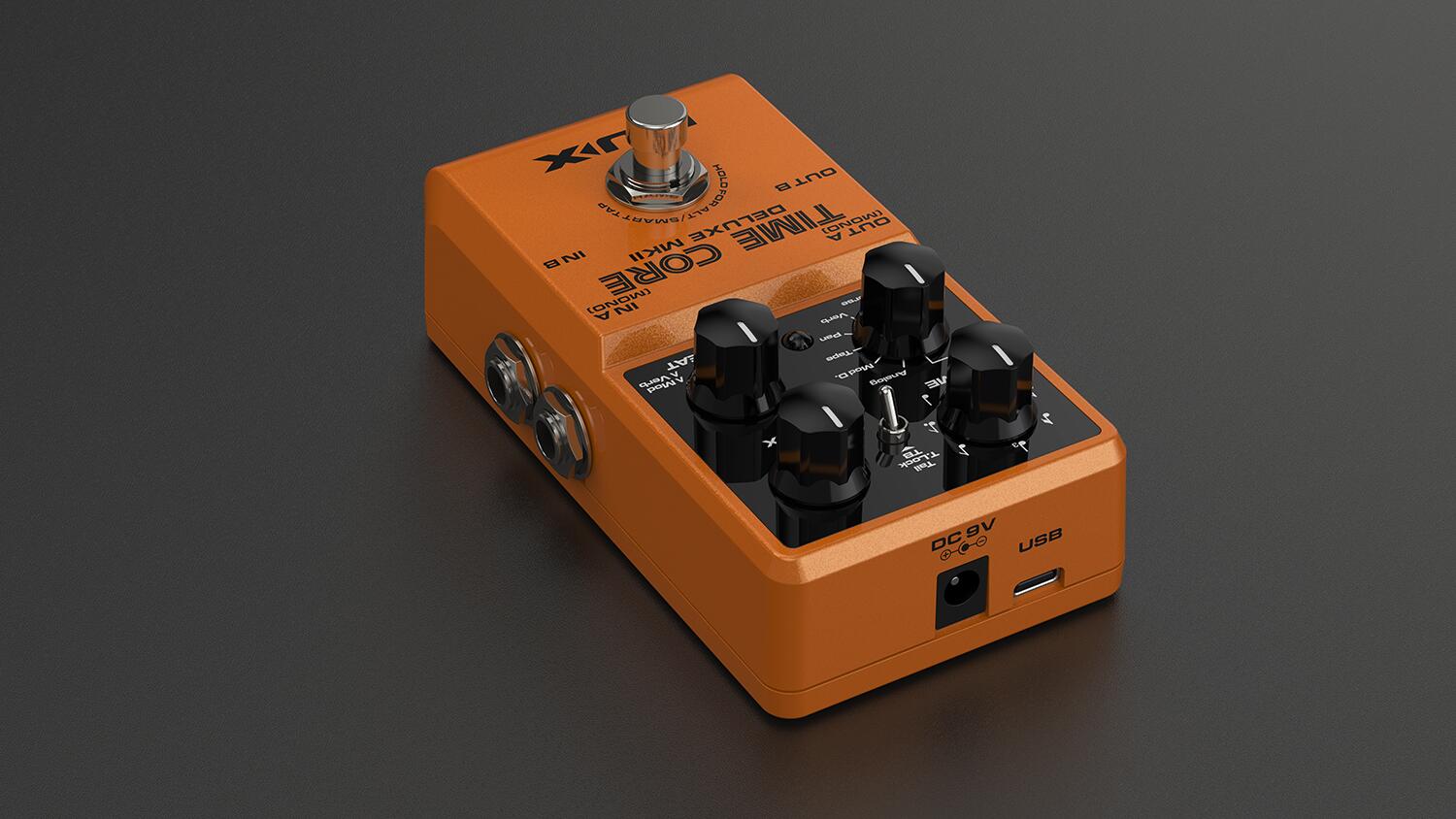

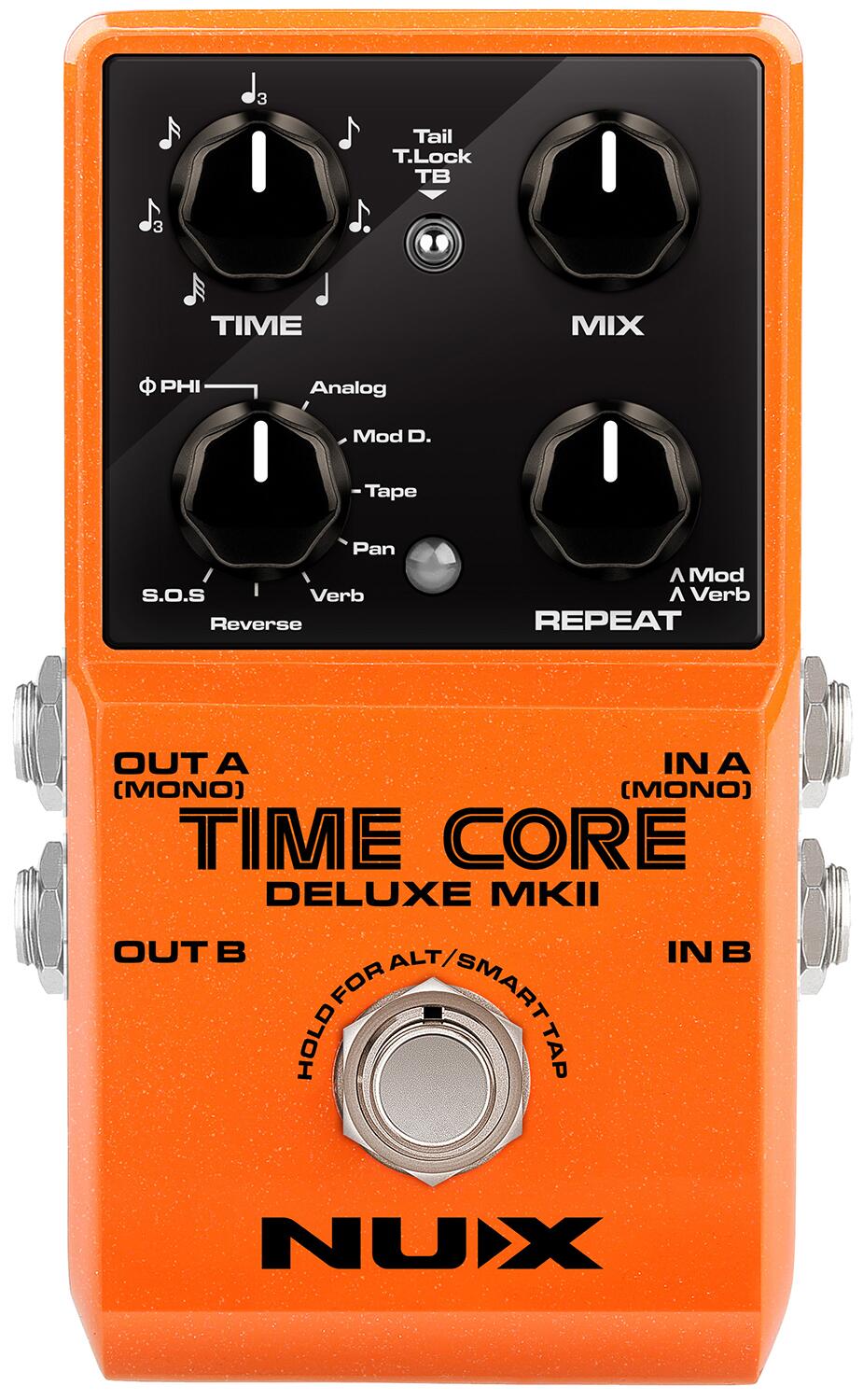

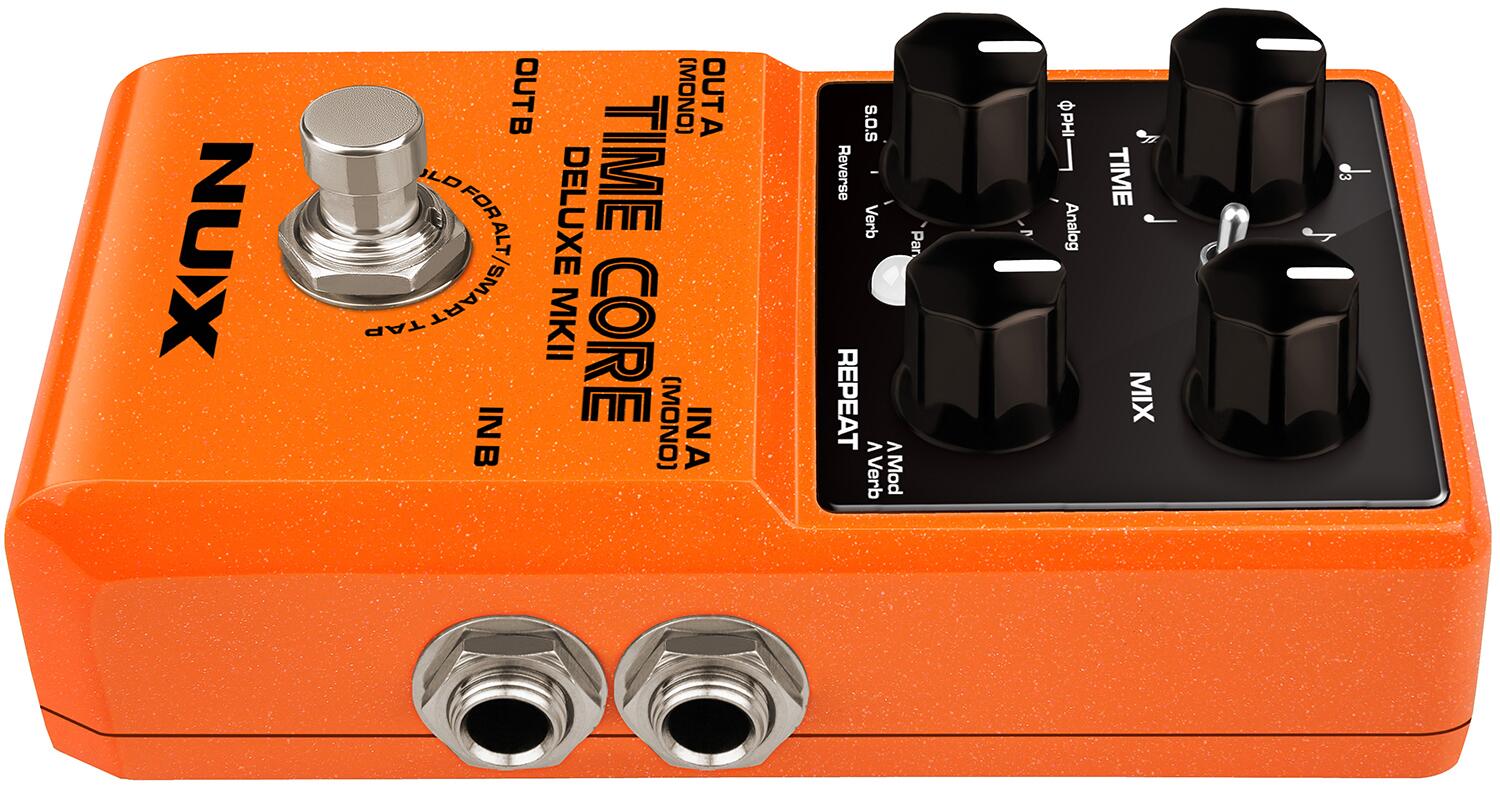

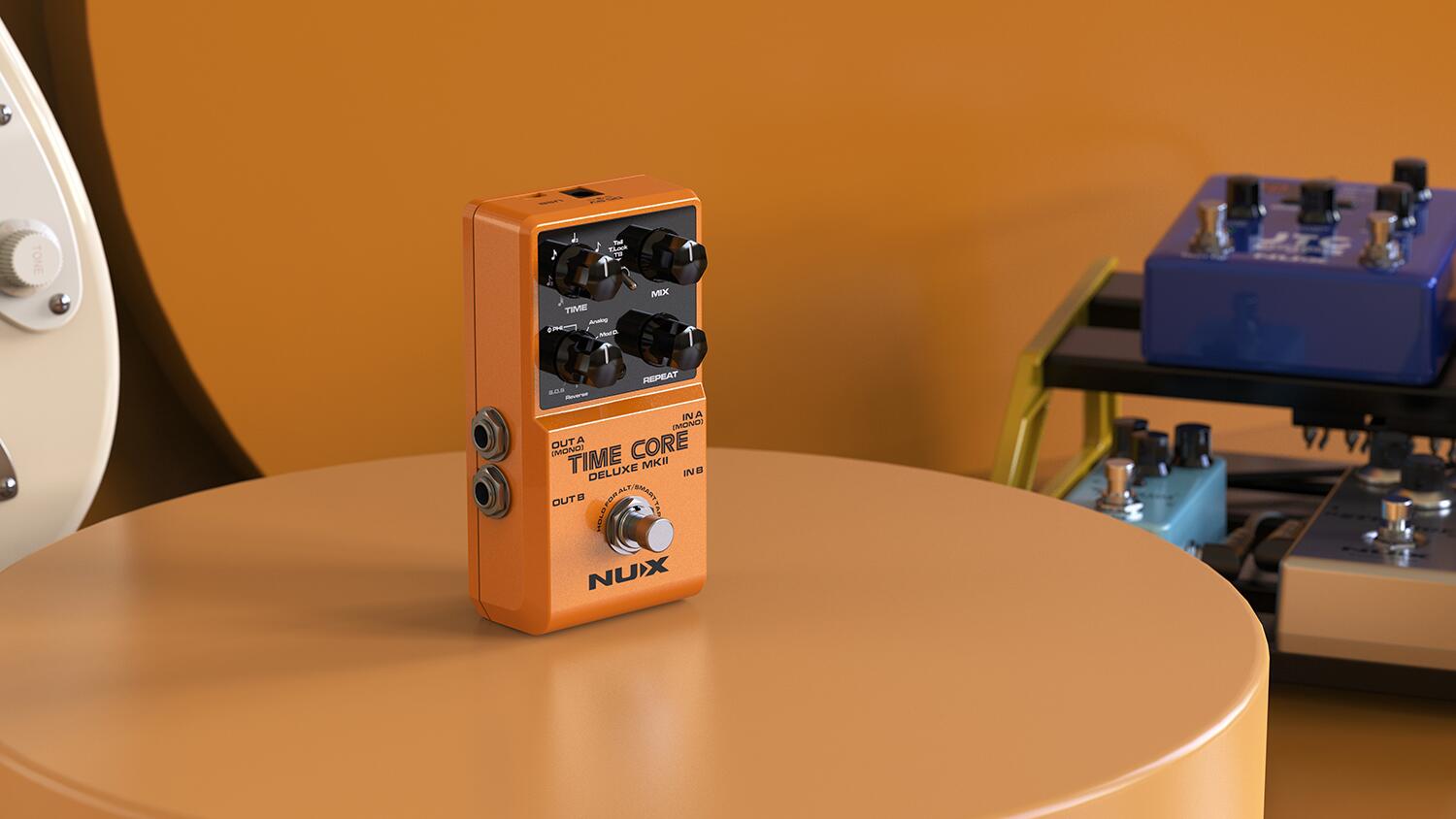

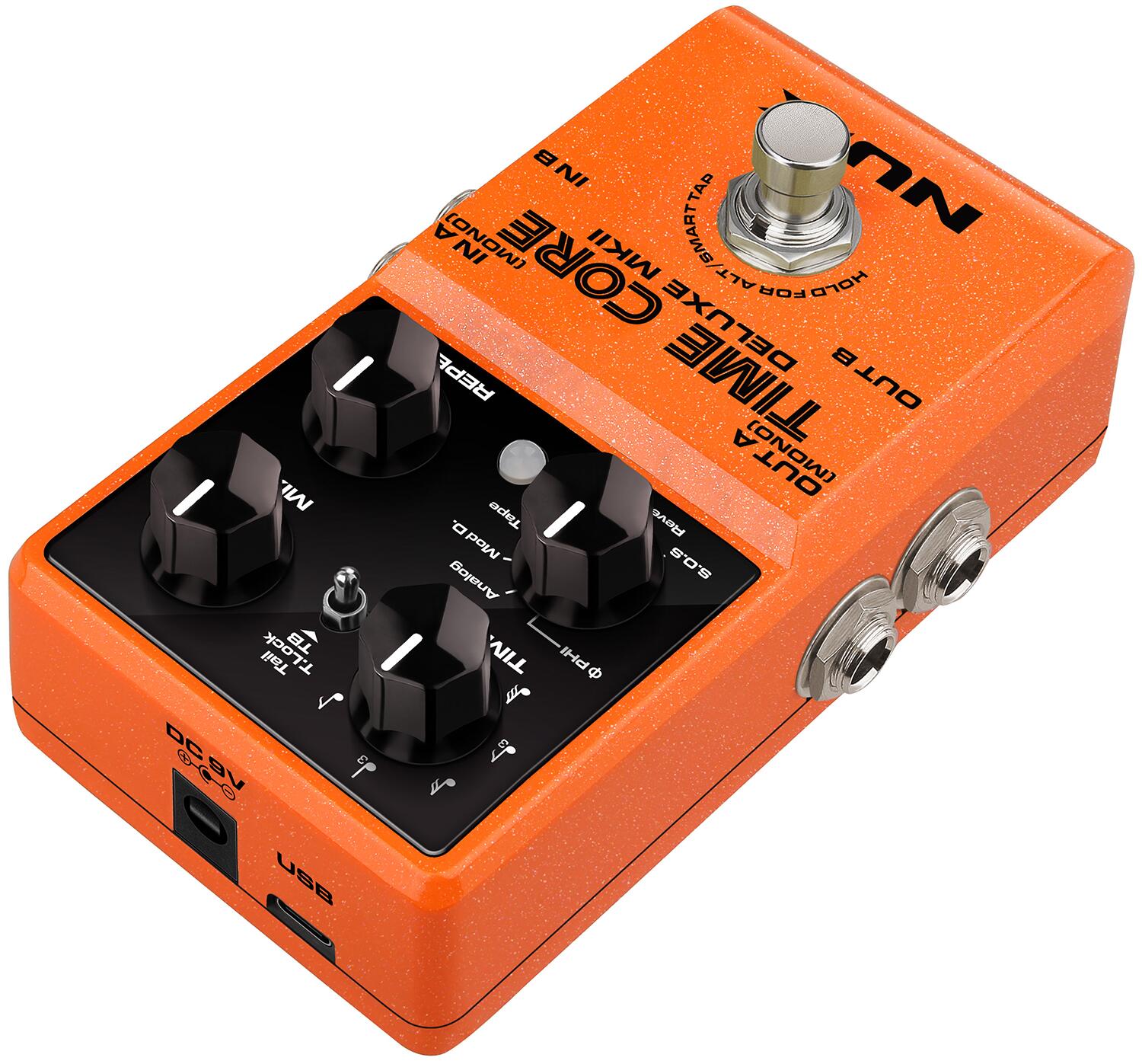

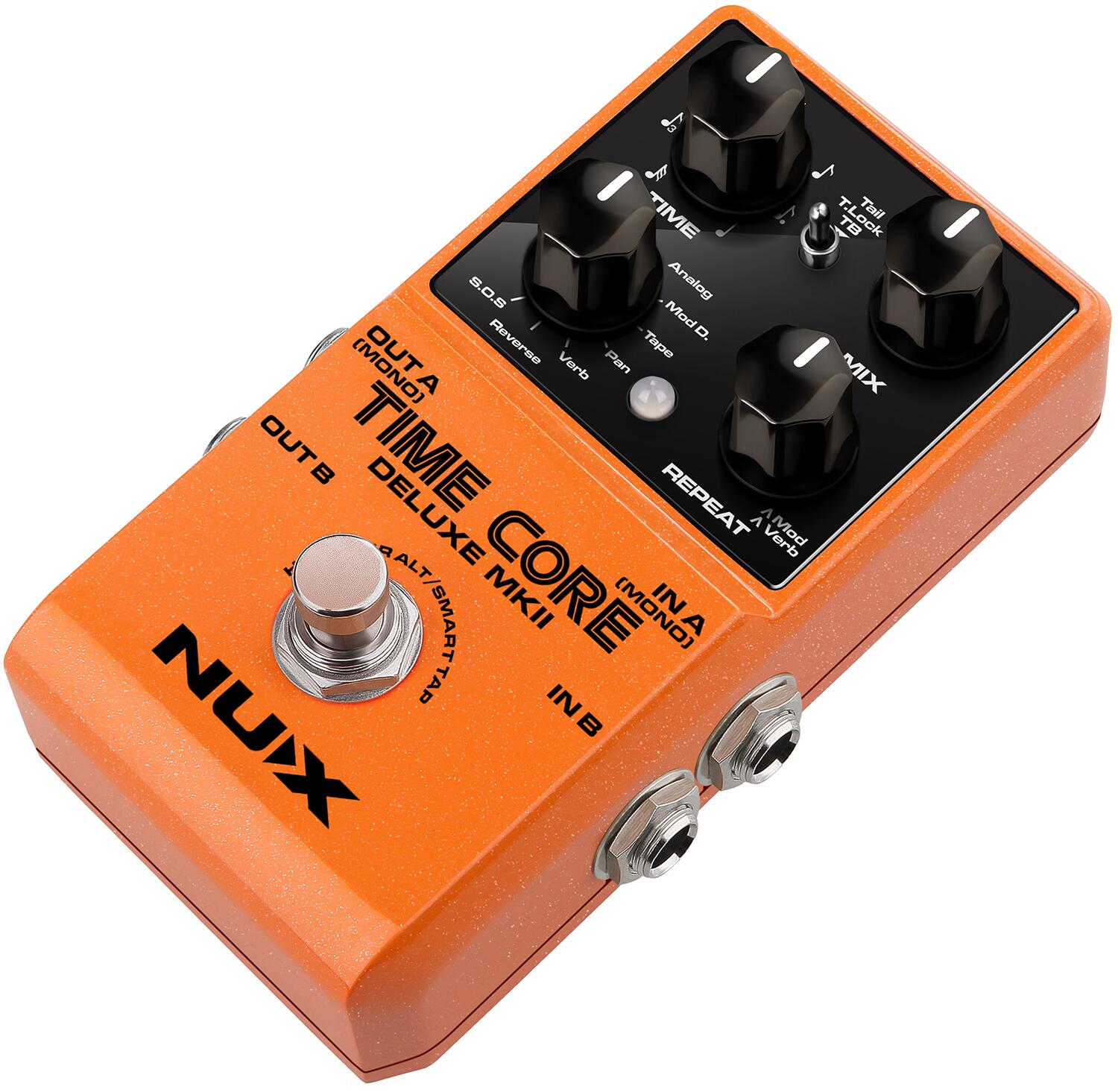

Nux Time Core Deluxe mkII Pedal - 173.471UK

SKU: 173.471UK
NU-X

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.

Full stereo or mono signal path

True or buffered bypass options

7 distinct delay types

40 second looper function

USB-C port for firmware updates

Power supply 9Vdc (power adaptor required)

Controls Time, Mix, Repeat, Delay type

Recording mode 40 second sound-on-sound looper

Modes Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay

Inputs L+R 6.3mm mono jack

Outputs L+R 6.3mm mono jack

DC input connection DC5521 jack (for optional adaptor - pin-negative)

Dimensions 122 x 72 x 47mm

Weight 270g

Sampling format 48kHz, 24-bit

Input impedance 1M ohm

Output impedance 1k ohm

Dynamic range 104dB

Current consumption <120mA
