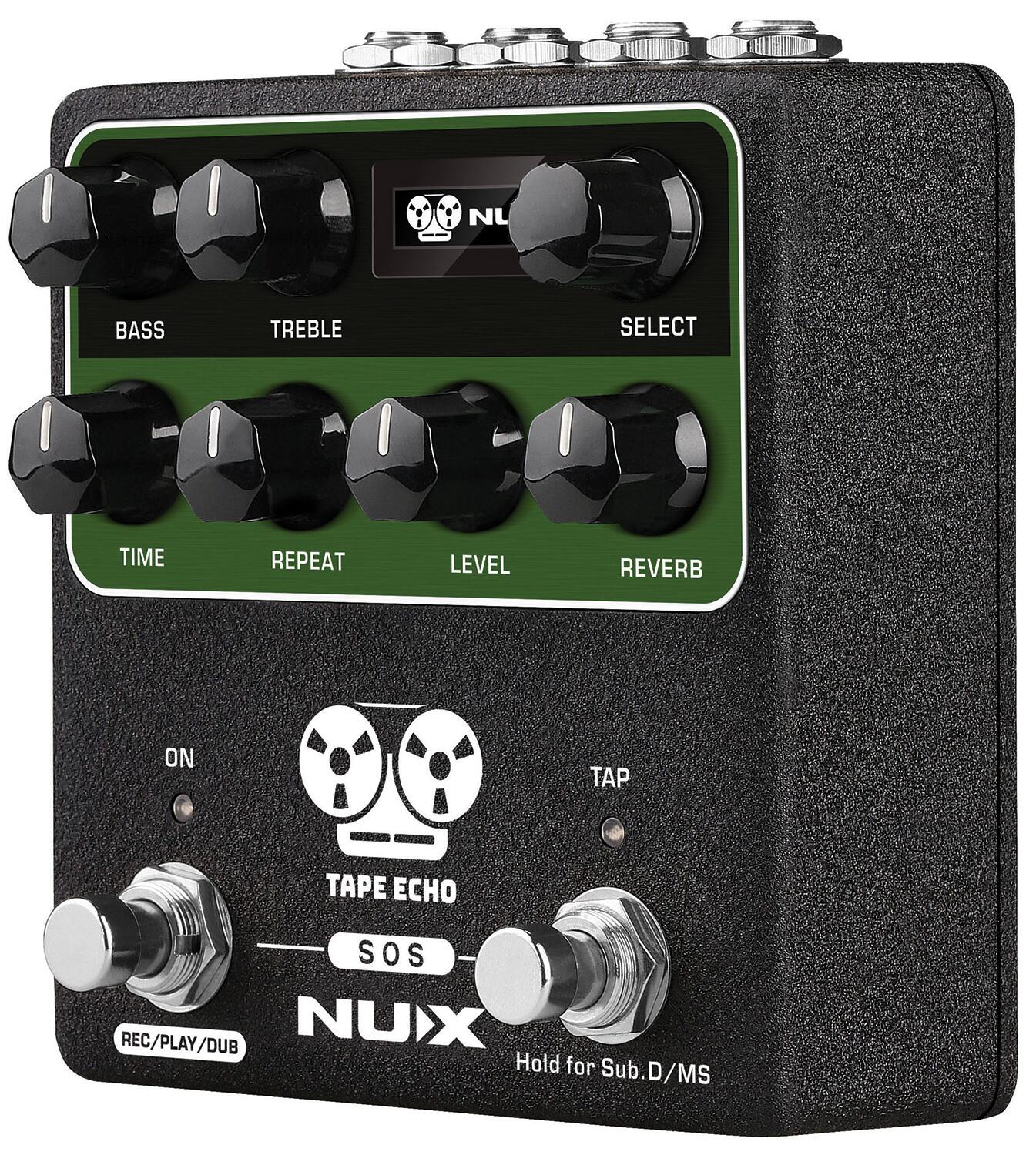

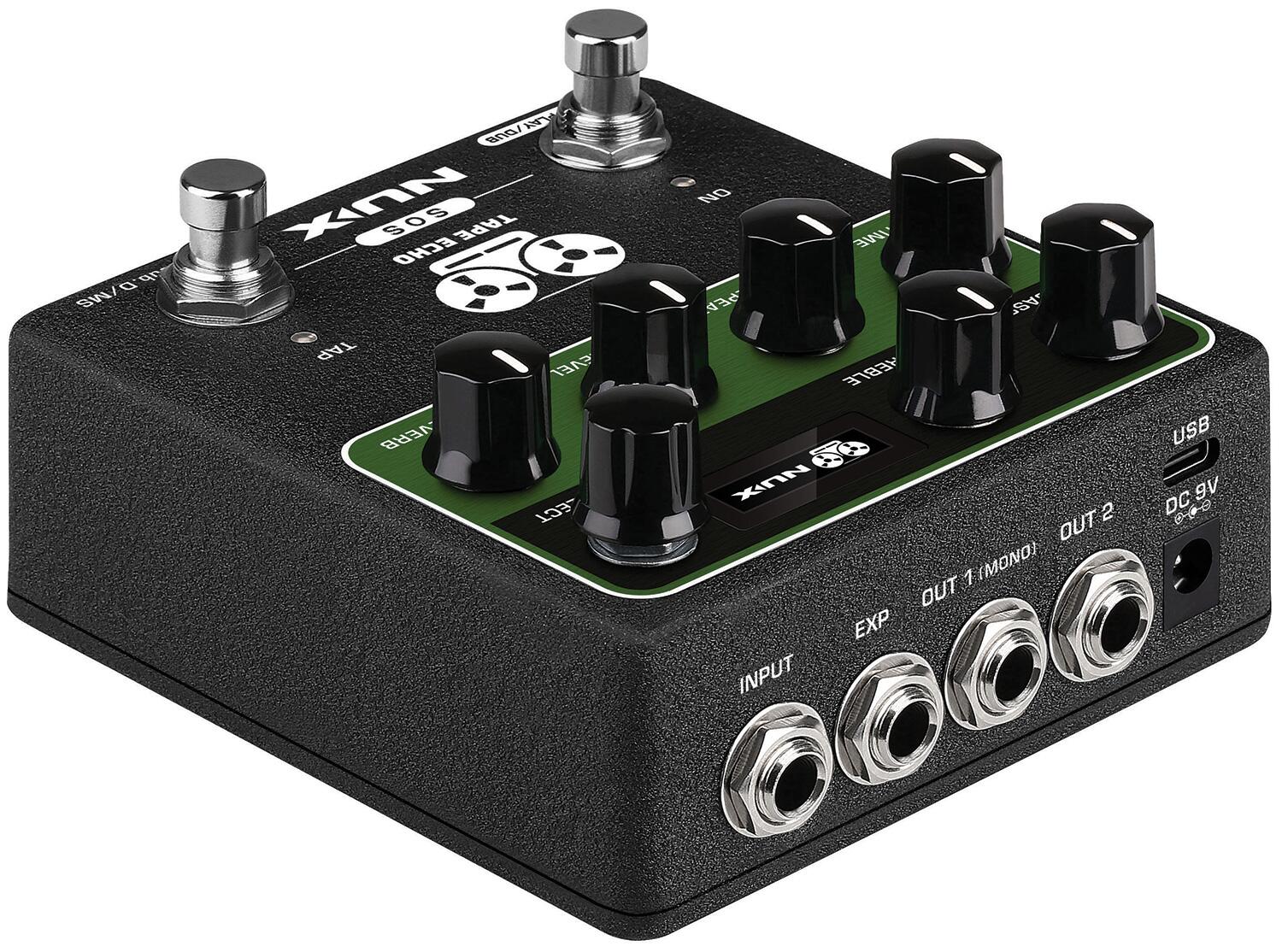

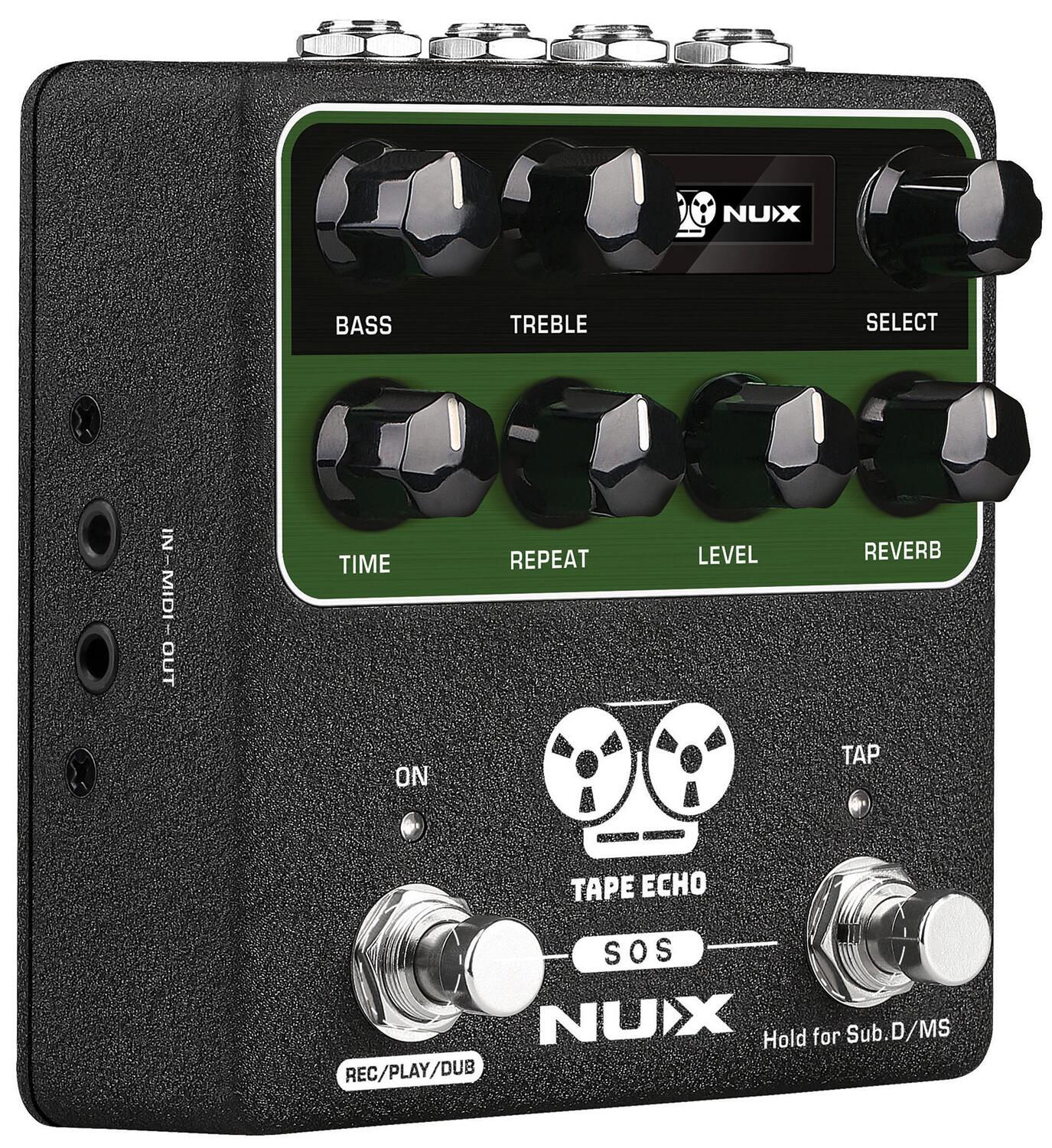

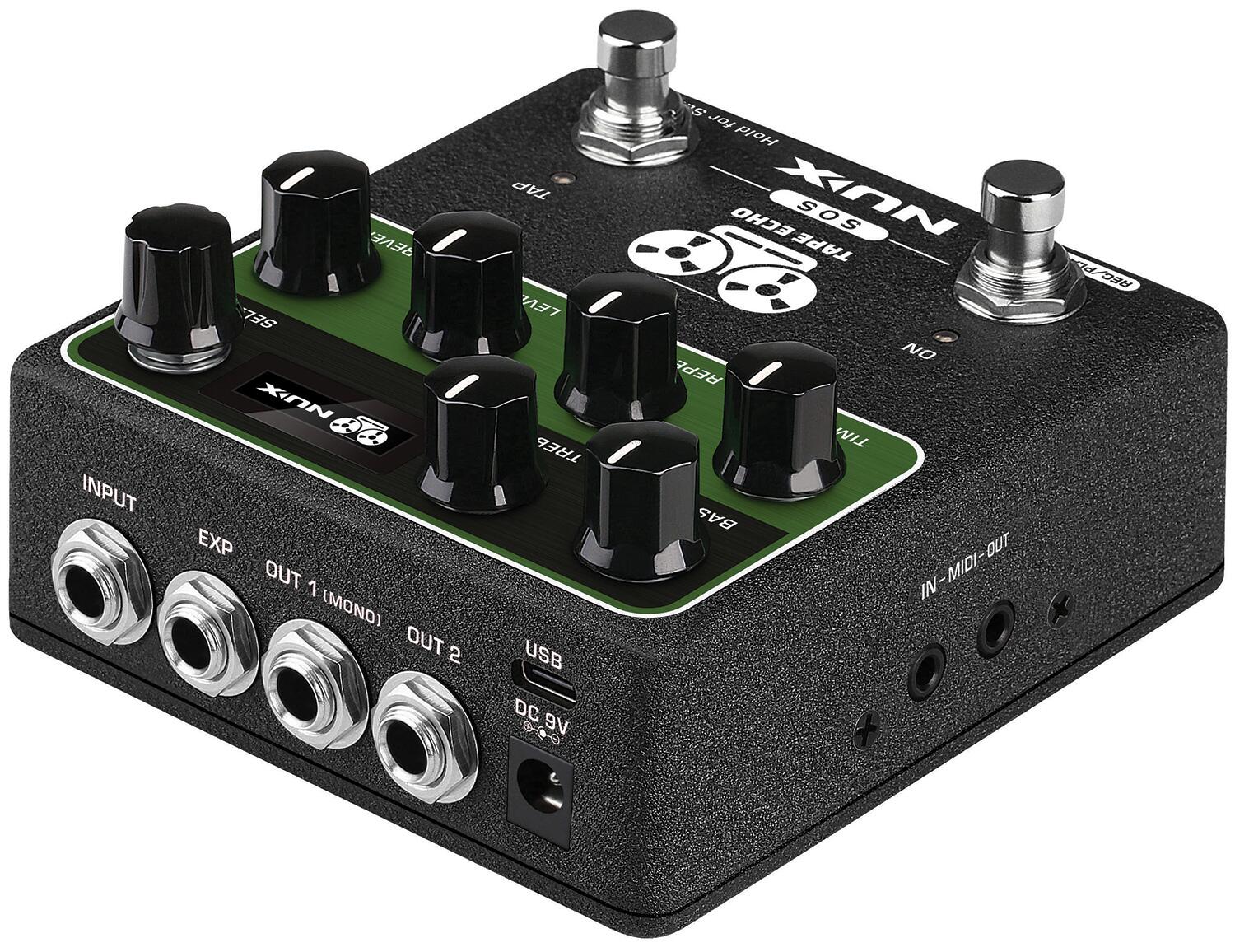

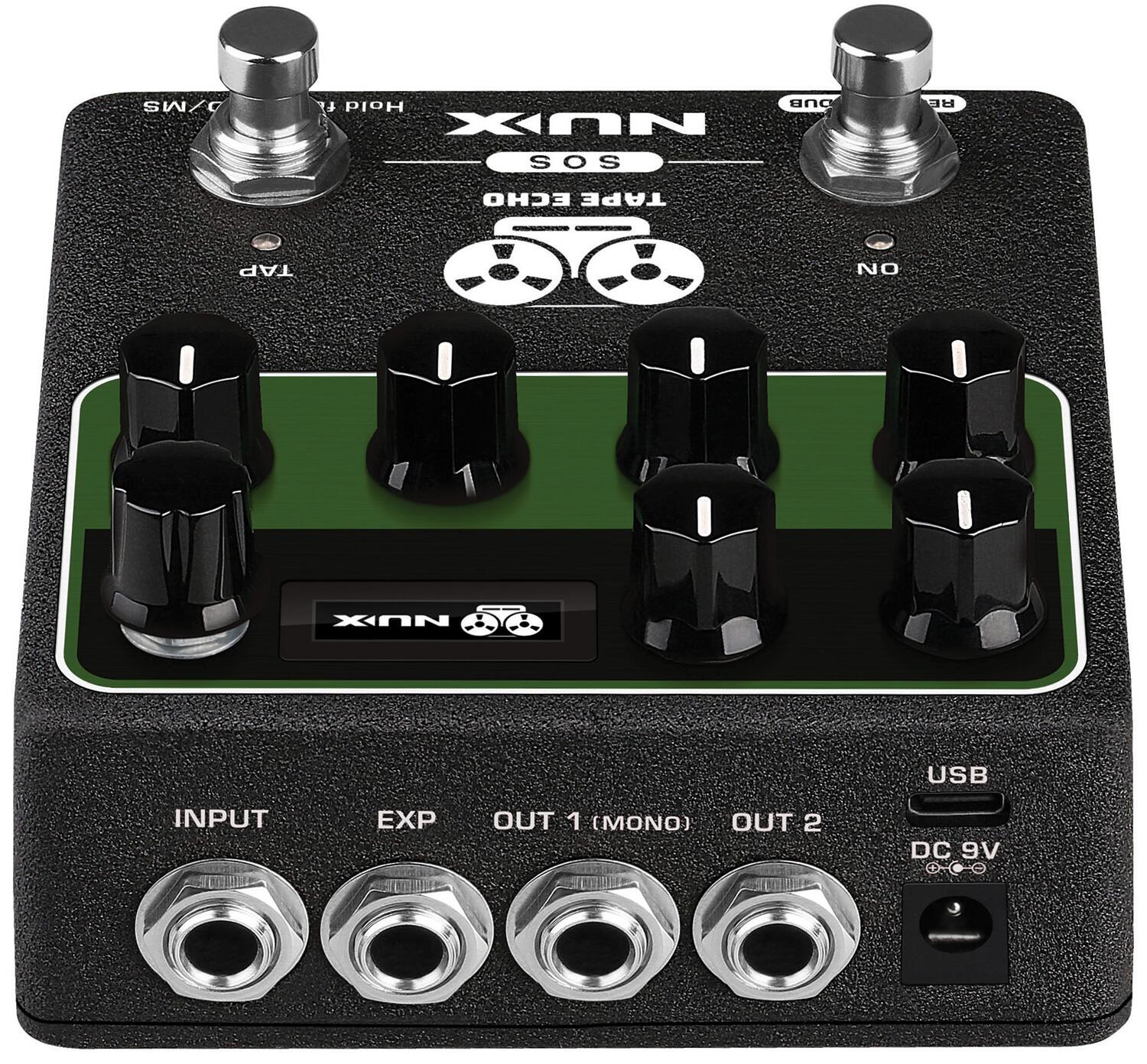

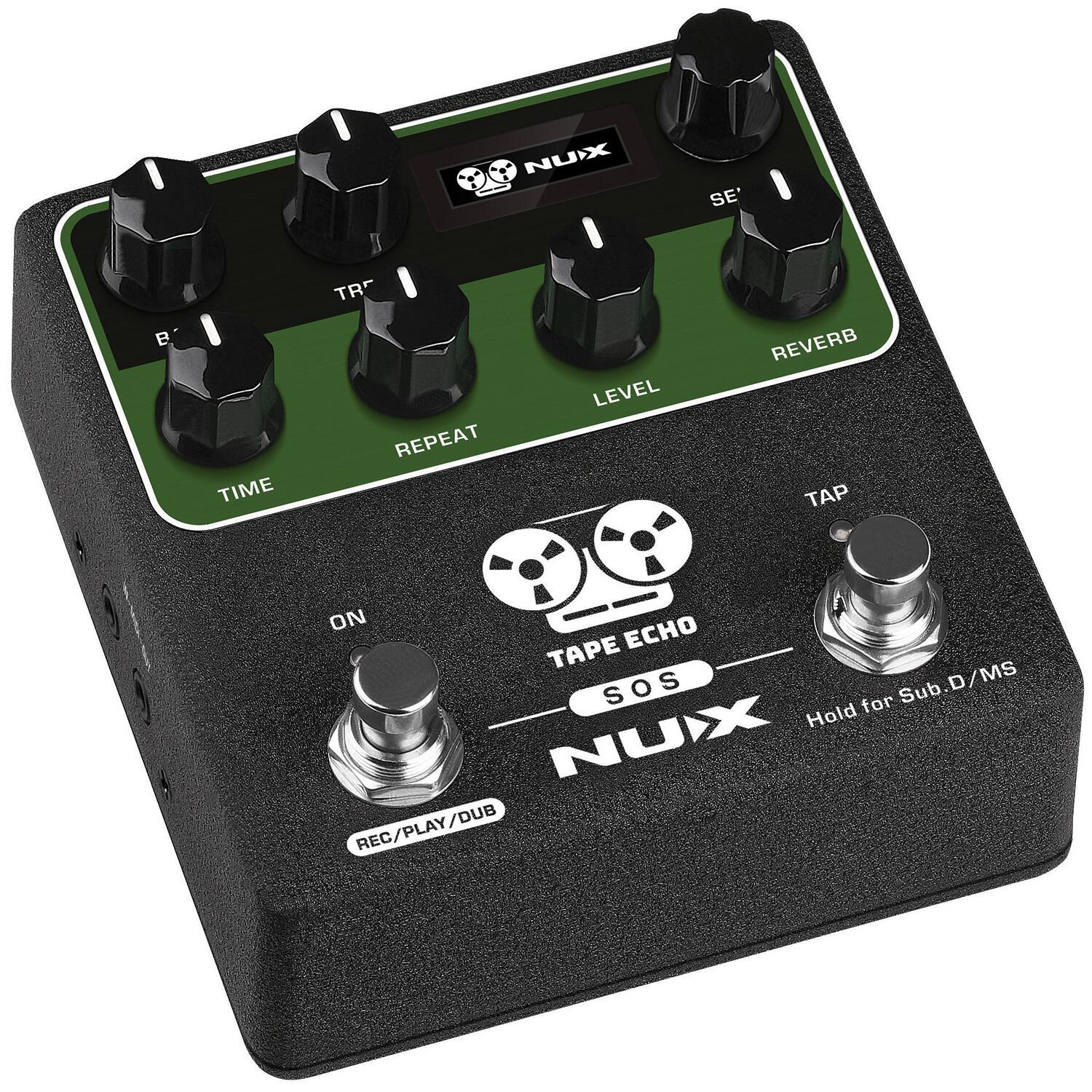

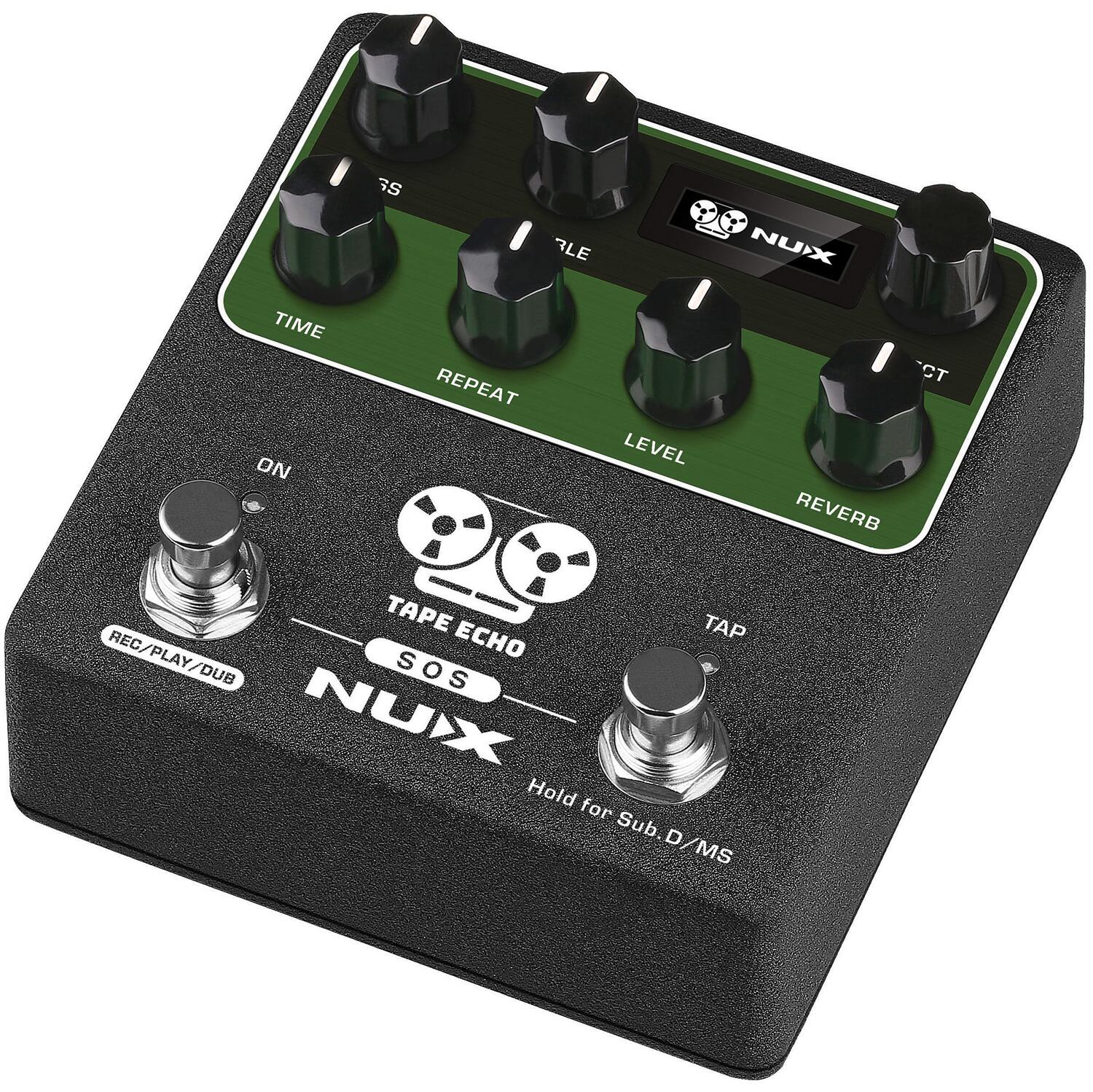

Nux Tape Echo Effect Pedal - 173.382UK

SKU: 173.382UK
NU-X

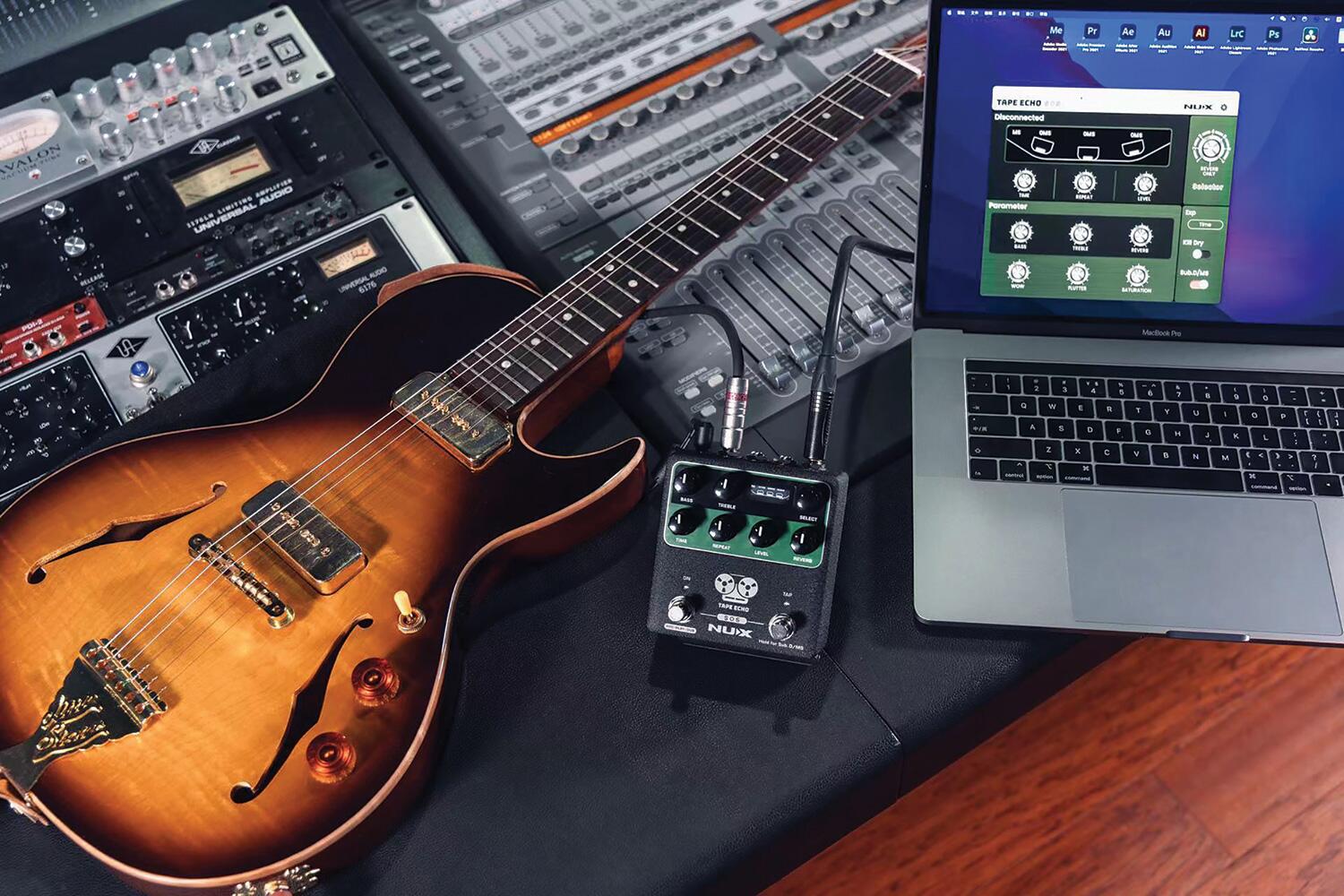

Tape Echo is an echo and delay processor with 7 different types of simulation to recreate the sound of vintage echo units. In addition to classic tape echo simulation, the NDD-7 has a separate spring reverb effect, sound-on-sound (SOS) for operation as a 40 second looper, and up to 1600ms of delay. For authenticity, the NDD-7 also has Wow & Flutter settings and Saturation adds natural compression and degradation, which can even drive into self-oscillation, like a true tape echo. Two foot switches operate as effect on/off and tap tempo and they double as looper and display controls. Above the foot switches are Time, Repeat, Level and Reverb controls and 2-band EQ governs the tone of repeats. USB connectivity and MIDI compatibility give further possibilities for deep control and integration with DAW and project studio setups. A full vintage echo collection in a single compact pedal for those seeking the genuine retro echo sound.,Authentic tape echo machine simulation

Independent spring reverb effect

MIDI in and out

External expression pedal input

Stereo or mono output

USB port for PC editor and firmware upgrades,Power supply 9Vdc, 300mA (min) pin-negative (not included)

Controls Time, Repeat, Level, Reverb, Bass, Treble, Select

Dimensions 115 x 105 x 58mm

Weight 440g

Current consumption <150mA

Sampling Frequency 48kHz

Sampling format 32-bit

Frequency response 20Hz - 20kHz (-1dB)

Input impedance 5M Ohms

Input level 1.5V max

Output level 1.5V max

Output impedance 100 Ohms

Latency 1ms

Dynamic range 103dBu / 105dBu (A-weighted)

THD +N 0.0038% (1Vrms, 1kHz) / 0.01% (1Vrms, 1kHz),
