Nux B-7PSM Personal Monitoring System 5.8GHz - 171.862UK

SKU: 171.862UK
NU-X

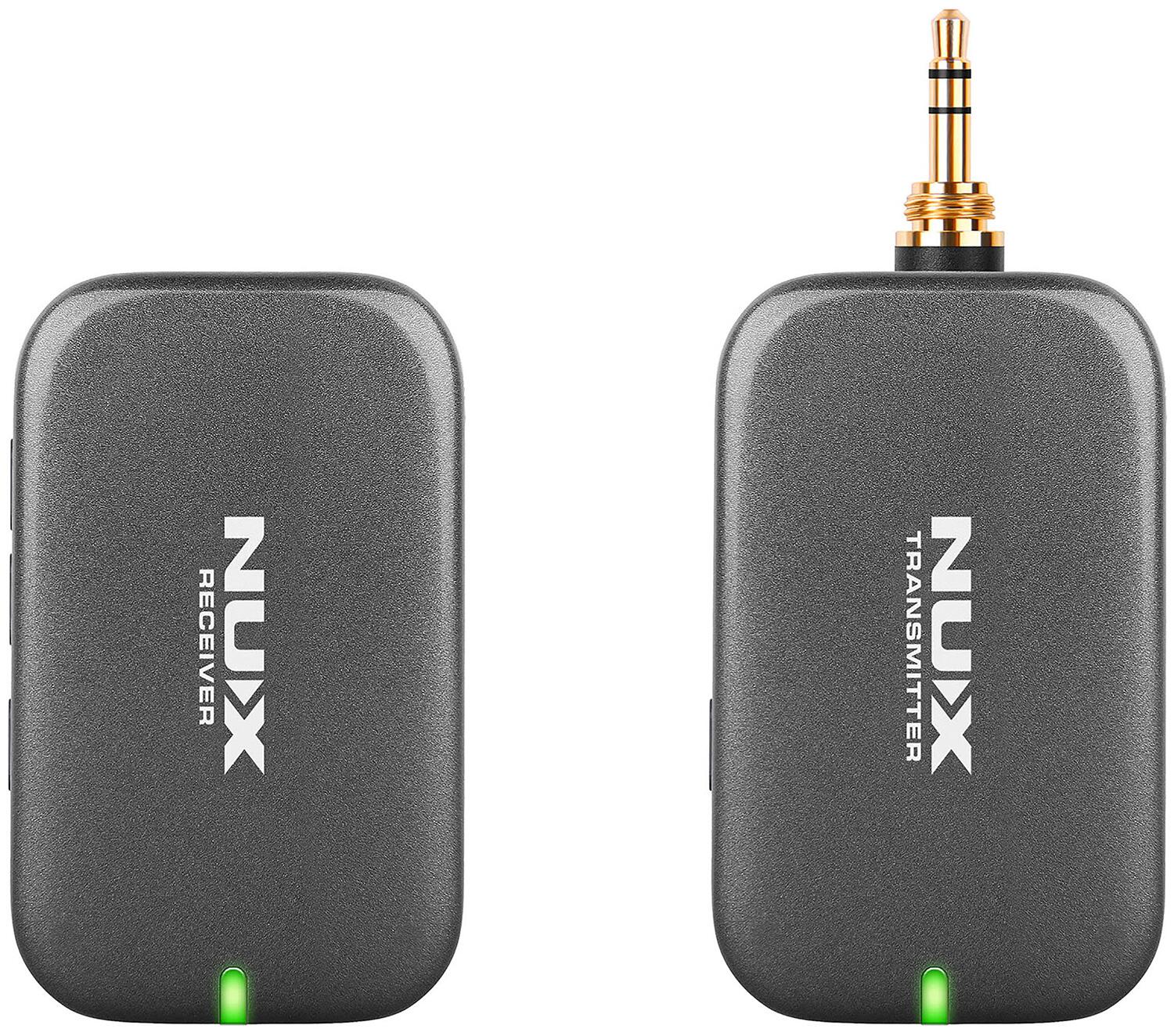

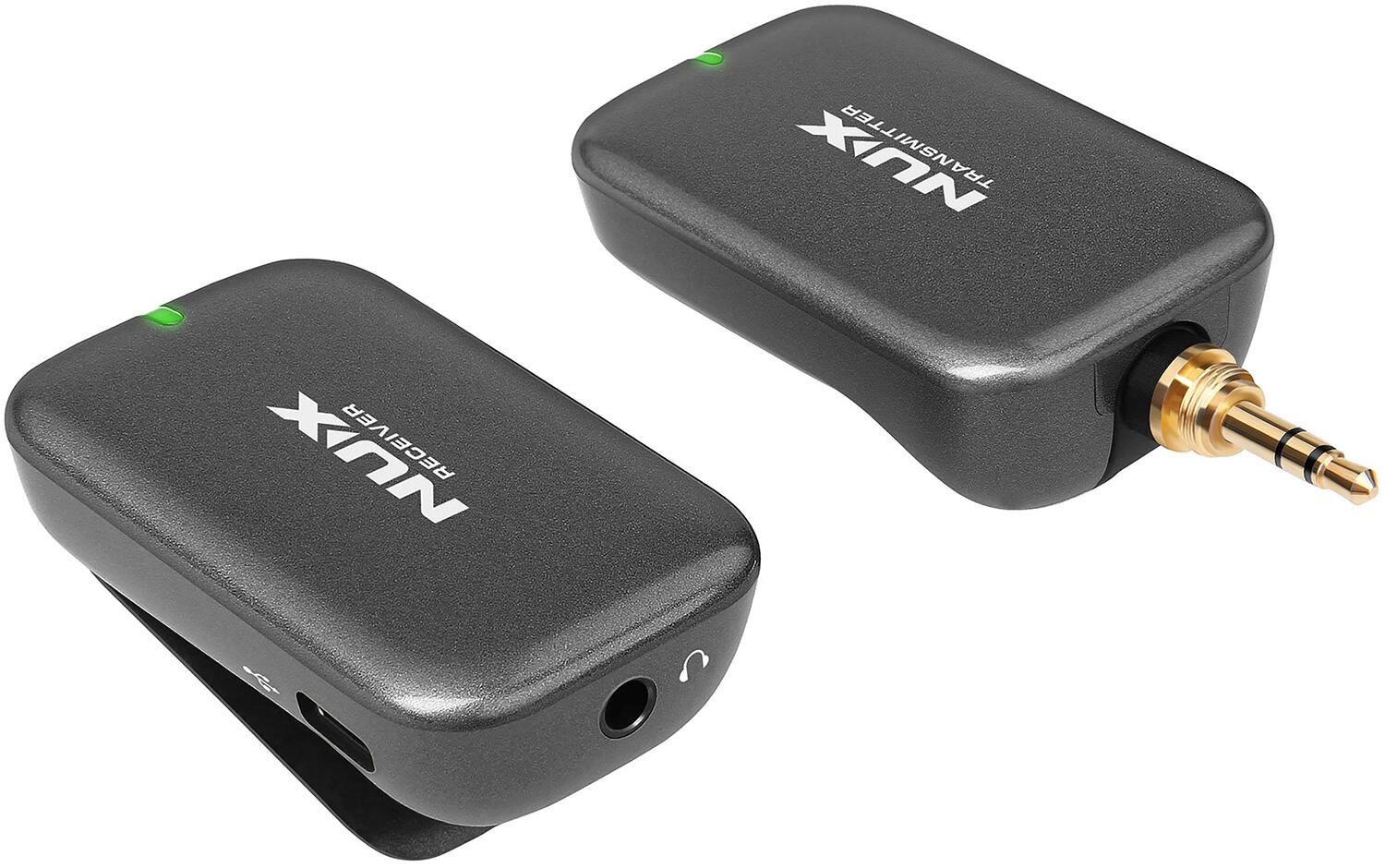

B-7PSM is a wireless personal monitoring system for driving any stereo in-ear monitors or heaphones with an impedance of 16-32 Ohms. The set comprises an ultra-compact transmitter with an integral 3.5mm plug and a clip-on receiver with 3.5mm stereo output jack, controlled via a pairing button and volume up/down buttons. The system operates on the license-free 5.8GHz digital band with auto-pairing on power-up for a fast and trouble-free setup. For added convenience, the set is supplied in a charge case, which has an inbuilt power bank to charge both transmitter and receiver units, so that they can always be ready for action. Audio fidelity is pristine with a broad and even frequency range and fast dynamic response, delivering the best possible sound quality to your earbuds or headphones. Reliable and accurate monitoring with freedom of movement for musicians, stage performers and broadcasters.,License-free operation on 5.8GHz band

Auto carrier detection and pairing

Suitable for 16-32 Ohm earphones or headphones

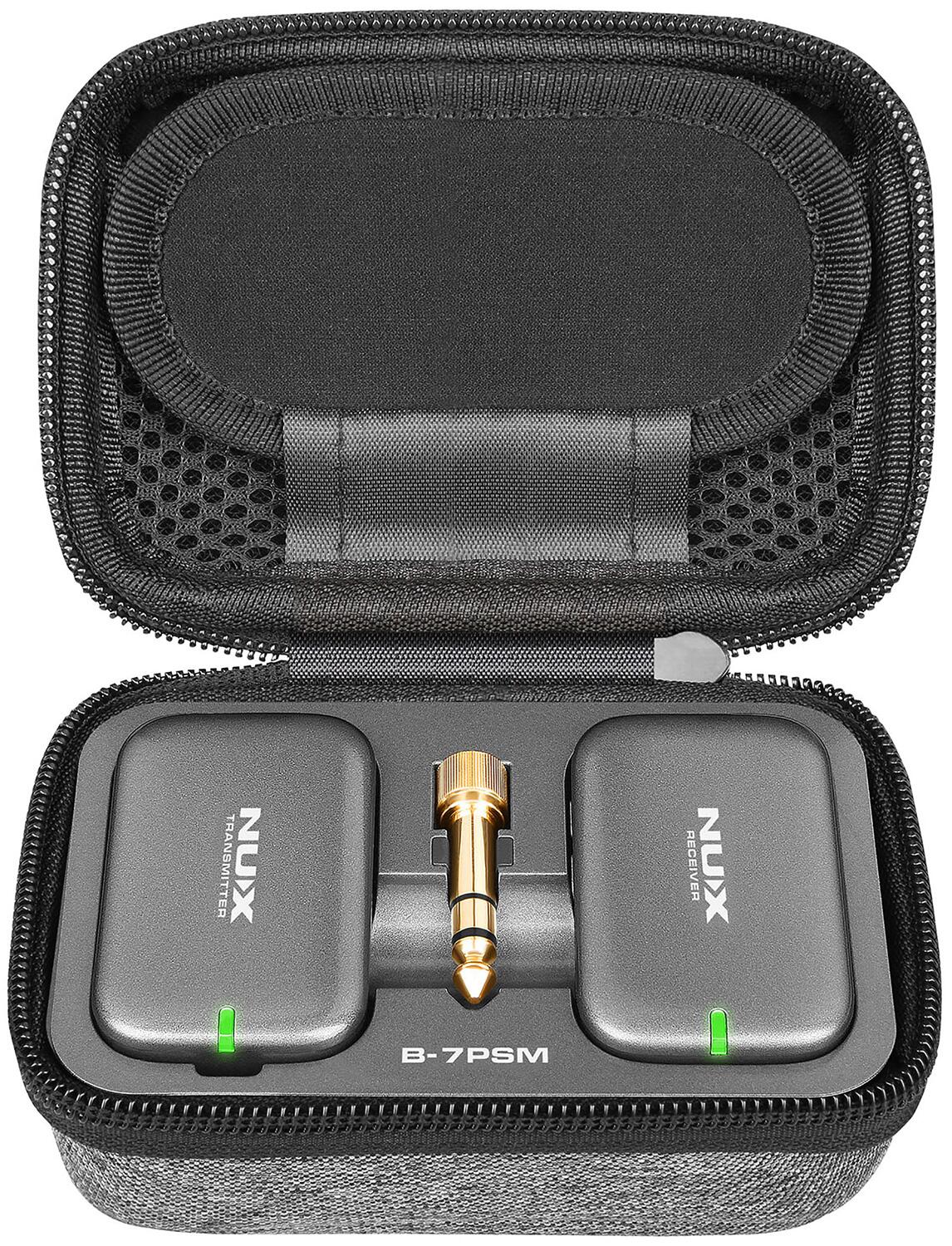

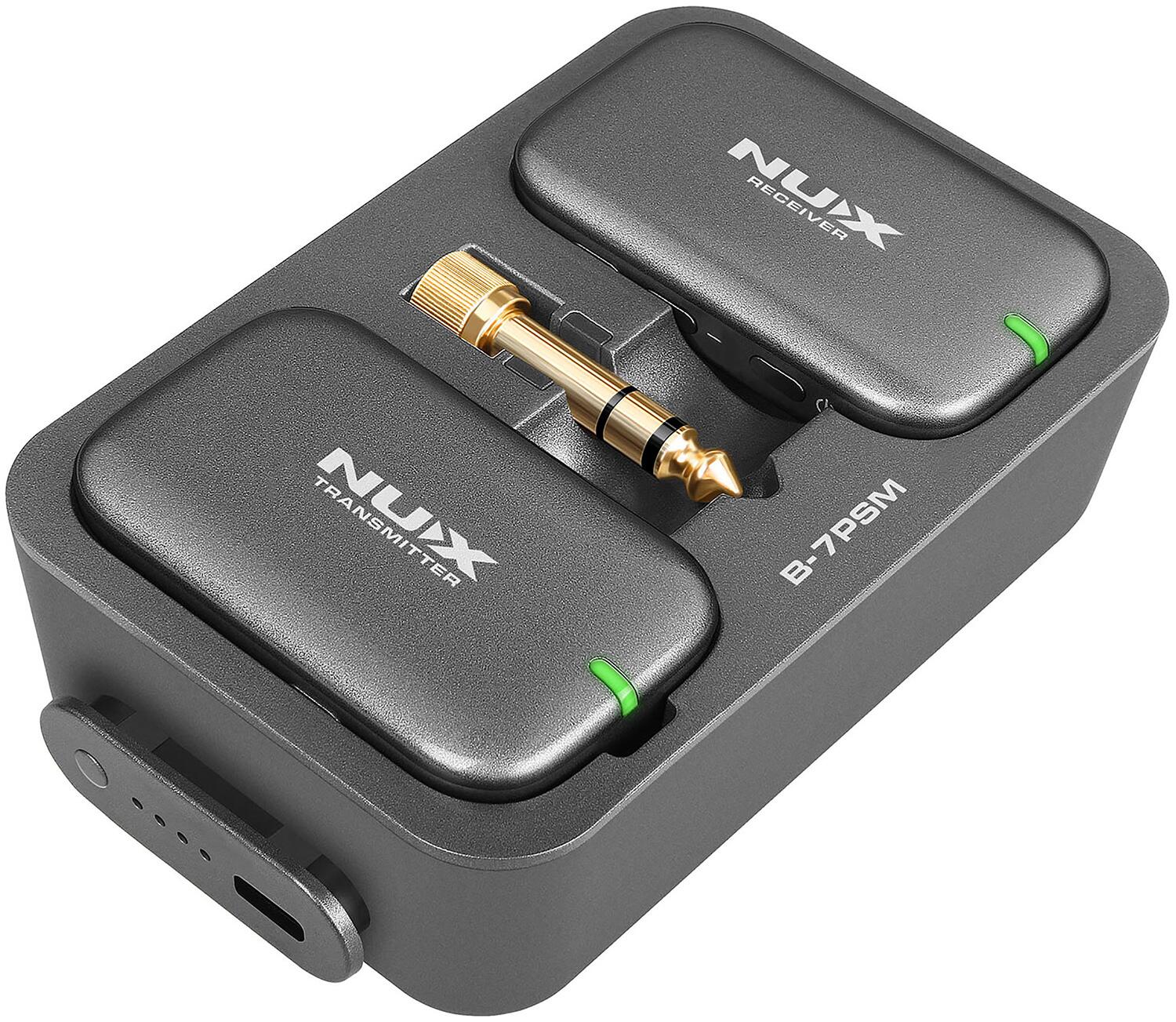

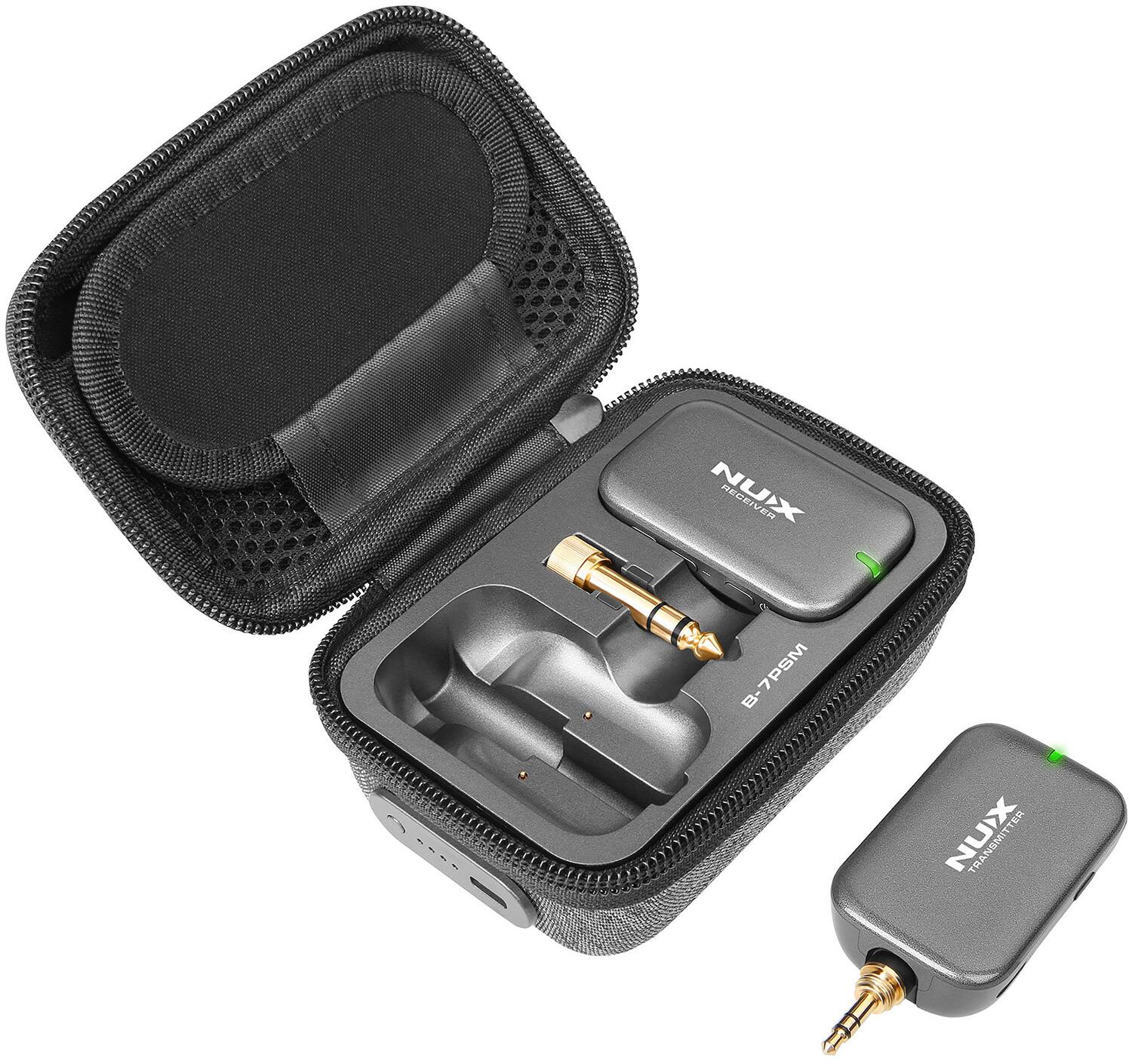

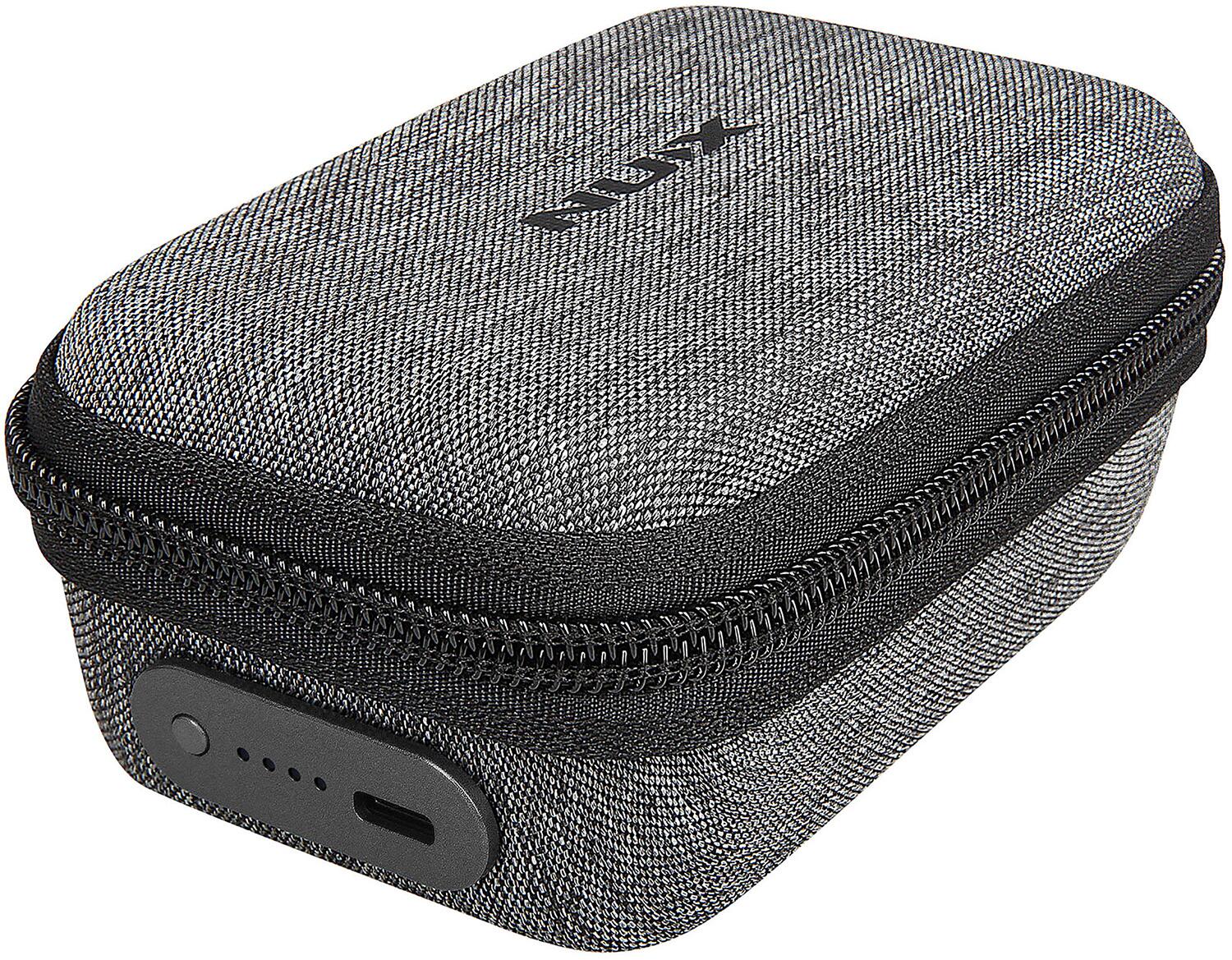

Supplied in a 3000mAh charging case,Recharge time 1.5 hours transmitter & receiver, 4 hours case (approx.)

Batteries 3.7V Li-ion 450mAh (transmitter & receiver), 3000mAh (case)

Headphone : connector 3.5mm stereo jack

Runtime 4 hours (full charge minimum)

Headphone impedance 16-32 Ohms recommended

Output power : max. 57mWrms @16 Ohms/1kHz

Output level -64dB to 0dB adjustable (0.5dB steps)

Latency <5.5ms

Line input impedance 3.5k Ohms

Max. input level : line 7.6Vp-p (8.6dBV or 2.7Vrms)

Dimensions 60 x 36 x 25mm (Tx/Rx), 114 x 70 x 32mm (case)

Weight 32g (Tx/Rx), 130g (case)

Frequency response 20Hz - 19kHz

Dynamic range 92dB

THD <0.6% @ 1kHz

Carrier frequency 5.8GHz band

Range 30m (open air, no obstruction), 10m (open air with obstructions)

Sampling format 24-bit, 40kHz,
