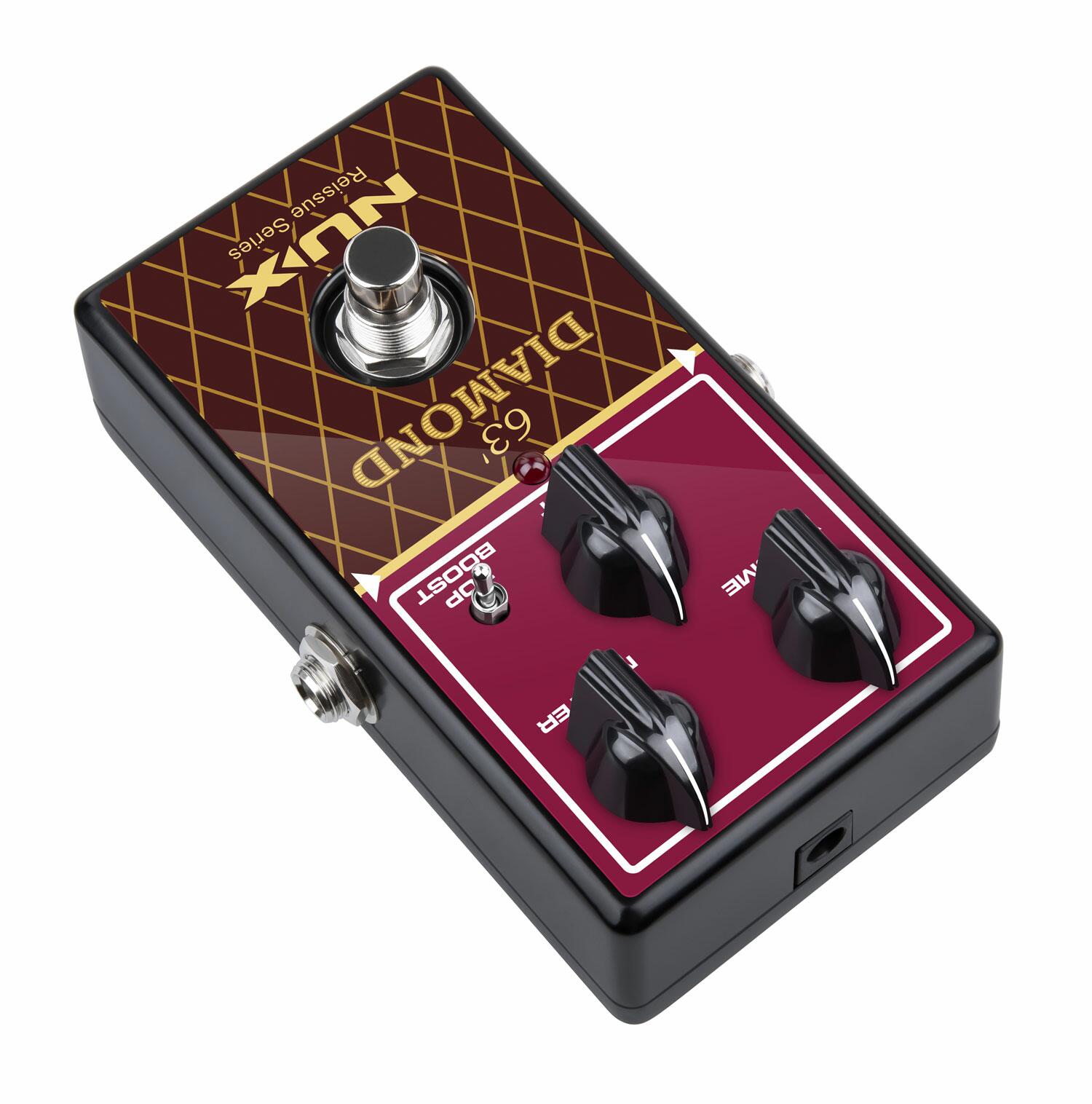

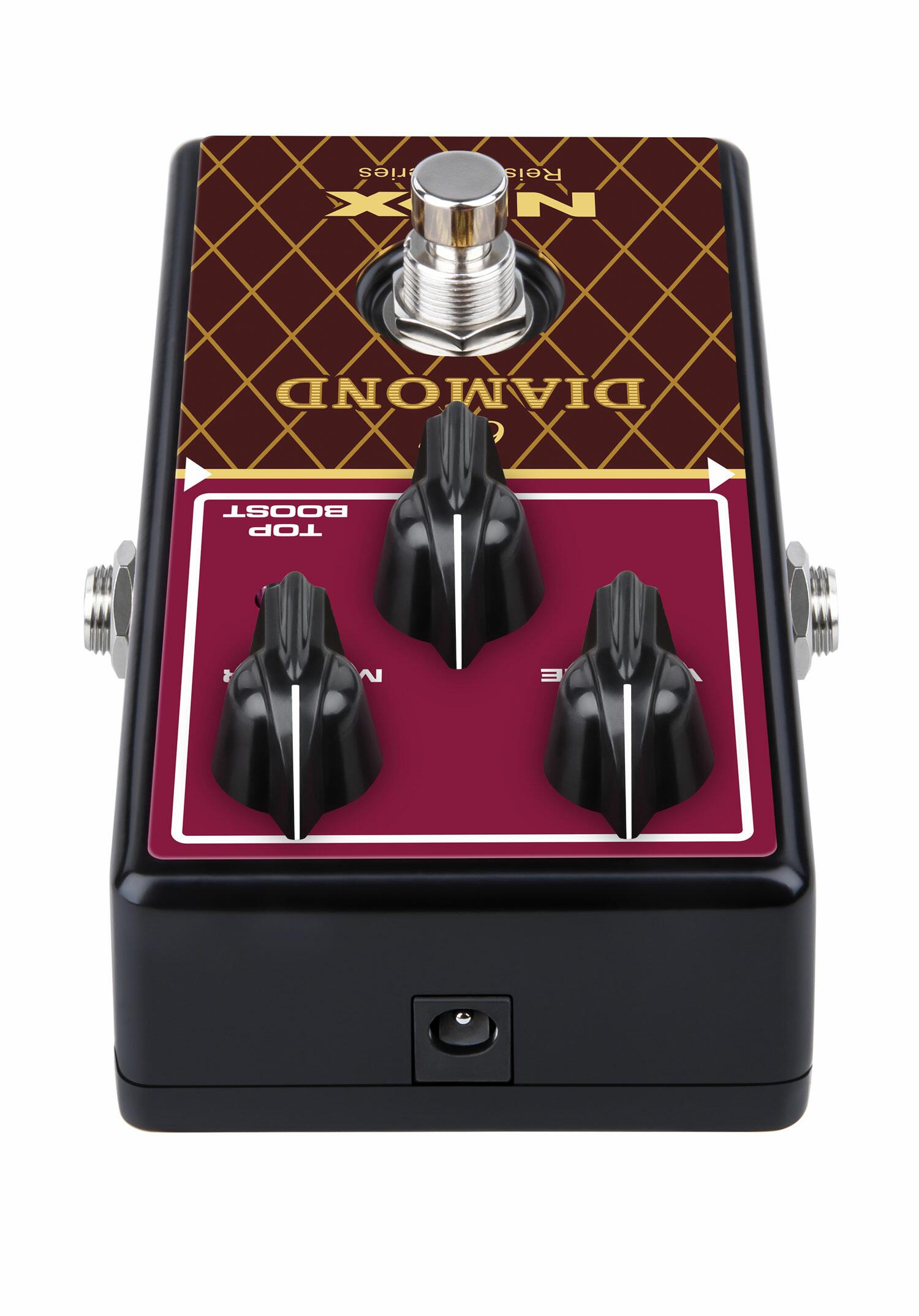

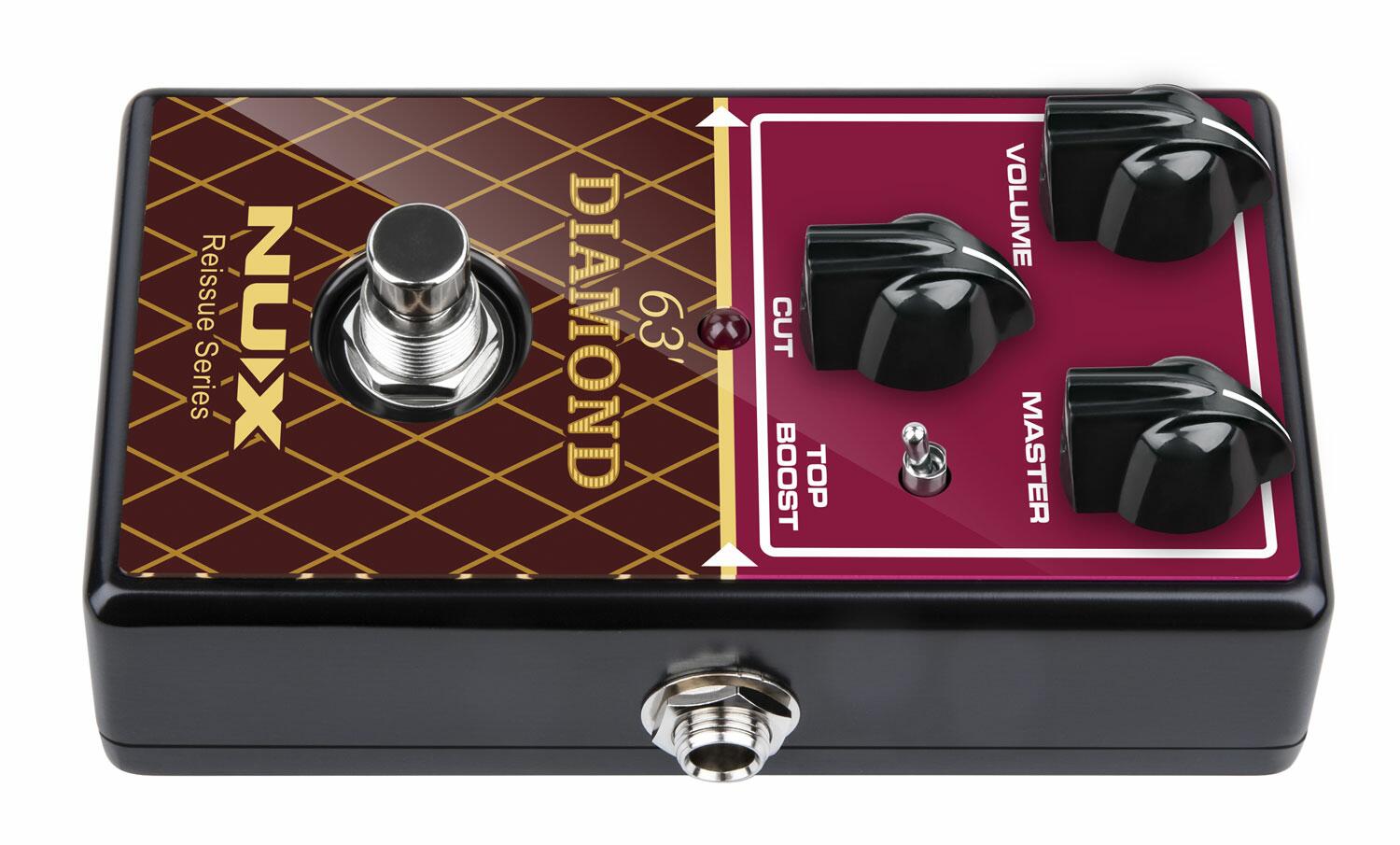

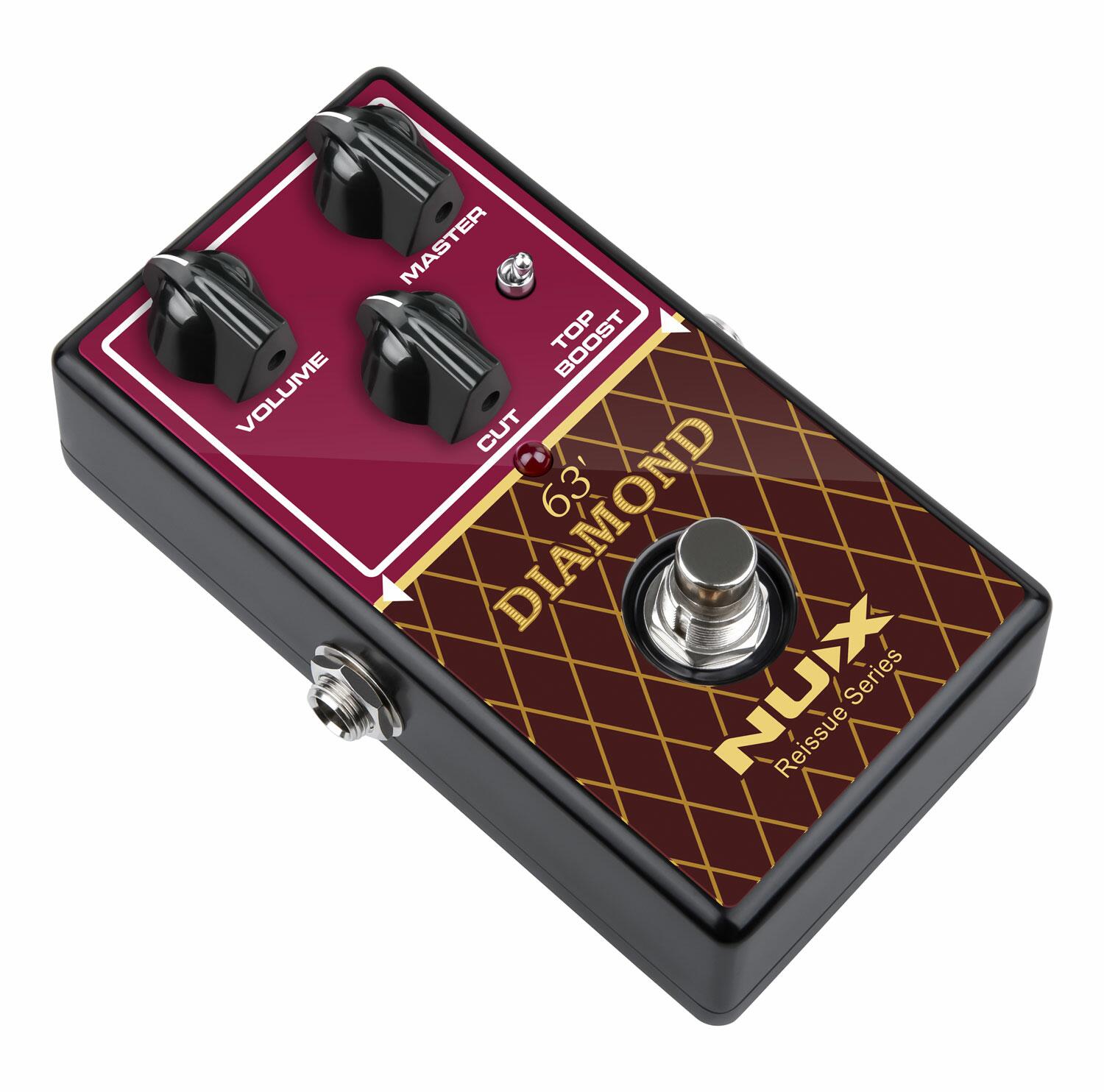

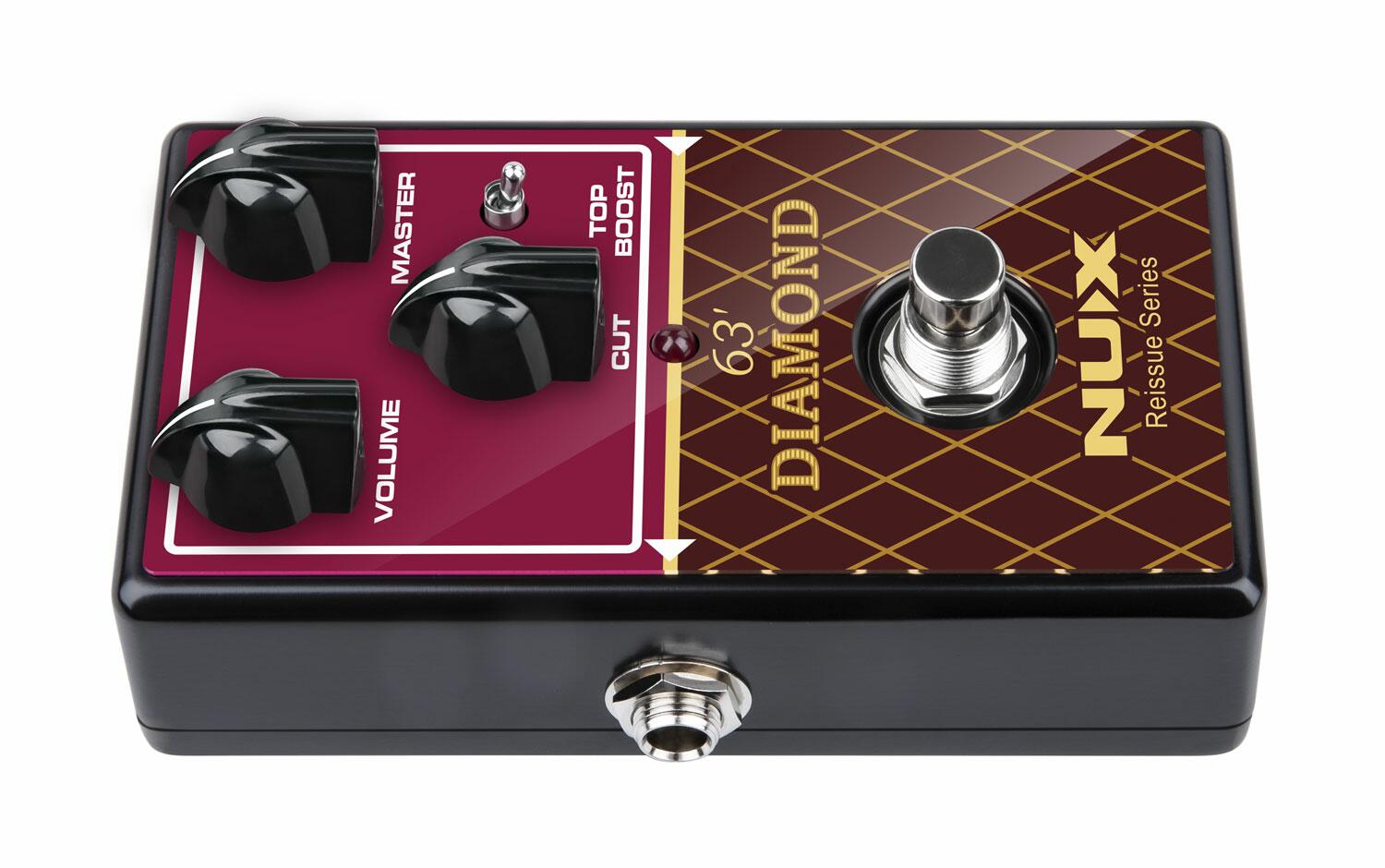

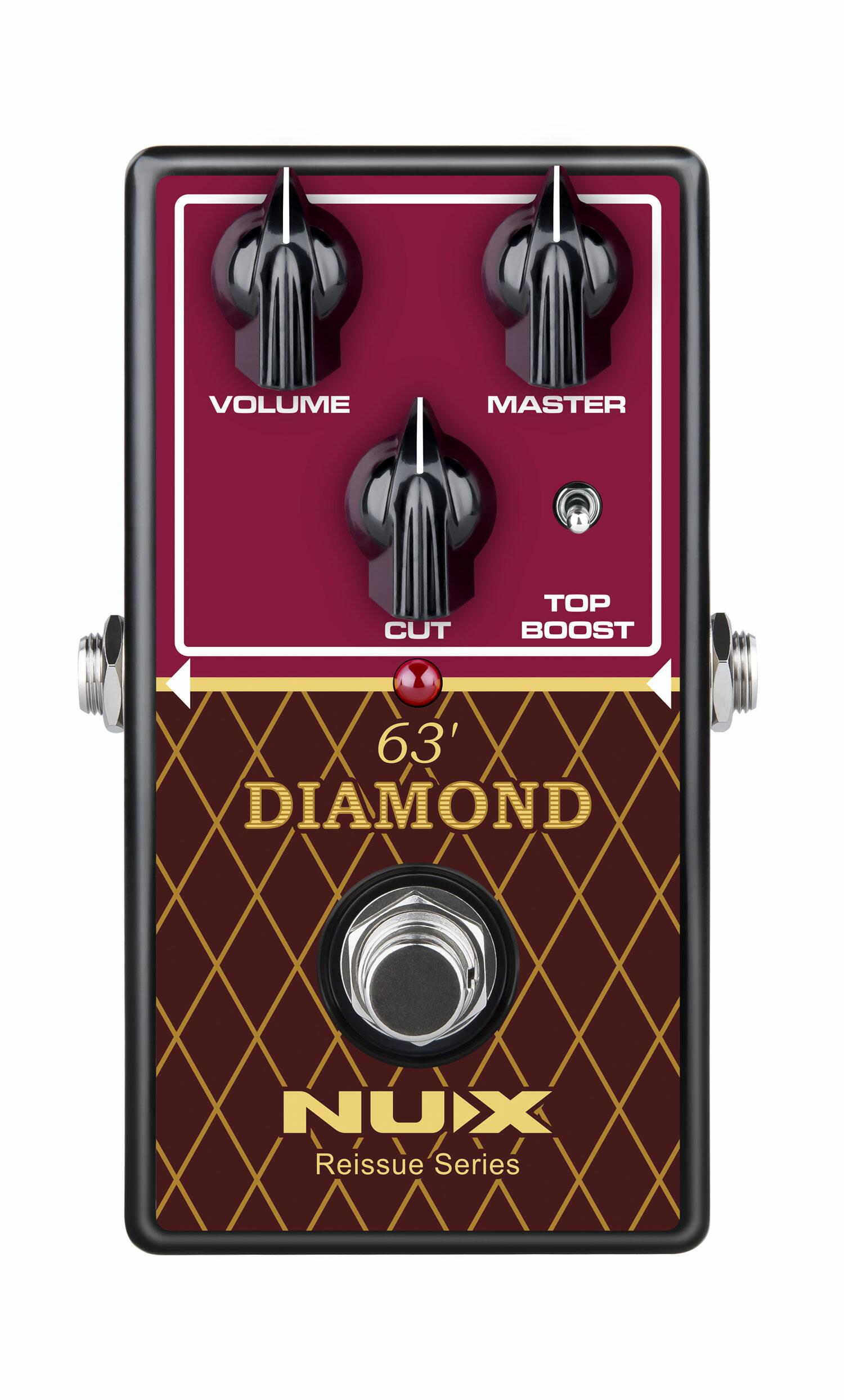

NUX 63 Diamond Overdrive Pedal - 173.237UK

SKU: 173.237UK
NU-X

The Reissue series 63 Diamond pedal offers players a range of overdrive that emulates the sound of a classic British 30-watt class-A valve amplifier, much-revered by guitarists since 1959 for its tonally rich clean and crunchy overdrive sound. The styling of the 63 Overdrive is a nod towards the cabinet that stood behind the bands of the British blues invasion and rock bands of the 1970's through to present day guitar bands. Volume and Master controls let you dial in the drive, with a tone Cut control just like the real amplifier. A Top boost switch introduces additional bite and was a later addition to the design in 1963, which is where this pedal gets its name. Invoking 60's British cool in a single pedal was never this easy before.

Classic British class-A overdrive tones[br]Authentic Volume, Master and Cut controls[br]Top boost switch to add bite[br]True bypass switching

Batteries 9V PP3 (supplied)

Power supply Optional 9Vdc 300mA regulate Not supplied

Controls Volume, Master, Cut, Top Boost & foot switch

Input impedance 1M Ohms

Output impedance 10k Ohms

Dimensions121 x 77 x 48mm

Weight 230g
