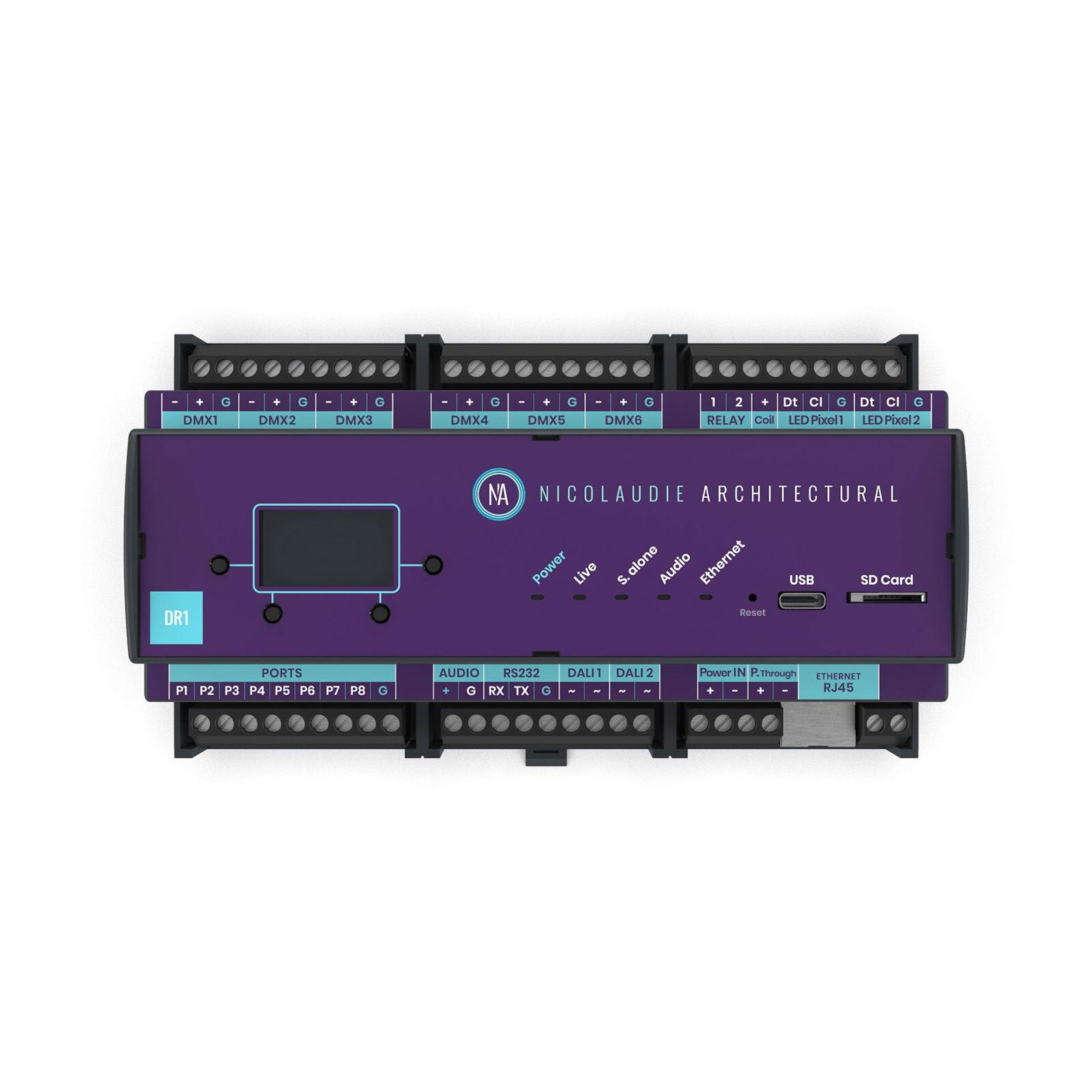

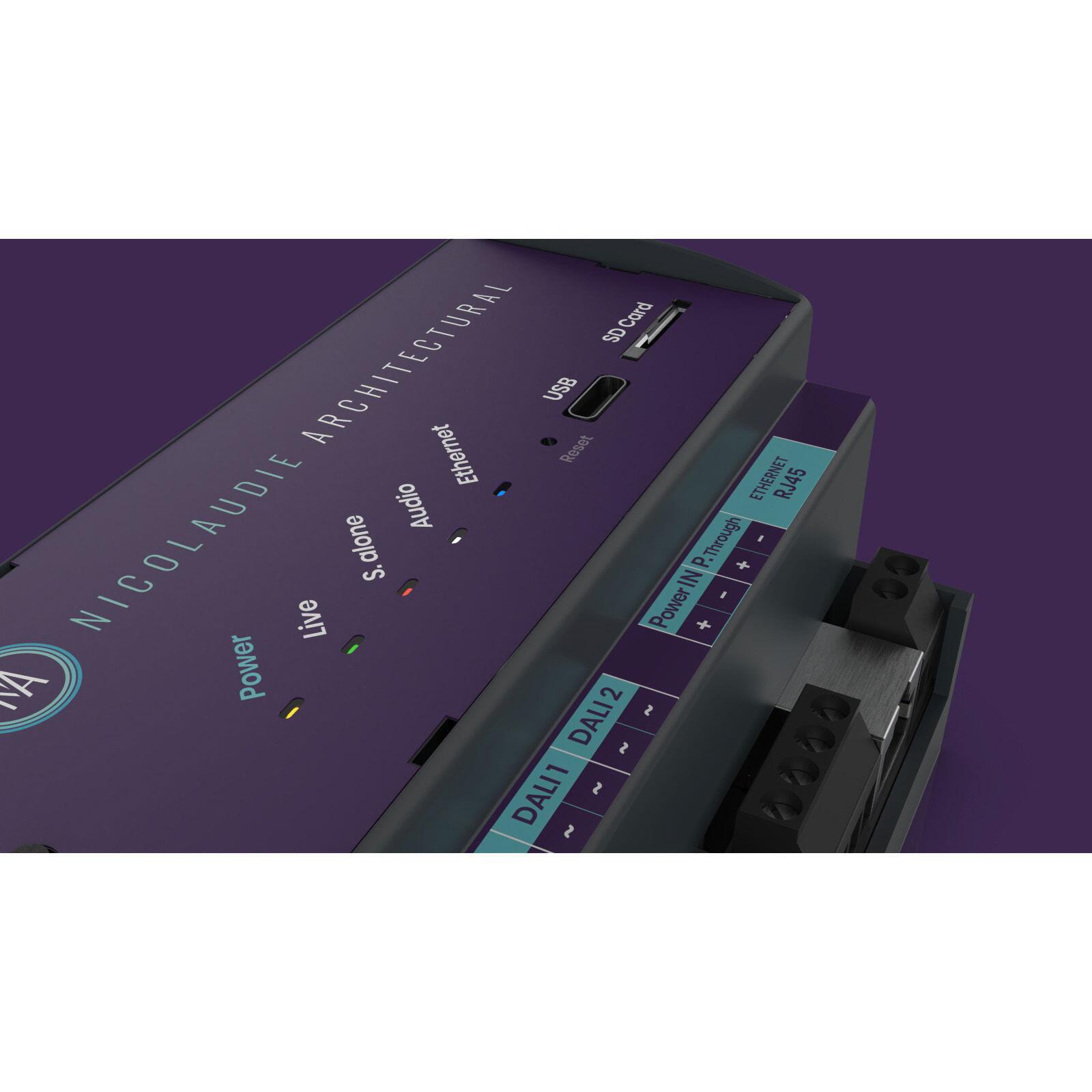

Nicolaudie Architectural DINA-DR1-LITE DIN Rail Lighting Controller

SKU: NA0009
Nicolaudie Architectural

DINA-DR1-LITE DIN Rail Lighting Controller
2 year warranty DMX512 / eDMX / LED Pixel Stand Alone controller 2 x Universes (1024 channels) Output Universes via DMX512 (up to 2 universes) & Artnet/sACN (up to 12 universes with SUT universe upgrade) 2 x DALI buses (single-master)* SUT Technology allows the device to be upgraded with more universes & used with other Nicolaudie Group software USB & Ethernet connectivity Stand Alone mode with 2000 scenes & 20 zones 16MB flash memory & microSD slot 8 dry contact trigger ports RDM compatible Windows/Mac software for programming iPhone/iPad/Android/Mac & Windows apps for remote control Compatible with NATouch-1 wall controller Control 2 external relays Nicolaudie Cloud*: Remote control and management via internet connection (subscription required) Audio triggering / sound-to-light* RS232 protocol scene control* Coming soon: Direct support for LED Pixel Tape*

*Optional features via license upgrade

Input Power: 12V DC (8–15V range) Output Protocol: 6 x DMX512 DALI-2 eDMX LED Pixel (SPI x 2) Programmability: PC Mac Android iOS Connections: USB-C Ethernet Screw terminals for: 6 DMX/RDM Universes LED Pixel (coming) 2 DALI loops 8 Contact ports Relay 12V power-in & pass-through RS232 scene trigger Audio in Battery holder: LIR2032 3.6V microSD slot TCP Connections: 10 + 1 cloud Memory: 16MB flash SD card (max 32GB FAT32) Temperature: 0 to +50°C Buttons: 2 scene 2 page 1 reset OS Requirements: Mac OSX 10.13+ Windows 10/11 Dimensions (H x W x D): 62 x 160 x 91mm Weight: 0.32kg

---
