Neutrik XLR 3-Pin Male Plug NC3MX1-TOP
SKU:
CONN567
Neutrik

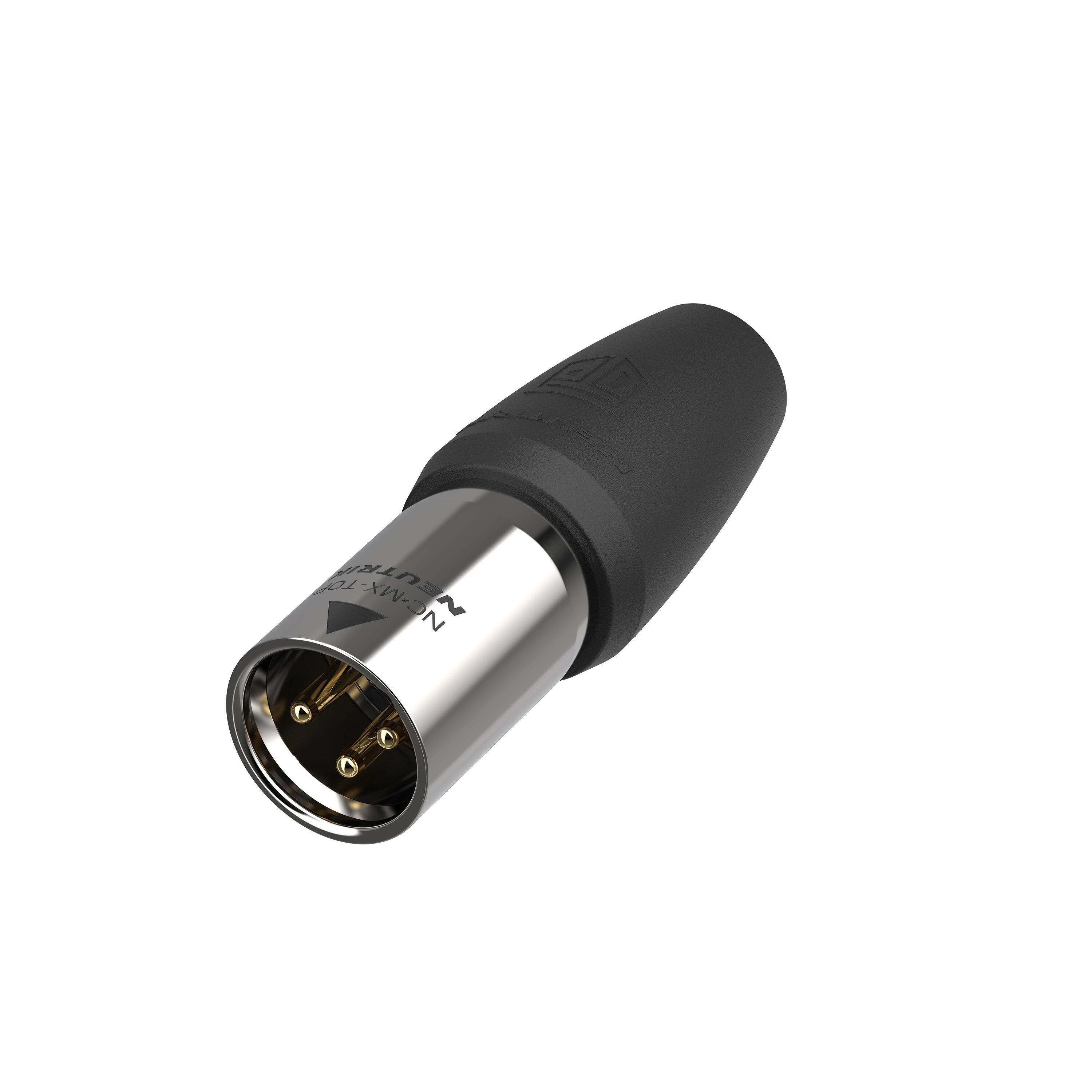

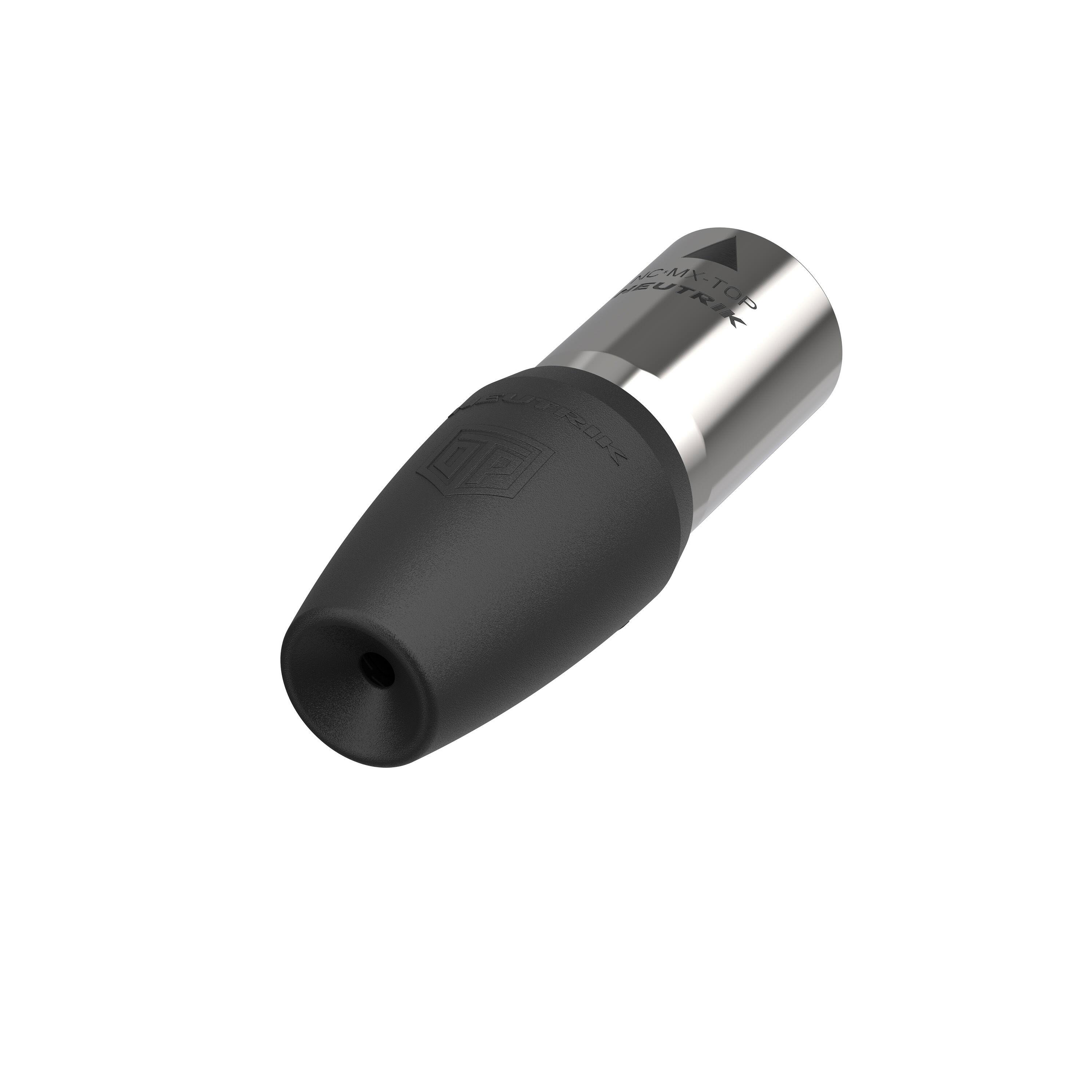

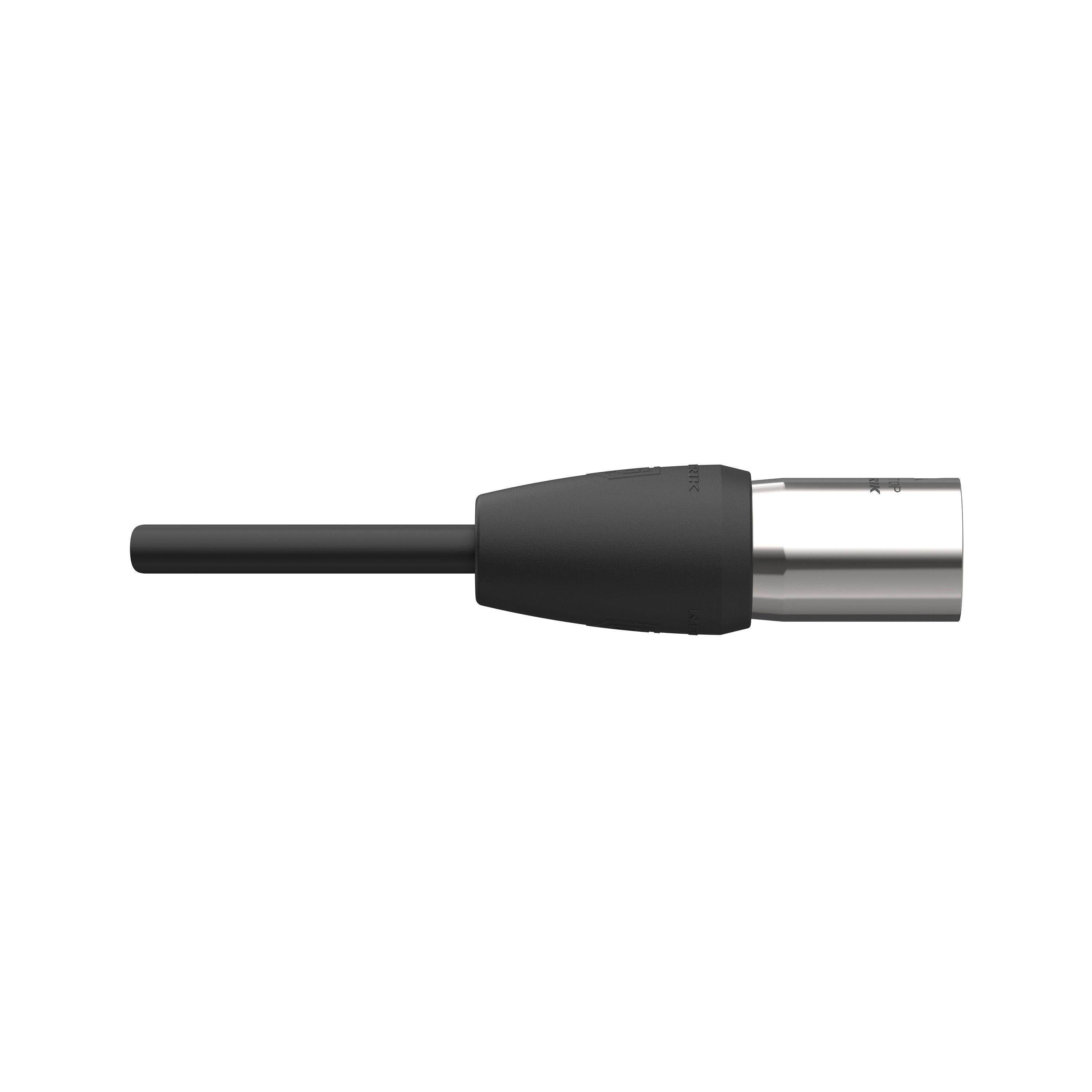

The Neutrik NC3MX1-TOP is a 3-pole male XLR cable connector designed for demanding outdoor applications. As part of the True Outdoor Protection (TOP) series it provides IP65-rated protection when mated with compatible connectors ensuring reliable performance in harsh environments. This connector is ideal for professional audio and lighting setups requiring durable and weather-resistant connections.
True Outdoor Protection (TOP): IP65-rated when mated with compatible connectors Durable stainless steel shell for long-lasting performance UV-resistant materials withstand prolonged sun exposure Gold-plated contacts for optimal conductivity and corrosion resistance Chuck-type strain relief system for secure cable retention
Contact resistance: ≤ 3 mΩ Dielectric strength: 1.5 kVdc Insulation resistance: > 10 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Cable outer diameter compatibility: 5.0 – 8.0 mm Operating temperature range: -30 °C to +80 °C Mating cycles: > 5000
