Neutrik speakON Chassis Connector NLT8MPXX

SKU: CONN556
Neutrik

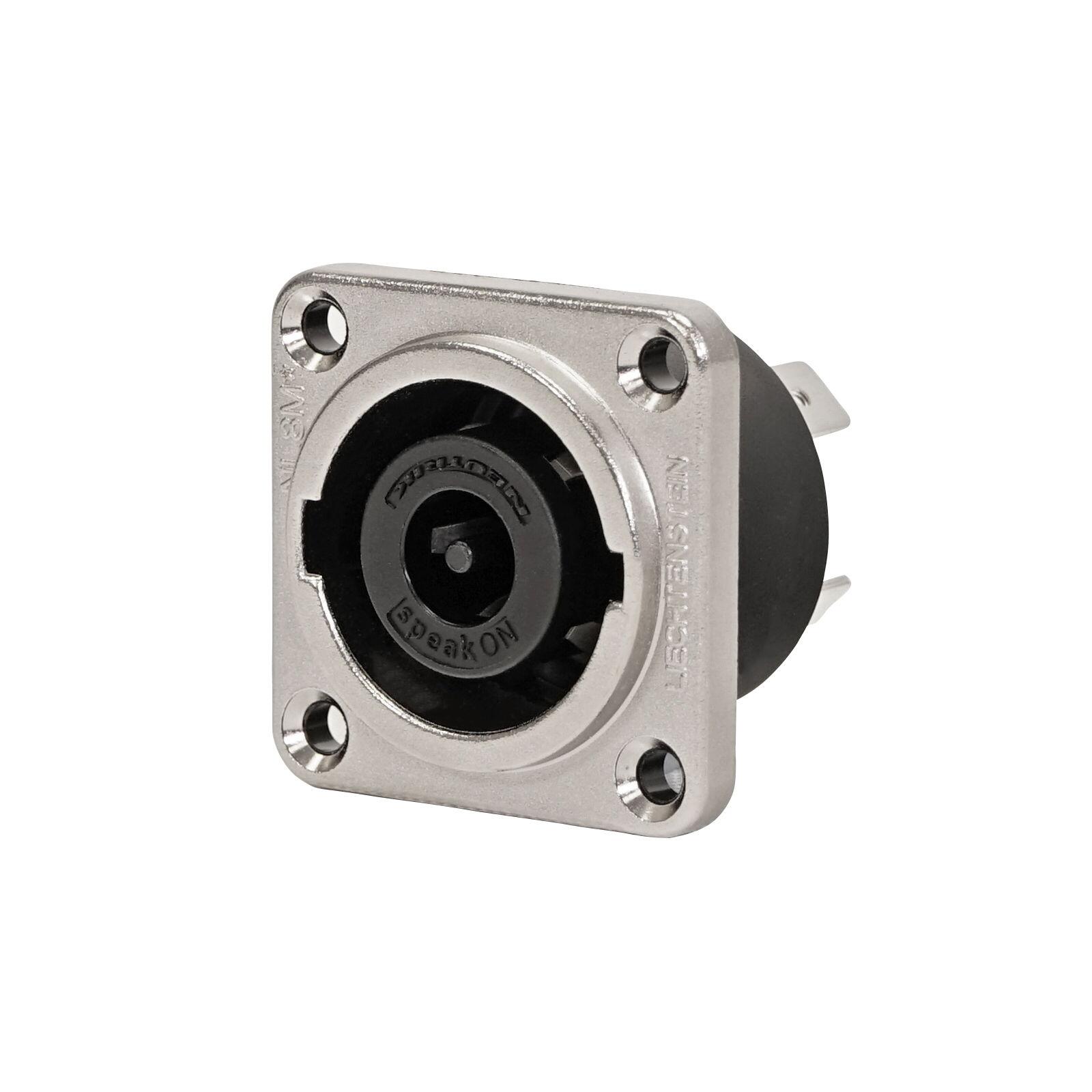

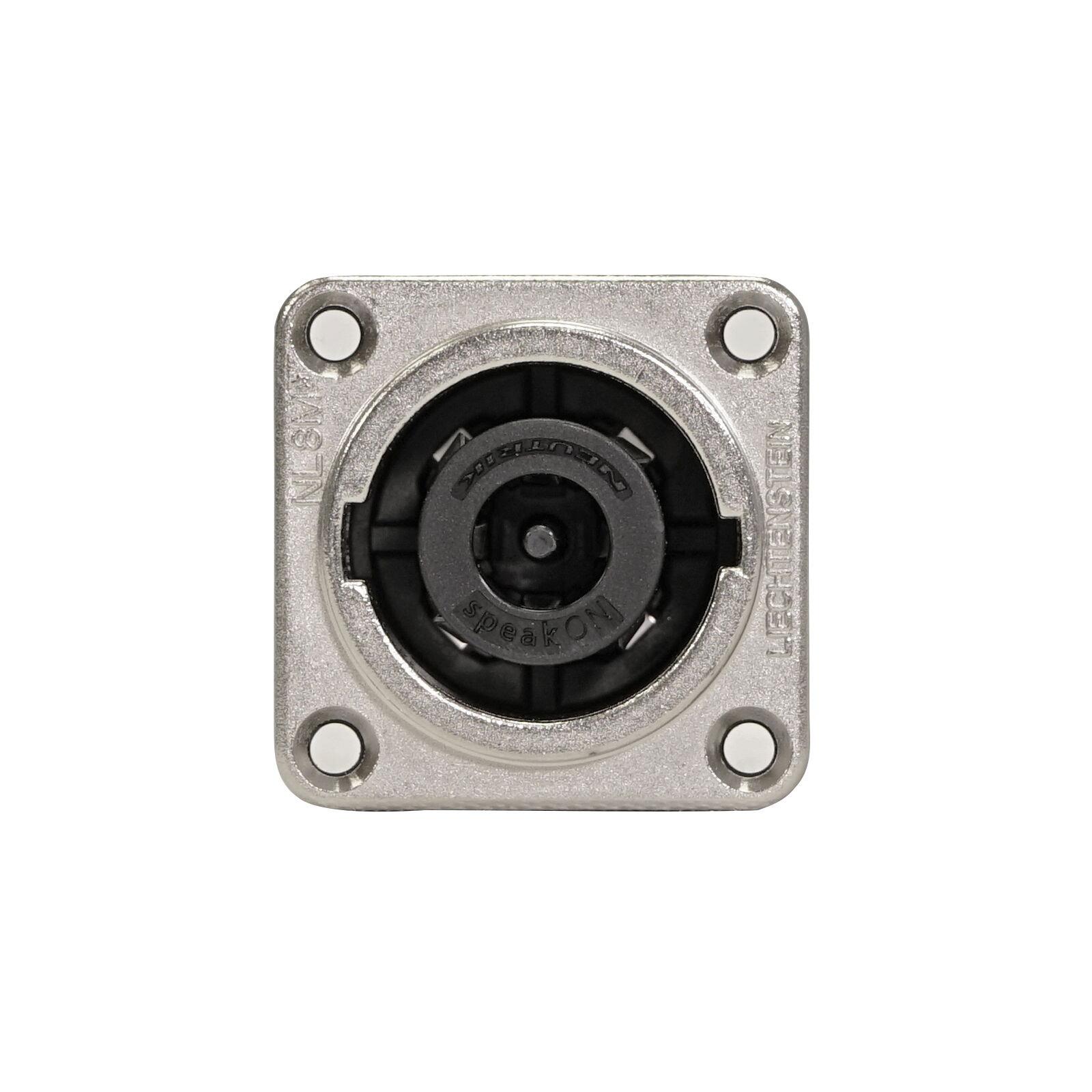

The Neutrik NLT8MPXX is an 8-pole male chassis connector designed for heavy-duty amplifier-loudspeaker applications especially in professional touring settings. It features a robust metal housing with a nickel finish ensuring durability and reliable performance.

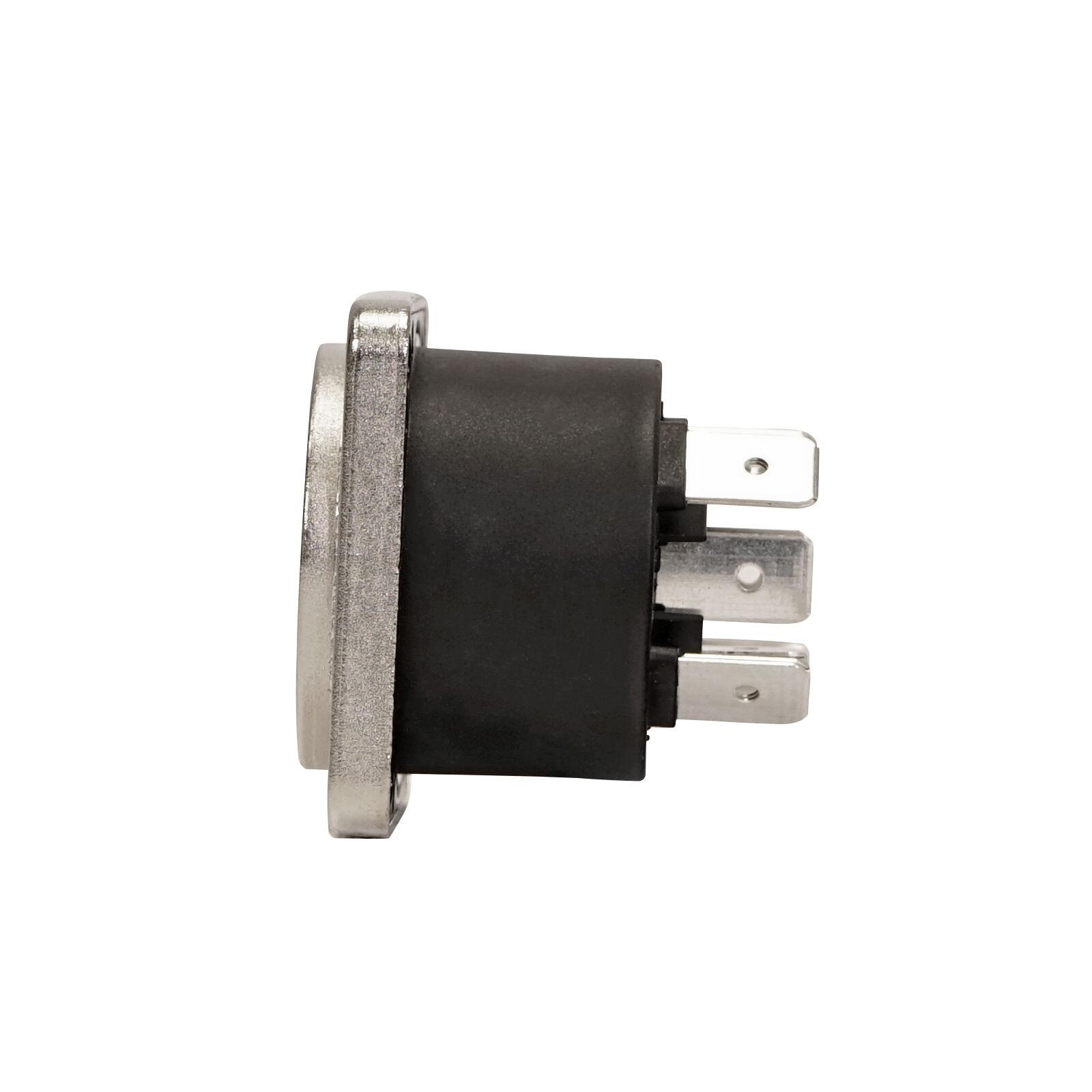

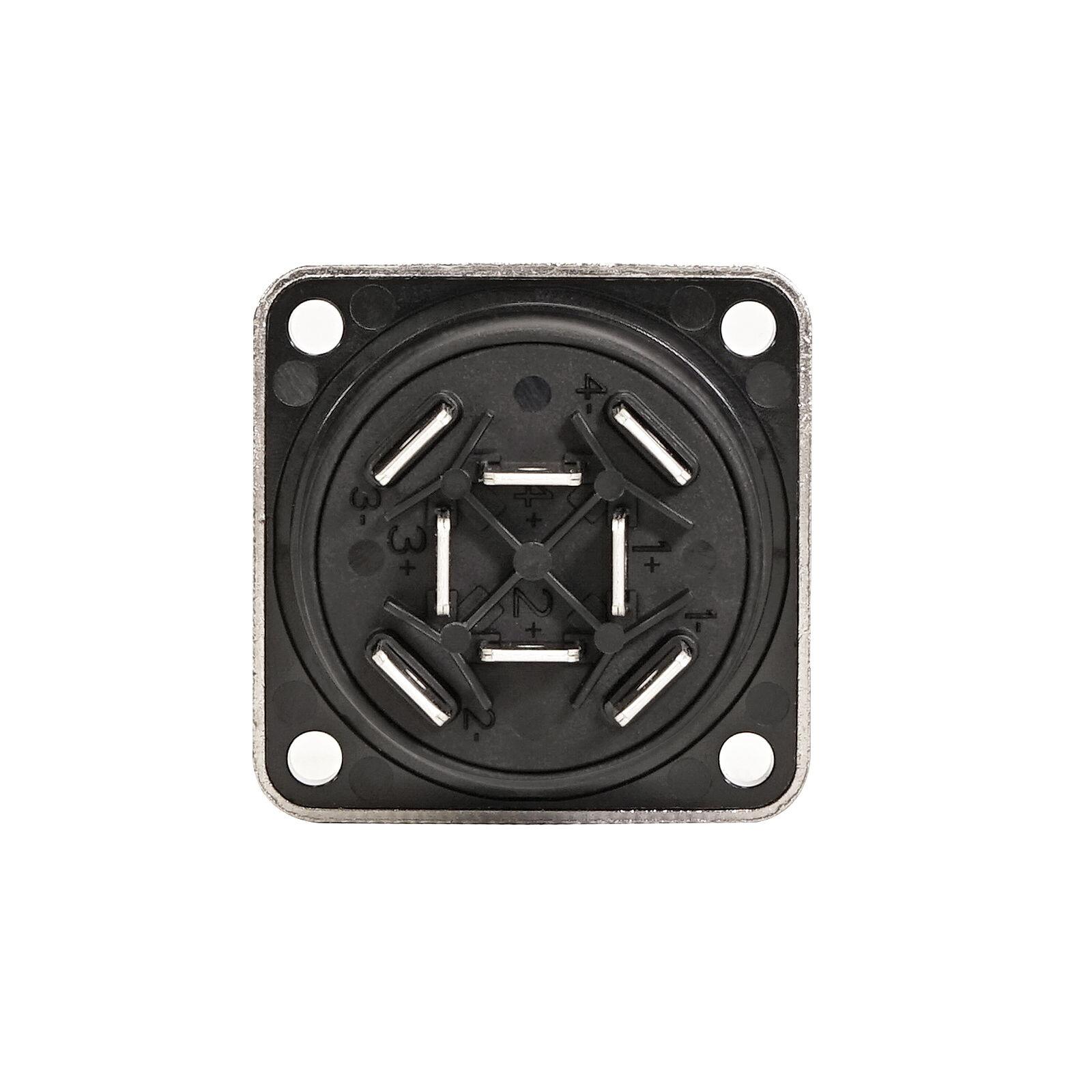

Manufacturer's Part Code: NLT8MPXX 8-pole male speakON chassis connector for professional audio applications Locking 30A / 250V AC-rated connector suitable for amplifier-to-loudspeaker connections Rugged nickel metal housing for enhanced durability Quick Lock system ensures easy and secure connections Compatible with all Neutrik speakON 8-pole connectors for seamless integration ¼" flat tab termination for reliable and straightforward assembly Ergonomic design with slip-proof two-component molded housing for comfortable handling Superior Neutrik quality standard ensures exceptional robustness and reliability Enhanced kink protection through a two-component bushing design Unique Neutrik locking bushing and strain relief accommodates cable diameters from 8mm to 20mm

Contact resistance: < 2mΩ Dielectric strength: 1.5kVac Insulation resistance: 0.1GΩ (after damp heat) Rated current per contact: 30A RMS continuous (IEC 61984) Rated voltage: 250V AC Attention: speakON is NOT to be used as a mains or power supply connector (AC/DC). Lifetime: 5000 mating cycles Termination: ¼" flat tabs
