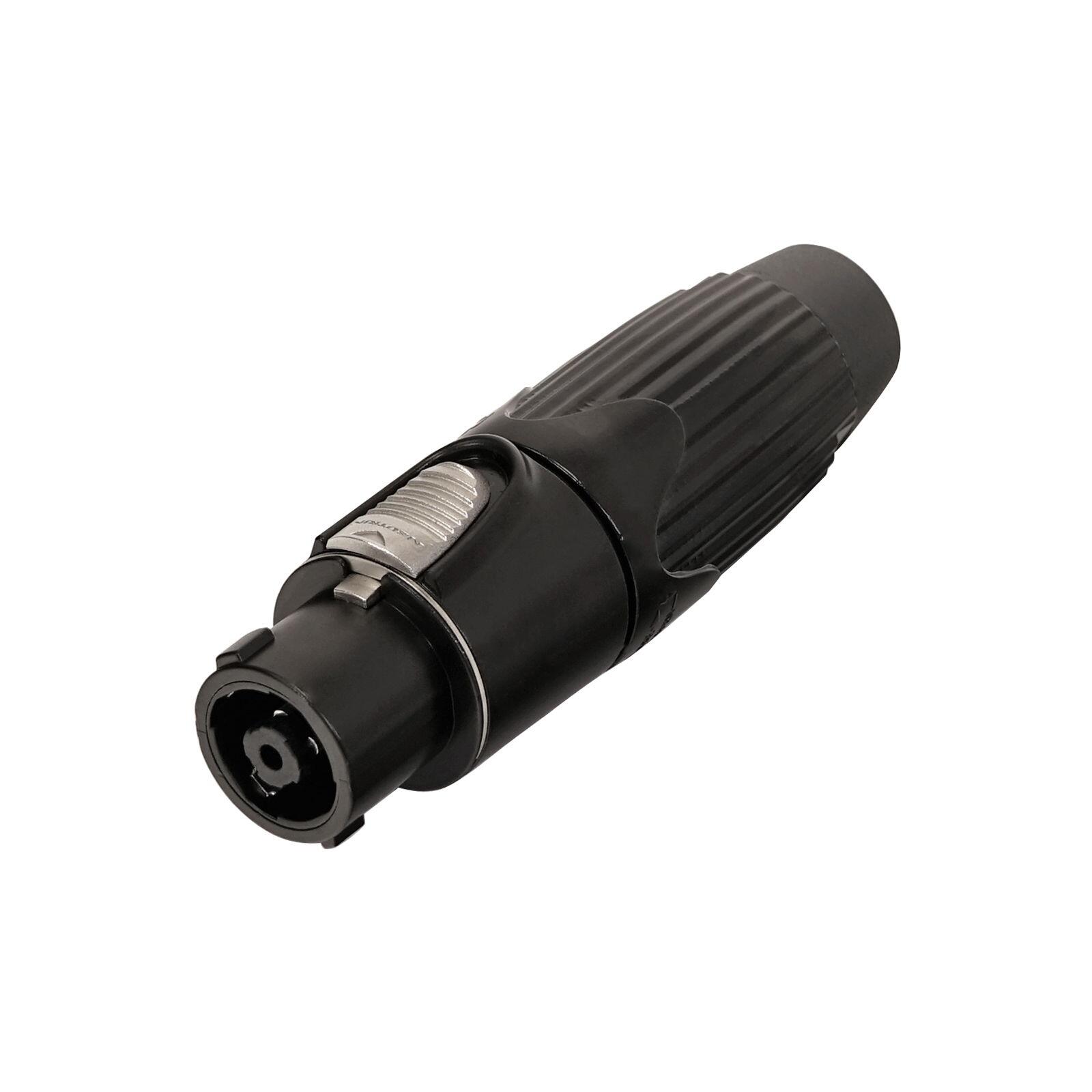

Neutrik speakON Cable Connector NLT8FXX-BAG

SKU: CONN553
Neutrik

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Manufacturer's Part Code: NLT8FXX 8-pole female speakON cable connector designed for professional audio applications Locking 30A / 250V AC-rated connector for amplifier-to-loudspeaker connections Rugged metal housing for extreme durability in touring and live sound environments Quick Lock system for easy and secure connection Compatible with all Neutrik speakON 8-pole connectors ensuring seamless integration Solder contact termination for secure and long-lasting connections Reliable strain relief system locks the insert mechanically for maximum cable retention Ergonomic design with a slip-proof two-component moulded housing for easy handling Superior NEUTRIK quality standard built for professional use with extreme reliability Two-component strain relief bushing for enhanced cable protection and durability Unique Neutrik locking system ensures a firm and stable connection for cable diameters from 8mm to 20mm

IEC EN 61984 certified Contact resistance: ≤2mΩ Dielectric strength: >1.5kVac Insulation resistance: >0.1GΩ Overall cable diameter: 8-20mm Wire size: 1.5-6mm² Temperature range: -30°C to +80°C Protection class: IP50 (mated condition)
