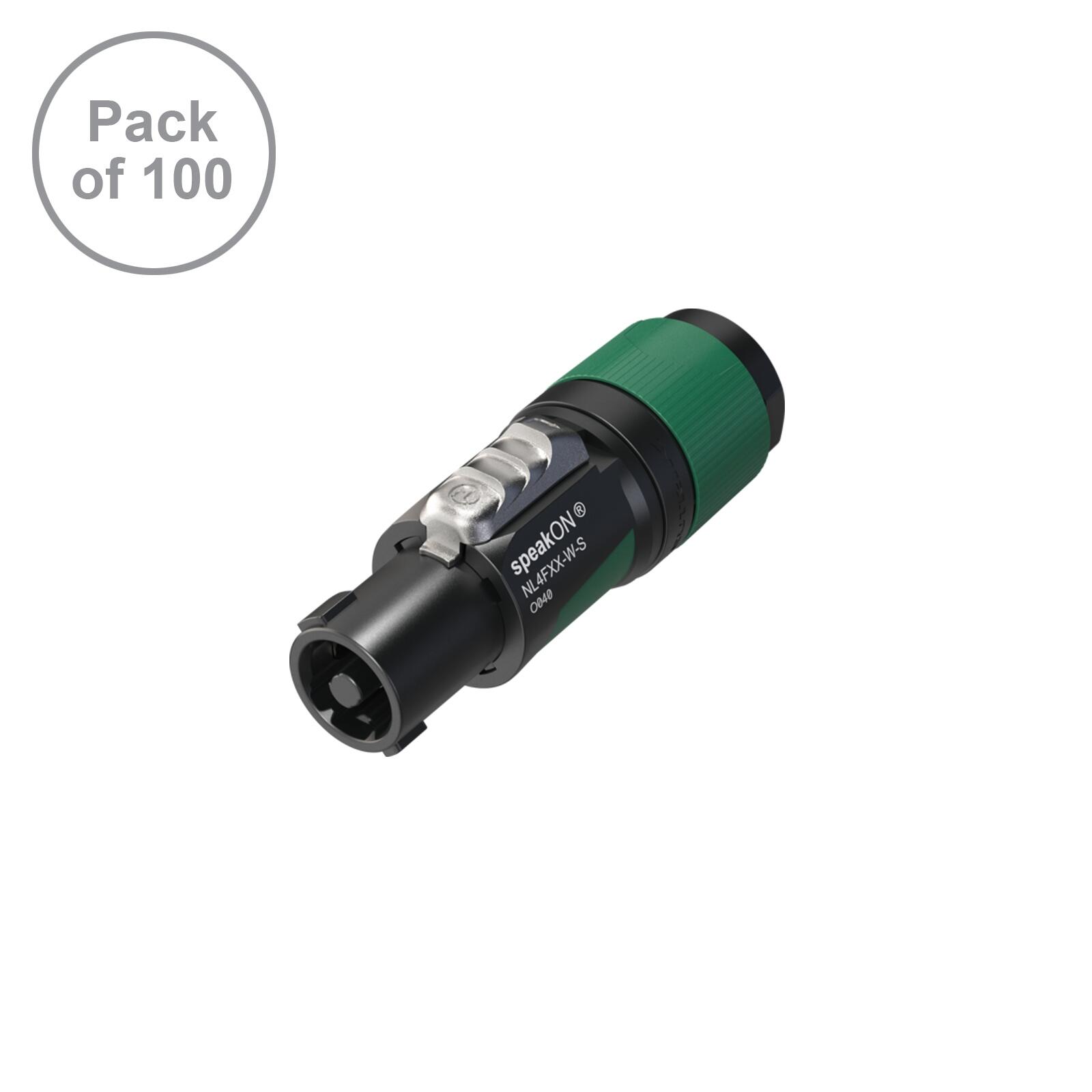

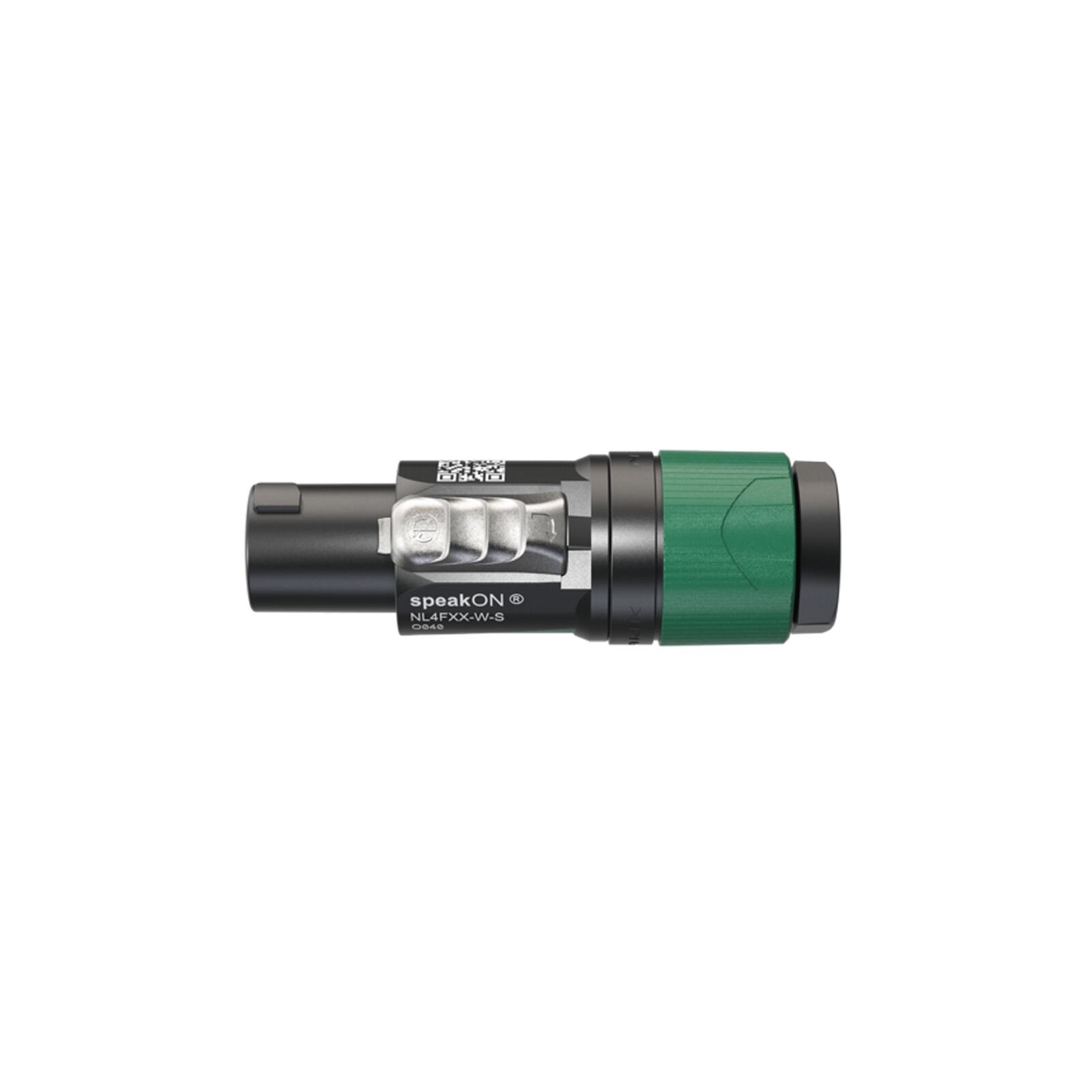

Neutrik SpeakON Cable Connector NL4FXX-W-S-D (Pack of 100)

SKU: CONN1241B
Neutrik

4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12mm. Neutrik speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Manufacturers part code: NL4FXX-W-S-D, Disassembled pack of 100, Mates with 4-pole chassis connectors, Ergonomic design with slip-proof two-component moulded housing, Up to 37A rms current rating, Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm, IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1, Superior NEUTRIK quality standard, extremely robust and reliable, Easy and reliable twist lock system, Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing, Improved kink protection by two-component bushing

IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1, Contact resistance: s, Dielectric strength: > 2.8 kVac (after mating cycles), Insulation resistance: > 10s (initially), Cable O.D: 6-12mm, Wire size (mm): 1.5-4mm, Temperature range: -33 C to +80 C, Protection class: IP20
