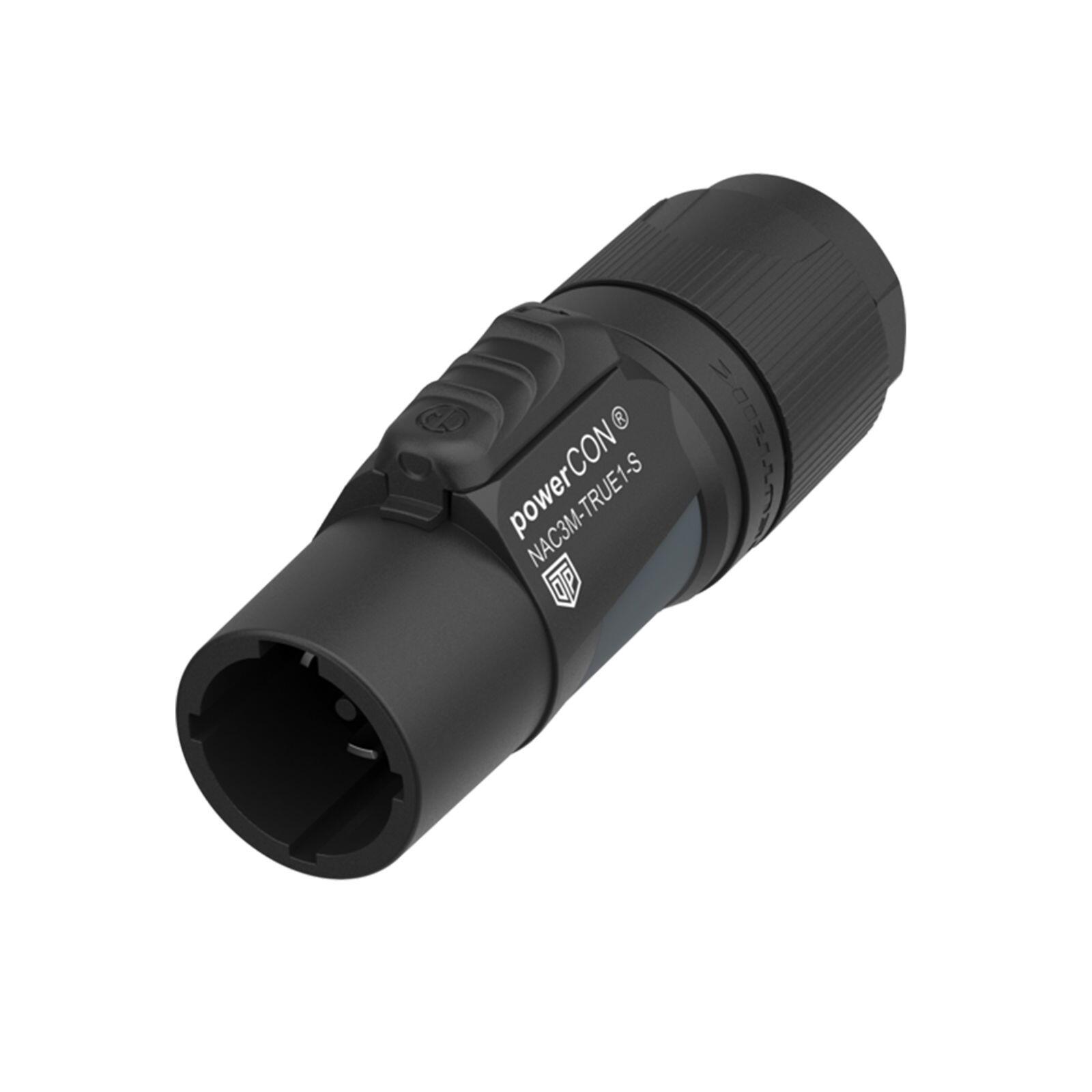

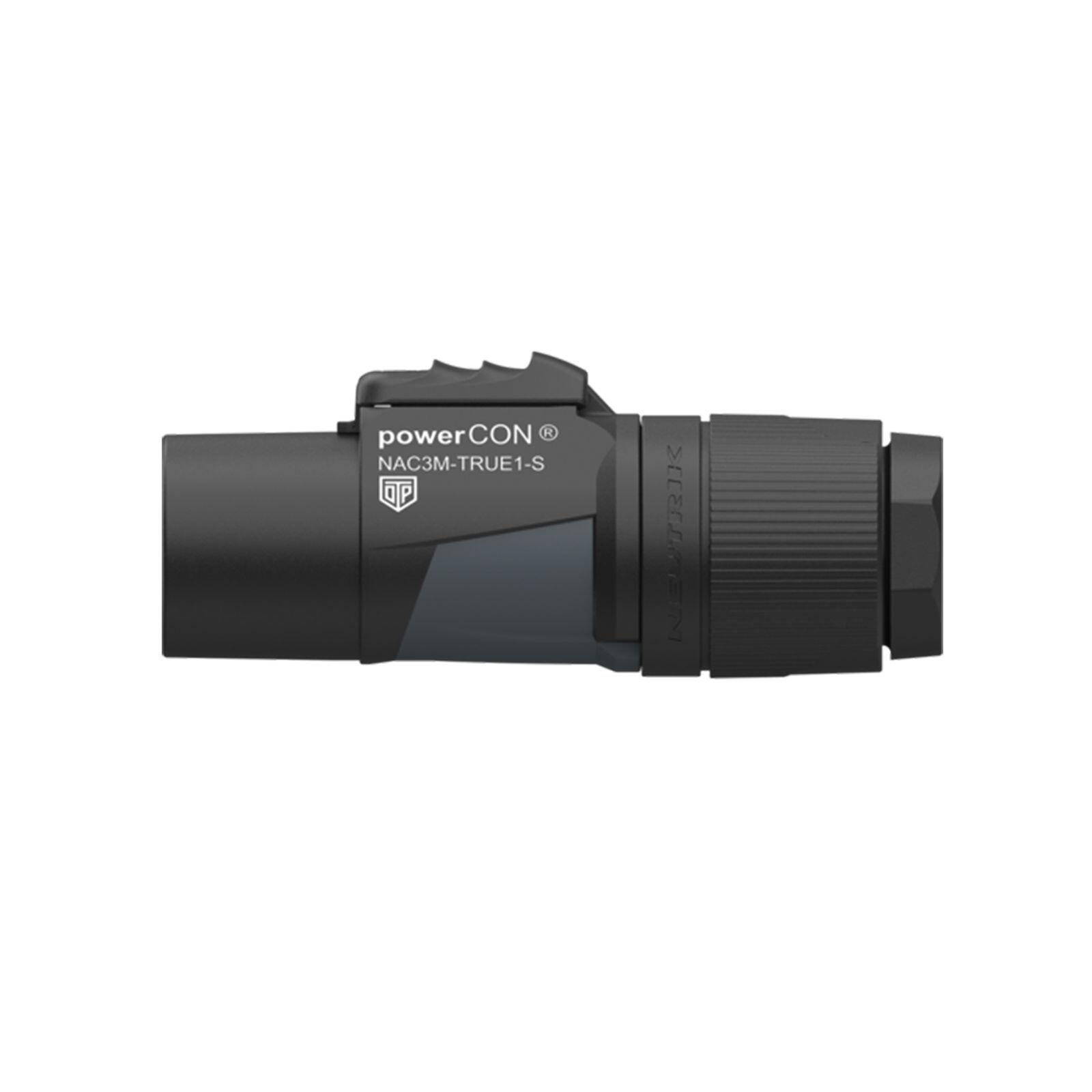

Neutrik powerCON TRUE1 Connector 6-12mm Cable NAC3M-TRUE1-S-D (Pack of 50)

SKU: CONN1262B
Neutrik

The Neutrik NAC3M-TRUE1-S-50 is a bulk pack of 50 disassembled powerCON® TRUE1 locking male cable connectors designed for professional AV lighting and industrial power use. Each connector offers 16A current capacity with CBC (Certified Breaking Capacity) for safe live connect/disconnect. IP65/IP67 rated when mated or capped and built from UV-resistant PA 6.6 these rugged connectors deliver long-term reliability in harsh outdoor or stage environments. Supplied unassembled for efficient integration and large-scale installation this high-volume option is ideal for OEMs touring setups and rental houses.

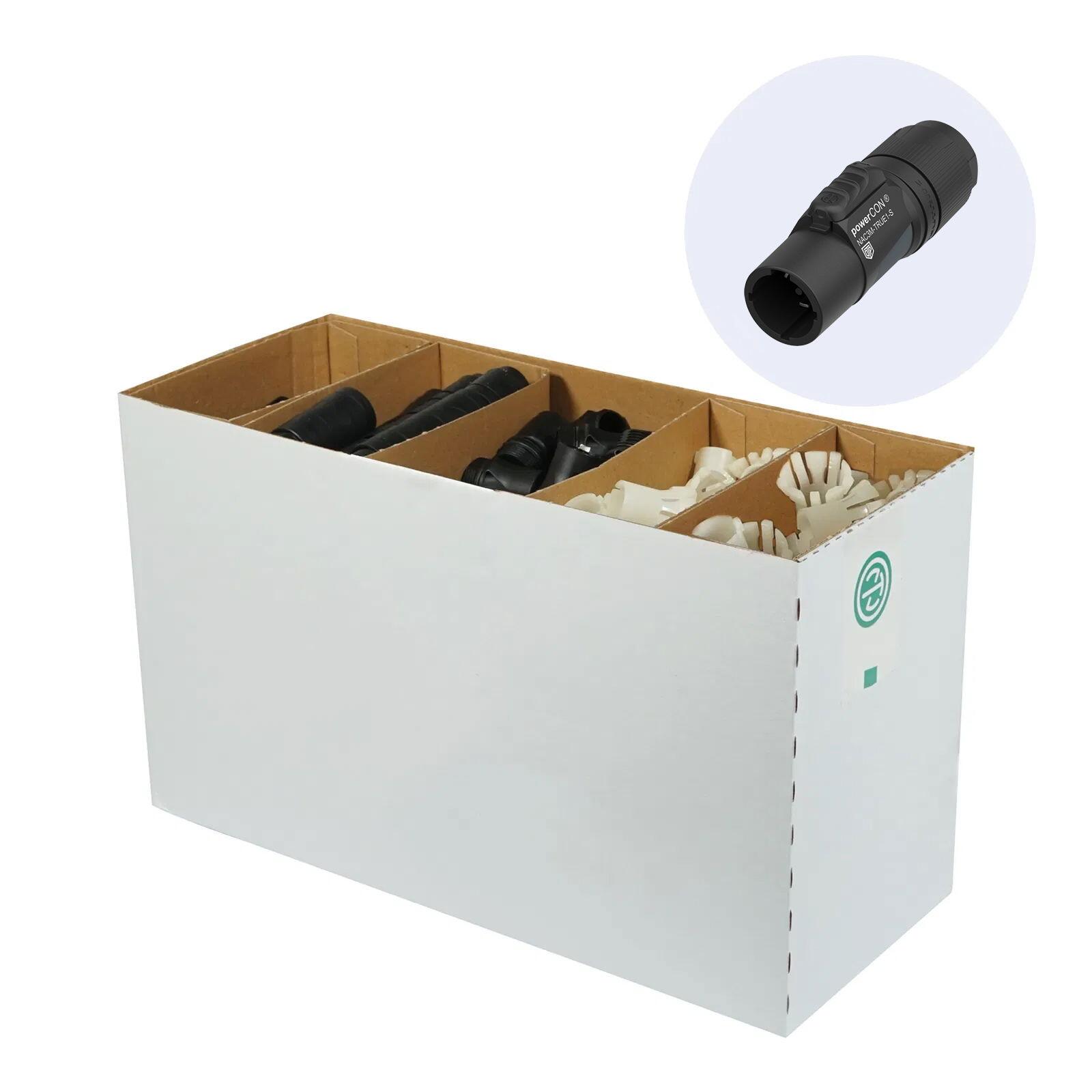

Includes 50x NAC3M-TRUE1-S connectors (disassembled)

Certified Breaking Capacity (CBC) for live safe connect/disconnect

IP65/IP67 protection when mated or sealed

Durable UV-resistant polyamide (PA 6.6) construction

High-performance locking twist mechanism

Suitable for cables 6–12mm OD

5000+ mating cycle life span

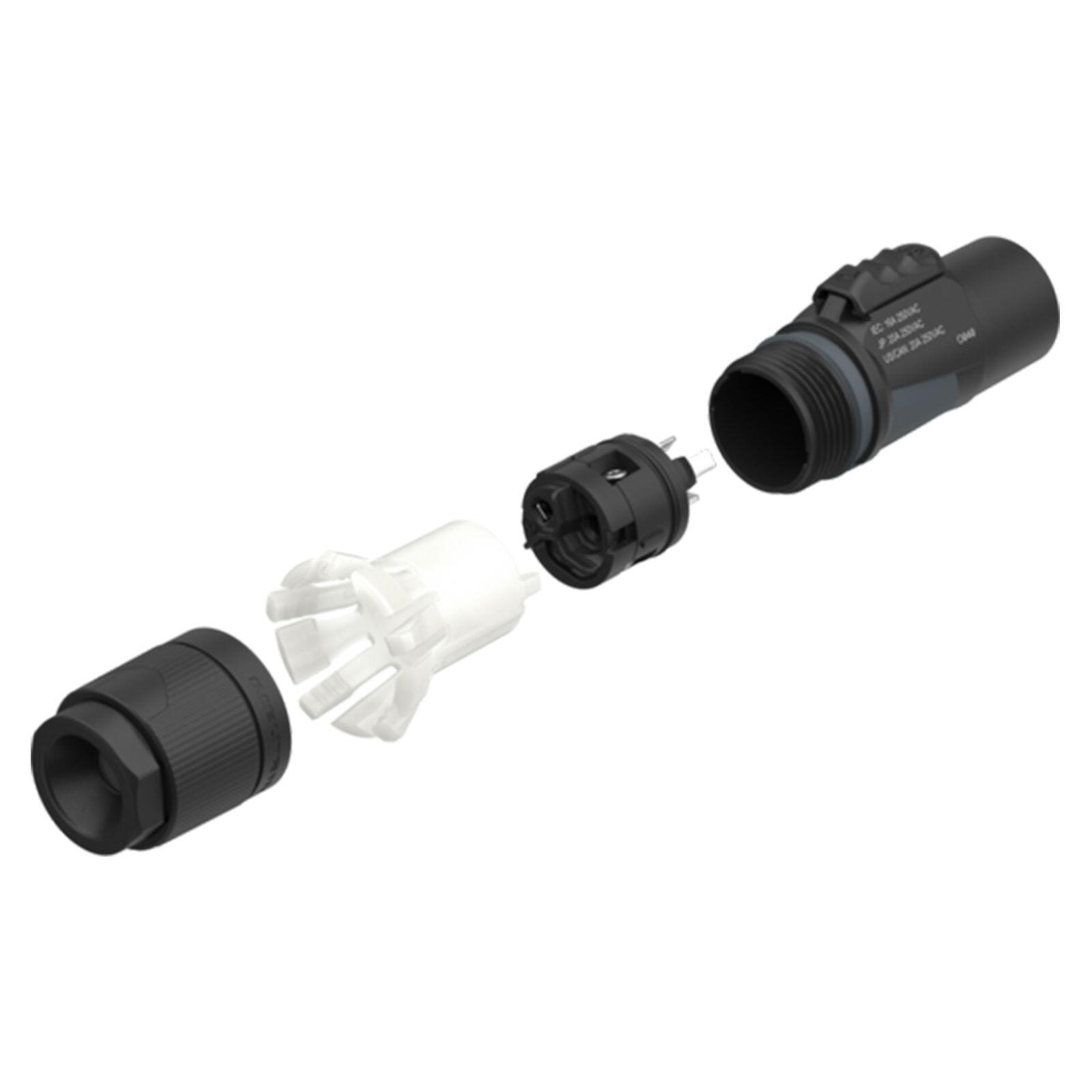

Supplied in OEM-friendly disassembled format

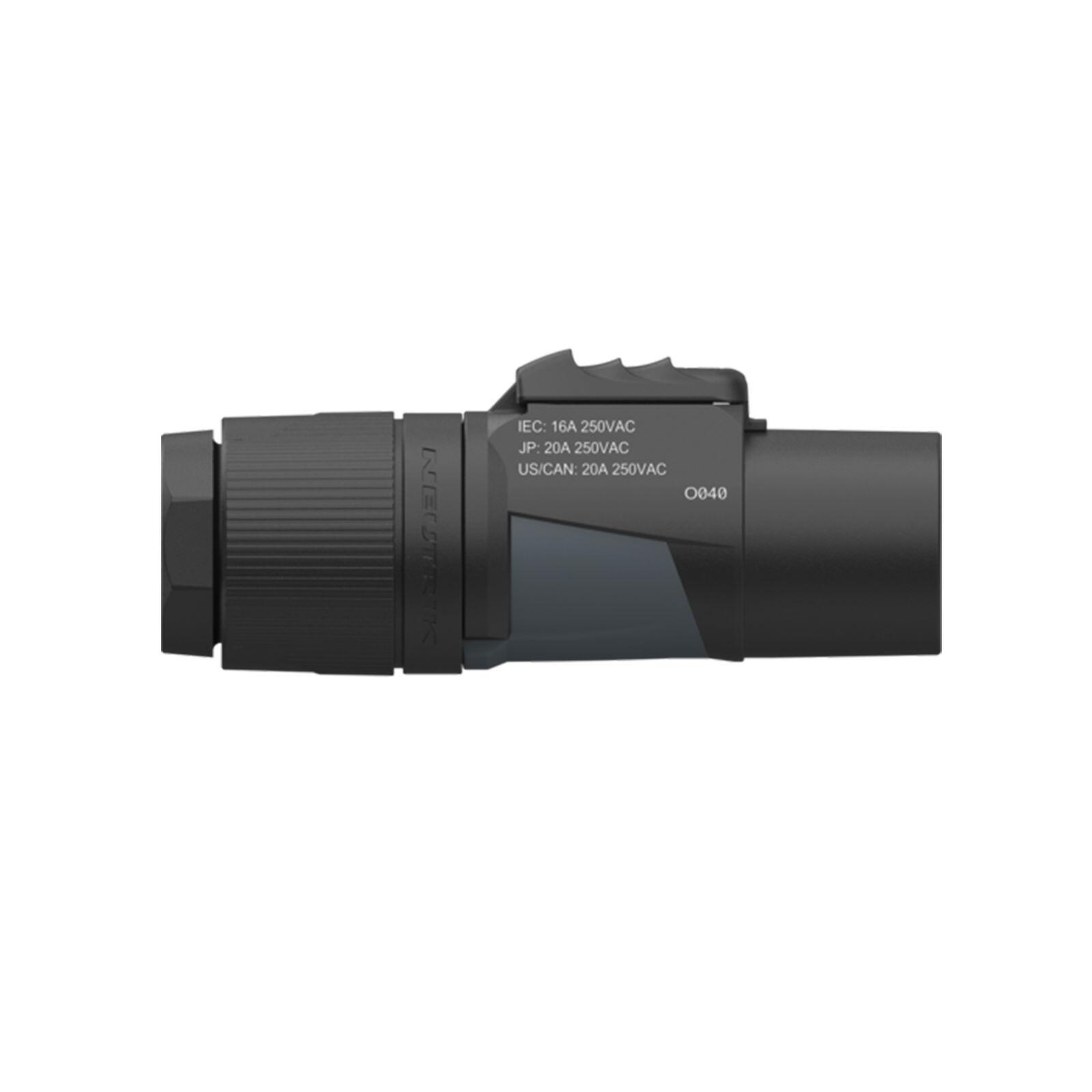

• Rated Current: 16A / 250V AC (Europe) 20A / 250V AC (USA)
• Contacts: 2 + PE
• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kV DC / 2.8 kV AC
• Insulation Resistance: >0.1 GΩ (after damp/heat test)
• Cable OD Compatibility: 6–12mm
• Wire Size: 1.0–2.5 mm² / 14 AWG
• Mating Cycles: >5000
• Contact Plating: 2 μm Ag
• Contacts: Copper Alloy
• Housing/Insert/Locking: PA 6.6; Strain Relief: Polyketon
• Flammability: UL 94 V-0
• Protection Class: IP65 / IP67 (when mated/capped)
• UV Resistance: F1 rated
• Operating Temp: -30°C to +80°C (IEC 61984) -5°C to +40°C (IEC 60320-1)

---
