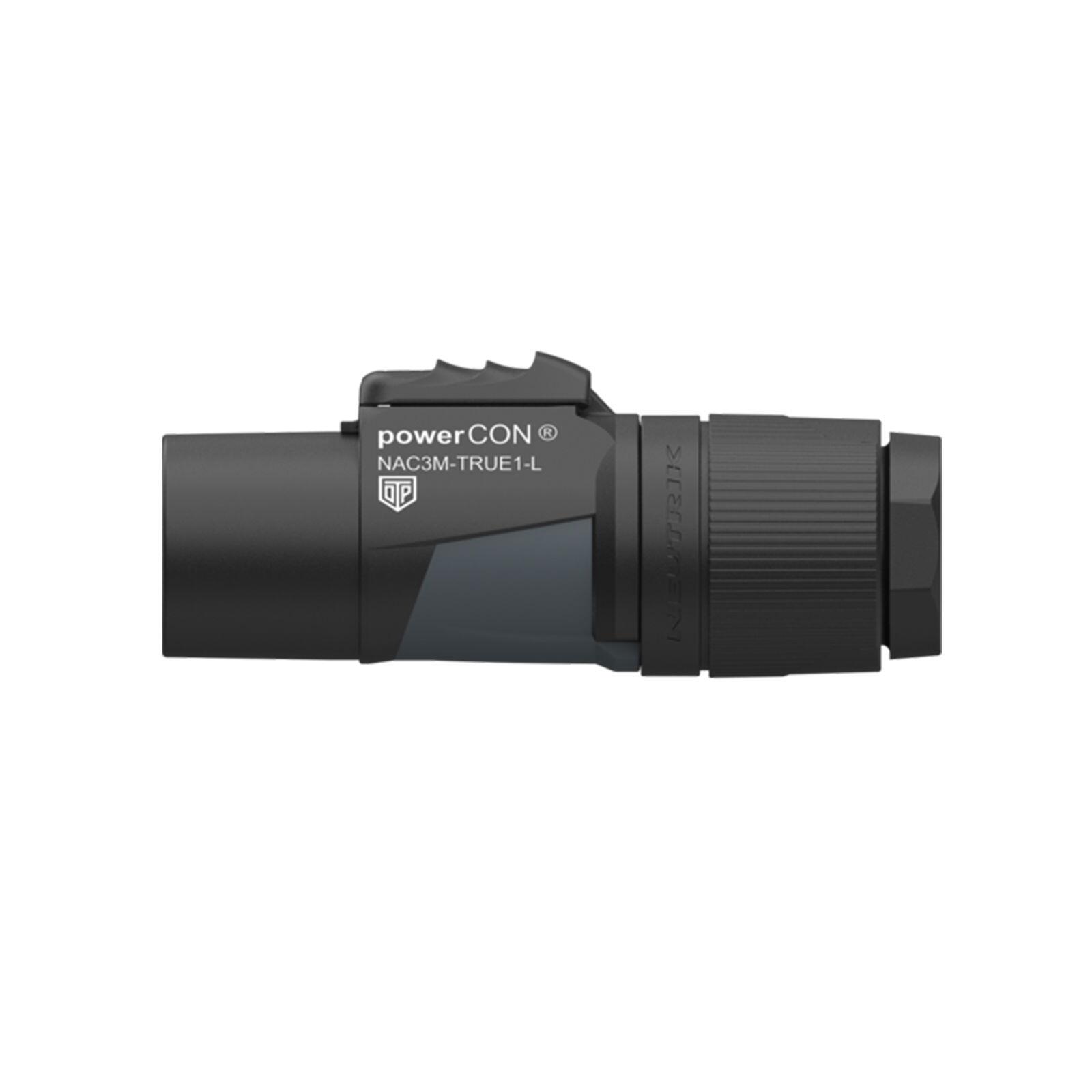

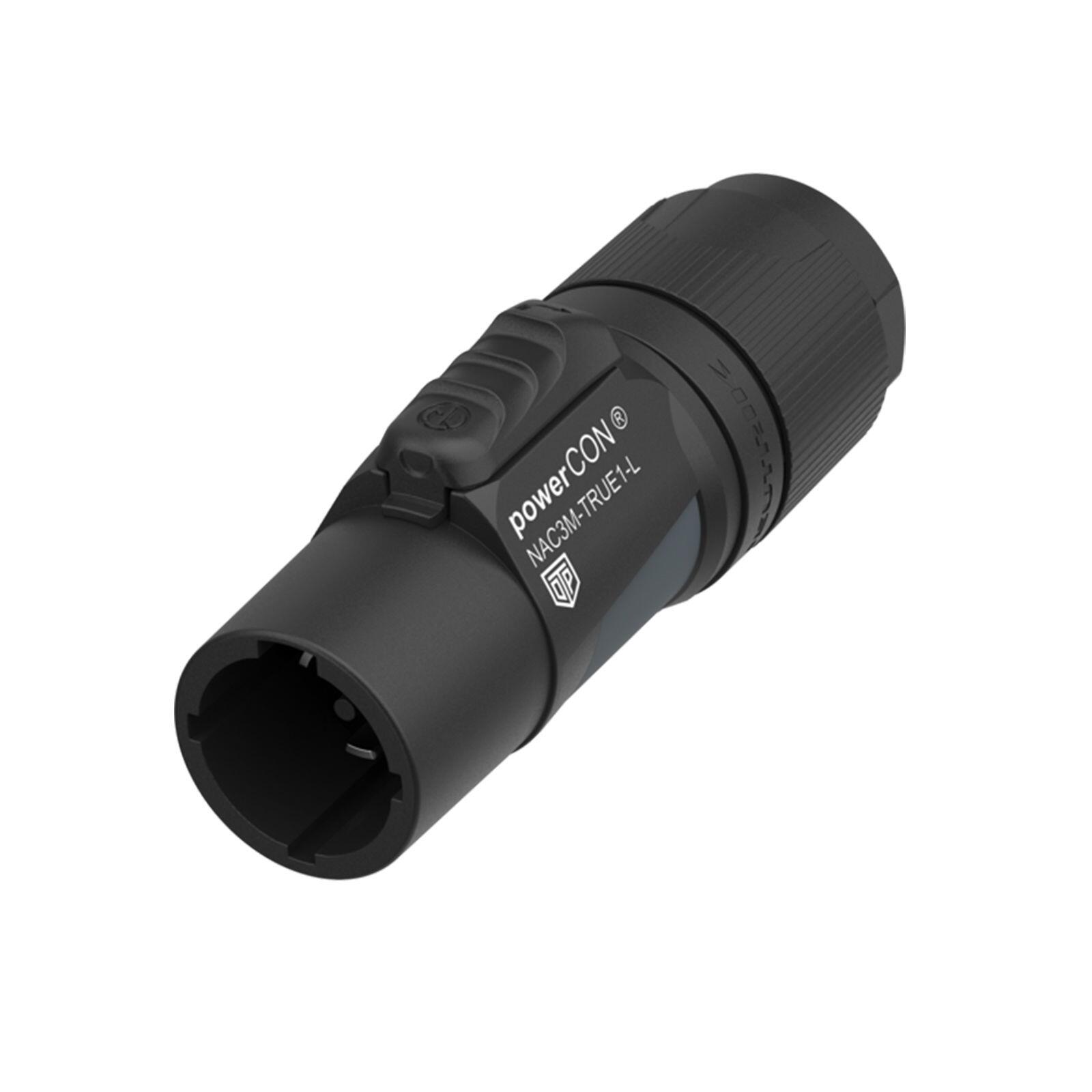

Neutrik powerCON TRUE1 Connector 10-16mm Cable NAC3M-TRUE1-L

SKU: CONN1263
Neutrik

The Neutrik NAC3M-TRUE1-L is a rugged 16A locking male cable connector from the powerCON® TRUE1 series engineered for harsh and demanding environments in professional AV lighting and industrial power setups. With Certified Breaking Capacity (CBC) it allows safe connection/disconnection under load. Designed with a UV-resistant PA 6.6 housing and rated IP65/IP67 when mated or capped it ensures secure operation outdoors or in mission-critical applications. This ‘L’ version supports larger cable types and complies with ENEC VDE UL and CSA certifications for global installation compatibility.

• Breaking Capacity (CBC) for live connect/disconnect
• IP65/IP67 rated when mated or sealed
• UV-resistant polyamide (PA 6.6) housing
• Certified to ENEC VDE UL CSA standards
• Supports cable diameters: 10–16mm
• Twist-lock mechanism for reliable secure fit
• Durable: 5000+ mating cycles
• Temperature range: –30°C to +80°C

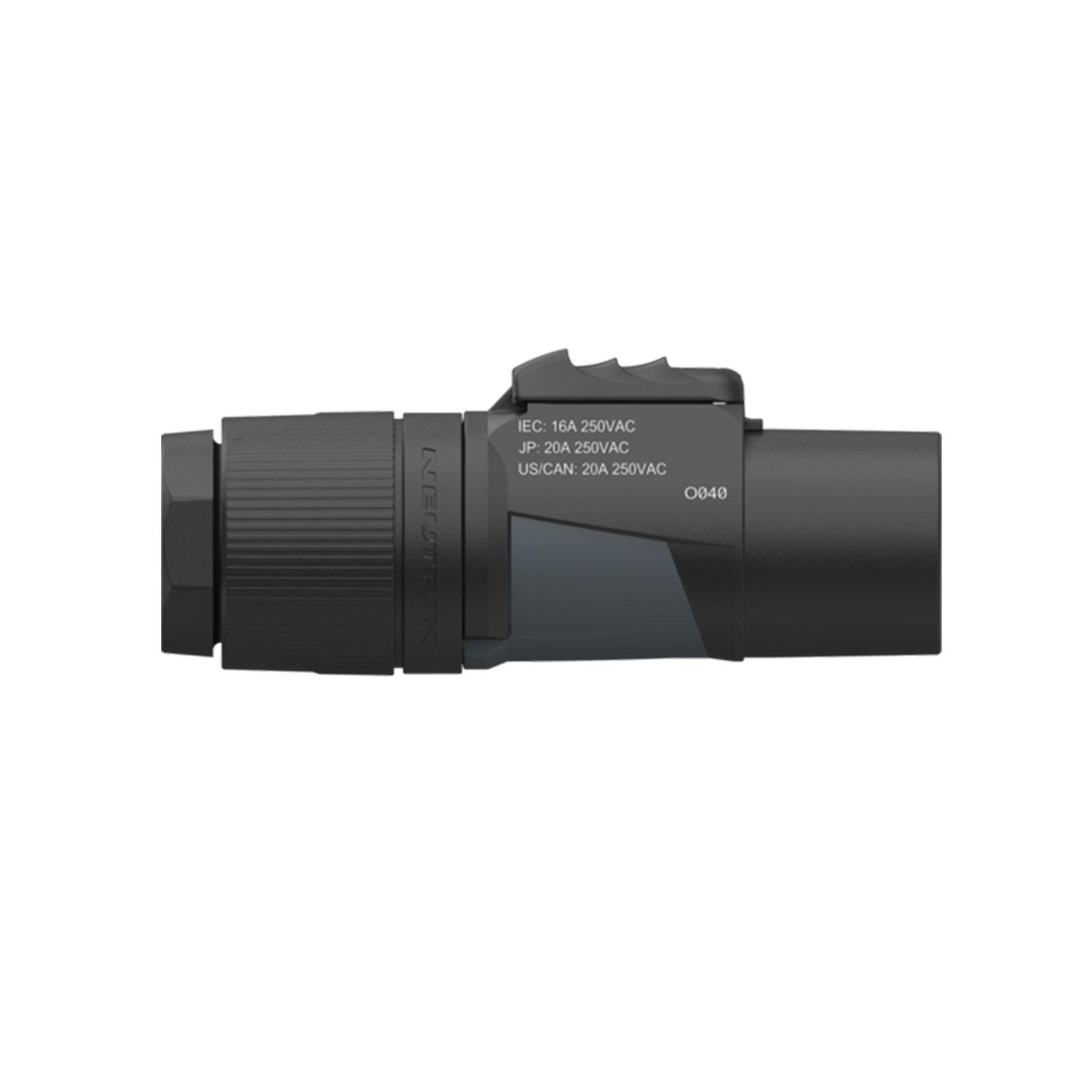

• Rated Current: 16A / 250V AC (EU) 20A / 250V AC (US)
• Contacts: 2 + PE
• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kV DC / 2.8 kV AC
• Insulation Resistance: >0.1 GΩ (IEC 68-2-30)
• Cable Diameter: 10–16mm (0.39–0.63")
• Wire Size: 1.0–2.5mm² / 14–12 AWG
• Mating Cycles: >5000
• Contact Plating: 2μm Ag
• Contacts: Copper Alloy
• Locking Element & Shell: PA 6.6
• Strain Relief: Polyketon
• Flammability Rating: UL 94 V-0
• Protection: IP65/IP67 (mated/sealed)
• UV Resistance: F1 rated
• Operating Temp: –30°C to +80°C (IEC 61984) –5°C to +40°C (IEC 60320-1)
