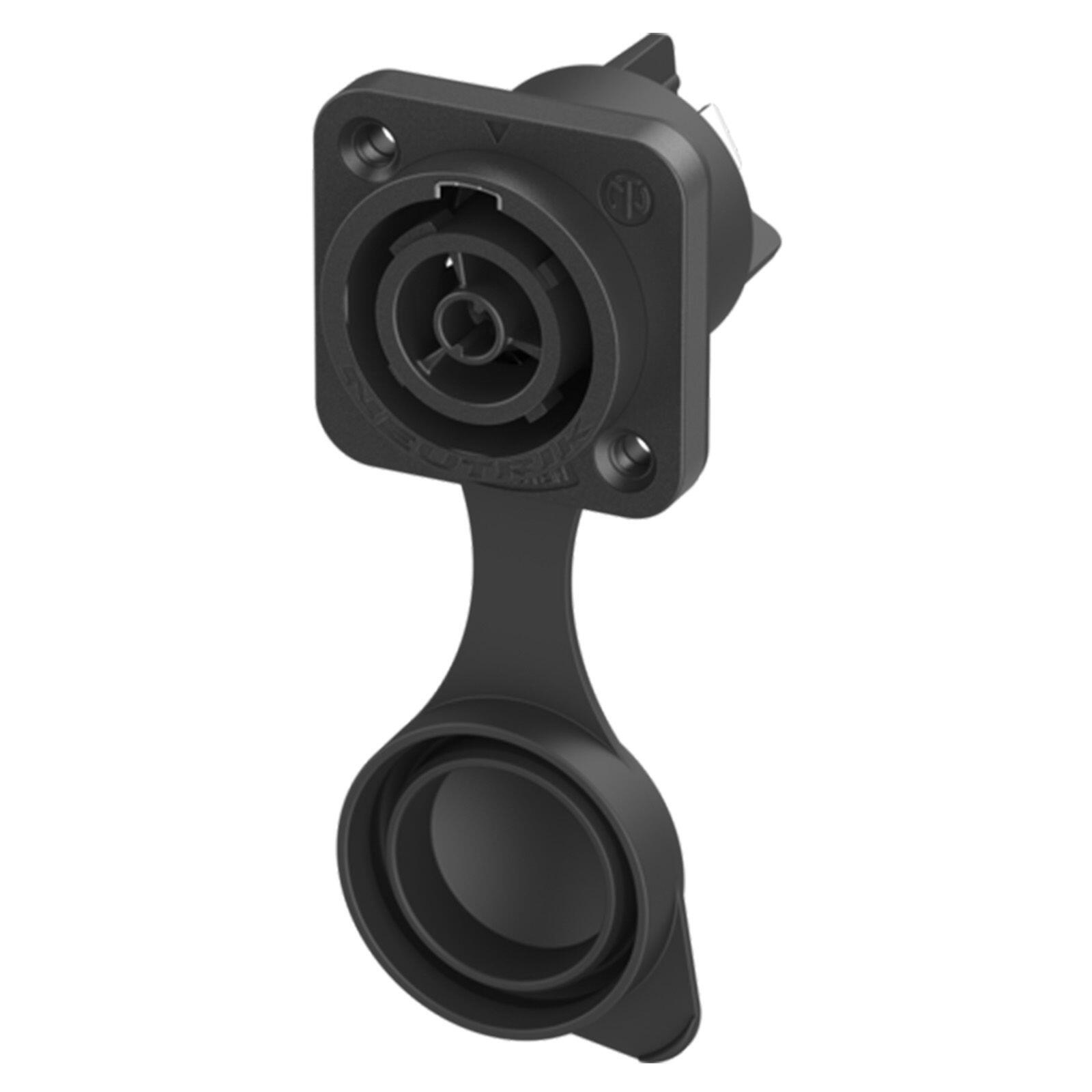

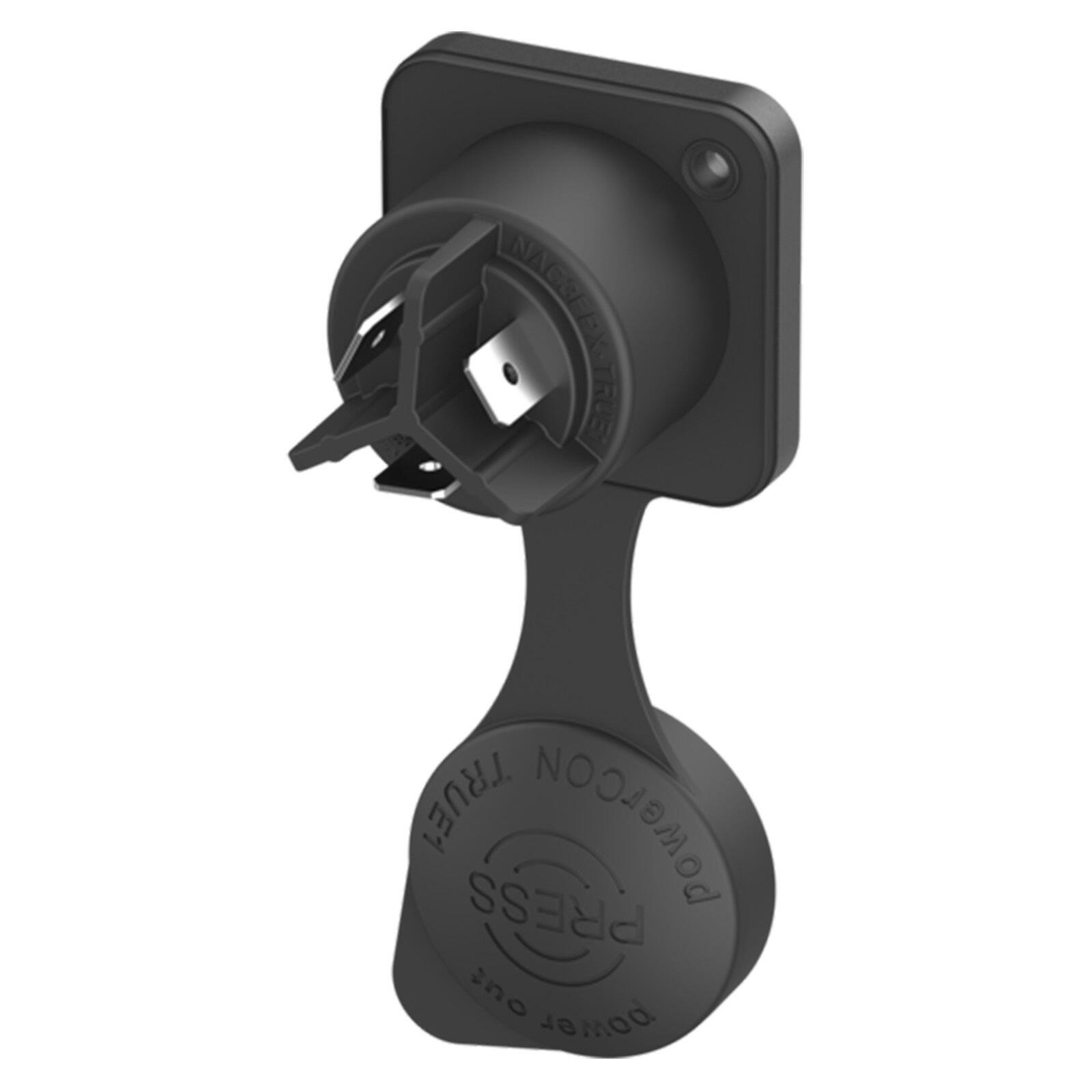

Neutrik powerCON TRUE1 Chassis Connector NAC3FPX-TRUE1

SKU: CONN1267
Neutrik

The Neutrik NAC3FPX-TRUE1 is a rugged 16A locking female chassis connector from the powerCON® TRUE1 series engineered for professional AV lighting and industrial applications. Featuring certified Breaking Capacity (CBC) it supports safe connection and disconnection under load. With IP65 IP66 and IP67 protection when mated or sealed plus a UV-resistant PA6.6 shell this airtight connector is ideal for harsh environments. ENEC VDE UL and CSA certified for international compliance the NAC3FPX-TRUE1 delivers dependable mains power connectivity in outdoor and mission-critical installations.

• Breaking Capacity (CBC) for live connection/disconnection
• IP65 IP66 and IP67 rated when mated or sealed
• UV-resistant polyamide PA 6.6 housing
• Certified by ENEC VDE UL and CSA
• Secure twist-lock mechanism for reliable connection
• Rated for over 5000 mating cycles
• Temperature range: -30°C to +80°C
• Ideal for professional AV lighting and industrial power systems

• Rated Current: 16A / 250V AC (Europe) 20A / 250V AC (USA)
• Contacts: 2 + PE
• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kV DC / 2.8 kV AC
• Insulation Resistance: > 1 GΩ (after damp/heat test)
• Wire Size: 2.5 mm² / 12 AWG
• Mating Cycles: > 5000
• Contact Plating: 2 μm Ag
• Contacts: Copper Alloy
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Flammability: UL 94 V-0
• Protection Class: IP65 / IP66 / IP67 (mated or sealed)
• UV Resistance: F1 rated (outdoor safe)
• Operating Temp: -30°C to +80°C (IEC 61984) -5°C to +40°C (IEC 60320-1)
