Neutrik etherCON Chassis Connector NE8FDV-YK-B
SKU:
CONN565
Neutrik

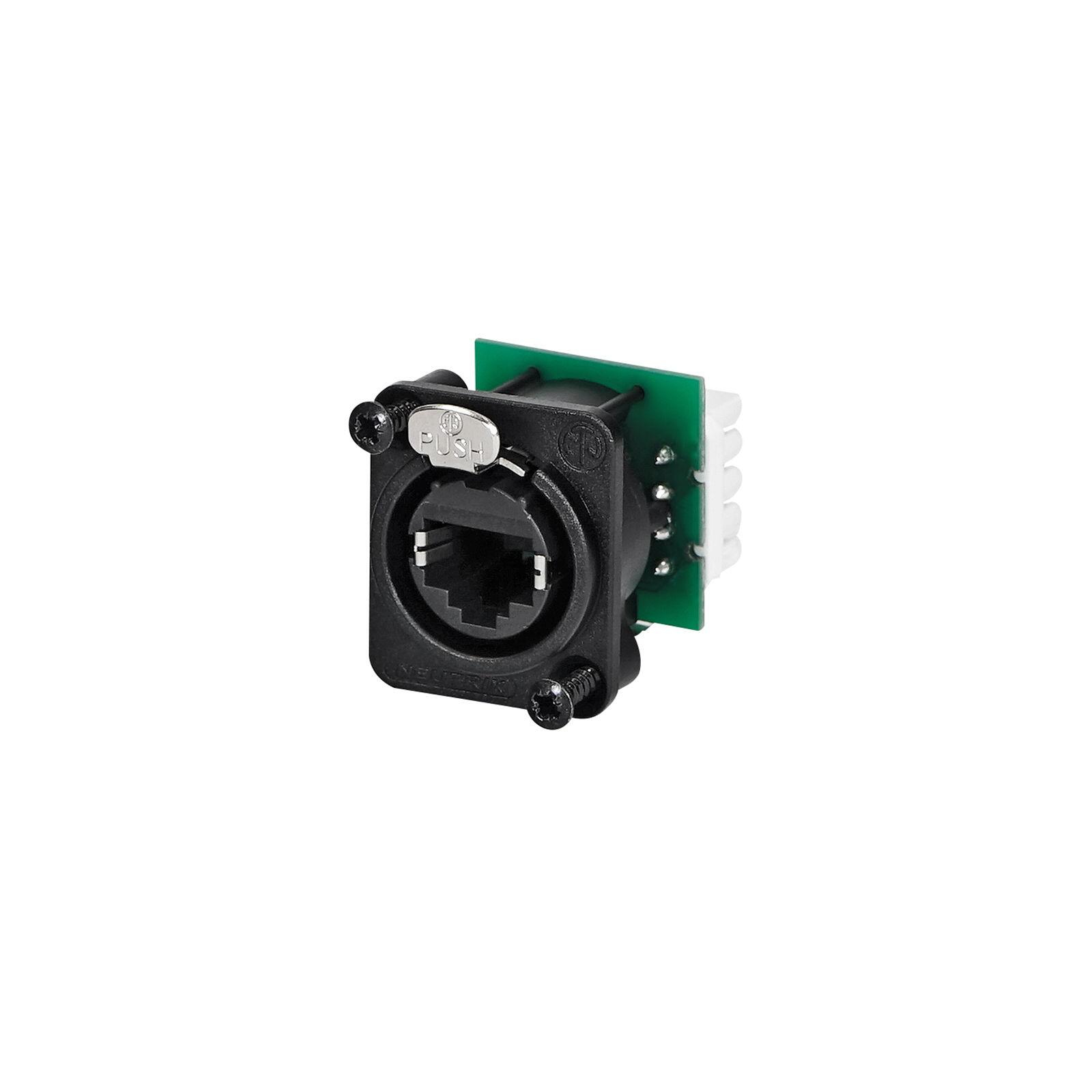

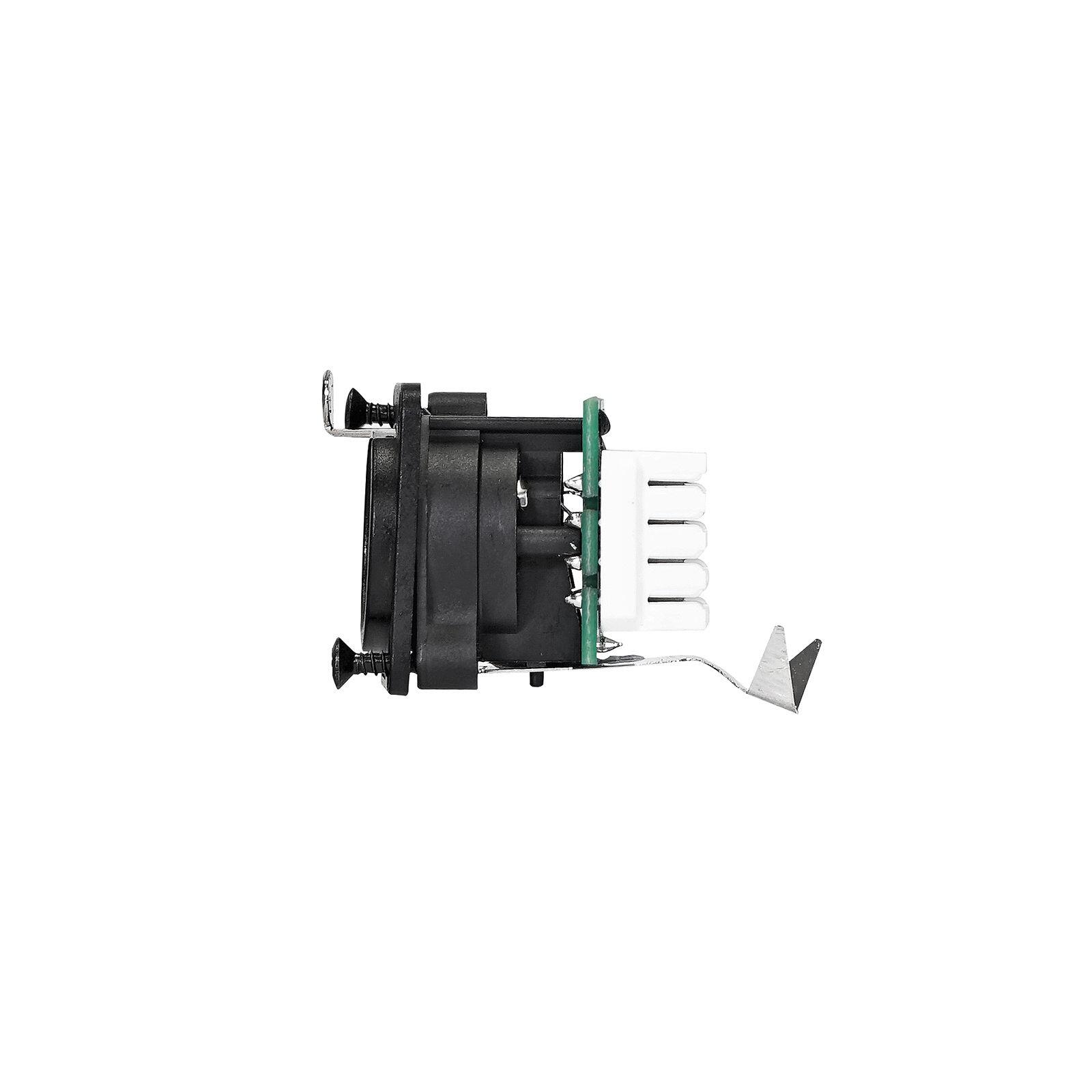

The Neutrik NE8FDP NE8FDV-YK-B and NE8FDV-YK EtherCON chassis connectors are designed for secure high-performance RJ45 connections in professional audio video and industrial applications. These connectors feature robust metal housings for durability and are compatible with standard Ethernet cables. The NE8FDP offers solder terminals for a straightforward connection while the NE8FDV-YK and NE8FDV-YK-B models feature IDC (insulation displacement contact) terminals for quick and reliable tool-free assembly. With their D-size panel-mount compatibility and shielding for EMI protection these connectors provide versatile solutions for fixed installations touring rigs and demanding setups.

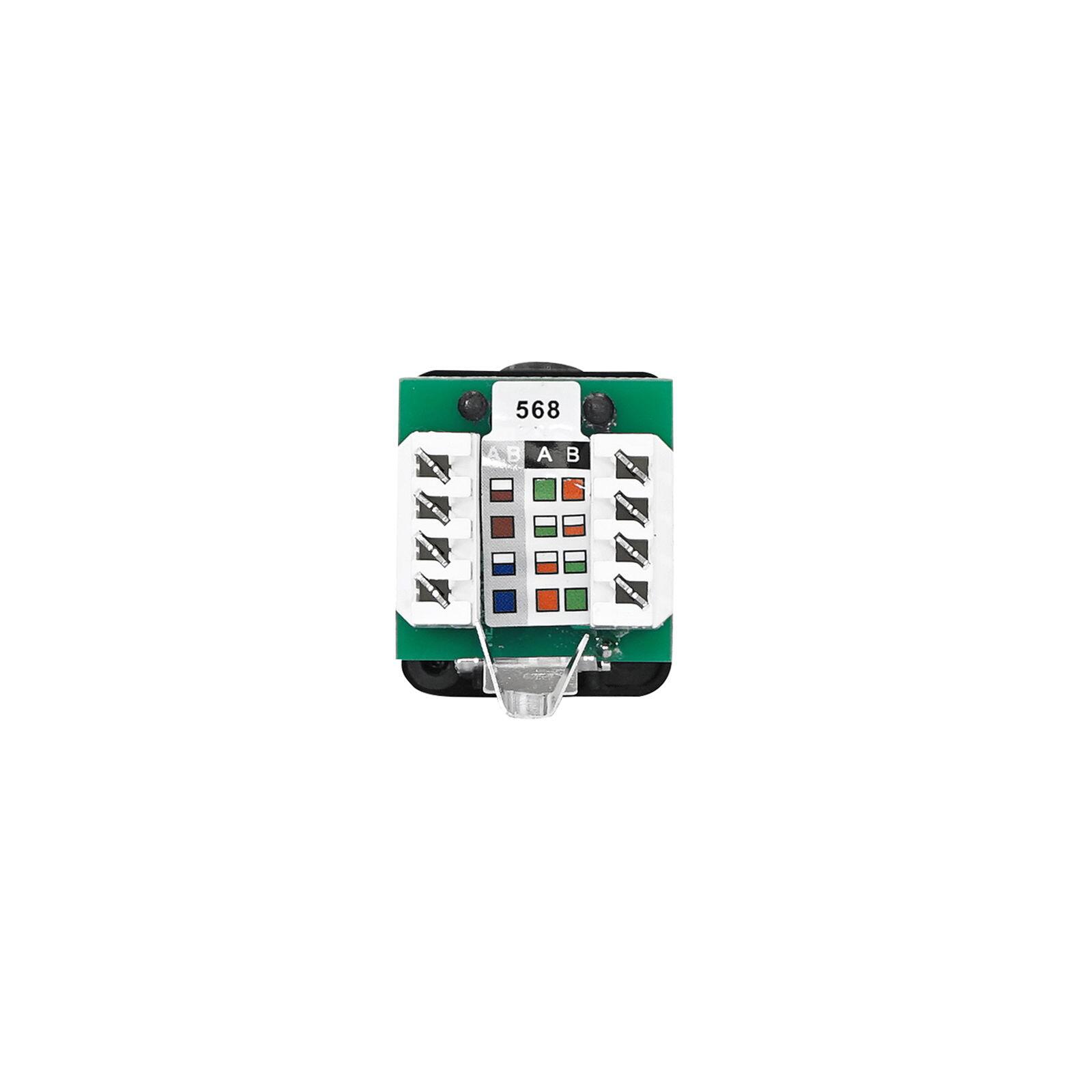

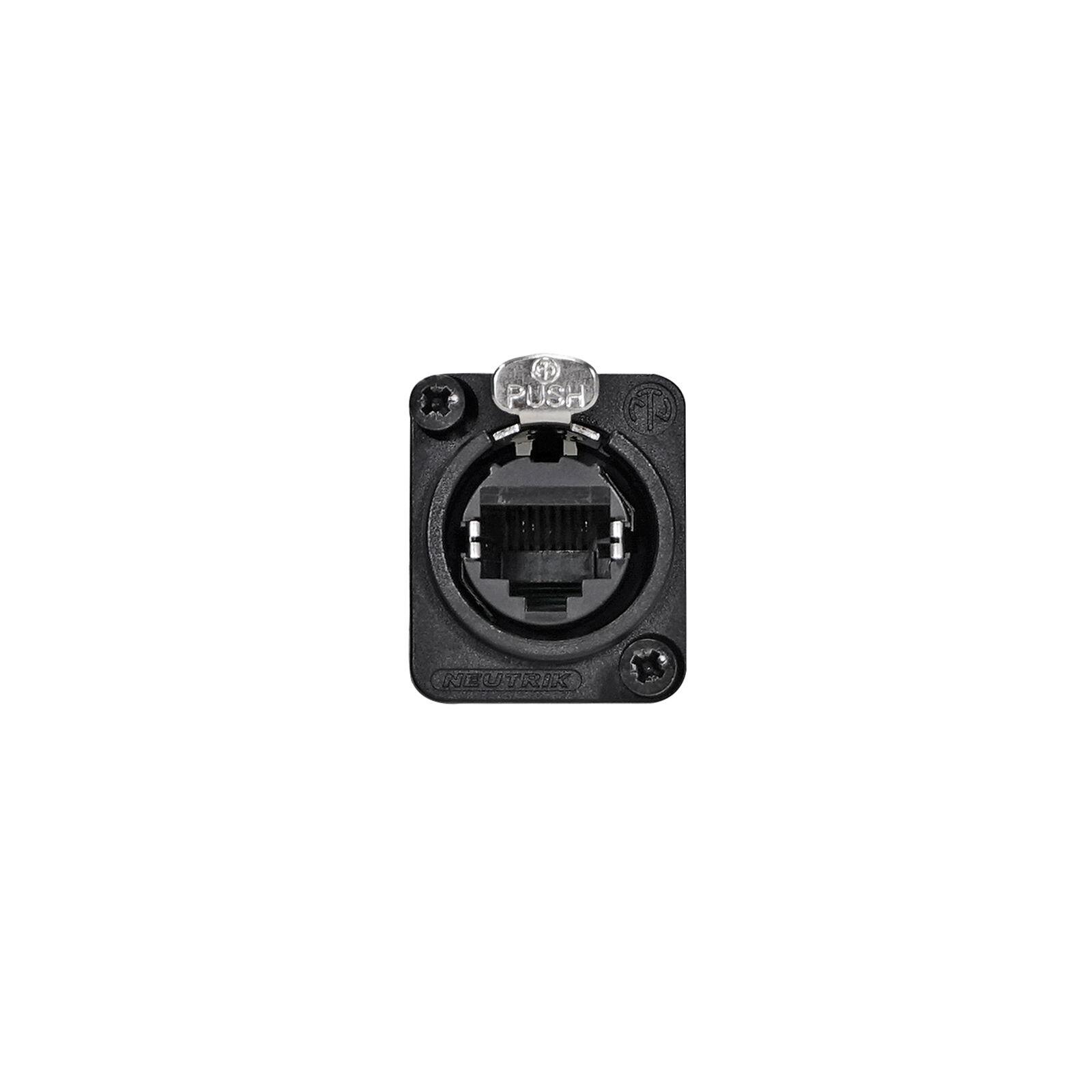

Durable Design: Black metal housing ensures robustness and a sleek appearance Quick Installation: IDC punch-down terminals facilitate efficient wiring Reliable Connection: Latch lock system secures the mating of RJ45 plugs Standards Compliance: Conforms to CAT5e/Class D according to TIA/EIA 568C and ISO/IEC 11801 specifications
Contact resistance: < 50 mΩ Dielectric strength: 1 kV DC Insulation resistance: 0.5 GΩ Rated current per contact: 1.5 A Rated voltage: ≤ 57 V Transmission performance: CAT5e according to TIA/EIA 568C and ISO/IEC 11801 standards Wire size: 0.14 - 0.5 mm² (26 - 20 AWG) Panel thickness: Max. 4 mm Temperature range: -30 °C to +80 °C
