Neutrik BNC Connector, rearTWIST (NBNC75BLP9)

SKU: CONN302
Neutrik

Neutrik BNC Connector, rearTWIST (NBNC75BLP9)

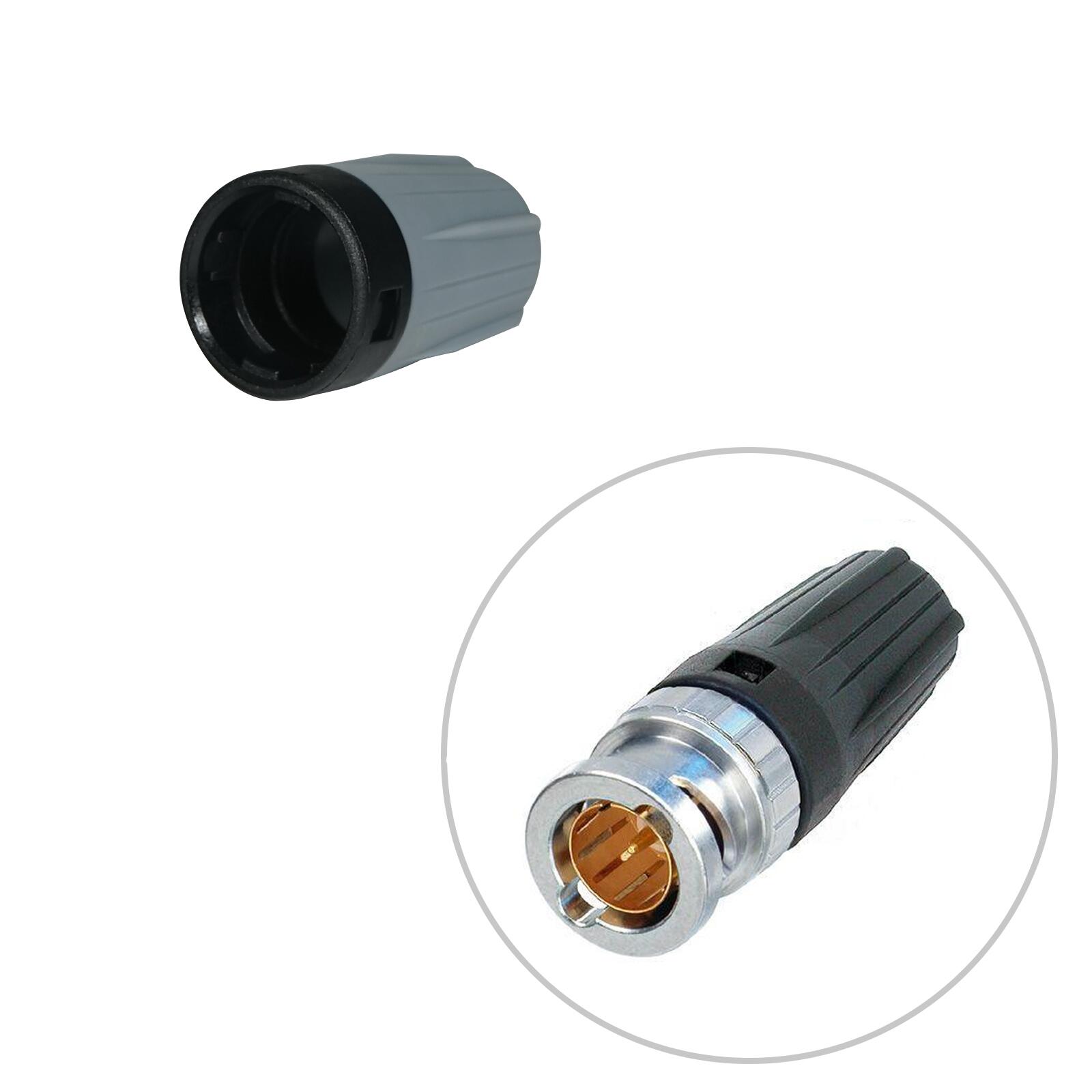

The rearTWIST HD BNC cable connector offers a true 75,? design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding.

• 'rearTWIST Principle' locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the 'head' of the connector might be an issue, these connectors turn from the back and not the front
• True 75,?; design meets the stringent HDTV/DVD requirements
• Leading area: Avoids tilting due to side forces to protect contacts from deformation - Guarantees a lifetime of min. 1000 mating cycles!
• Snug-fit centre pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability

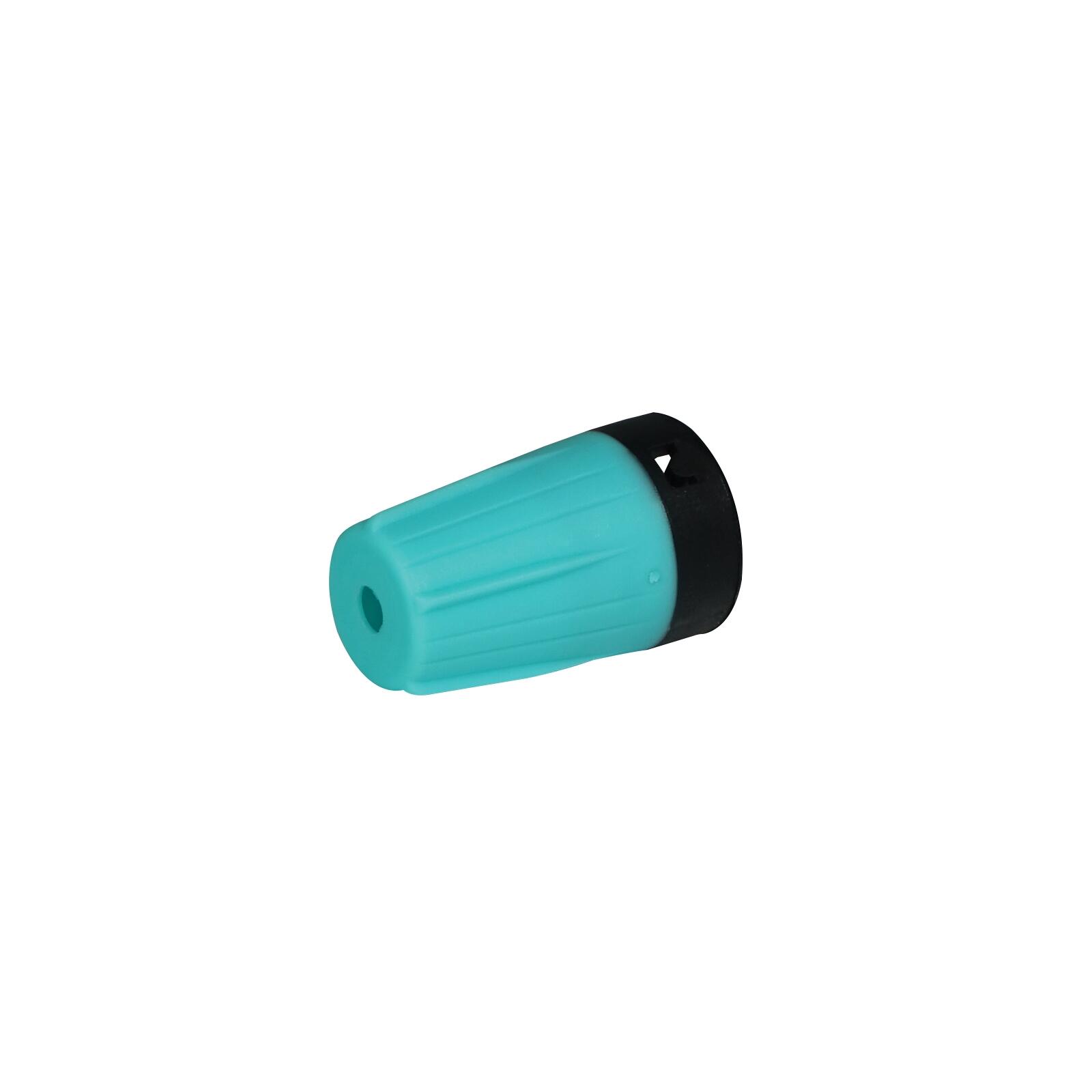

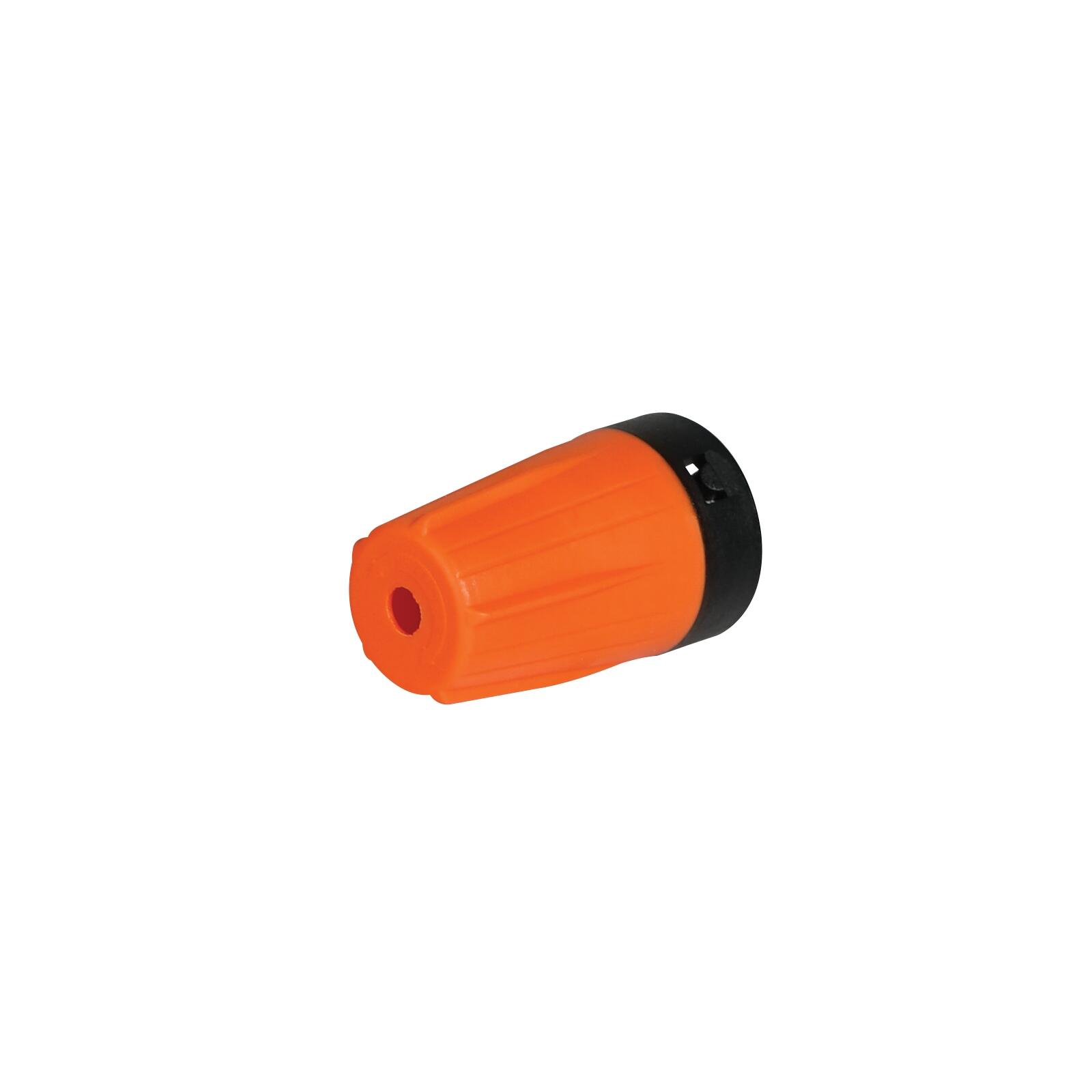

• Optional accessories include colour coded boots in 10 standard colours, crimp tool and dies

• Rated voltage: <50V
• Impedance: 75,?
• Temperature range: -30C to +85C
• Cable outer diameter: 6.3mm
• Crimp size: Pin: 1.6mm (square), Shield: 6.47mm (hex)
• Suitable cables: Argosy Image 720, Belden 1505A (ANH), Belden 4505R, Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6
