Mennekes 32A 230V 2P+E IP4 ProTOP Plug (160)

SKU: CONN464
Mennekes

The PRO-TOP series of IP44 CEE industrial cable connectors are robust, reliable and easy to connect. Featuring open terminal screws all facing in the same direction the PRO-TOP series of plugs are terminated quickly in the field. The PRO-TOP connectors feature a two piece chassis with front terminal housing and rear cover fitted with thread lock and safety slide, the rugged cable gland at the rear of the plug when tightened grips the cable and seals the gasket at the same time while the integral strain relief prevents cable kinking. Constructed from a heavy-duty Amaplast casing including nickel plated contacts with high heat resistant contact carriers offering excellent corrosion resistance.

32A 240V 2P+E male configuration, Screw terminals, Frame terminals, Highly heat resistant contact carrier, Nickel plated contacts, Cable gland and sealing, Strain relief and protection against kinking, IP44 Rated

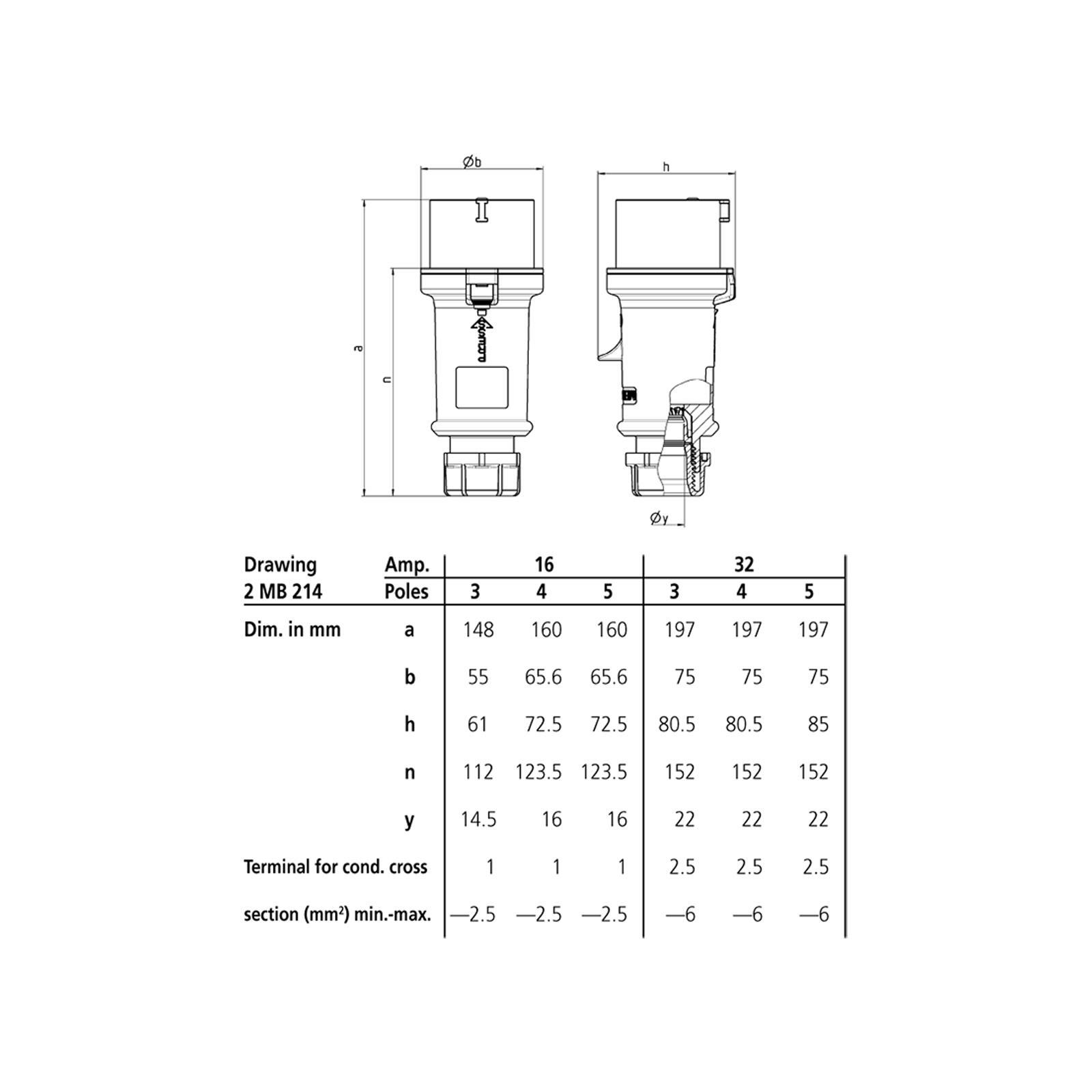

Cable sizes: 2.5-6.0mm, Dimensions: 148 x 55 x 61mm, Weight: 0.25kg
