Name: Martin Atomic 3000 LED-based strobe with unique Aura backlight
Brand: Martin Professional
SKU: MAR1001
Price: 3300 GBP
Availability: InStock

roll over the image to zoom in

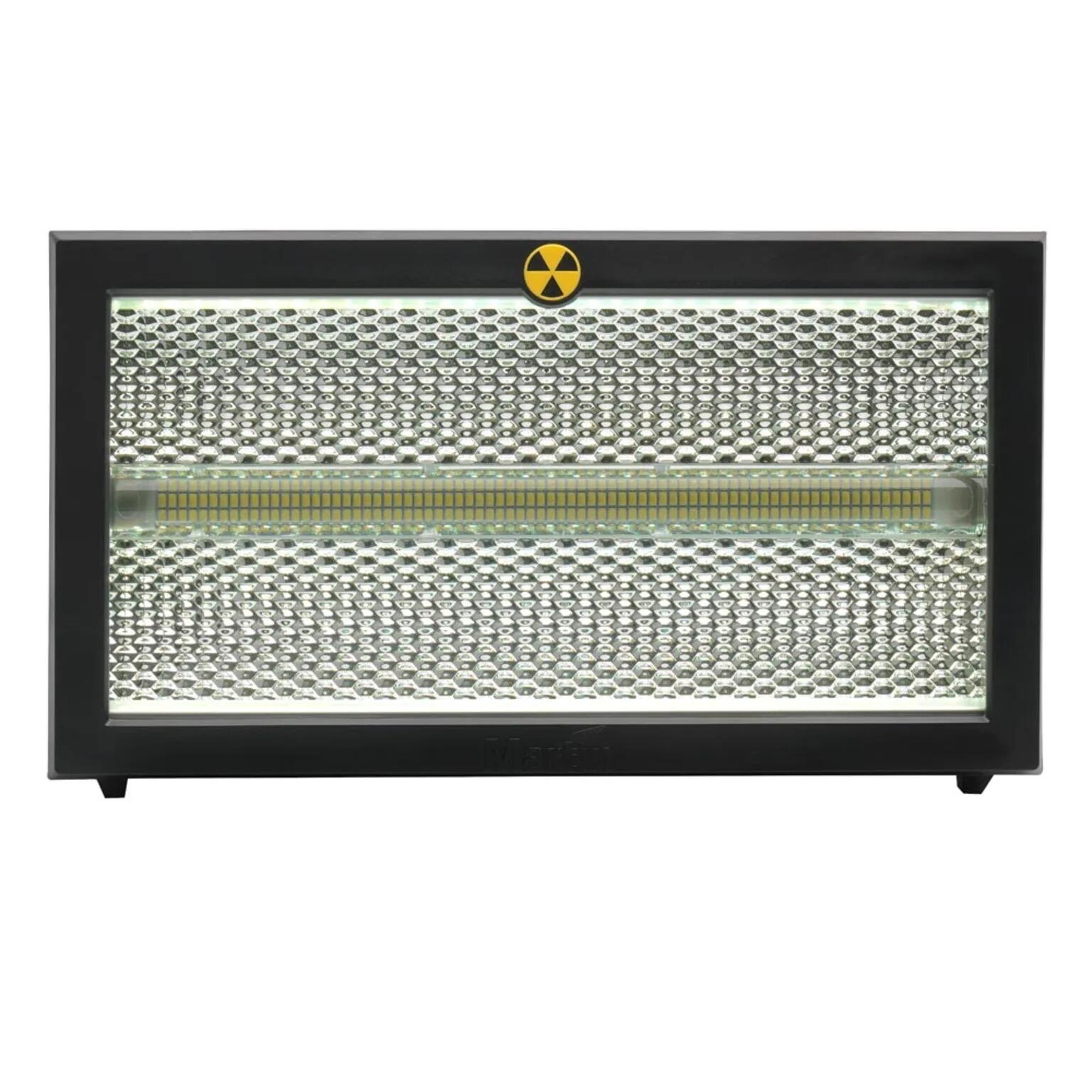

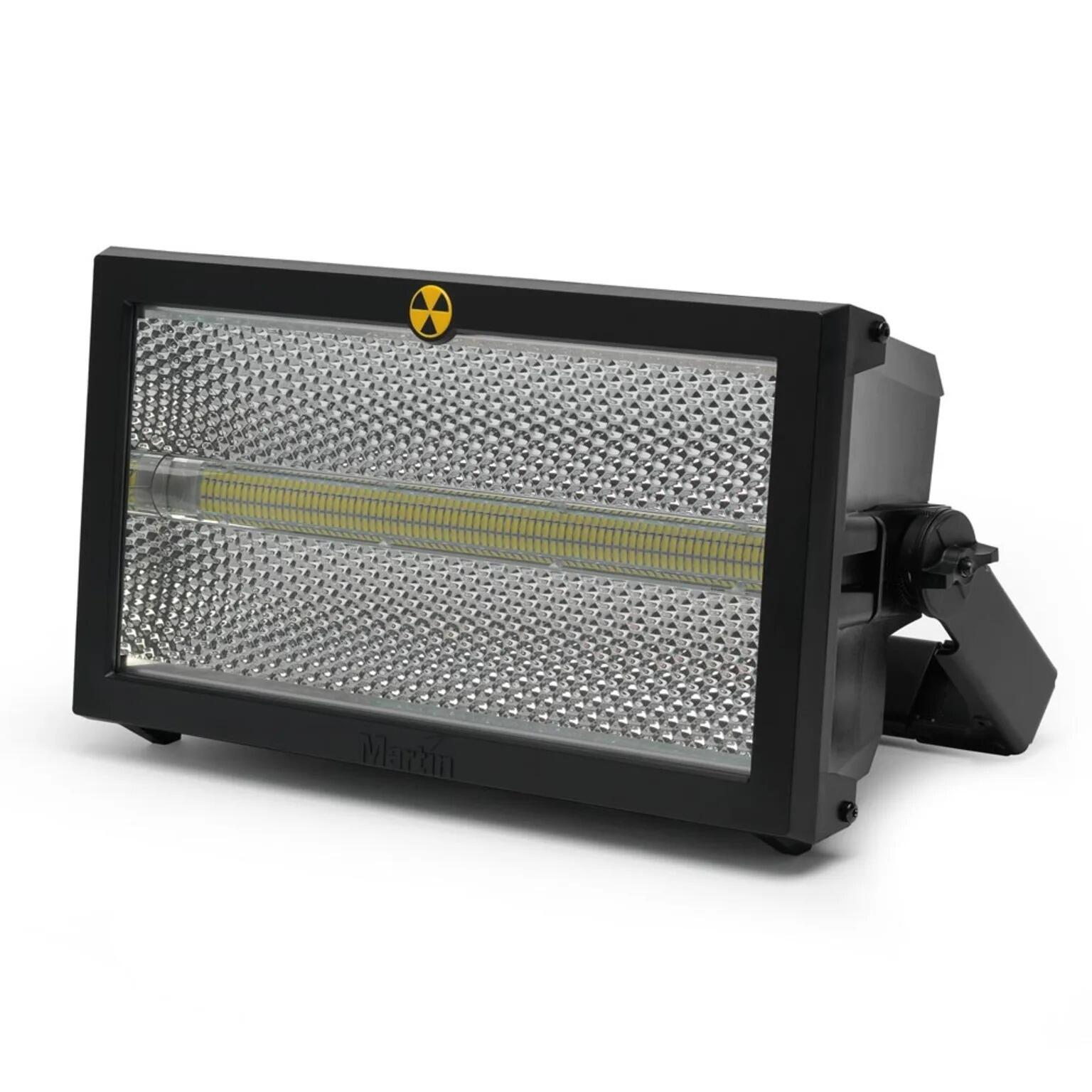

Martin Atomic 3000 LED-based strobe with unique Aura backlight
SKU: MAR1001
Martin Professional

The Atomic™ 3000 LED is the perfect blend of a traditional strobe and cutting-edge LED technology. Capitalizing on the original Atomic™ 3000 DMX’s 15 years of success, this new version features identical functionality and behaviour – with the added benefits of LED technology. It offers the same extreme brightness as its iconic predecessor, but with substantially lower peak power consumption.

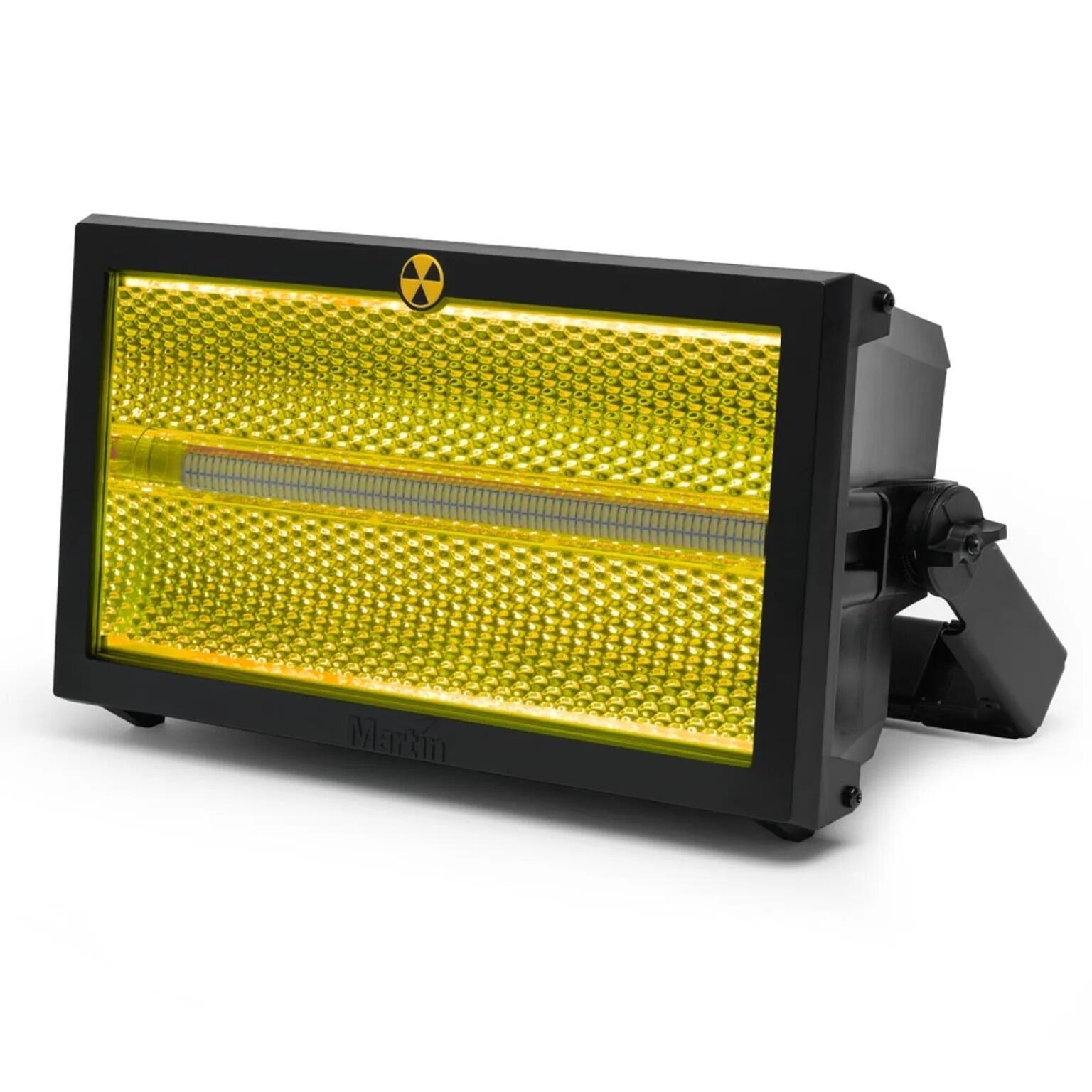

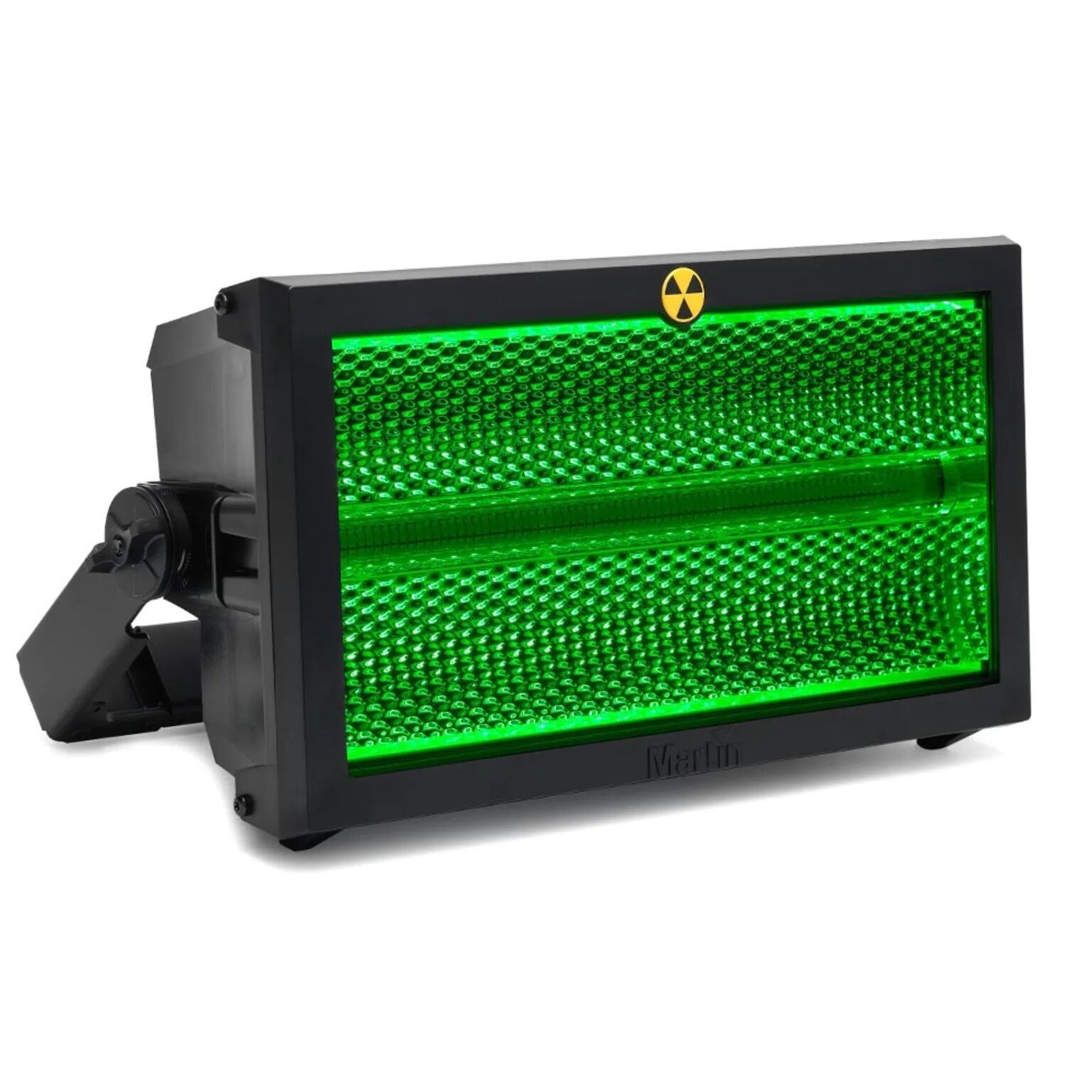

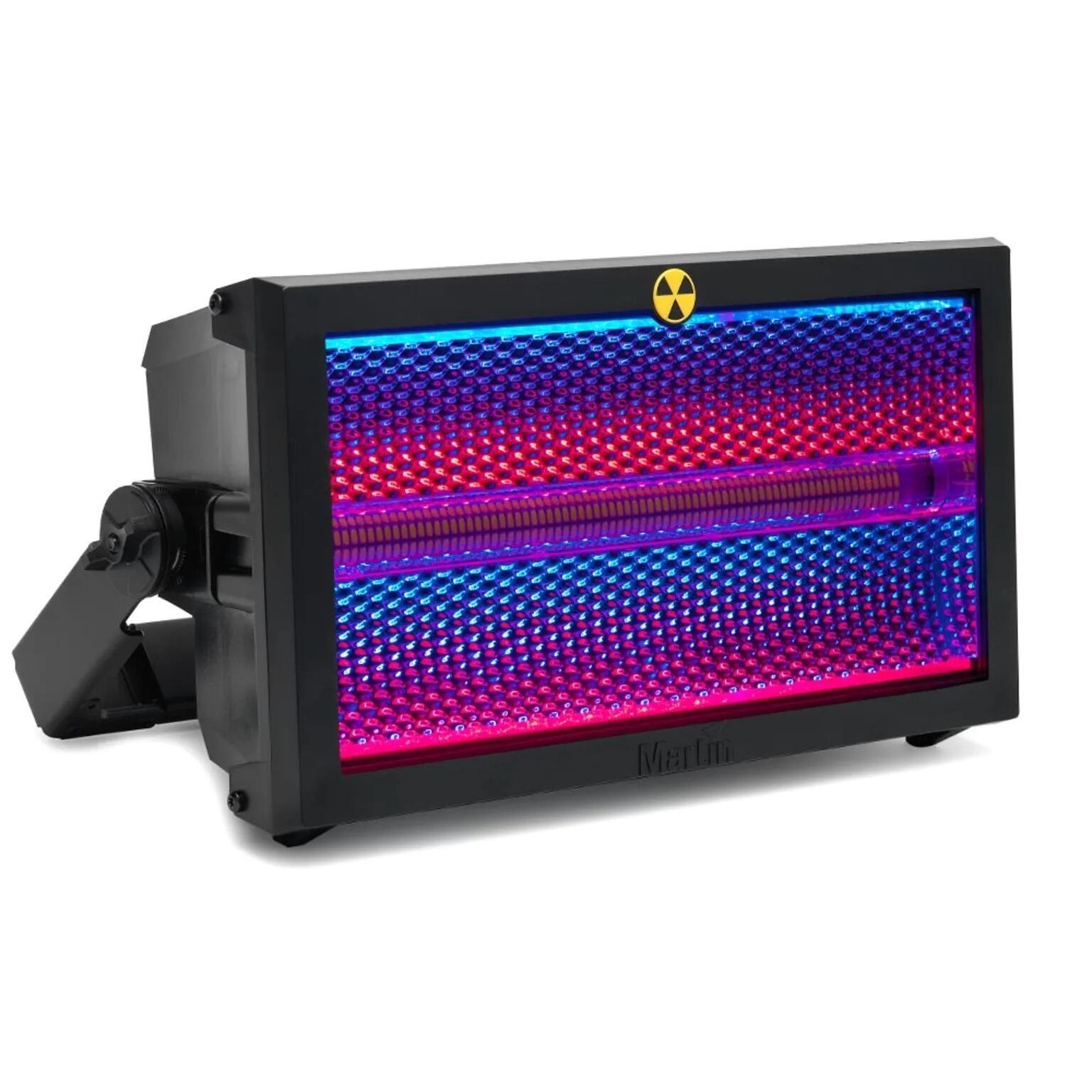

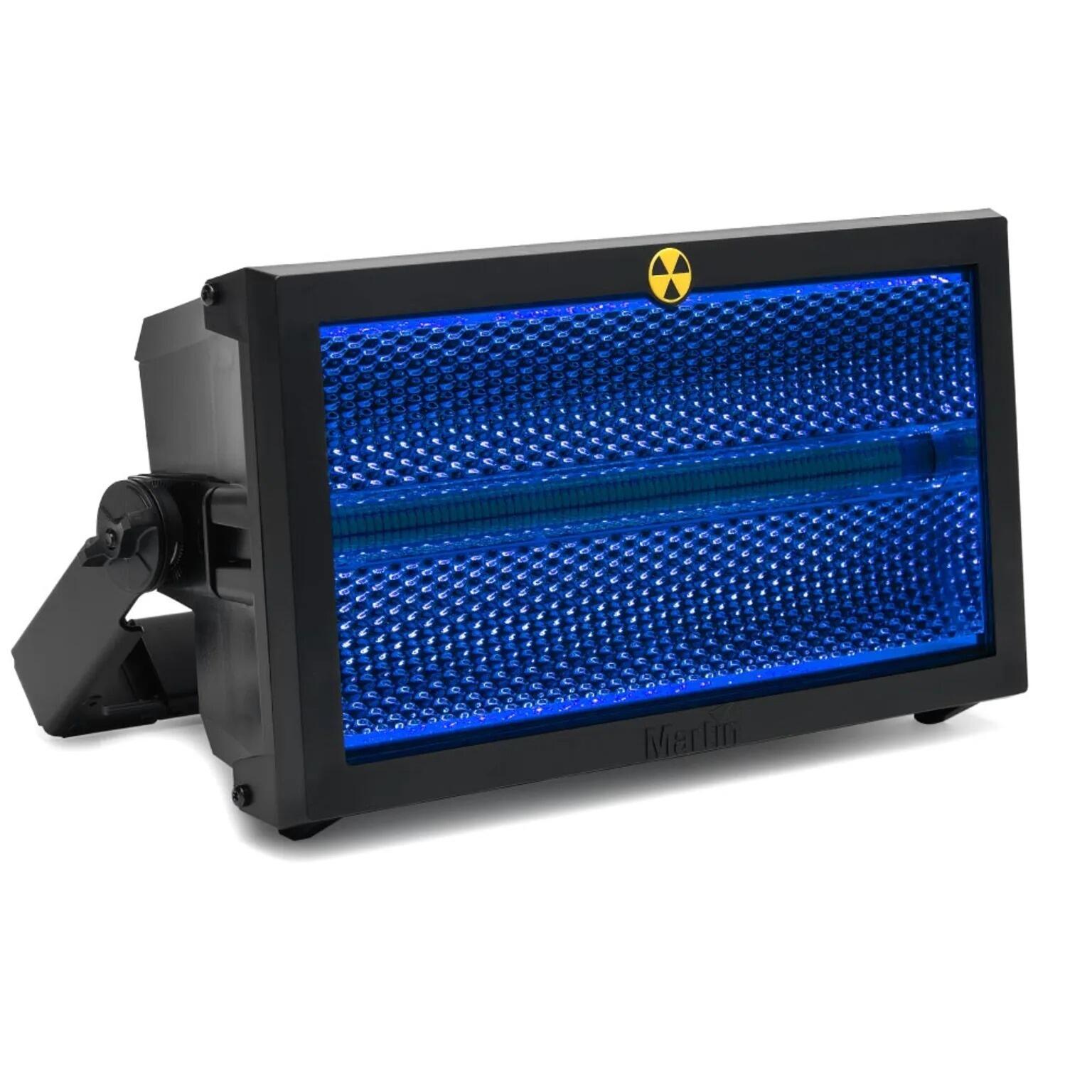

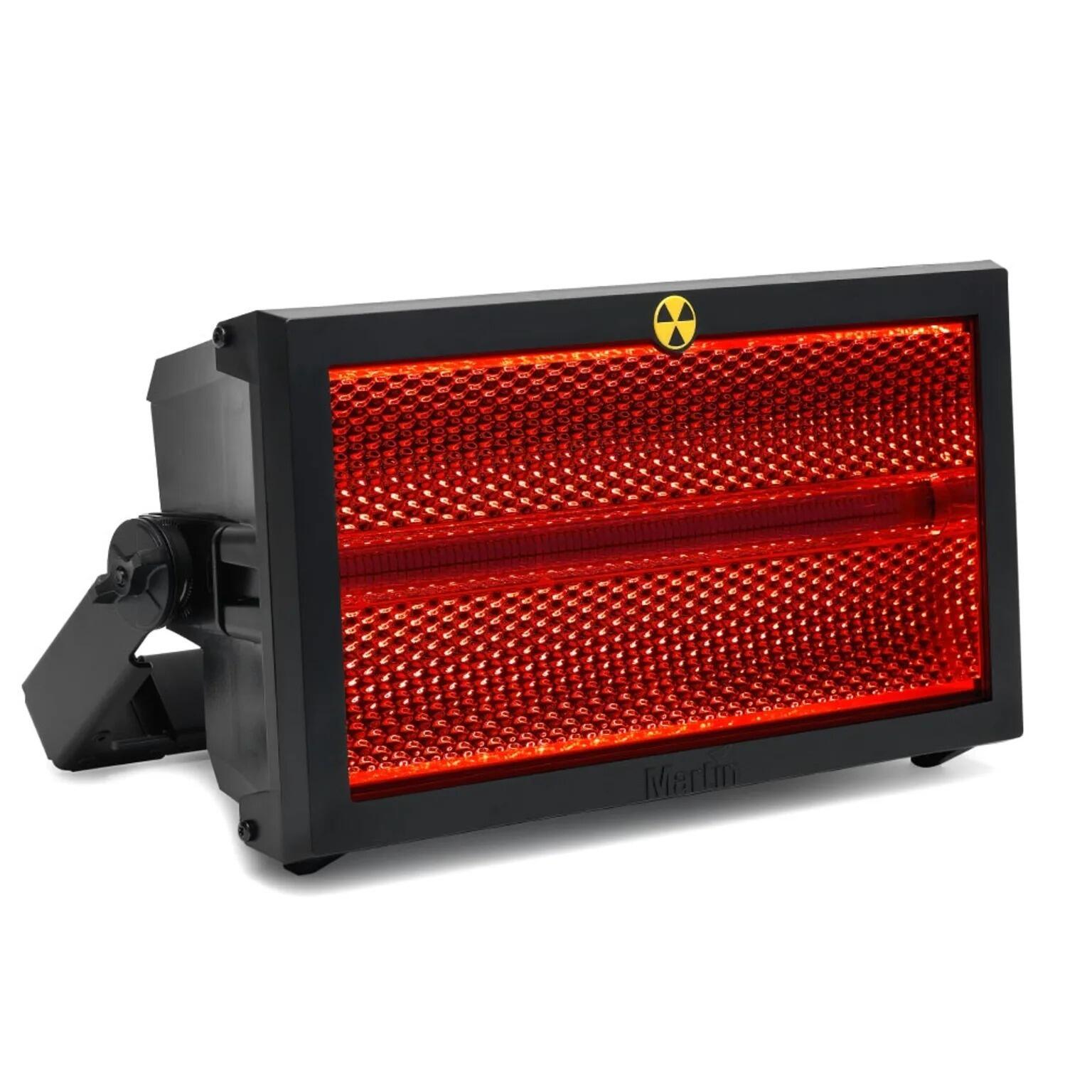

The Atomic 3000 LED is not only a strobe, but also a creative tool that incorporates backlight illumination with RGB-controlled LEDs pointing into the reflector. It delivers stunning eye candy looks similar to the MAC Aura™ and the MAC Quantum™ Wash.

Internal FX macros and simplified re-use of the original Atomic Colors scroller complete the full-feature package and empower the Atomic 3000 LED to become the ultimate creative lighting tool.

Brightest LED-based strobe on the market
Unique RGB-controlled Aura backlight for stunning eye candy looks
Same look and feel as the original Atomic 3000 DMX

£3,300.00

£4,431.60

View video

Product Features
- Classic reflector look
- Iconic letterbox shape and industrial design
- Aura backlight (RGB) into reflector
- Dimmable house-light function at reduced brightness and power consumption
- LED and Xenon mode available via menu and DMX control channel
- Use of original Atomic color scroller made easy via internal power and data supply

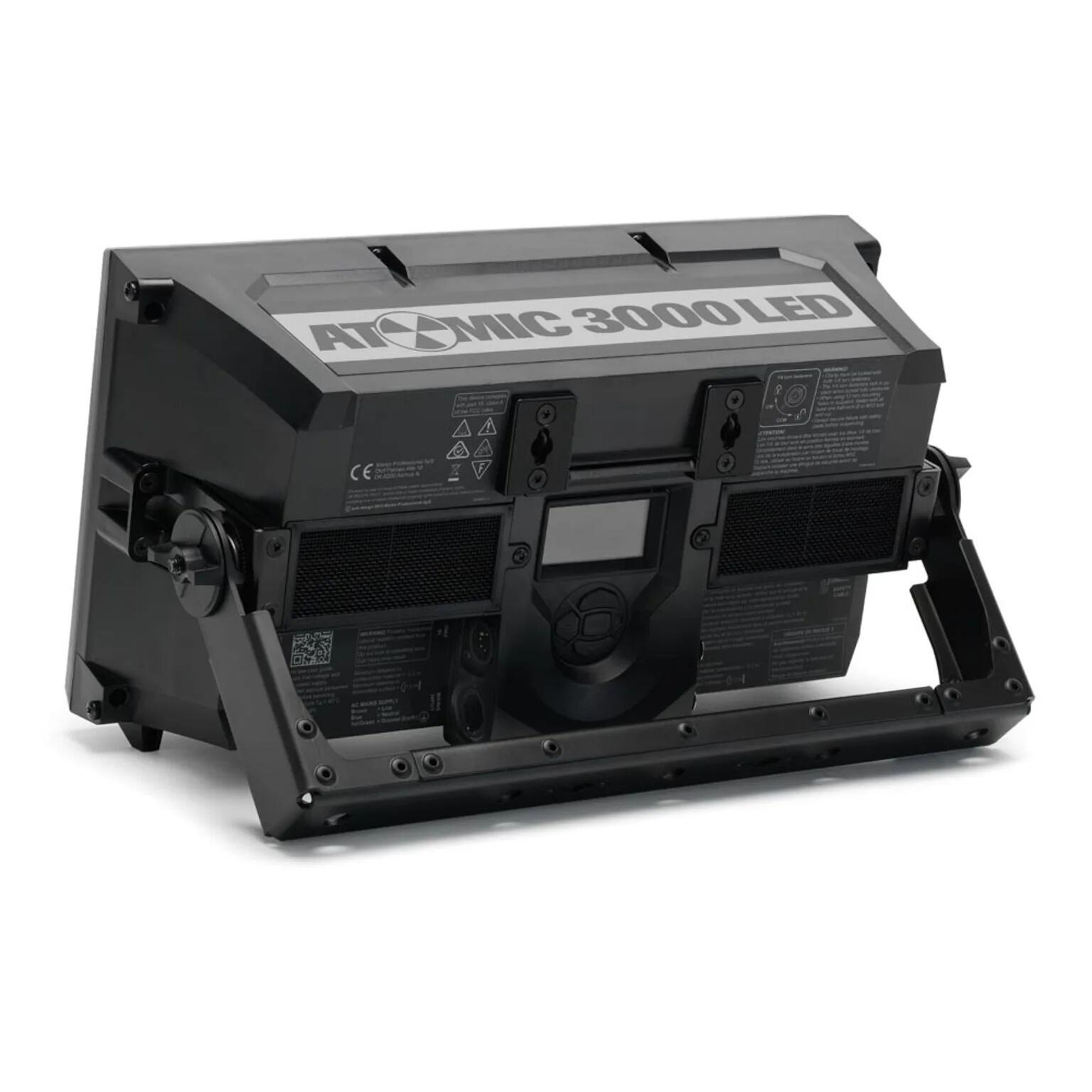

- 4 button menu and LCD display for quick and easy setting adjustment
- Clever rigging and bracket solution
- 4 Channel DMX mode as Atomic 3000 (easy replacement)
- 14 Channel Extended DMX mode incl. Aura control and internal FX macros
- RDM compatible, USB port for software updates
Technical Specification
- PhysicalLength: 245 mm (9.7 in.)Width: 425 mm (16.8 in.)Height: 240 mm (9.5 in.)Weight: 7.8 kg (17.2 lbs.)All data including mounting bracket
  Dynamic EffectsStrobe: 0.289 - 16.667 Hz, variable flash rate, intensity and durationSpecial effects: Blinder, ramp up/down, random flash, lightning. spikes, pre-programmed FXAura (secondary LED array illumination) color mixing: RGB
  Control and ProgrammingControl systems: DMX, RDMSetting and addressing: Control panel with backlit monochrome graphic displayDMX channels: 3/4/14DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20 RDMTransceiver: RS-485Firmware update: via USB type A memory device or via DMX using Martin Companion
  Optics and Photometric DataMax. total output: 180,000 lumens*Beam (strobe) array:
  Light source: 228 x Cree XLamp XP-L, 10 W white LEDs (color temperature 5,700 K)
  Resolution: 8-bit
  Dimming, above 16.7% output intensity: Current-controlled, flicker-free
  Dimming, below 16.7% output intensity: PWM (refresh rate 6,000 Hz)
  Binning: Tight color and flux binning
  Minimum LED lifetime: 50,000 hours**
  Aura (backlight) array:
  Light source: 64 x Osram RGB LEDs
  Resolution: 8 bits per color plus 8-bit dimming
  Dimming: PWM (refresh rate 1,001 Hz)
  Binning: Tight color and flux binning
  Minimum LED lifetime: 50,000 hours**
  *For full photometric data, click on Photometrics in menu bar
  **To >70% output, figure obtained under manufacturer’s test conditions
  ConstructionHousing: Steel. high-impact thermoplastic, flame-retardant to UL 94 5VAColor: BlackProtection rating: IP 20
  InstallationMounting points: Two pairs of quarter-turn fastener points, M12 holes in adjustable bracketLocation: Indoor use only, must be fastened to structure or surfaceOrientation: AnyMinimum distance to combustible materials: 200 mm (8 in.) from fixtureMinimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
  ConnectionsAC Power: Neutrik PowerCON TRUE1 TOP male socketDMX data in/out: 5-pin locking XLRAtomic Colors color gel scroller: 4-pin locking XLRSoftware upload: USB 2.0
- Electrical
  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.7 A
  Typical earth-leakage current: 0.18 mA
  Power Factor: 0.98 @ 100 V , 0.96 @ 120 V , 0.89 @ 208 V , 0.88 @ 230 V , 0.87 @ 240 V
  Max current draw: 8.4 A @ 100 V / 120 V , 3.9 A @ 208 V / 230 V / 240 V
  Typical current draw: 6.8 A @ 100 V , 5.7 A @ 120 V , 3.5 A @ 208 V , 3.2 A @ 230 V , 3.1 A @ 240 V *
  Power Consumption
  Maximum: 740 W
  Typical: 663 W *
  Idle: 25 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Allow for peak currents that exceed these figures when using the blinder effect.
  Typical: full output white, regulated fan speed.
  Idle: no output, regulated fan speed.
  ThermalCooling: Forced air (temperature-regulated, low noise, user-definable fan settings)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Typical heat dissipation (calculated, +/- 10%): 2270 BTU/hr.
  EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 271.5 lm/WLWR*: 23,077 lm/kg (10,465 lm/lb)
  LWR = Lumen-to-Weight Ratio
  ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015 Class B, EN 61547, EN 55032, EN 55035, EN 61000-3-2 Class A, EN 61000-3-3US safety: UL 1573US EMC: 47 CFR 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: RCMUnited Kingdom: UKCAThailand: TIS
