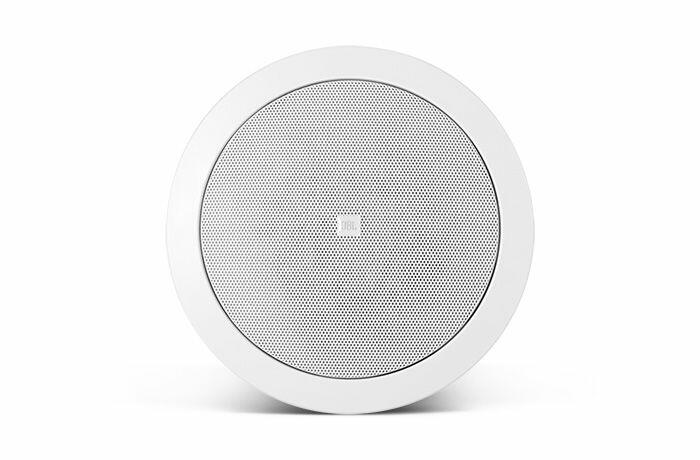

JBL CONTROL24CT with 100V line transformer Pair
SKU:
JBL0099
JBL
The Control 24CT is a compact in-ceiling speaker, providing full, high-quality sound for background music and music-plus-paging systems.
- High power, wide frequency response, and low distortion for high sound level capability.
- Packaged with grille, backcan, and tile rails for fast installation and easy dealer stocking.
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
- Wide coverage allows fewer speakers, reducing the cost.
| Frequency Range | 80 Hz - 20 kHz |
| Power Capacity | 80 W Continuous Program Power; 40 W Continuous Pink Noise |
| Nominal Coverage Angle | 130, conical coverage |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Rated Maximum SPL | 102 dB @ 1 m (3.3 ft) |
| Nominal Impedance | 16 ohms (Min Z 16.1 ohms @ 320 Hz) |
| Transformer Taps | 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps100 V: 30 W, 15 W, & 7.5 W taps |
£240.00
£300.00
