JBL Control 25-1L-WH - PAI

SKU: JBL1785
JBL

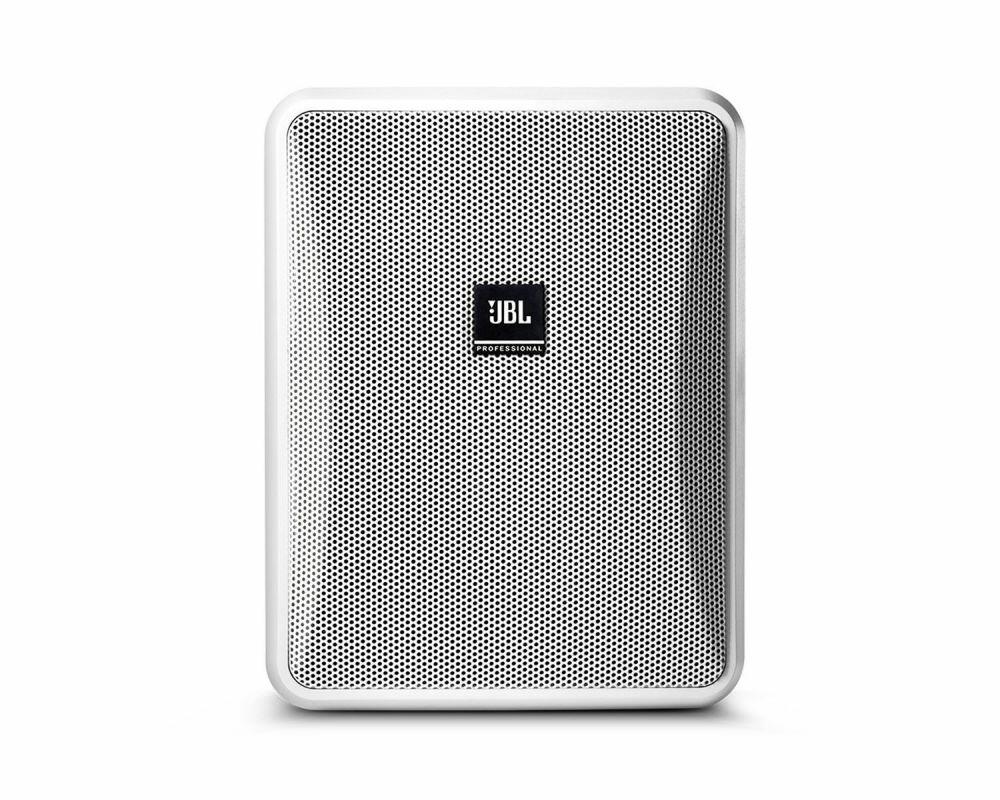

JBL Control 25-1L-WH

The Control, 25-1L is a two-way 5-,,speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Product Features

• 5-,,woofer with woven fiberglass cone
• 3/4,PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall, mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100, x 100, coverage
• 100 Watt power handling (200 Watt program)
• High fidelity sound character with broad frequency response of 60 Hz , 20 kHz.
• Finish: White

Product Specifications

General

• Frequency Response (-10dB):  60 Hz to 20 kHz
• Frequency Response (,3 dB):  85Hz - 17 kHz
• Power Rating:  200 W Continuous Program (2 hrs)
• Maximum Input Voltage:  25.3 V RMS (2 hrs), 50.6 V peak
• Maximum SPL (1m):  110 dB ave. Continuous Pink Noise (116 dB peak
• Sensitivity (1W, 1m):  90 dB, 1W/1m (ave. 100 Hz , 10 kHz) *Half-space (on-wall) averaged 100 Hz , 10 kHz, 2.83V.
• Coverage Angle:  100, x 100, *Coverage angle (-6 dB) average between 1 kHz and 12 kHz.
• Directivity Factor (Q):  6.04 (averaged 1kHz , 16kHz)
• Directivity Index (DI):  7.6dB (averaged 1kHz , 16kHz)
• Impedance:  8 ohms
• Crossover Type:  2nd order low-pass, 3rd order high-pass
• Recommended Protective High-Pass:  60 Hz high-pass (24 dB/oct)
• Drivers:
  • LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
  • HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
• Enclosure:  High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
• Grille:  Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
• Outdoor Capability:  IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.)
• Safety Agency:  ROHS-compliant

Physical

• Colours:  Black (RAL9004) or white (-WH, RAL9016)
• Dimensions (H x W x D):  243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
• Net Weight (each):  3.0 kg (6.7 lbs)
• Shipping Weight:  7.3 kg (16.0 lbs) for the pair-pack (for 2 speakers)
