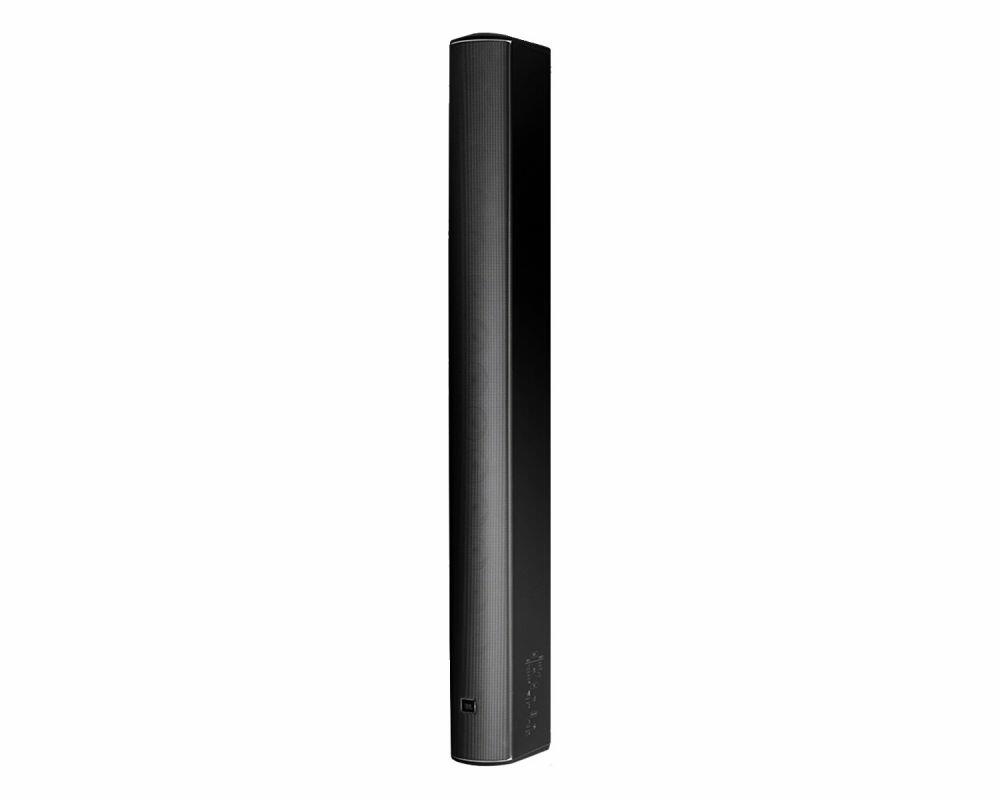

JBL CBT 100LA-1
SKU:
JBL1151
JBL
JBL CBT 100LA-1
The CBT 100LA-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
- Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
- Vertical pattern coverage switchable between 40, for medium-throw coverage and 15, for long-throw applications
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
- Dynamic SonicGuard overload protection
- Swivel (pan)/tilt wall bracket included
- Built-in 70V/100V transformer, plus 8 ohm direct capability
Components | Sixteen 50 mm (2 in) Full-Range |
| Frequency Range (-10 dB) | 80 Hz , 20 kHz |
| Vertical Coverage | Narrow Mode: 15, (2 kHz - 16 kHz) (,10,) Broad Mode: 40, (1 kHz - 16 kHz) (,10,) |
| Horizontal Coverage | 150, (ave, 1 kHz , 4 kHz, ,20,) |
Sensitivity (2.83V@ 1m) | Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ), (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz), (music mode) 90 dB (300 Hz - 18 kHz) |
| Nominal Impedance | 8 ohms (in Thru mode) |
Power Capacity (8 ohm setting) | 325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs |
Max SPL | Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak) |
| 70V/100V Transformer Taps | 120W, 60W, 30W (15W at 70V only), and 8 thru, via switch |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminium grille |
| Outdoor Capability | IP-54 rated, per IEC529. UV, moisture and salt-spray resistant |
| Colours | Black or White (-WH) |
| Insert Points | 18 M6 insert points on back panel. |
| Mounting | Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ,15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount, 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension. |
Dimensions (H x W x D) | 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in) |
| Net Weight | 7.2 kg (15.8 lb) |
| Included Accessories | Swivel (pan) / tilt wall bracket |
Optional Accessories | MTC-PC2 terminal panel cover MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |
£1,531.20
£1,914.00
