JBL AWC15LF-BK
SKU:
JBL1635
JBL

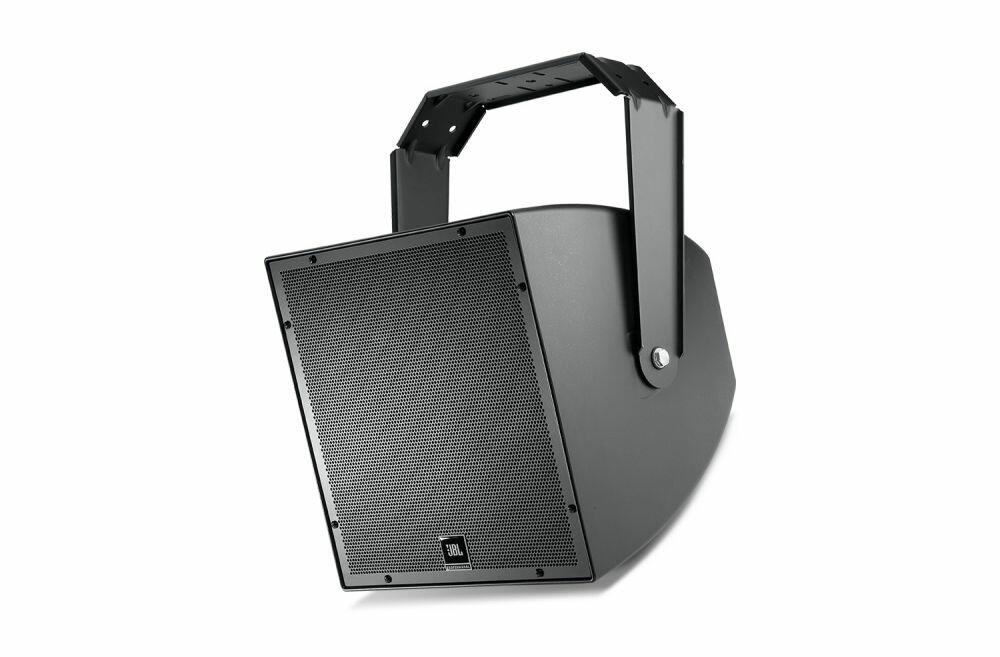

JBL AWC15LF-BK
All-Weather Compact Low-Frequency Speaker with 15 LF
The AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.
- Low frequency reinforcement for outdoor applications
- Highly weather-resistant IP56 rating
- Component: , 380 mm (15 in) woofer with Kevlar reinforced cone and 75 mm (3 in) voice coil.
- 500 Watt power handling (average continuous pink noise)
- Frequency range down to 45 Hz
- 300 Watt 70V/100V multi-tap transformer or direct 8 low-impedance.
| Frequency Range (-10 dB) | 45 Hz , 2.2 kHz |
| Frequency Response (,3 dB) | 70 Hz , 1.2 kHz |
| Long-Term System Power Rating (IEC) | 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs. |
| Sensitivity (2.83V @ 1m) | 94 dB (Ave. 80 Hz , 300 Hz) |
| Maximum SPL | Direct 8: 121 dB (peaks of 127 dB) 300 W Tap: 119 dB (peaks of 125 dB) |
| Nominal Impedance | 8 ohms (in Direct mode) |
| Transformer Taps | 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W |
| Low Frequency Driver | 380 mm (15 in), Kevlar-reinforced cone, with weather treatment, 75 mm (3 in) voice coil, long throw. |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Attachment | Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Grille | Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. |
| Input Connection | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside openlug (6 or 8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16) and 9.0 mm (0.36) |
| Environmental | IP56 per IEC529, with a minimum 5, downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs). |
| Dimensions | 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back |
| Included Accessories | U-bracket, matches loudspeaker colour (grey or black), zinc-rich extra-thick powder coated, steel. |
£1,776.00
£2,220.00
