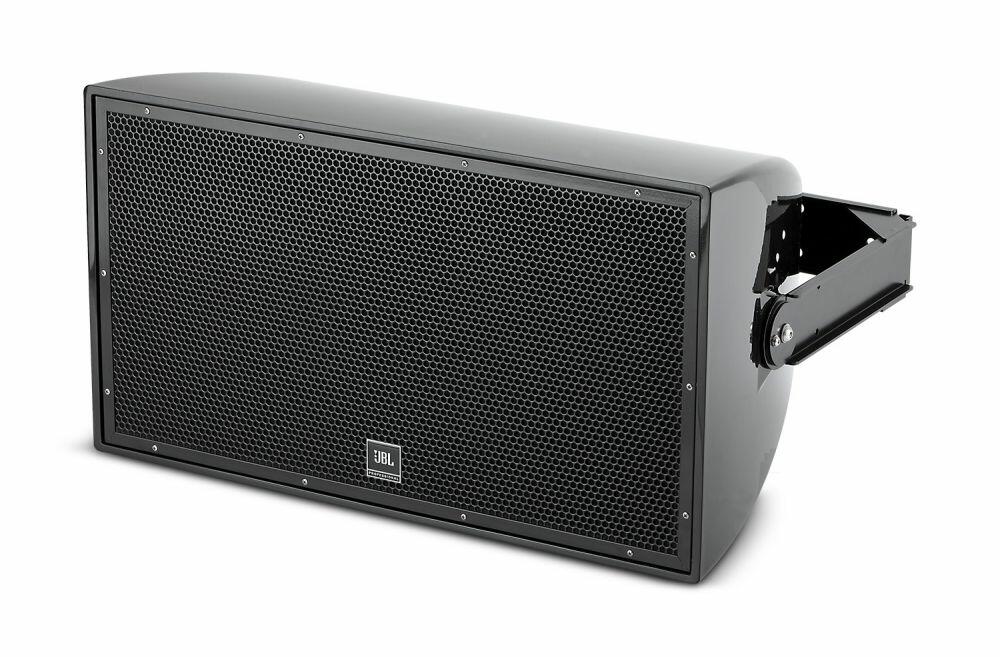

JBL AW266-LS
SKU:
JBL1395
JBL
JBL AW266-LS
EN54-certified version of the AW266. 400W power rating (100 hours). Frequency response ,3dB: 102Hz , 18kHz. Available in grey or black.
The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60, x 60, Coverage. The loudspeaker system can used in either the vertical or horizontal orientation.
The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low frequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer.
A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 9, corners.
The AW266 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
- Weather-Resistant, All Fiberglass
- Enclosure
- 60, x 60, Coverage
- 2262H Differential Driverr Low-
- Frequency Driver
- 2432H High Frequency Compression
- Driver
- Large PTT Progressive Transition
- waveguide for excellent pattern control
- and low distortion
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
| Frequency Range (-10 dB) | 40 Hz - 20 kHz |
| Frequency Response (,3 dB) | 51 Hz - 18 kHz |
| Coverage Pattern | 60, x 60, waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| Long-Term System Power Rating (IEC) | 500 W (2000 W peak) 100 hrs |
| Maximum SPL | 126 dB SPL (132 dB peak) |
| System Sensitivity (1W @ 1m) | 98 dB |
| 70V/100V Transformer Taps | 70V: 400 W, 200 W, 100W100V: 400W, 200W |
| Low Frequency Driver | 1 x JBL 2262H 300 mm (12 in) Differential Driver driver with 75 mm (3 in) dual voice coil |
| LFD Nominal Impedance | 8 ohms |
| LFD Sensitivity (1W @ 1m, within operational band) | 96 dB SPL |
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HFD Nominal Impedance | 8 ohms |
| HFD Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (black available) |
| Suspension Attachment | :2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. |
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental Specifications | :IP56 per IEC 529 |
| Dimensions (H x W x D in horizontal cabinet orientation) | 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in) |
| Net Weight | 25.2 kg (55.5 lb) |
