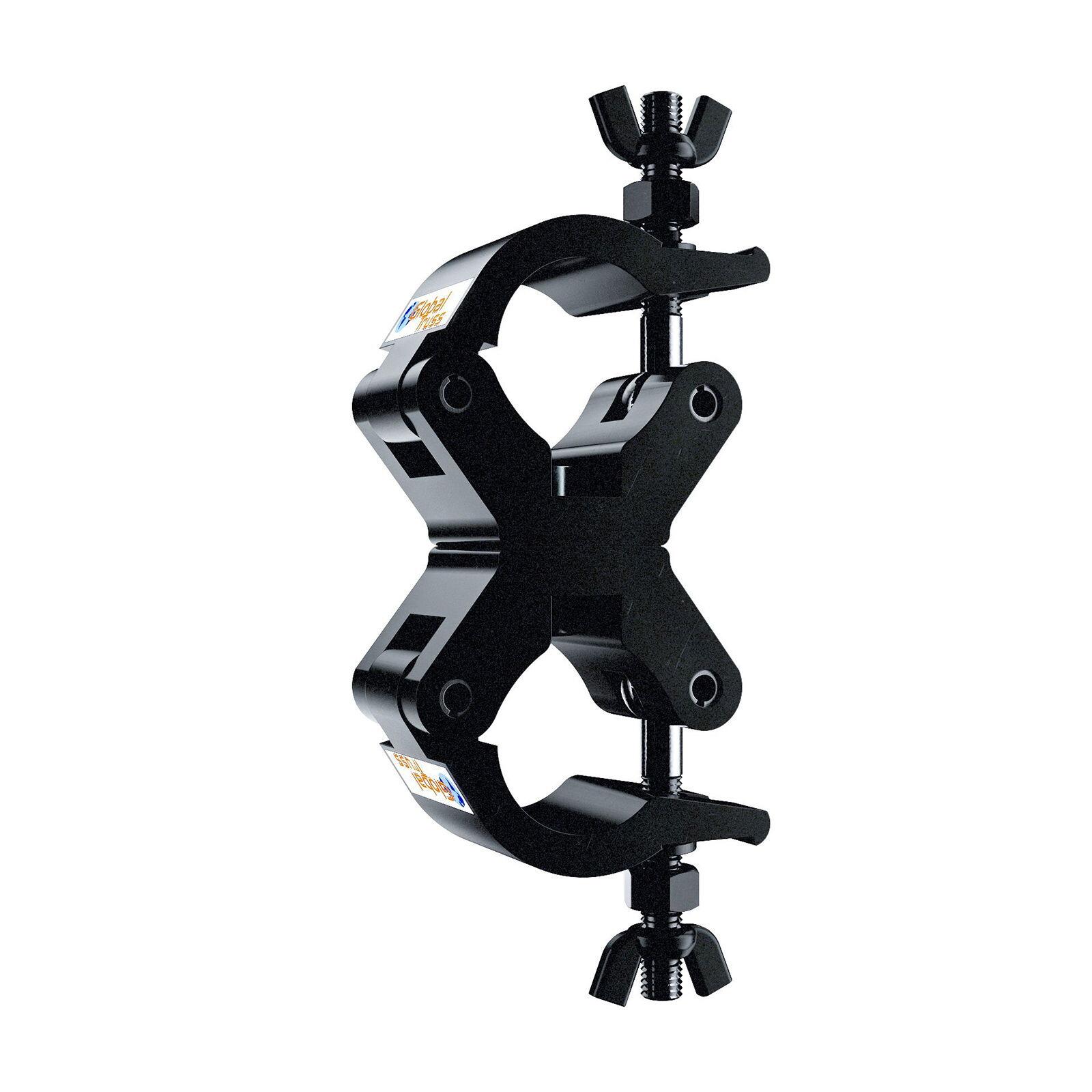

Global Truss Narrow Swivel Coupler Stage Black 48-51/50Ø 750Kg (8222-B)

SKU: GL3073
Global Truss

With a width of 30mm the Global Truss 8222-B Stage Black Narrow Swivel Coupler is ideal for applications requiring increased load capacity and is compatible with tubes measuring 48–51mm in diameter. The coupler offers a load capacity of 750kg while ensuring maximum freedom of movement thanks to its swivelling connection.

For tubes 48–51mm in diameter WLL: 750kg Width: 30mm Black anodised finish M12 wing-nut clasp 6061-T6 aluminium construction
Material: Aluminium 6061-T6 Conforms to: DIN EN 13814:2004 Dimensions (L × W × H): 210 × 120 × 30mm Weight: 0.8kg

---
