Global Truss F45 5 Chord 1.0m Truss

SKU: GL45100
Global Truss

Utilising the existing F44P 400 x 400mm truss design, the F45 features an additional chord along the central bottom face of the truss with ladder bracing allowing LED screens and lighting fixtures to be easily mounted. This extra chord avoids having to balance the load with slings or braces across the two bottom chords that would be necessary on standard 4 chord truss. The 4mm wall thickness of the F45P allows this new series of truss to be compatible with both F44 and F44P series meaning whole stocks don't have to be replaced and lengths can be added when required. Ladder horizontal braces create extra hanging space along the central chord whilst creating a cleaner look when hanging LED screens and lighting fixtures.
Features

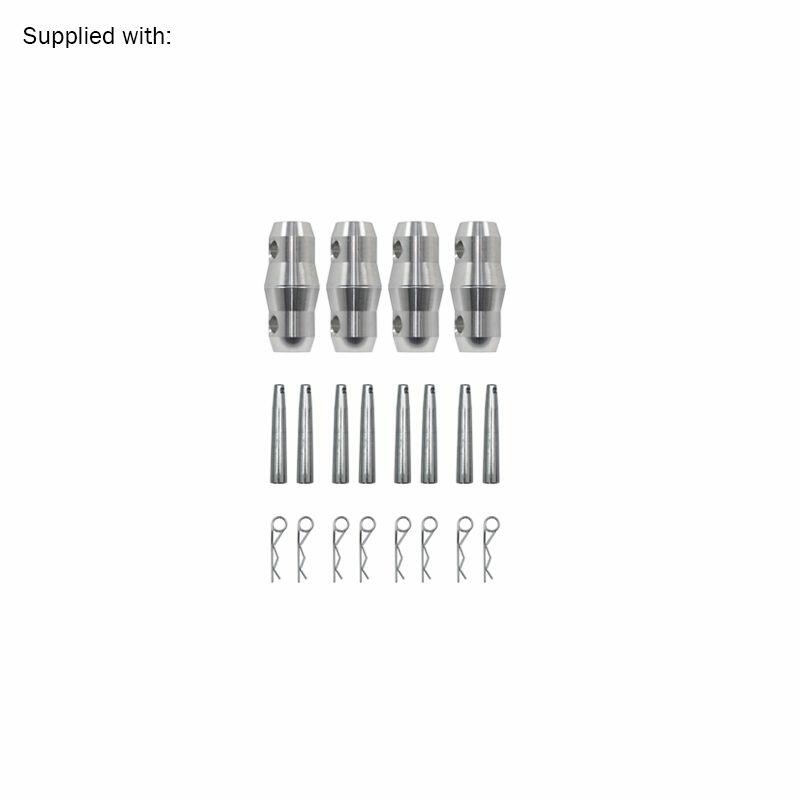

Supplied with 4 x Conicals, 8 x Pins and 8 x RClips, Eurotruss HD44 compatible, Superior 4mm wall thickness aluminium

Specification:
Truss diameter: 400mm, Tube diameter: 50mm, Weight: 10.5kg

---
