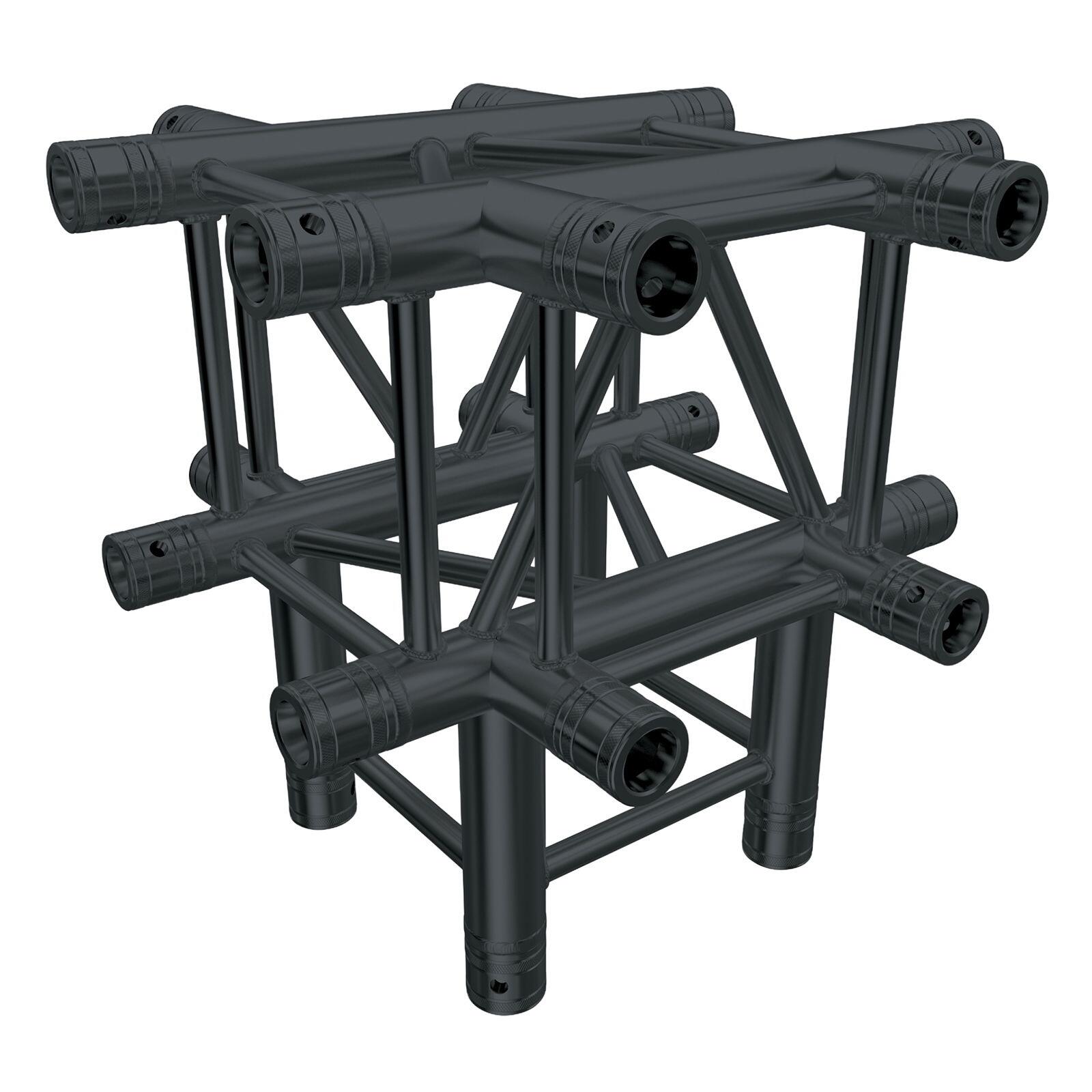

Global Truss F34 Standard 5 Way 90 Degree Corner Stage Black

SKU: GLF34C55B
Global Truss

The F34 truss series by Global Truss is a versatile 4-point system with an external dimension of 29cm. With its excellent load capacity relative to weight and size the F34 system is widely used for stage exhibition and event structures. The C55 5-way corner allows five truss sections to connect in multiple directions providing maximum flexibility for complex rigs cube frames and exhibition booths. Constructed from 50x2mm main tubes and 20x2mm diagonal braces of aluminium each corner is supplied with conical connectors for secure assembly. This black powder-coated version provides a professional finish suitable for stage and event environments. Please note this corner is not TÜV certified.

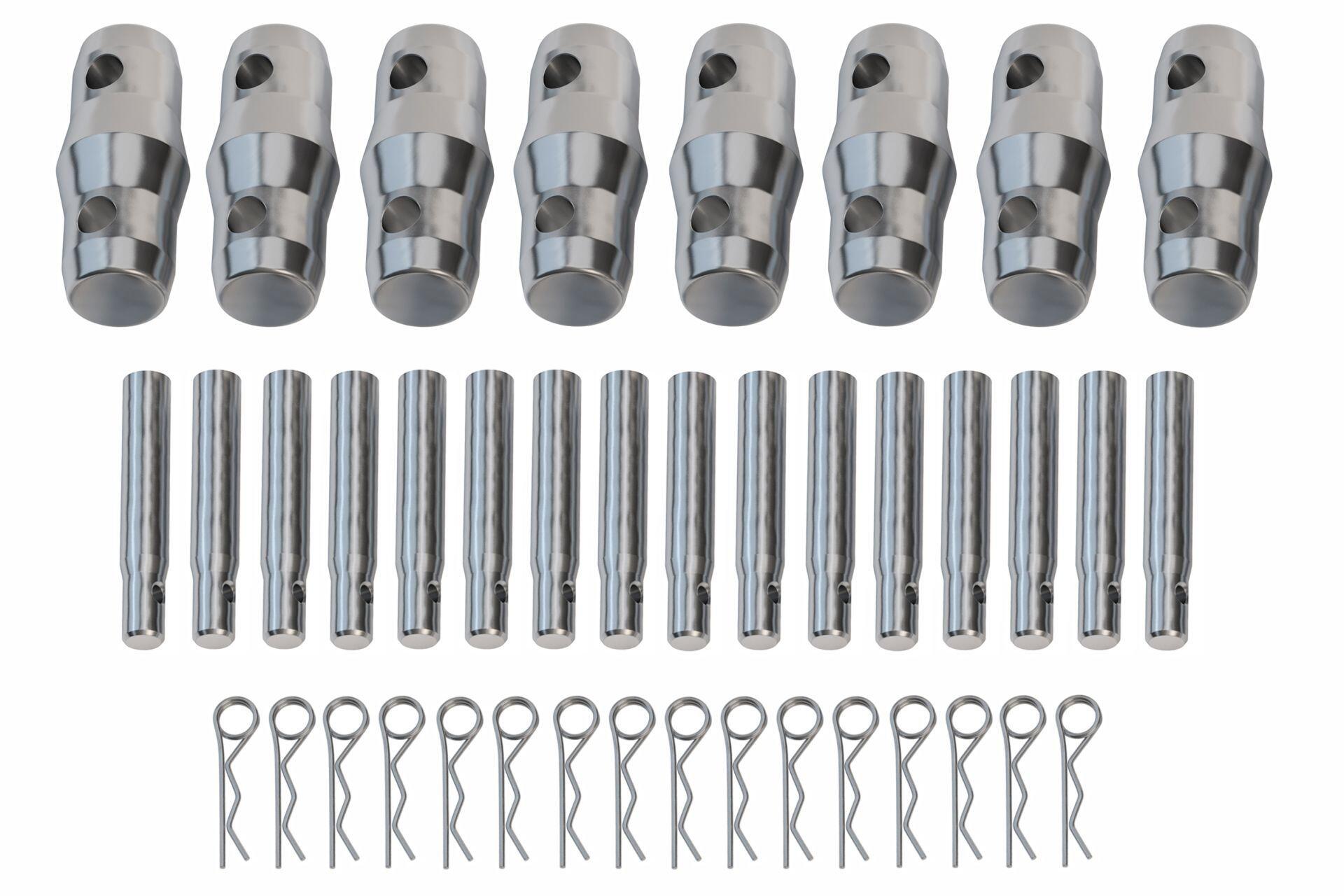

Supplied with 8 x Conicals 16 x Pins and 16 x R-Clips 2mm wall thickness aluminium 5-way C55 corner design Powder coated black finish
Colour: Black Material: Al EN AW-6082 T6 TÜV Certificate: No Edge Dimension: 29cm Number of Points: 4-point System: F34 Type: Corner Main Tube: 50x2mm Brace: 20x2mm Dimensions (L/W/H): 500 x 500 x 500mm Shipping (L/W/H): 500 x 500 x 500mm Shipping Weight: 13.75kg PU: 1

---
