Equinox 3 x 2m Truss System

SKU: STAN90
Equinox

This complete 3 x 2m truss system comes in three easy-to-build and transport pieces, made from quad style trussing. The system has a small footprint so is suitable for mobile entertainers, bands and many other applications. The horizontal bar comes as one section, folding in the middle, making it even more manageable and quick to build.

Features

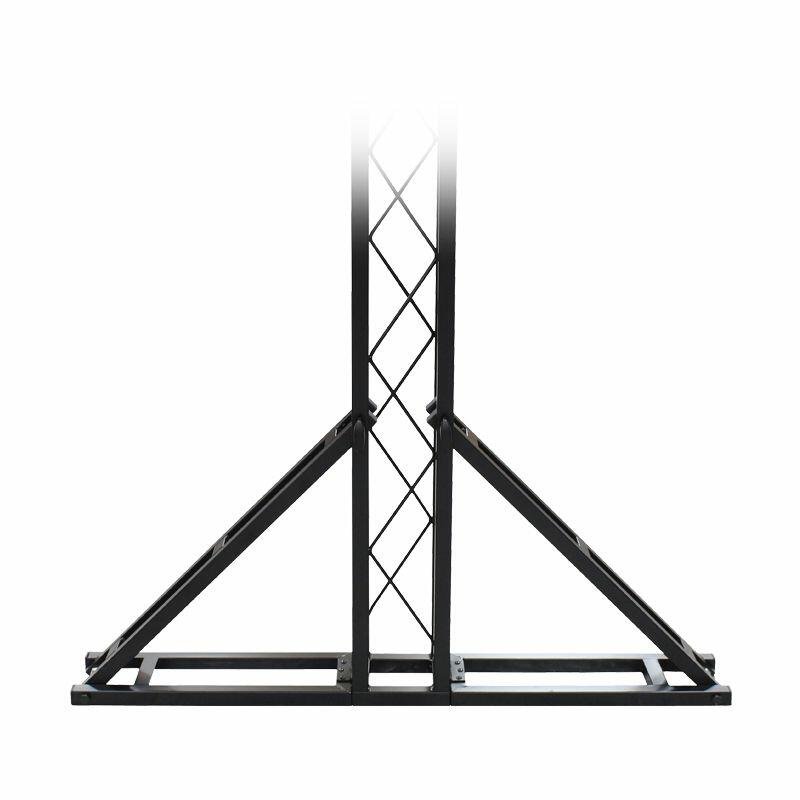

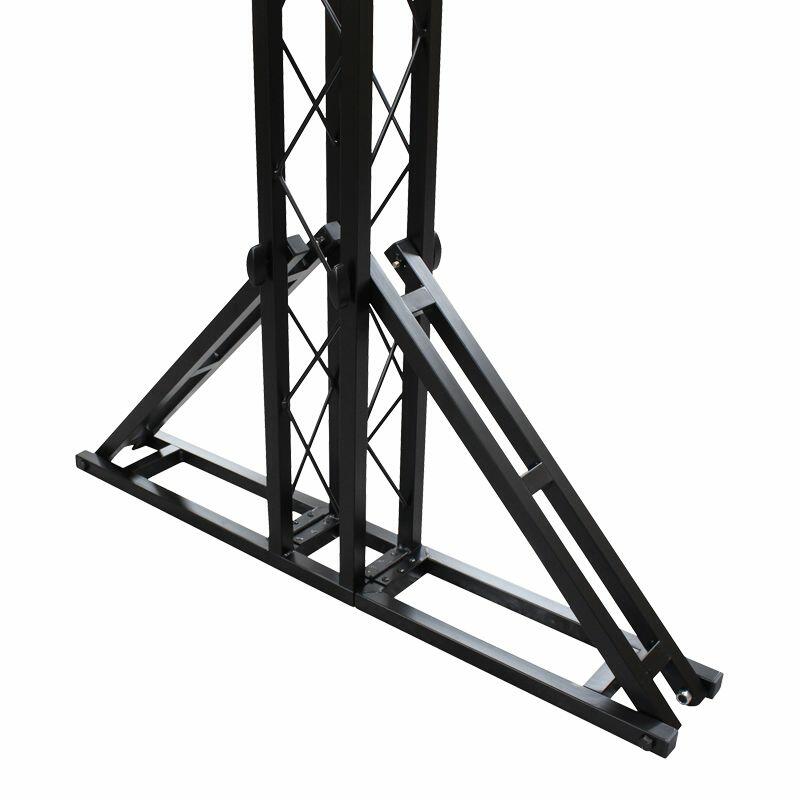

All metal construction, Comes complete with fixings, Features a black powder coated finish, Comes in 3 easytobuild and transport pieces (The top truss is hinged and folds in half for easy transportation, whilst the feet and leg supports fold flat against the truss uprights), Optional 0.5m extension legs available Order code: STAN90B

Specification:
Max. load: 100kg (evenly distributed), Footprint of each upright: 150 x 1000mm, Truss section: 150 x 150mm, Inner assembled dimensions: 2 x 3m (2000 x 3000 x 150mm), Outer assembled dimensions: 2150 x 3300 x 1000mm, Weight: 43kg (comprising of 2 x uprights 13kg each and 1 x horizontal 17kg)
