eLumen8 TOUR CAT5E Solid Core Data Cable CAT5ESL, 300m Reel

SKU: CABL621B
eLumen8

eLumen8 TOUR CAT5E Solid Core Data Cable CAT5ESL, 300m Reel

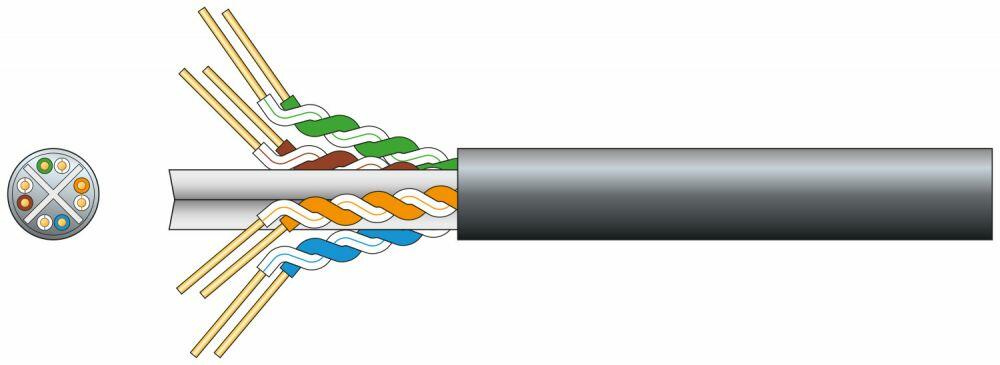

Touring quality, 4 pair screened CAT5e cable suitable for heavy-duty stage LAN applications. The cable is constructed from four pairs of oxygen-free solid copper cores protected by an overall aluminium polyester foil together with a tinned oxygen-free copper woven drain wire. The cable is finished with a low memory, super flexible outer PVC jacket for ultimate flexibility.

• Solid bare copper cores
• Aluminium/polyester foil screen plus drain wire
• High density Polyethylene inner core insulation
• Colour coding: White/Orange-Orange, White/Green-Green, White/Blue-Blue, White/Brown-Brown
• Super flexible PVC outer jacket
• Supplied on 300m reels

• Conductors: 8 x 0.22mm (24AWG)
• Drain wire: 1 x 0.22mm (24AWG)
• Shield: Aluminium foil plus braided screen
• Outer diameter: 6.2mm
• Operating temperature range: -20 to +75,
