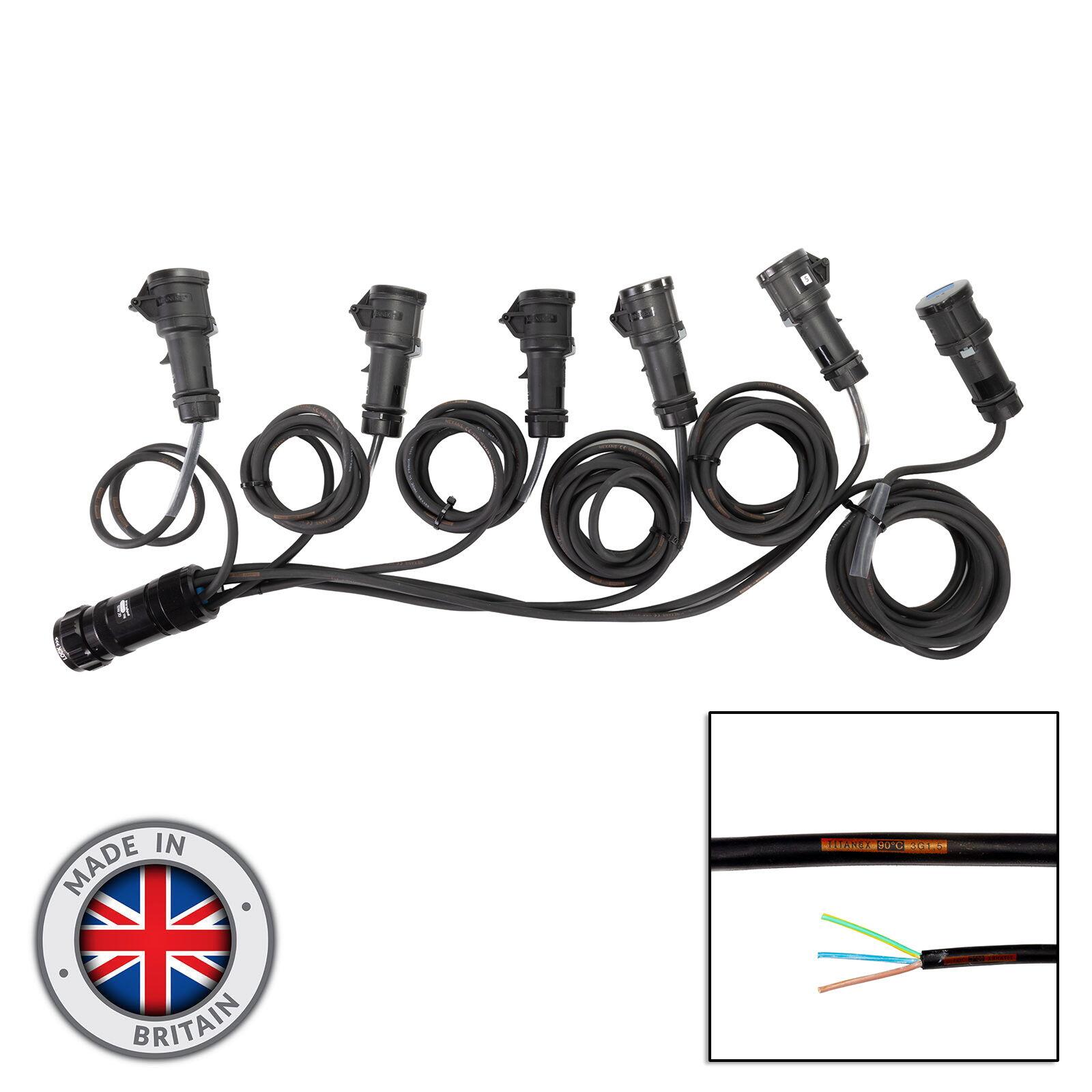

Elumen8 Socapex 19-Pin Male - 16A Mennekes Female 1.5mm Staggered Fan-Out Cable

SKU: CABL464MB
eLumen8

High quality rental-ready Socapex fan out cable made in Britain from Titanex H07-RNF cable and Elumen8 Showsafe 19-Pin UL certified Socapex connectors. The cables are finished with a short length of clear heatshrink ready for identification or asset label and each tail is numbered to aid circuit identification.

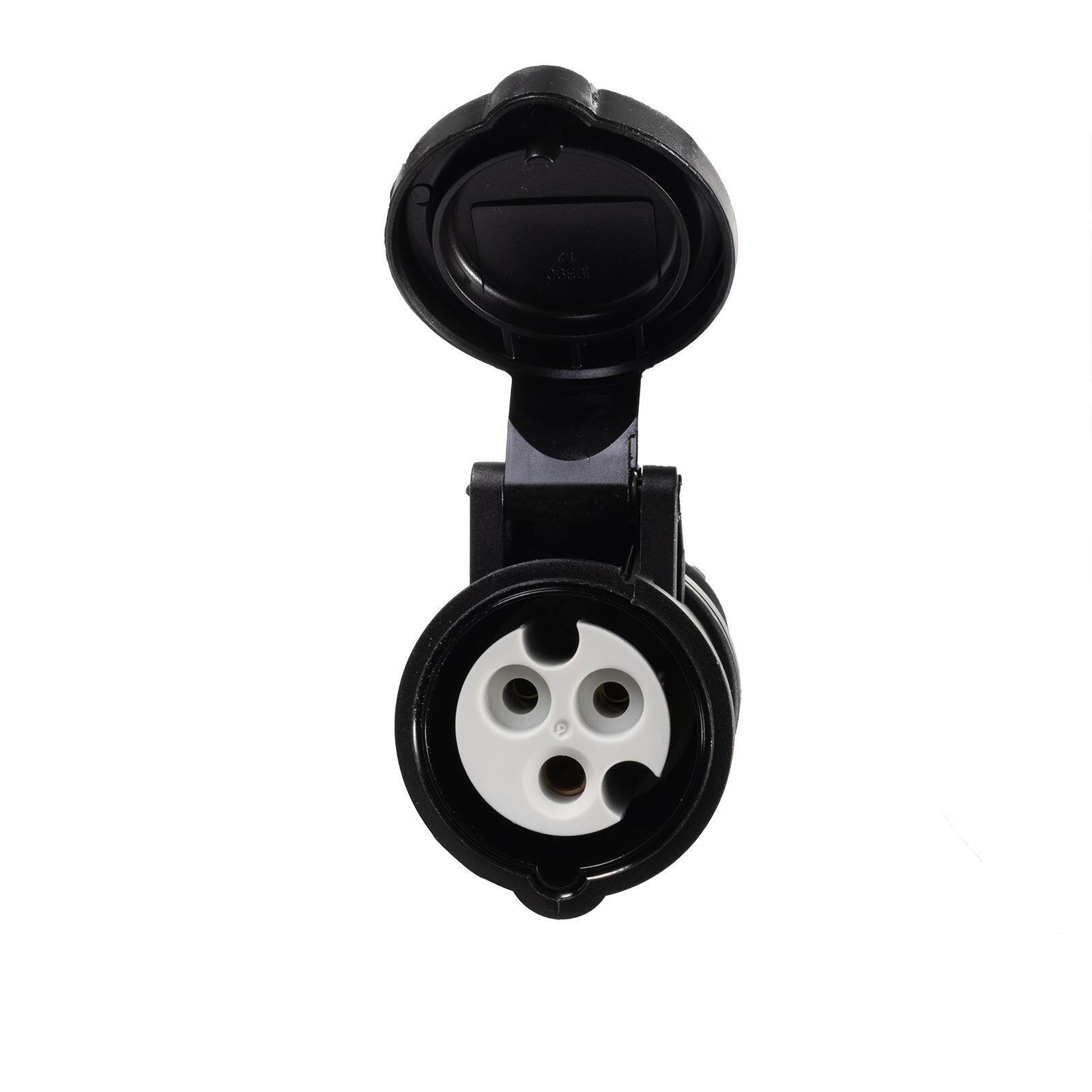

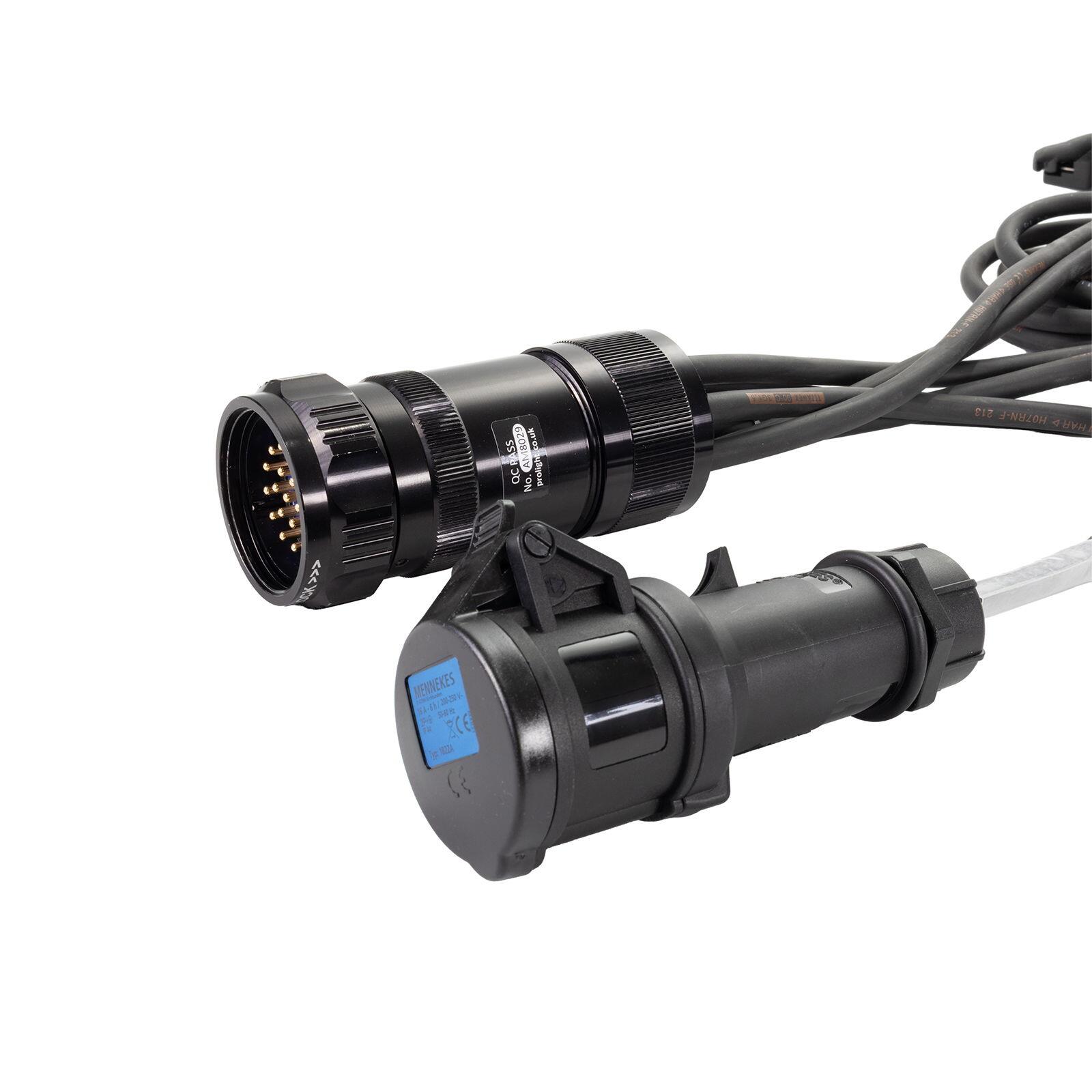

Made in Britain Titanex H07-RNF 1.5mm cable Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland 6 x 16A 230V 2P+E black sockets Clear heatshrink suitable for identification or asset label Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard Chemical resistant cross-linked elastomer insulation Bare copper conductors Operating temperature range: -25 to 55°C Maximum conductor temperature in service: 90°C Amphenol Socapex SL419 compatible IP67* ingress protection when mated (*Socapex end) FMLB (first make last break) earth contacts Multi-point gold plated contacts Staggered tails lengths at 1m intervals (1m thru 6m)

---
