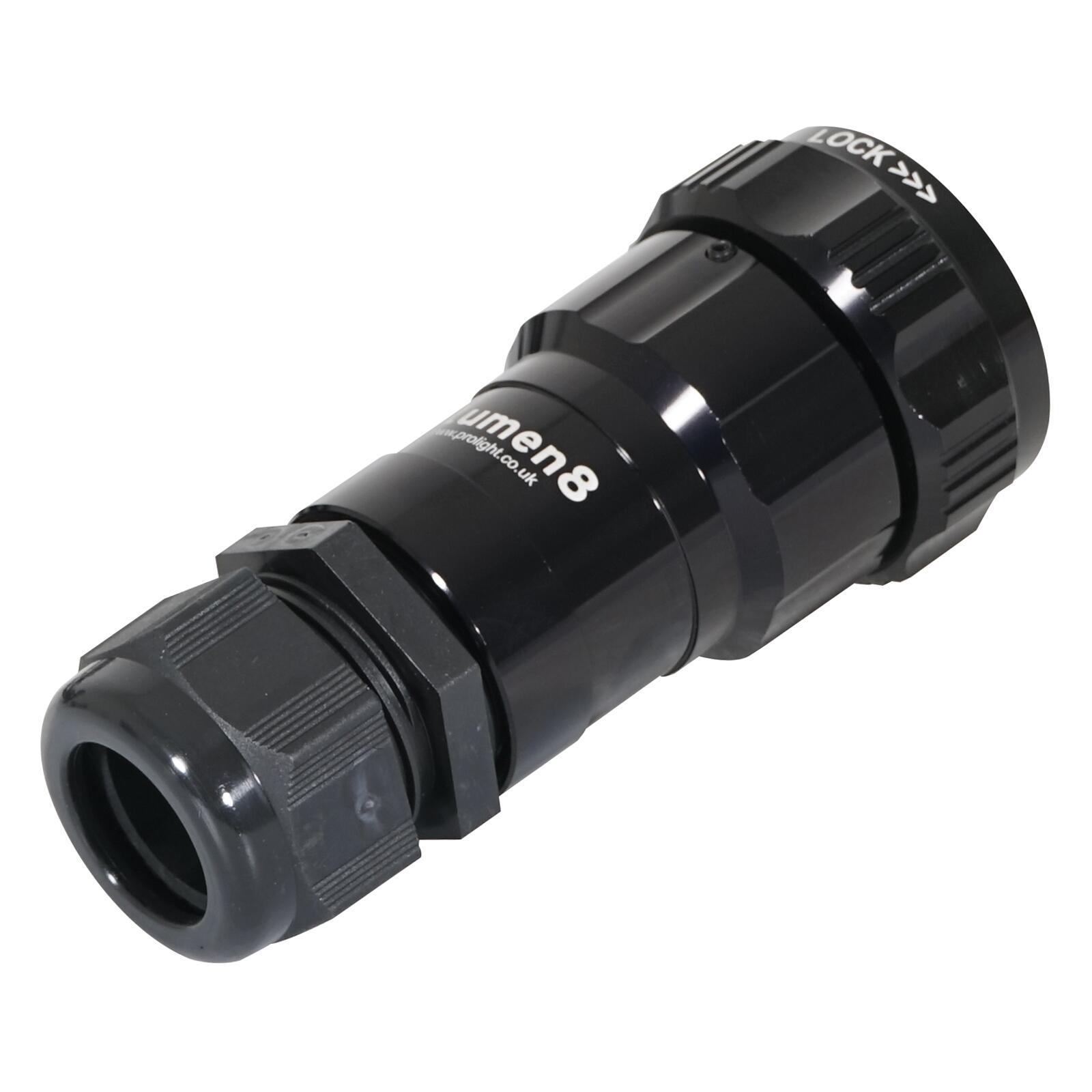

Elumen8 Socapex 19-Pin Line Male Plug 16-28mm Numbered

SKU: CONN402A
eLumen8

The eLumen8 Showsafe range of UL certified Socapex connectors have been manufactured to deliver the highest levels of quality, reliability and safety for stage lighting connections. The super robust construction of these multi-pin devices ensures reliable,?operation for AV professionals. The rugged plug design has been tailored specifically for professional touring and stage lighting applications, and all products are fully Socapex SL419 compatible. Showsafe 19-Pin plugs are sealed to IP67 protection when,?mated, making them water and dust proof for festivals worldwide. The sand of Benicassim? The mud and rain of Glastonbury? No problem.

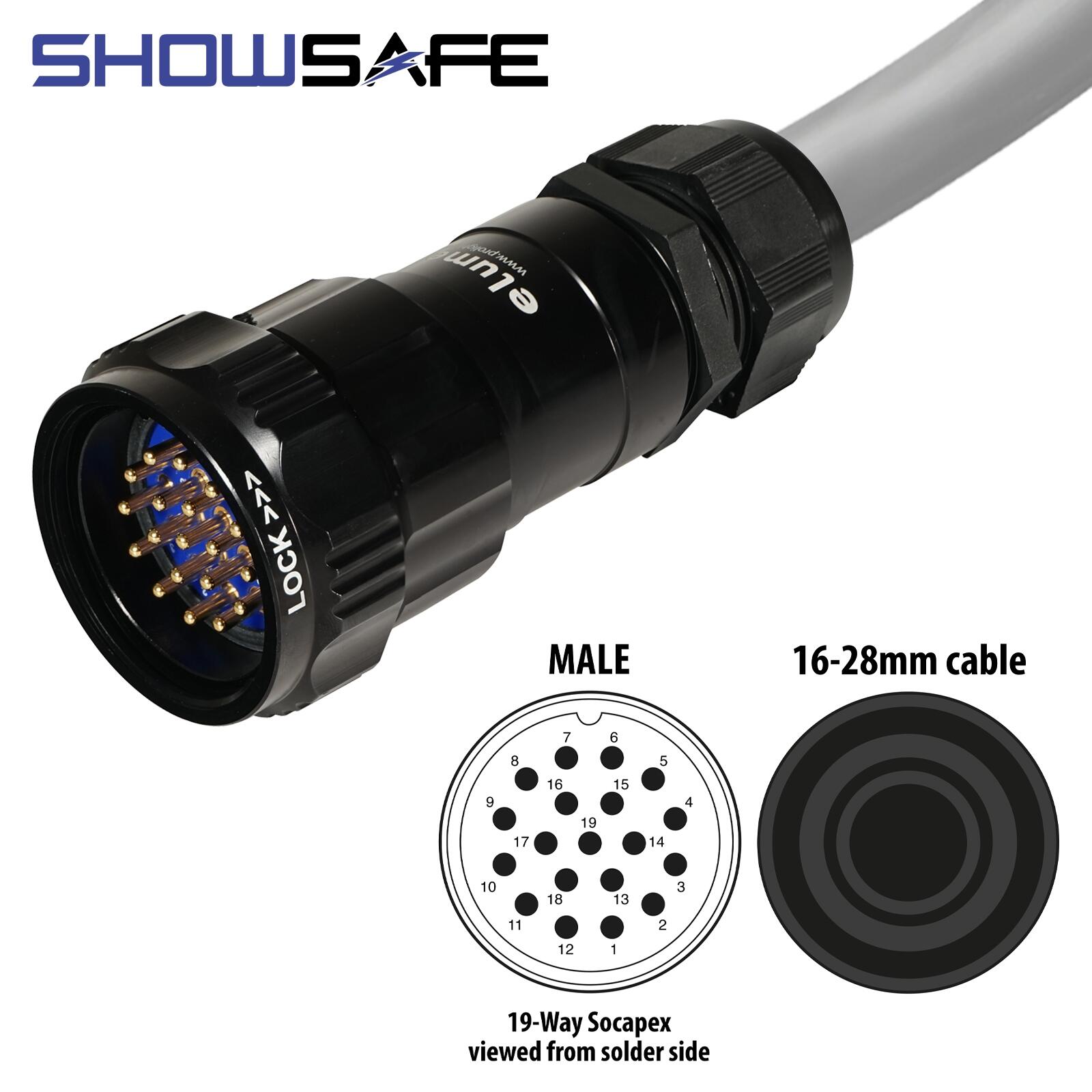

Model reference: P19-LM-S-M40A-BK-NUM, Inline male 16-28mm cable clamp, UL approved to UL1977 standard, 100% UK manufactured and assembled, Amphenol Socapex SL419 compatible, 19-Pin connectors are all rated at 25A, Multi-point gold plated contacts, Integral insulation sleeves, M40 metric cable glands for multicore Socapex cable pinout (bush sizes 10-32mm)

IP67 ingress protection when mated, Temperature rating: -55oC to +125oC, Voltage rating: 600VAC, 700VDC max., FMLB (first make, last break) earth contacts, ROHS compliant, Dimensions (L x W): 170 x 60mm, Weight: 0.37kg
