Elumen8 Distribution Unit 32A 3PH 3x 32A 1PH 6x 16A Out

SKU: CONN1500
eLumen8

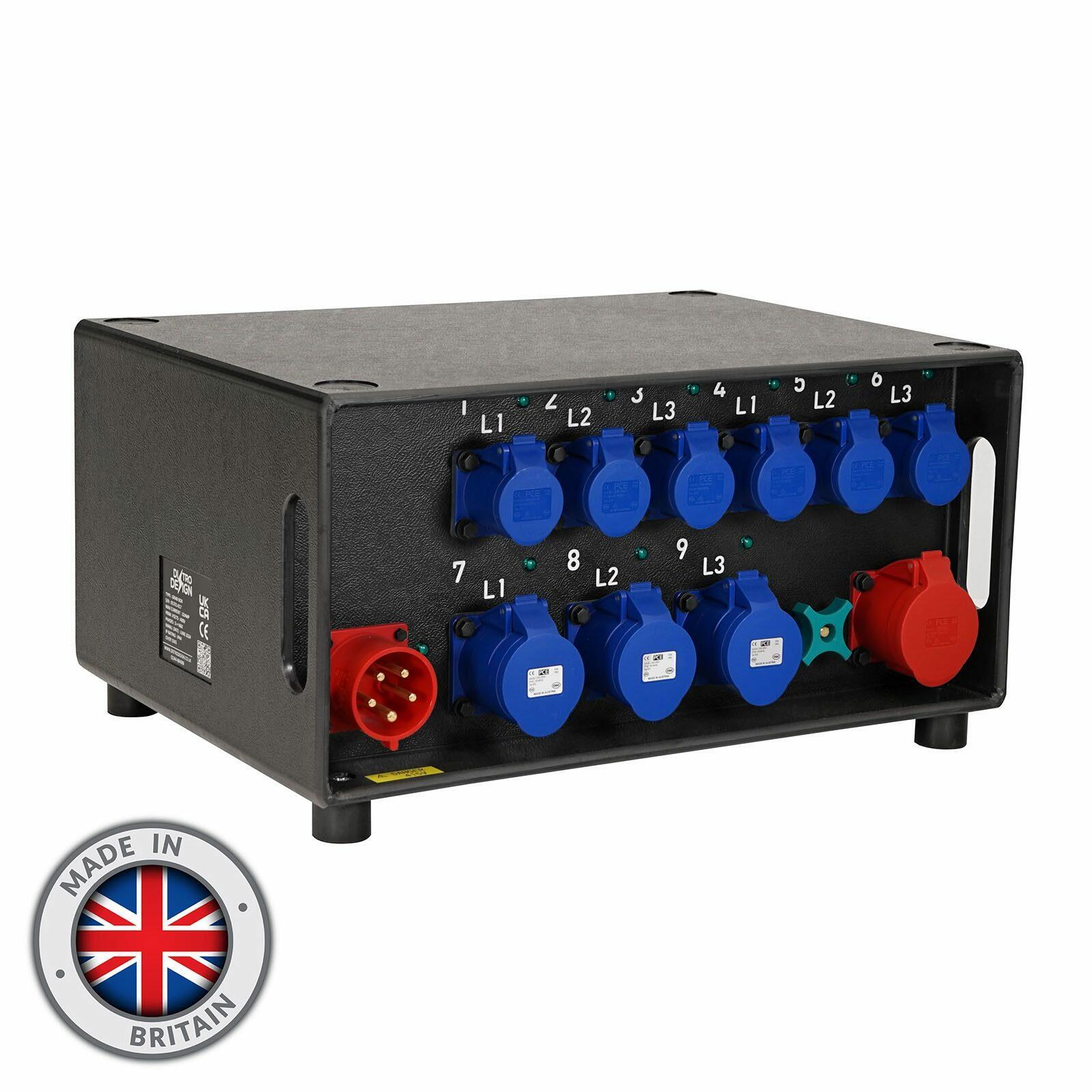

Manufactured within a rugged HDPE chassis this 32A grab box style distribution unit is designed for use on large events and concerts.

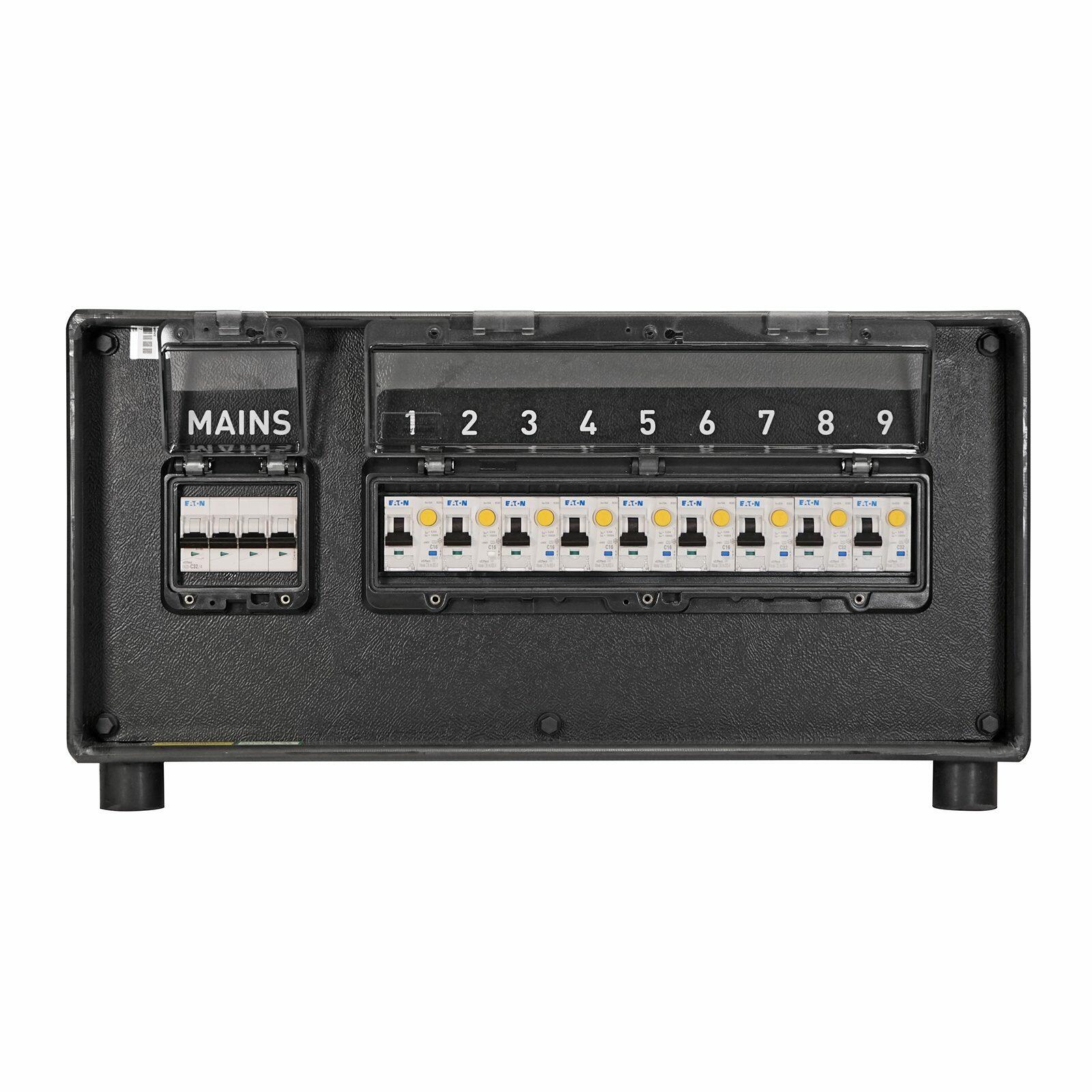

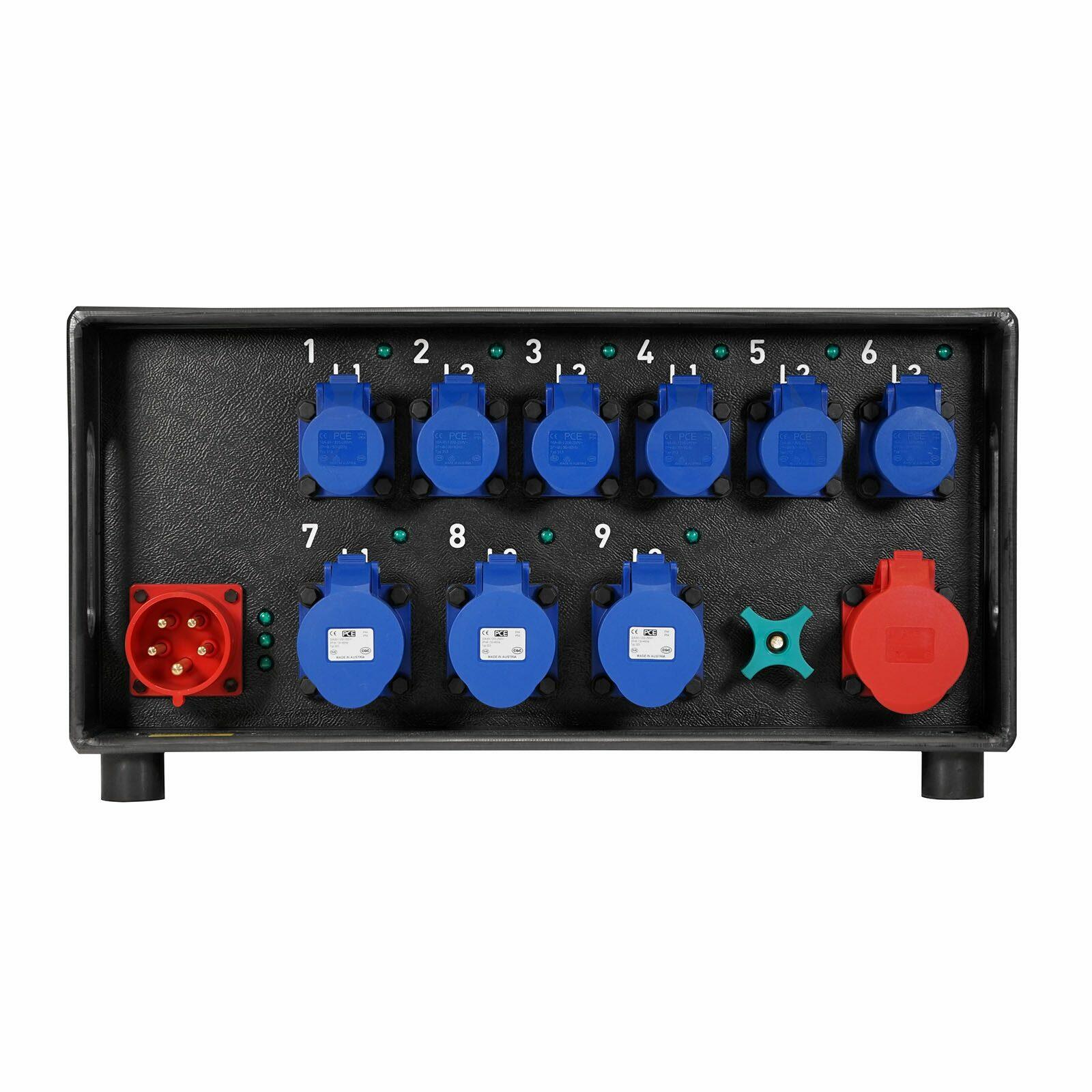

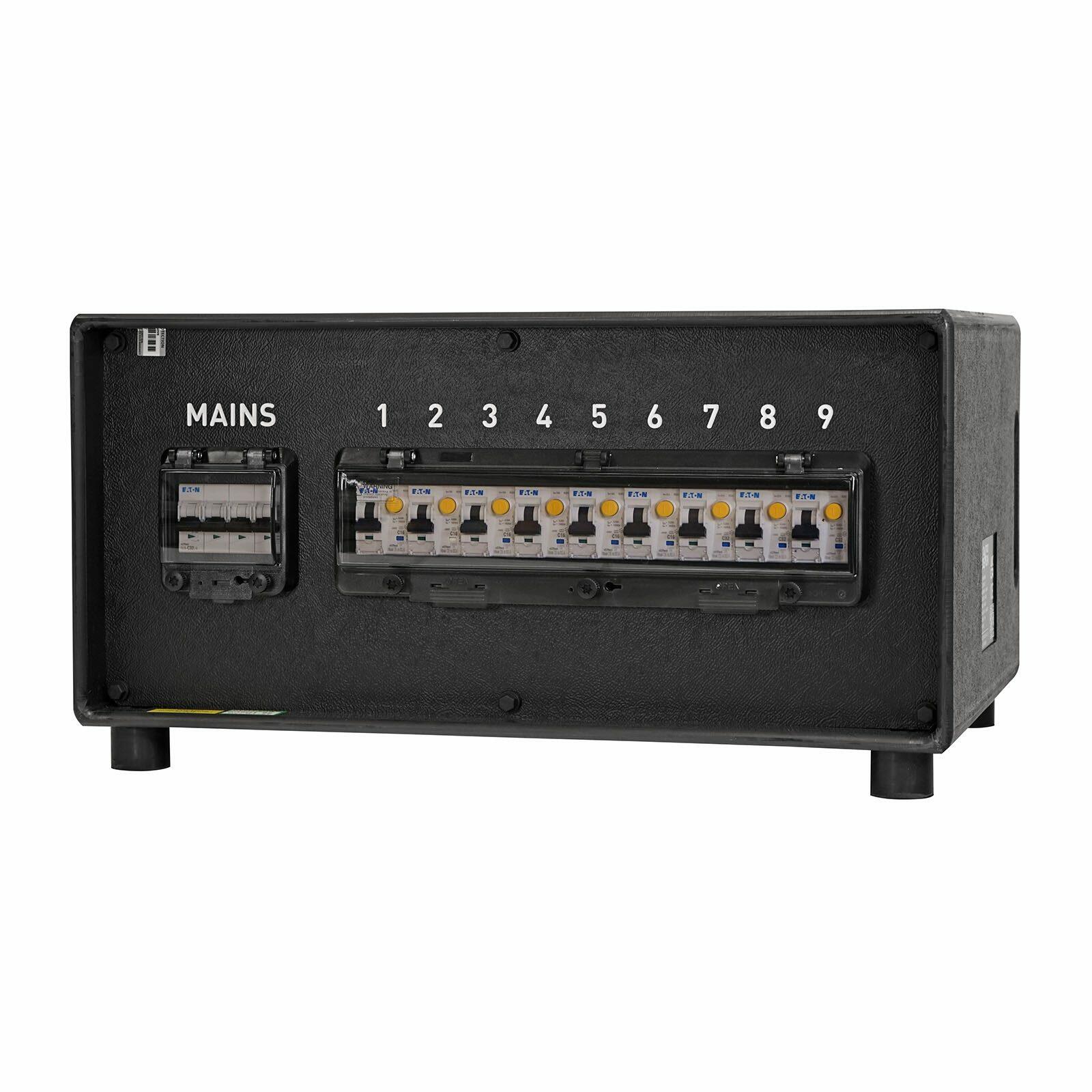

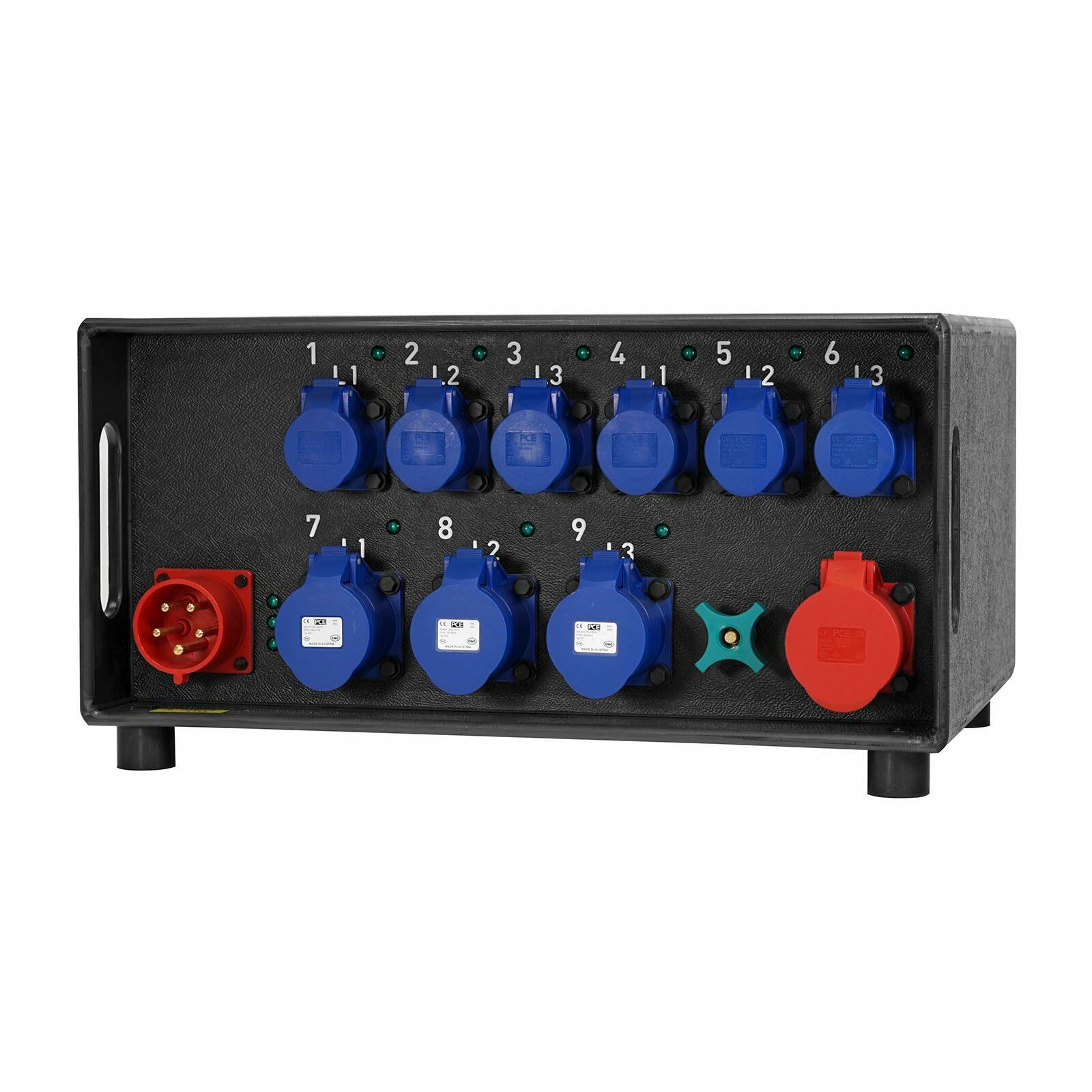

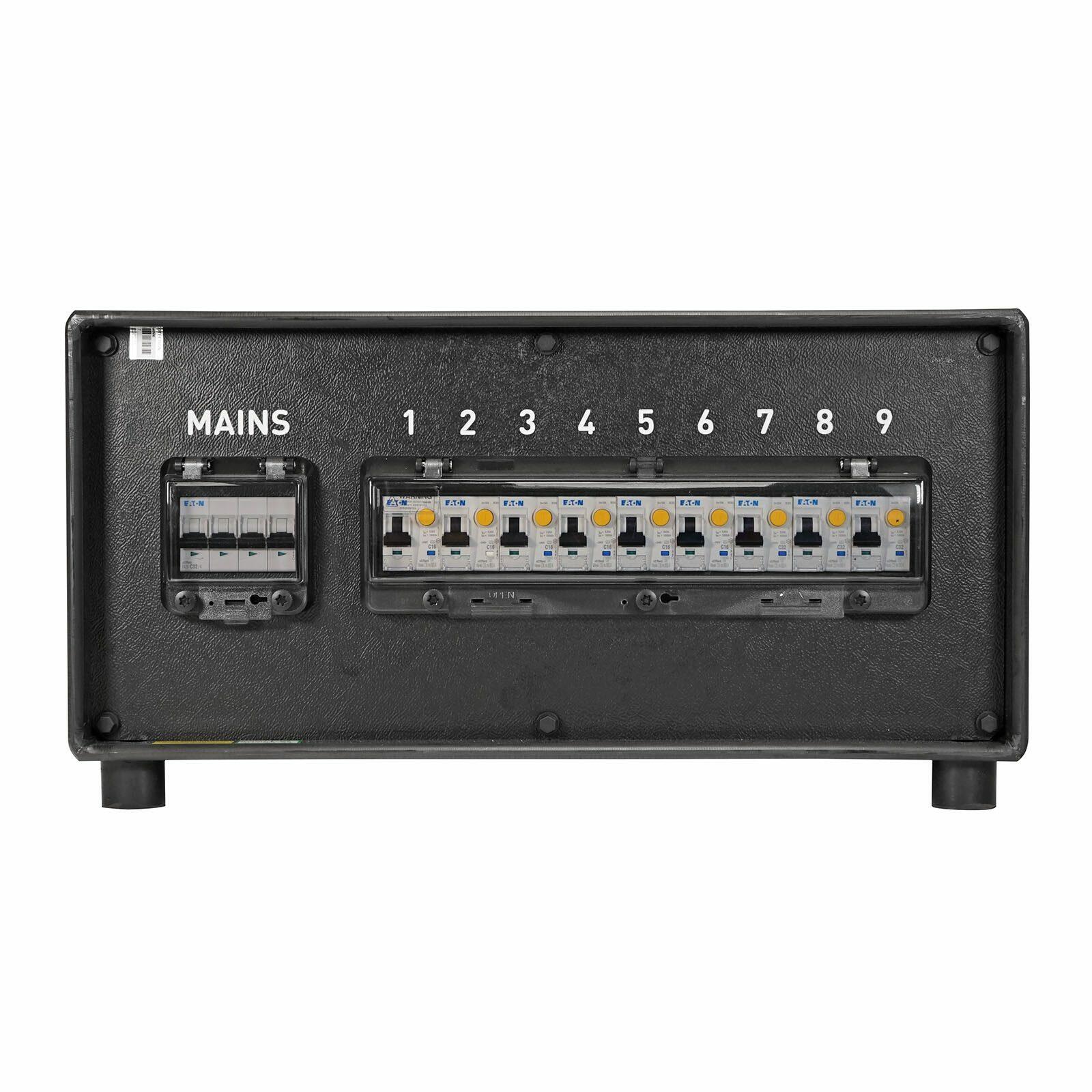

Made in Britain 32A three phase input with link output Earth studInput: 32A 3PH appliance inlet with neon indicators protected by an overall 32A 4-Pole MCB Outputs:1 x 32A 3PH unprotected link out 3 x 32A 1PH panel sockets with neon indicators protected by:6 x 32A 2-Pole 30mA RCBO’s 6 x 16A 1PH panel sockets with neon indicators protected by:12 x 16A 2-Pole 30mA RCBO’s
Dimensions (H x W x D): 297 x 572 x 418mm Weight: 16.0kg

---
