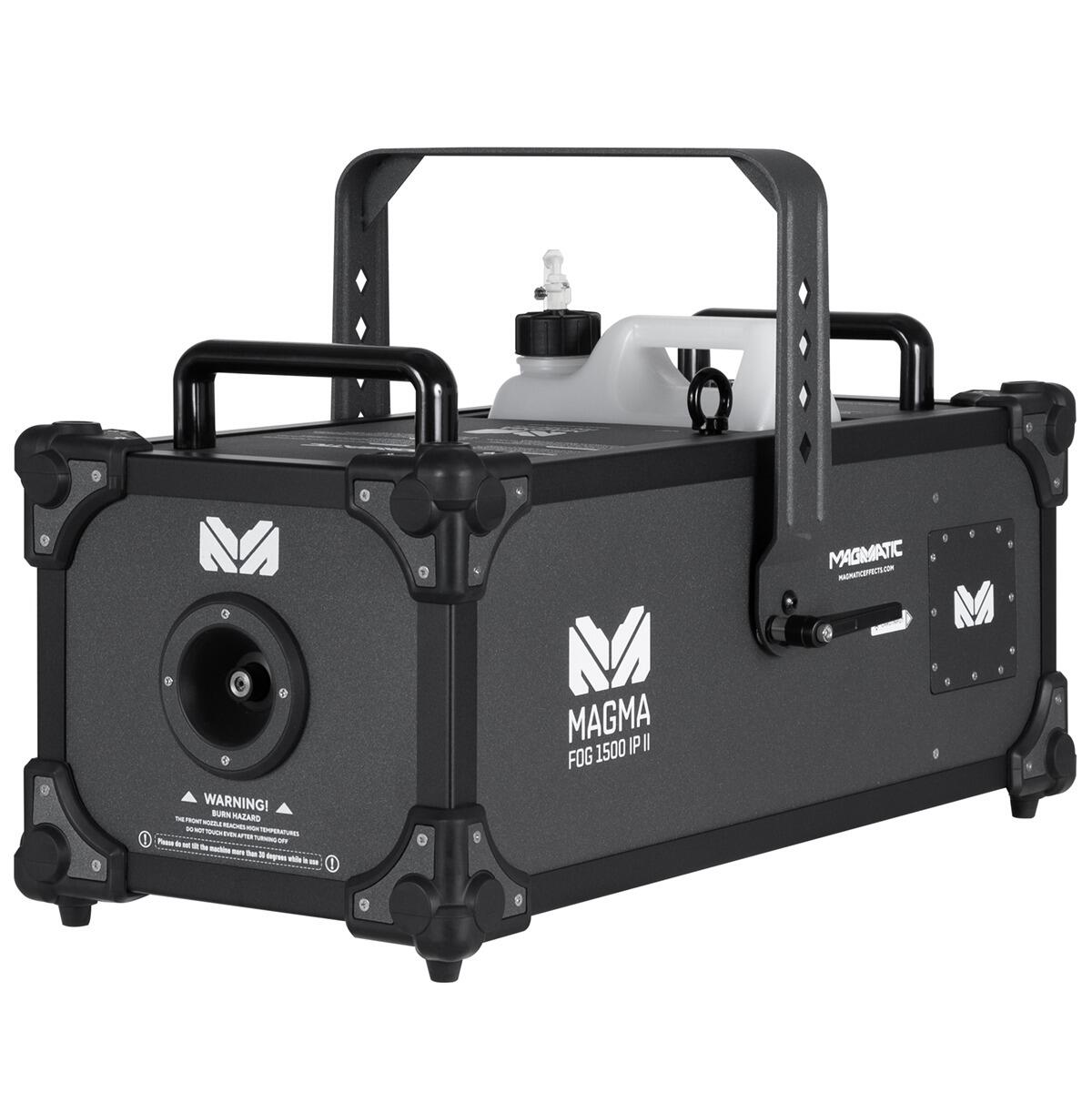

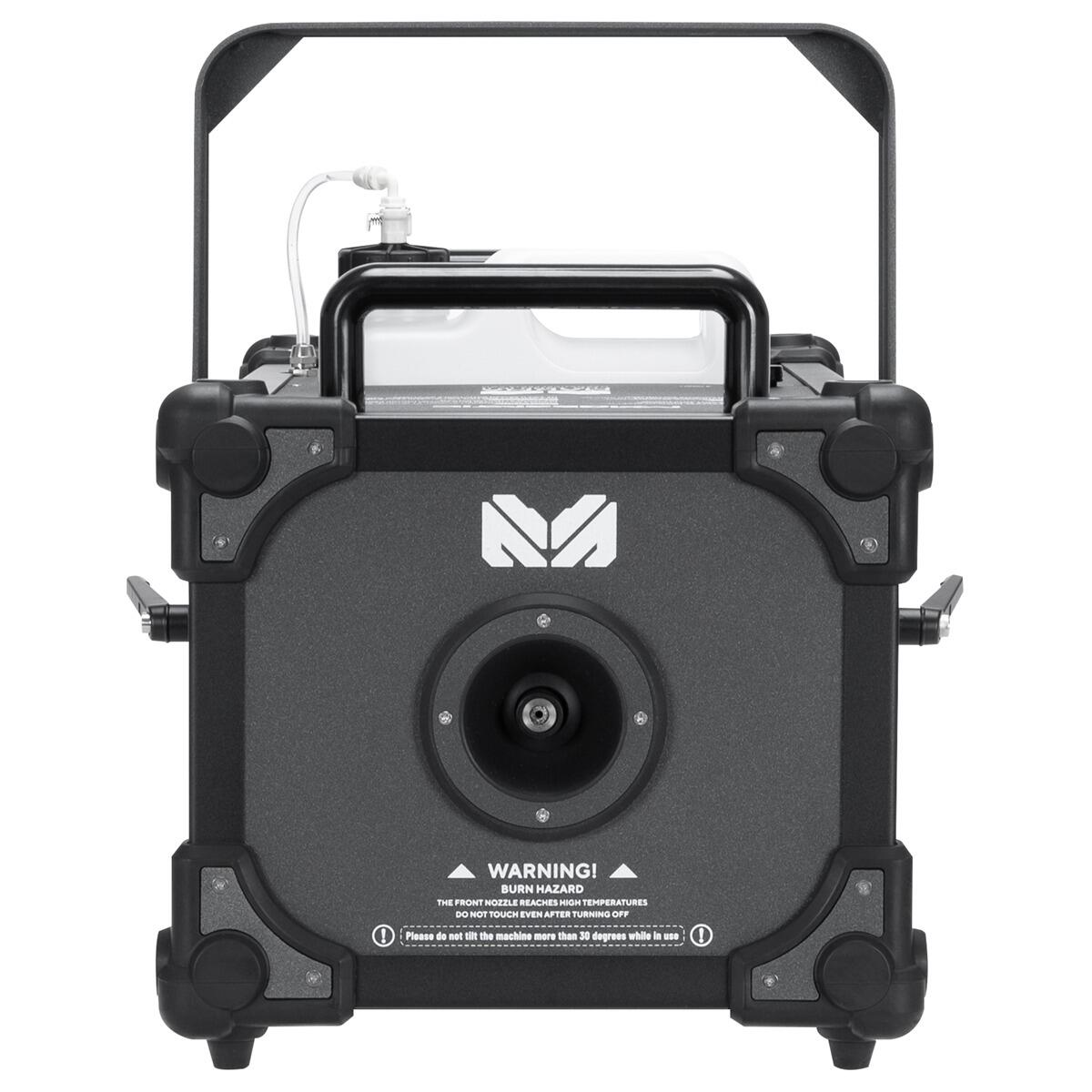

Elation Lighting Magma Fog 1500IP - IP67 Rated Fog Machine

SKU: ELA0182

Lead time - 6-7 weeks

Elation Lighting

The MAGMA FOG 1500 IP-II, is a 1500W water based, IP67 rated fog machine with a maximum output of 60,000 CFM (cu ft/min).

Features include an easy-to-use onboard LCD touch screen, an intuitive DMX-512 and RDM control, and optional wired and wireless remote-control. Each MAGMA FOG 1500 IP-II comes equipped with a thermally protected heat exchanger that has an initial warm up time of 14 minutes, with a fluid consumption rate of 6.76 oz (200 ml/min).

This unit is designed with a durable aluminum housing, IP65 locking power in, IP65 locking 5pin XLR connectors (DMX In/Out), a 5-liter (1.32 gallon) tank, two heavy duty carry handles, and a hanging bracket for truss mounting.?

Features

1500W IP67 water-based fogger

60,000 CFM (cu ft/min) maximum output

Thermally protected heat exchanger

Intuitive DMX-512 and RDM control

Onboard LCD touchscreen

Optional wireless and wired remotes

Specifications

PERFORMANCE

Rated Power: 1500W

Max Output: 60,000 CFM* (cu ft/min.)

Ready Time: Initial = 14 Minutes*

Fluid Capacity: 1.32 gallons (5 liters)

Fluid Consumption: 6.76 oz/min (200 ml/min)

*approximate

COMPATIBLE FLUID

Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L)

CONSTRUCTION

Thermally Protected Heat Exchanger

Rugged Case Design

Convenient Carry Handles

CONTROL

3 DMX Channel Modes (1 / 2 / 4)

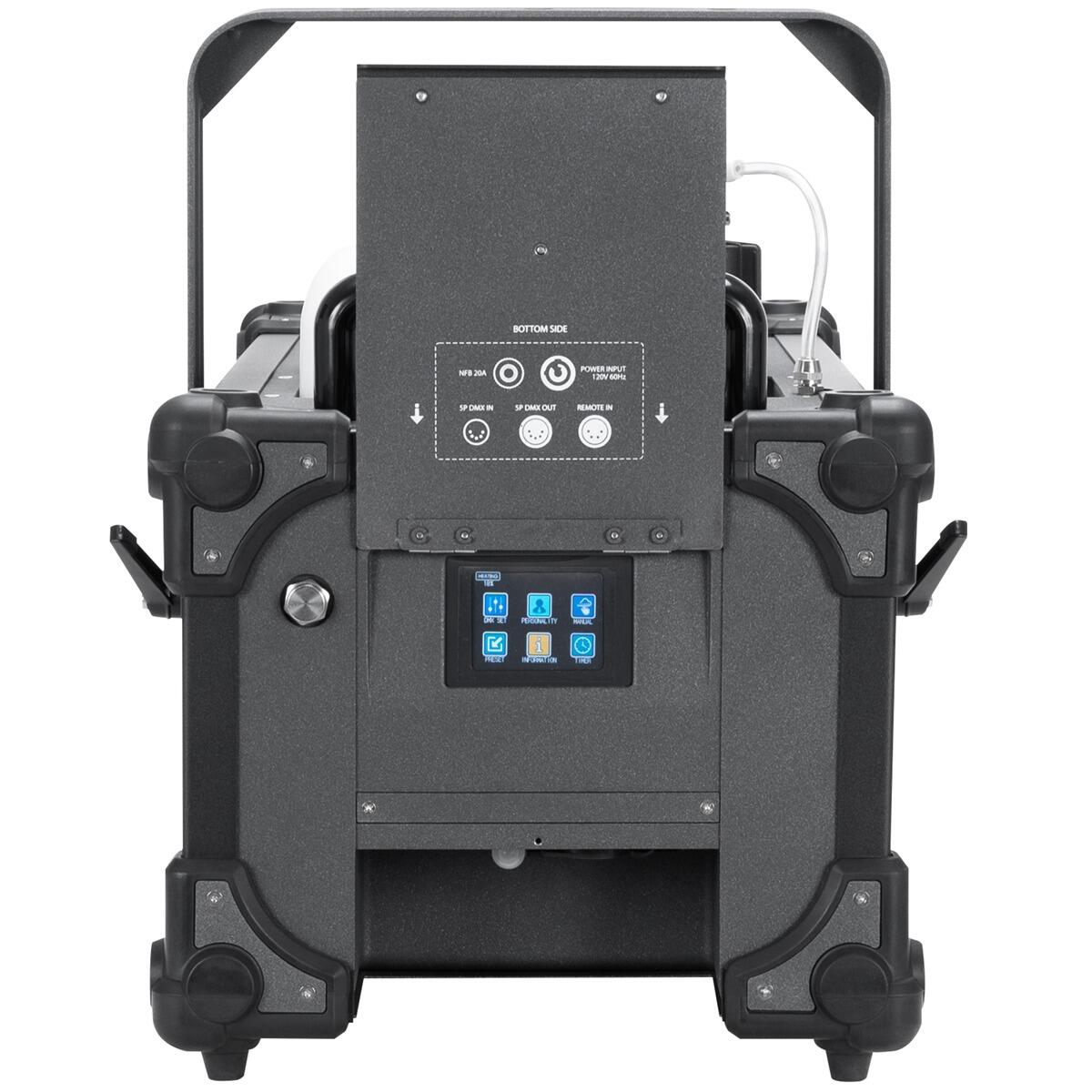

Onboard LCD Touch Control Panel

DMX-512 and RDM Protocol Support

Optional MAGFLY Wireless DMX Transceiver

Optional MAGRF Wireless and MAGREMOTE Wired Remotes

CONNECTIONS

Locking 5pin XLR Connector, DMX In/Out

IP67 Locking Power Connector In

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 25.5 in. (648mm)

Width: 14.6 in. (372mm)

Height: 16.2 in. (411mm)

Weight: 74.3 lbs. (33.7kg)

ELECTRICAL

AC120V 60Hz (US Version)

AC230V 50Hz (EU Version)

20A @ 120VAC(NFB)

10A @ 230VAC - 240VAC

Max Power Consumption: 1600W

THERMAL

Maximum Ambient Temperature (Ta max) 104F (40C)

Exterior Surface Temperature, Steady State: 149F (65C)

ACCESSORIES

MagFLY (MSR934) Wireless DMX Transceiver Module

MagRF (MSR912) RF Module and Wireless Remote

APPROVALS / RATINGS

CE | IP67
