Eagle High Quality Toroidal Transformer, Outputs (V ac) 0-12, 0-12, P042L - EAGLE
roll over the image to zoom in

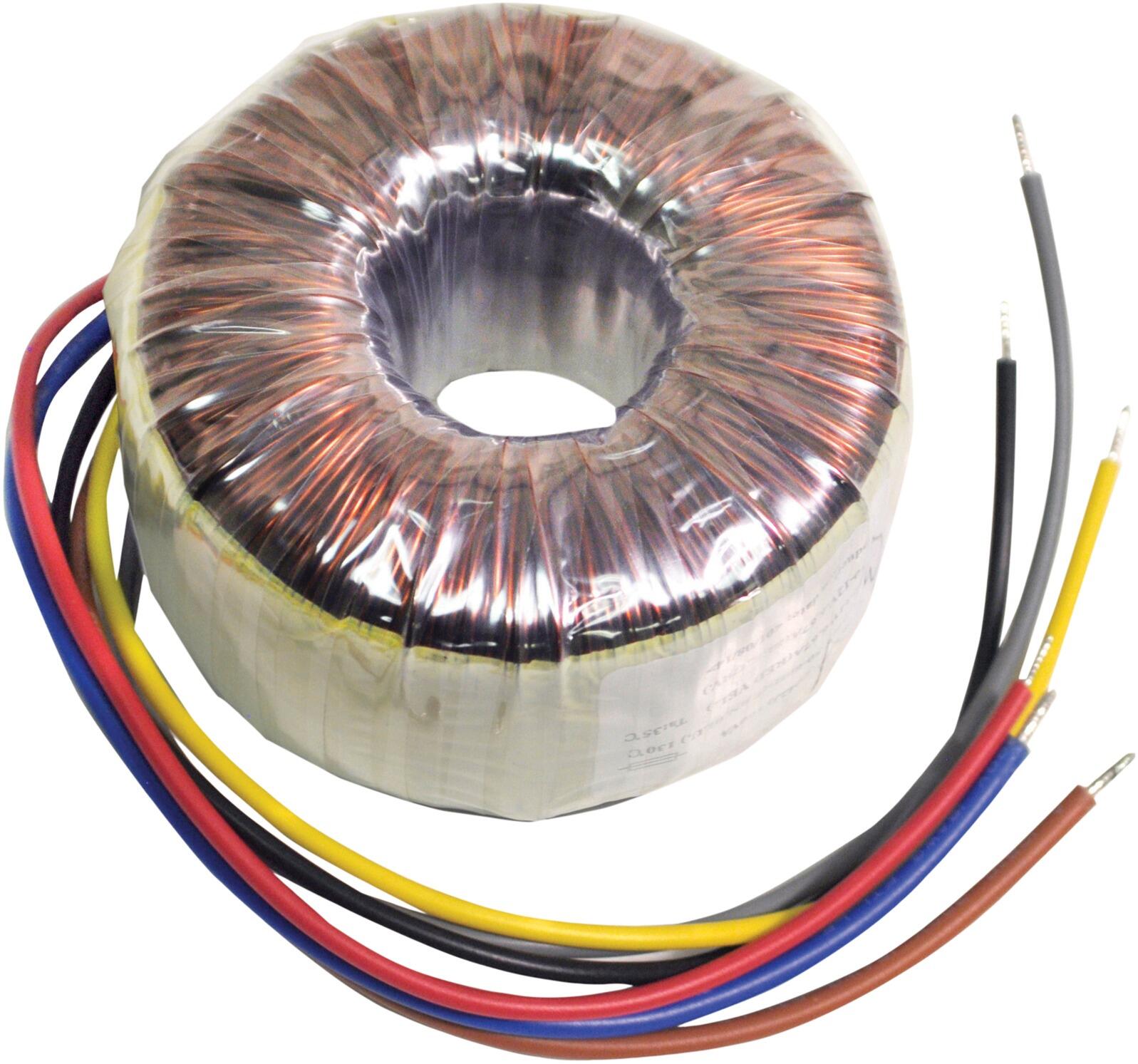

Eagle High Quality Toroidal Transformer, Outputs (V ac) 0-12, 0-12, P042L
SKU:
P042L
EAGLE
Eagle High Quality Toroidal Transformer, Outputs (V ac) 0-12, 0-12, P042L
High quality toroidal transformers. Type tested to 4kV. High power density for size, low magnetic interference. All primary windings rated at 220/240Vac. Supplied with fixing kit.
P042J | P042L | |
|---|---|---|
| Dimensions (mm) | 95x95x55 | 105x105x55 |
| Fixing Centres (mm) | Single Bolt | Single Bolt |
| Outputs | 0-12,0-12 Vac | 0-12,0-12 Vac |
| Outputs (V ac) | 0-12, 0-12 | 0-12, 0-12 |
| Power (VA) | 160 | 225 |
| Power (W) | 160 | 225 |
| Power Input | 220-240 ac@50HZ | 220-240 ac@50HZ |
| Product Dimensions (mm) | 75x95x95 | 65x110x110 |
| Net weight (kg) | 1.653 | 2.13 |
£34.33
£45.77
