Doughty T5885501 - 32mm Atom beamer Clamp - Black - Doughty Engineering
roll over the image to zoom in
Doughty T5885501 - 32mm Atom beamer Clamp - Black
SKU:
T5885501
Carriage is approximately 2 to 4 working days on this Brand
Doughty Engineering Doughty T5885501 - 32mm Atom beamer Clamp - Black
A high tensile extruded aluminium clamp that is suitable for 32mm (1.25) diameter tubes. It has a WLL of 100Kg and is 30mm wide factory fitted with a 16mm diameter spigot. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
TV APPROVED
| Specification | |
| WLL | 100kg vertical load |
| Finish | Black |
| Tube Diameter | 32mm |
| Clamp Width | 30mm |
| Spigot | 16mm |
| Max Tightening Torque | Hand-Tighten |
| Materials | Main Body - AW6082 T6 Aluminium? Roll Pins - Stainless Steel? Eyebolt Assy - Grade 8.8 |
| Weight | 0.10kg |
| Approval | TV Approved |
£16.20
£19.78
Related Products...
Global Truss Half Coupler Outdoor Black (823OUTDOOR-B)
Global Truss Half Coupler Outdoor Black (823OUTDOOR-B)For tubes 48-51mm in diameterWLL: 500kgLight fixing: M10Dimensions: 116 x 110 x 50mm
£19.00View details
Global Truss 50mm Half Coupler with 28mm Spigot (Big Ben) (822)
Global truss 50mm Half Coupler with 28mm Spigot Features Supports truss from 4851mm, 28mm Spigot, SWL: 500kg Specification: Dimensions: 210 x 110 x...
£22.00View details
Doughty T58081 - Lightweight Slimline Half Coupler (Black)
Doughty T58081 - Lightweight Slimline Half Coupler (Black)Doughty Lightweight Slimline Half Coupler (Black) The Slimline Lightweight Half Coupler i...
£26.18£31.94View details
Doughty T45821 - Mammoth Clamp With Half Connector - Black
Doughty T45821 - Mammoth Clamp With Half Connector - BlackA large range of aluminium clamps factory fitted with half conical connectors. Used to suspe...
£56.29£68.69View details
Doughty T57220 - 2 Inch Tee Bar Stand Top
Doughty T57220 - 2 Inch Tee Bar Stand Top2 Inch Tee Bar Stand Top, Fits All Doughty Stands The Stand Adaptor enables a 48 - 51mm OD tube to be mounted...
£53.59£65.39View details
Global Truss Half Coupler to PL Half Conical for F31/F32/F33/F34 (5034PL)
Global Truss F31/F32/F33/F34 Half Coupler to Half Conical (5034PL). Features For tubes 4851mm in diameter, SWL: 500kg Specification: Dimensions: 13...
£18.90View details
Global Truss Half Coupler With Conical Receiver Silver (5034-1PL M12)
Global Truss Half Coupler With Conical Receiver Silver (5034-1PL M12). For tubes 4851mm in diameter, SWL: 500kg
£23.50View details
Doughty T45831 - S/L Q/Trigger Clamp With Half Connector - Black
Doughty T45831 - S/L Q/Trigger Clamp With Half Connector - BlackA large range of aluminium clamps factory fitted with half conical connectors. Used to...
£54.72£66.77View details

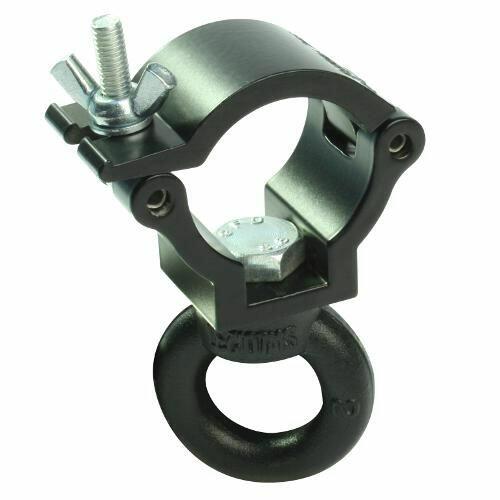

Doughty T5899001 Atom Hanging Clamp To Suit 1 1/2 Inch,(38mm) Black
