- Doughty T37630 30SV Reutlinger Cable Grip M10 Male
Doughty T37630 30SV Reutlinger Cable Grip M10 Male - Doughty Engineering
roll over the image to zoom in
Doughty T37630 30SV Reutlinger Cable Grip M10 Male
SKU:
T37630
Carriage is approximately 2 to 4 working days on this Brand
Doughty Engineering Doughty T37630 30SV Reutlinger Cable Grip M10 Male
A Type 30SV Reutlinger Cable Holder with an M10 Male thread. Suitable for 3mm steel wire rope these cable holders have been specifically designed for applications which demand compliance with BGV C1, such as stage productions, fair booths, etc.
Reutlinger cable holders can be repositioned without damaging the cable and no tools are necessary.
| Specification | |
| WLL | 84kg -?3mm Stainless Steel Wire 102kg - 3mm Zinc Plated Wire |
| Finish | Black |
| Holder Diameter | 15mm |
| Wire Diameter | 3mm |
| Thread | M10 |
| Thread Length | 9mm |
| Weight | 0.13kg |
£18.44
£20.10
Earn0
reward points
reward points
Related Products...
Doughty T37660 66SV II M16 Male
Doughty T37660 66SV II M16 MaleA Type 66SV Reutlinger Cable Holder with an M16 Male thread. Suitable for 6mm steel wire rope these cable holders have ...
£50.87£55.44View details
Doughty T38700 - Thimble 4mm - 5mm
Doughty T38700 - Thimble 4mm - 5mmDoughty Thimble 4mm - 5mm
£0.44£0.54View details
Doughty T37665 66SV III ZW with Fork-Side Exit Wire
Doughty T37665 66SV III ZW with Fork-Side Exit WireA Type 66SV Reutlinger Cable Holder with a fork and side exit for the wire. Suitable for 6mm steel ...
£70.56£76.91View details
Doughty T37656 50SV III ZW Reutlinger Cable Holder fitted with Ring-Side Exit Wire
Doughty T37656 50SV III ZW Reutlinger Cable Holder fitted with Ring-Side Exit WireA Type 50SV Reutlinger Cable Holder with a ring and side exit for th...
£39.32£42.86View details
Doughty T37500 - Strainer Eye To Eye
Doughty T37500 - Strainer Eye To EyeDoughty Strainer Eye To Eye M8 x 125mm Barrel strainers are used to tension wire rope assemblies.
£7.16£8.75View details
Doughty T39600 - Strainer Hook And Eye
Doughty T39600 - Strainer Hook And EyeDoughty Strainer Hook And Eye M10 x 150mm Barrel strainers are used to tension wire rope assemblies.
£8.58£10.46View details
Doughty T405001 - Wire Rope Galvanised - 100m x 2mm Black
Doughty T405001 - Wire Rope Galvanised - 100m x 2mm BlackA range of black galvanised steel wire rope supplied in 100M drums.?100m x 2mm BlackSpecifica...
£86.54£105.60View details

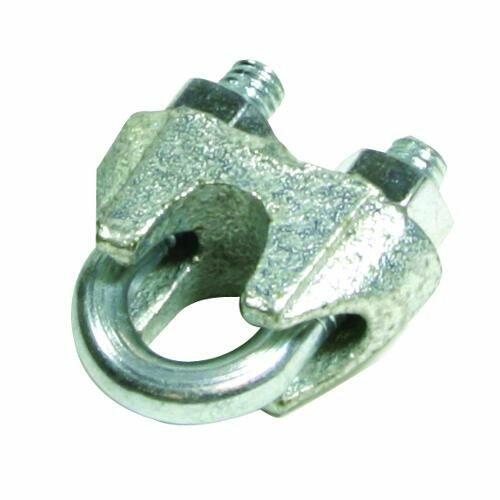

Doughty T38100 - Cable Grip 4mm - 5mm
Doughty T38100 - Cable Grip 4mm - 5mmDoughty Cable Grip 4mm - 5mm
£0.38£0.46View details
Doughty T37664 66SV III ZW with T58101 Clamp
Doughty T37664 66SV III ZW with T58101 ClampA Type 66SV Reutlinger Cable Holder fitted with a T58081 half coupler and side exit for the wire. Suitable...
£100.87£109.96View details
Doughty T38200 - Cable Grip 6mm - 7mm
Doughty T38200 - Cable Grip 6mm - 7mmDoughty Cable Grip 6mm - 7mm
£0.44£0.54View details
Doughty T40200 - Wire Rope Galvanised - 100m x 5mm Silver
Doughty T40200 - Wire Rope Galvanised - 100m x 5mm SilverA range of silver galvanised steel wire rope supplied in 100M drums.?100m x 3mm SilverSpecifi...
£88.50£107.98View details
Doughty T37662 66SV III with fork
Doughty T37662 66SV III with forkA Type 66SV Reutlinger Cable Holder with a fork. Suitable for 6mm steel wire rope these cable holders have been speci...
£61.94£67.51View details
Doughty T37651 50SV III Reutlinger Cable Holder fitted with Ring.
Doughty T37651 50SV III Reutlinger Cable Holder fitted with Ring.A Type 50SV Reutlinger Cable Holder with a fork. Suitable for 4 or 5mm steel wire rop...
£30.91£33.70View details
Doughty T401001 - Wire Rope Galvanised - 100m x 4mm Black
Doughty T401001 - Wire Rope Galvanised - 100m x 4mm BlackA range of black galvanised steel wire rope supplied in 100M drums.?100m x 4mm BlackSpecifica...
£132.11£161.18View details
Doughty T40300 - Wire Rope Galvanised - 100m x 6mm Silver
Doughty T40300 - Wire Rope Galvanised - 100m x 6mm SilverA range of silver galvanised steel wire rope supplied in 100M drums.?100m x 6mm SilverSpecifi...
£126.52£154.37View details

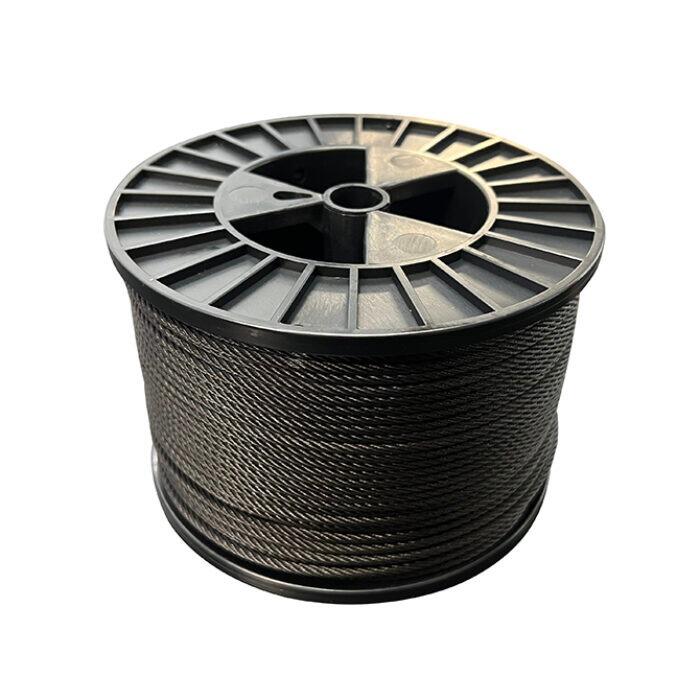

Doughty T402001 - Wire Rope Galvanised - 100m x 5mm Black
Doughty T402001 - Wire Rope Galvanised - 100m x 5mm BlackA range of black galvanised steel wire rope supplied in 100M drums.?100m x 3mm BlackSpecifica...
£219.89£268.27View details

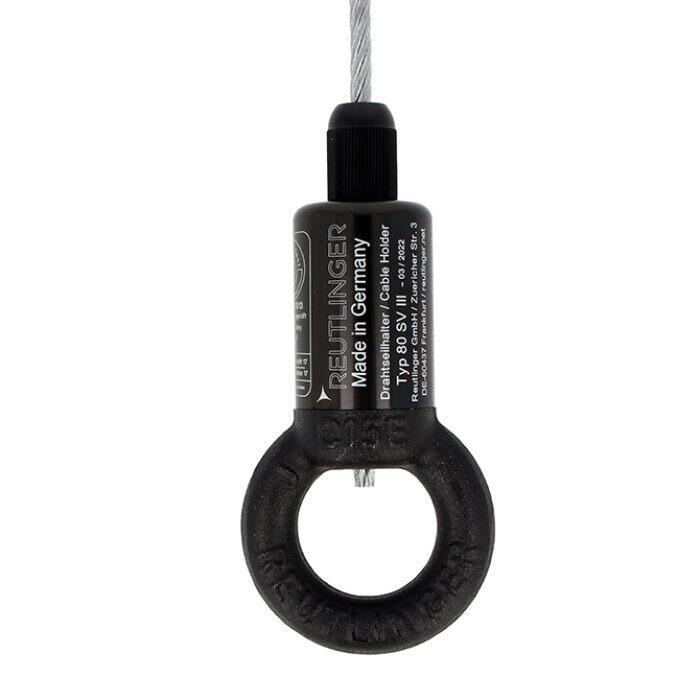

Doughty T37681 80SV III with Ring
