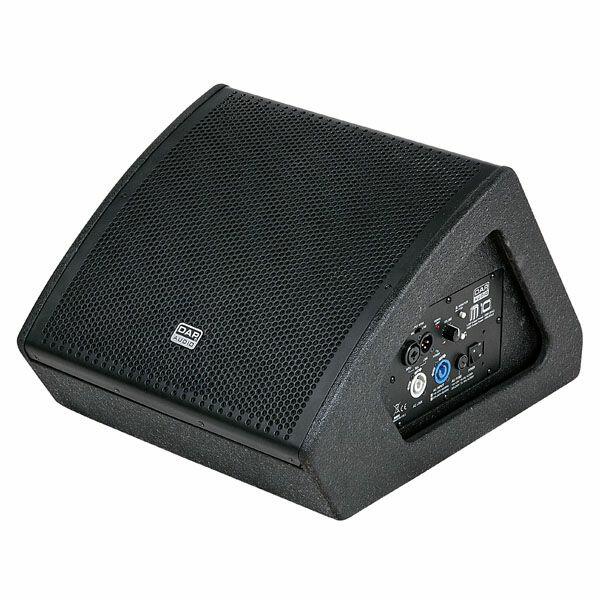

DAP M10 10" Monitor 350W

SKU: D3660
DAP

DAP M10 10" Monitor 350W
Mono Inputs: 1
Mono Input Connector: 3pole XLR / TRS balanced 6,3mm
Mono Balanced Input Nominal Level: 0 dBu
Mono Input Impedance: 15.000 Ω
Low Driver Power: 350 W
High Driver Power: 65 W
Amplifier RMS Output Power: 210 W
Amplifier Peak Output Power: 415 W
Main Outputs: 1
Main Output Connector: 3pole XLR
THD Distortion Level: < 0.5%
Signal - Noise Ratio: > 90dB
Amp Technology: Class D /Class H
Dampings Factor: 200 :1
Speaker System: 2-Way
Speaker Sensitivity (1w/1m): 97 dB
Max. SPL on 1m: 126 dB
Frequency Respons Minimum: 70 Hz
Frequency Respons Maximum: 20.000 Hz
Woofer Diameter: 10
Woofer Voice Coil: 2.5
Woofer Magnet Type: Ferrite
Compression Driver Diameter: 1
Compression Driver Voice Coil: 1
Compression Driver Magnet Type: Neodymium
Dispersion Angle Horizontal: 70 °
Dispersion Angle Vertical: 70 °
Power Supply: 240VAC 50Hz
Power Consumption: 350 W
Fuse: 3.15 A
Power Connector in: PowerCON Blue
Power Connector out: PowerCON Grey
Length (mm): 323 mm
Height (mm): 363 mm
Width (mm): 351 mm
Weight: 11,4 kg
IP Rating: IP20(indoor use only)
Material Thickness: 15 mm
Housing: Wood
Finish: Painted
Colour: Black
Amplifier Cooling: Axial fan
Electronic Protection: Clip limiter (fixed) / Convection-fan / DC voltage / Thermal
LED Indicators: Clip / Power
Polemount: 35 mm
Rotatable Horn: No
Useable as Monitor/Wedge: Yes
Speaker Grill: Steel
Speaker Handles: Left side / Right side
Castors: N/A
Reference Standard: CE / EMC / LVD / FCC / ETL / RoHS
Included Cables: PowerCon cable
Included Accessories: User Manual

---
