DAP DMX Lead, 3 pin XLR - 20 m
SKU:
FLX0920
DAP
The DAP FLX09 is a premium 3-pin DMX/AES-EBU cable, specifically designed for long-range digital signal transmission in demanding professional environments. With a 20-metre length, this cable offers extended reach while maintaining 110-Ohm impedance for reliable DMX lighting control or AES/EBU audio connections.
Equipped with robust DAP connectors, this lead includes changeable colour rings for fast and easy identification during setup. It also features a hook-and-loop fastener, ensuring neat cable management before, during, and after performances or installations.
Designed for professionals, the DAP FLX09 20M DMX Lead provides the perfect balance of signal integrity, length, and durability, making it a reliable choice for extended setups in any live or studio environment.
reward points
- Product Features
110-Ohm DMX cable for accurate AES/EBU and DMX signal transmission
20 m cable length – ideal for extended cable runs on stage or in large venues
3-pin XLR connectors with customisable colour rings
Includes hook-and-loop fastener for secure and tidy storage
Durable build for touring, stage, and studio use
- Technical Specification
Specification Connector 1 XLR 3 Pin Connector 2 XLR 3 Pin Impedance 110 Ohms Cable Length 20m Pins 3 Conductor Resistance 80 Ohms/km Capacity Inner Conduct. Shield/Inner Conduct. 47 pF/m Wire Connection 0.22 mm2 Outer Cable Diametre 5.8mm Outer Isolation Type PVC Contact Type Silver Plated 1st Shield Braided Tinned Copper 2nd Shield Aluminium Foil Shield Resistance 30 Ohms/km Filler Material Cotton Conductors 2 Maximum Ambient Temperature 70 Degrees C Minimum Ambient Temperature -20 Degrees C IP Rating IP20 Material Copper, PVC Colour Black Weight 0.836kg
Related Products...
DAP DMX Lead, 5 pin XLR 10m
View details
StageCore SCDMX3M-5F DMX Adaptor Lead, 3 Pin Male XLR 5 Pin Female XLR, Length 0.20m BLACK - (90546) 200mm
View details
eLumen8 DMX Lead, Neutrik 5-Pin XLR -TOP IP65, 50m
View details

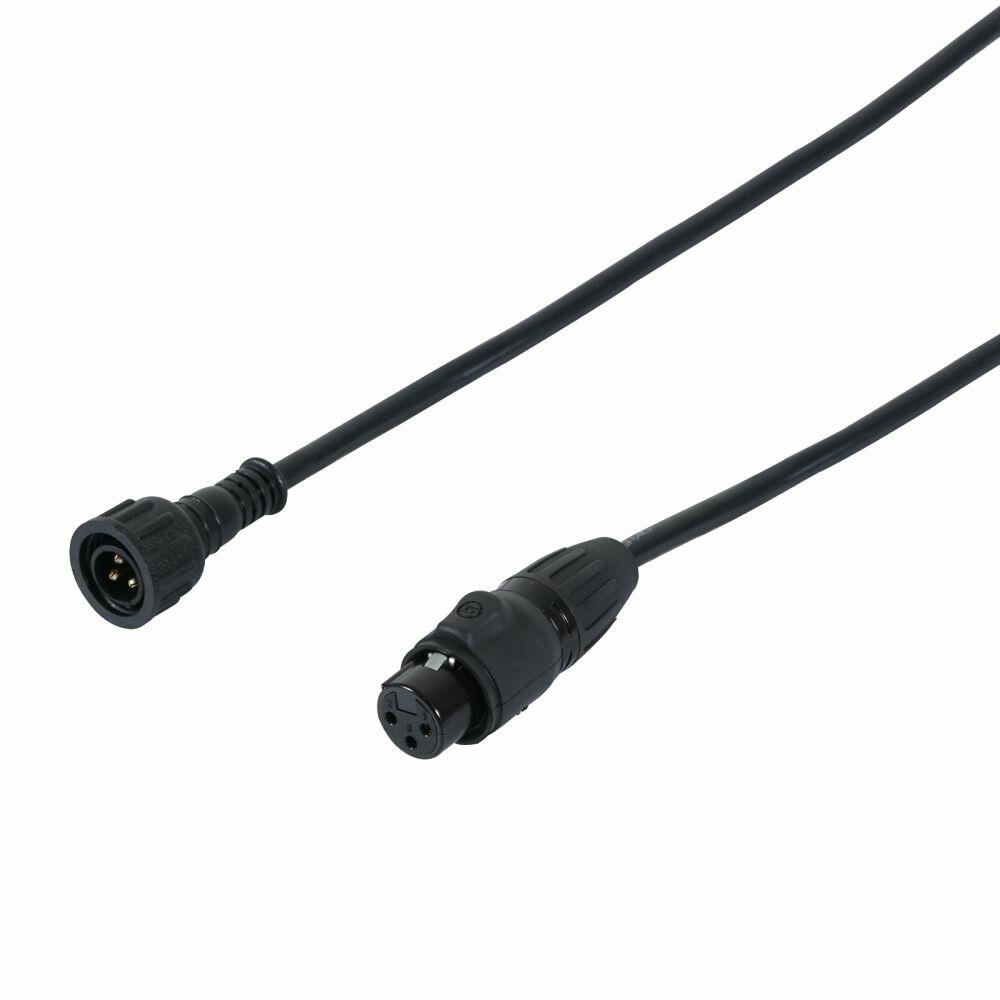

LEDJ DMX Lead, Exterior IP Male to Seetronic IP XLR 3-Pin Female, 2m, CABL527
View details

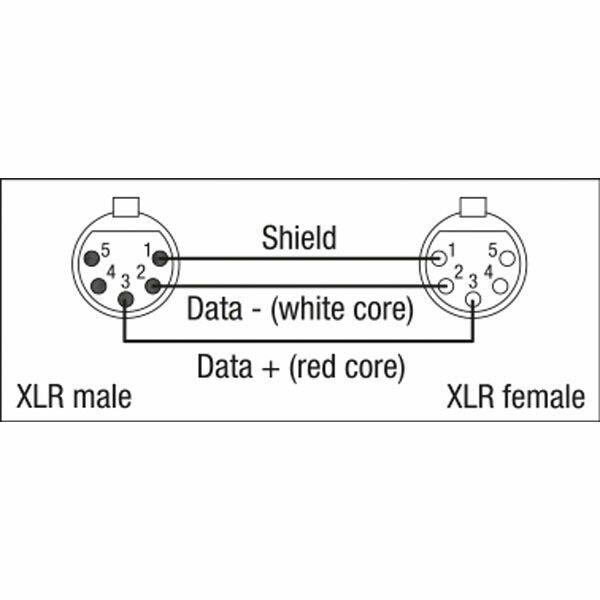

DAP DMX Cable 5 pin Neutrik XLR 3m
View details
LEDJ Seetronic IP 3 Pin Male XLR to 3 Pin Female XLR DMX Lead, 10m, CABL545
View details
DAP DMX Lead, 3 pin XLR - 75 cm
View details
eLumen8 5-Pin Neutrik XLR 50m DMX Lead - Black
View details
eLumen8 5-Pin Neutrik XLR 2m DMX Lead - Black
View details
LEDJ Seetronic IP 3 Pin Male XLR to 3 Pin Female XLR DMX Lead, 20m, CABL547
View details
LEDJ DMX Lead, Seetronic IP XLR 5 Pin Male to Exterior IP Female, 2m, CABL532
View details
LEDJ DMX Lead, 3 pin Male XLR to 3 pin Female XLR, 10m, CABL12
View details

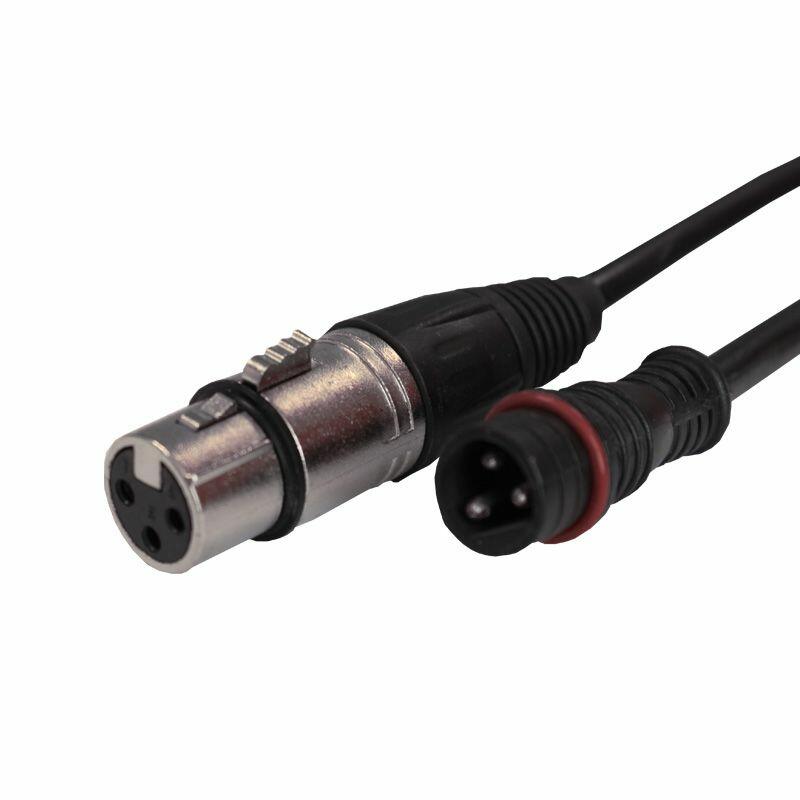

LEDJ Exterior DMX Lead, 3 pin XLR Female to Exterior IP Male, 1m, LEDJ92
View details
LEDJ Seetronic IP 3 Pin Male XLR to 3 Pin Female XLR DMX Lead, 1m, CABL548
View details
DAP Digi Quad 5 pin Neutrik XLR 150cm
View details

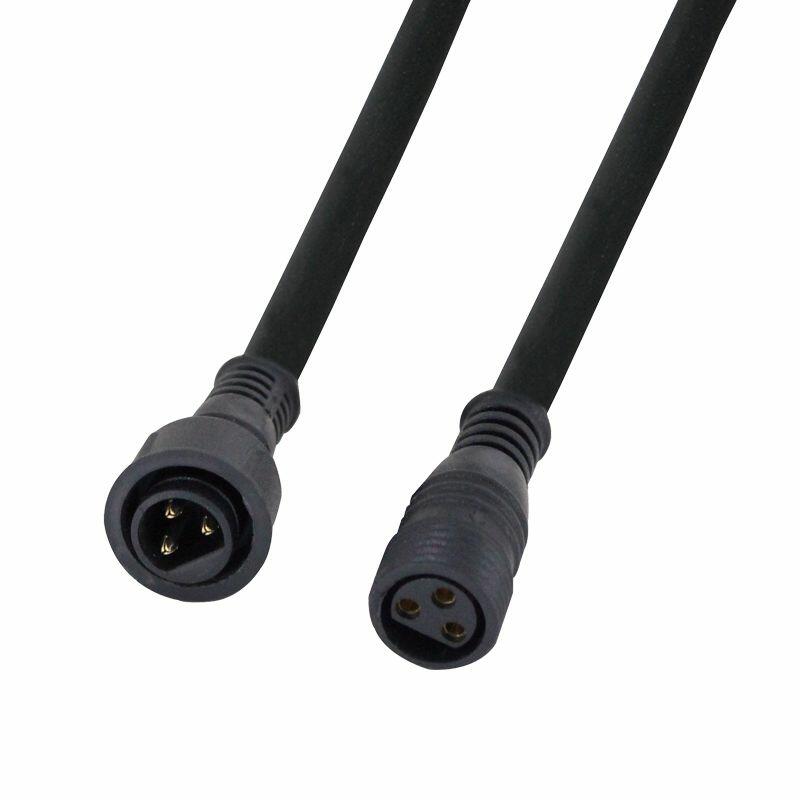

LEDJ Exterior Spectra Series PowerLead, 3 Pin Male to Female Lead, 15m, LEDJ149A
