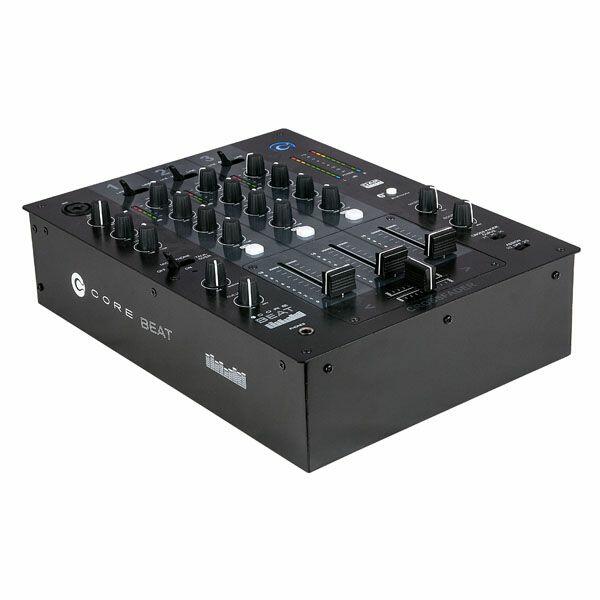

DAP CORE Beat 3 Channel dj mixer.
SKU:
D2313
DAP
DAP CORE Beat 3 Channel dj mixer.
Mono Inputs: 1
Mono Input Connector: 3pole XLR / TRS balanced 6,3mm
Stereo Inputs: 6
Stereo Input Connector: RCA
Main Outputs: 1
Main Output Connector: RCA
Monitor Output: 1
Monitor Output Connector: RCA
Headphone Output: 1
Headphone Output Connector: TRS balanced 6,3mm
Record Output: 1
Record Output Connector: RCA
THD Distortion Level: < 0.05%
Signal - Noise Ratio: > 85dB
Signal - Noise Ratio Mic: > 80dB
Signal - Noise Ratio Line: > 85dB
Crosstalk: 75 dB
Frequency Respons Minimum: 20 Hz
Frequency Respons Maximum: 20000 Hz
Phantom Power: No
Parametric Channel Equalizer: 3 Bands
Channel Input Equalizer Range: 12 dB
Channel Input Fixed Frequencies: 100, 1.000, 10.000 Hz
Microphone Input Equalizer Range: 12 dB
Parametric Microphone Equalizer: 2 Bands
Microphone Input Fixed Frequencies: 100, 10.000 Hz
Bluetooth Audio Profile: A2DP
Bluetooth Range: 25 m
Power Supply: 240VAC 50Hz
Output Voltage: 15VAC
Power Consumption: 8 W
Power Connector in: Low Voltage DC plug
Length (mm): 331 mm
Fader Length: 60 mm
Height (mm): 84 mm
Width (mm): 247 mm
Weight: 41 kg
Flightcase Size: 12"
IP Rating: IP20(indoor use only)
Housing: Metal
Colour: Black
LED Indicators: BT Pairing / Input level / Output level / Power
Reference Standard: CE
Included Cables: N/A
Included Accessories: Adapter / User Manual
