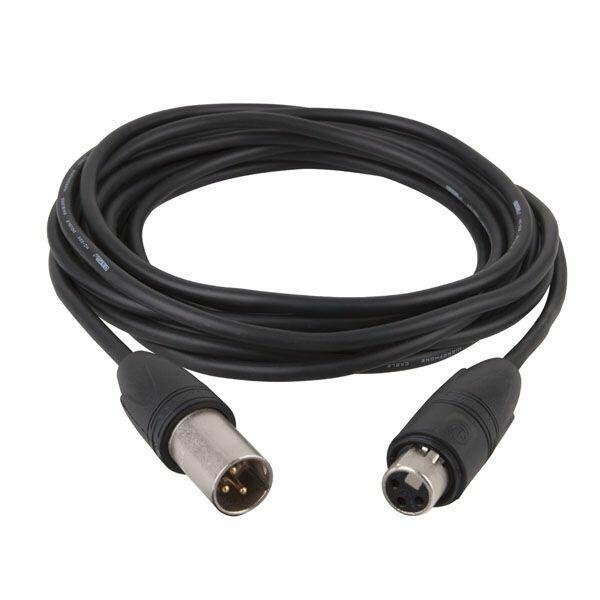

DAP Neutrik XLR-XX-HD M/F IP65 Audio Lead, 1.5m

SKU: FL73150
DAP

DAP 1,5 mtr Neutrik XLR-XX-HD M/F IP65 Audio Lead
Connectors: Neutrik NC3MXX-HD & NC3FXX-HD (IP 65)

Specifications Cable
Conductor drains Ø mm: OFC 15 x 0,12
Conductor insulation: PE red+white
Conductor insulation: 1,5 (Ø in mm)
1st shield: 2 x Conductive plastic
2nd shield: OFC twisted 96 x 0,12
Outer isolation: PVC black
Outer isolation Ø: 6 mm

Conductor resistance: 90 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m
Working temperature min. / max.: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm

---
