CYP PU-HBTE-ZE HDBaseT Zone Extender 1 x HDMI / 1 x HDBaseT out

SKU: CYP PU-HBTE-ZE

Product Discontinued - Please contact us for alternatives

CYP

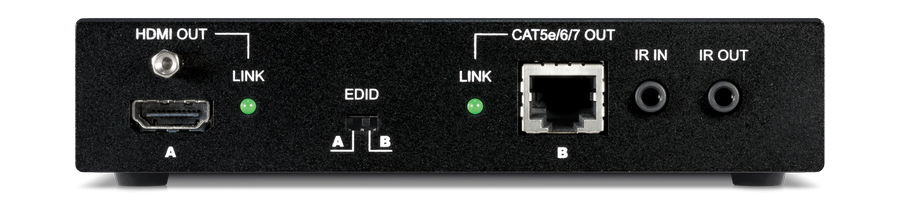

,The PU-HBTE-ZE HDBaseT Zone extender is designed to allow AV integrators to easily create additional zones for any HDBaseT distribution system whilst enabling the HDBaseT pass-through signal to be extended further over CAT5e/6/7 (up to 100m). This device supports the transmission of video (resolutions up to 1080p Full HD, plus 4K Ultra High Definition, and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS-232 or Web GUI/Telnet IP over a single CAT5e/6/7 cable. The Zone extender allows signals to be transmitted up to 100m from the transmitter device to the Zone extender where the signal can be routed to a local display via the HDMI output. The signal is also transmitted simultaneously via the HDBaseT output enabling it to be distributed up to 100m over CAT5e/6/7 from the zone.  The PU-HBTE-ZE Zone extender utilises PoC (Power over Cable) to provide power to the connected Receiver unit, thus no requirement for a PSU on the Receiver end. This device can be cascaded multiple times to create additional zones.
