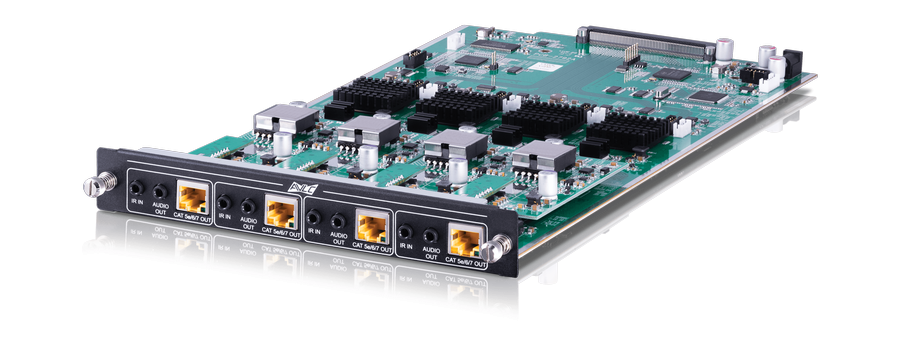

,,Part of the brand new CYP Modular Matrix series the OUTX-2100-AVLC is designed to be integrated with the MODX-1616 Modular Matrix. Featuring 4 x HDBaseT outputs capable of delivering video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be received along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN from a distance of 100m. HDBaseT 2.0 technology provides advanced signal management ensuring reliable results in the most demanding of installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable.



Despite the 10.2Gbps limitation of HDBaseT technology, this groundbreaking product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter card enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be transmitted to a PUV-2100RX-AVLC. The result is a perfect 6G 4K visually lossless image delivered to the display.
